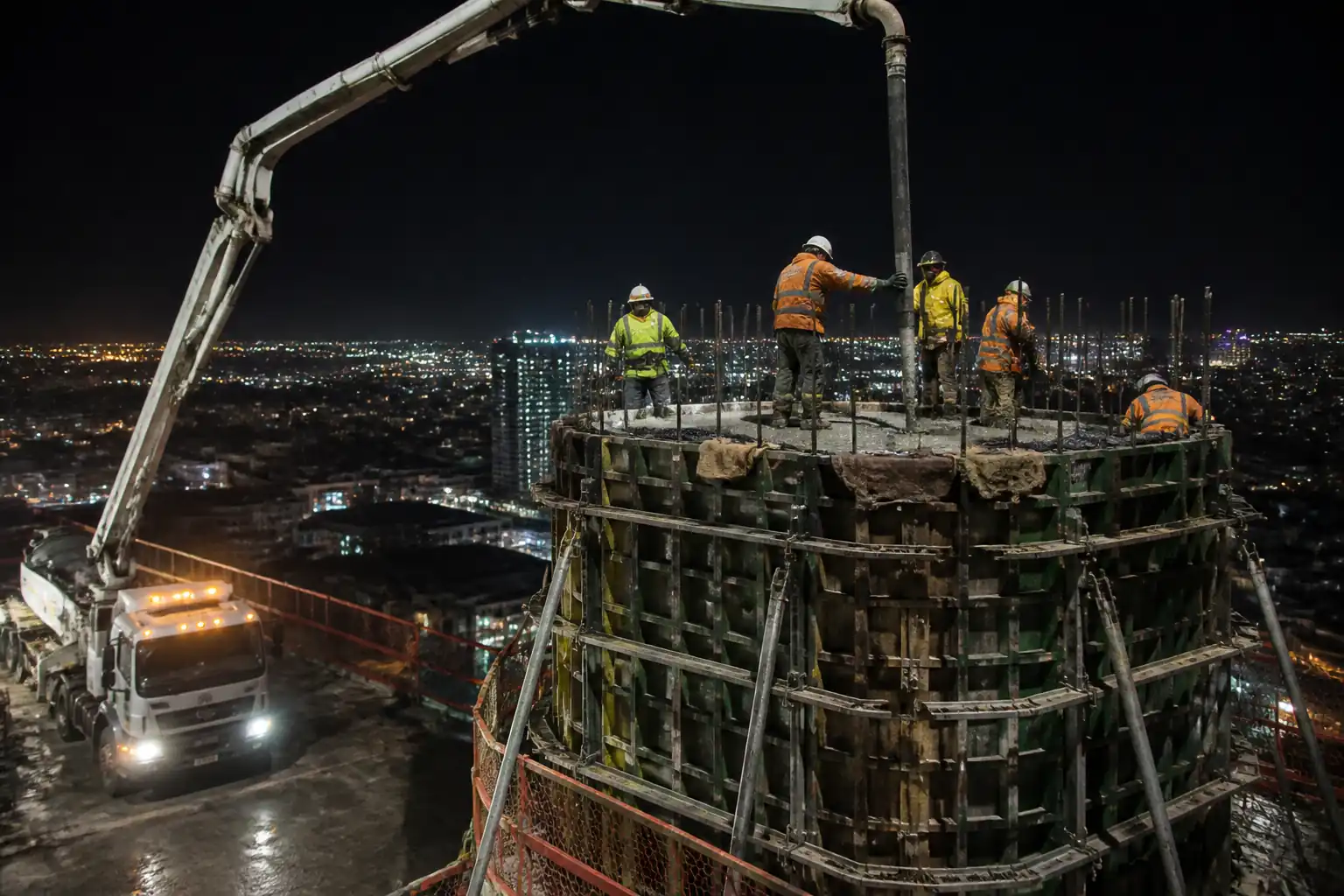

Method Statement for Placement of Ultra-High-Strength Structural Concrete (Grade 80 and above) for High-Rise Building Core Columns inspection and test plan example.

Inspection and Test Plan for Method Statement for Placement of Ultra-High-Strength Structural Concrete (Grade 80 and above) for High-Rise Building Core Columns

AI-assisted inspection and test plan connected to a method statement, with PDF and Excel export.

Published 27 Aug 2026 Rev. 00 1 views
About this ITP: This ITP defines inspections and tests for UHSC placement in high-rise core columns, including key hold points, testing frequencies, acceptance criteria, and records.

More than a static template

Unlike a downloadable Word or PDF template, this ITP is an AI-assisted editable starting point directly connected to its method statement. Every inspection activity, hold point, and acceptance criterion is structured and ready to adapt to your project.

  • AI-assisted customization — Tailor inspection activities and acceptance criteria to your specific project scope.
  • Linked method statement — This ITP is connected to the corresponding method statement describing the work sequence.
  • Multiple export formats — Download as a formatted PDF or editable Excel spreadsheet.
  • Editable starting point, not a final document — Review and verify all content against your project specifications and standards before use.

What you can customize

When you save this ITP to your account, every inspection row becomes editable. You can add, remove, or modify:

  • Inspection activity — Description of what is being inspected.
  • Inspection type — Hold point (H), Witness point (W), Review (R), or Monitor (M).
  • Responsibility — Contractor, subcontractor, engineer, or client.
  • Frequency — How often the inspection occurs.
  • Acceptance criteria — Referenced standard or specification requirement.
  • Records — Forms, test reports, or checklists required as evidence.

Why this ITP is used

To confirm materials, methods, and results meet specifications for UHSC core columns and to mitigate placement and early-age risks.

Who uses this inspection and test plan

Contractor QA/QC, Independent Testing Agency, Designer/Client representatives, Site Engineers, and Formwork Supervisor.

When this ITP is prepared and submitted

From pre-pour preparations through placement, curing, stripping, and acceptance testing.

Who receives or approves this ITP

Client/Engineer for review and approval.

Inspection scope

Covers formwork readiness, fresh property control, consolidation quality, curing timing, thermal monitoring, and compressive strength testing.

Typical hold, witness, and review points

Hold: first truck tests, formwork release, stripping authorization. Witness: pump setup, joint preparation, curing initiation.

Typical inspection records

Pre-pour checklist, delivery tickets, fresh test reports, plasticizer log, curing/temperature logs, cylinder logs, compressive strength reports, as-built survey.

Important approval note

This ITP is an AI-assisted editable starting point, not a pre-approved document. Before use on any project, all inspection activities, hold points, and acceptance criteria must be reviewed and approved by the relevant parties (superintendent, principal contractor, or client representative) in accordance with your contract and project quality plan.

Always verify acceptance criteria against your applicable drawings, specifications, and regulatory requirements. Hold points must be confirmed with the relevant authority before work proceeds past that point.

Inspection and test plan

Activity Inspection / Test Acceptance Criteria Responsibility Record
Mix design approval and trial results Document review Approved UHSC mix with verified performance data. QA/QC Manager / Designer / Supplier QC Approval letter; trial mix reports
Formwork readiness and rate-of-rise limit Visual/engineering check Formwork release; documented max placement rate. Formwork Engineer / QA/QC Formwork release; calc summary
Rebar and embed inspection Visual/measurement As per approved drawings; clean and secured. Site Engineer / QA/QC / Designer rep (if required) IR/Inspection checklist; photos
Pump setup and priming Pressure/leak test Leak-free; exclusion zones in place. Pump Operator / QA/QC Pump checklist
First truck verification (Hold) ASTM C143 or C1611, C1064, C231/C173, C138 All within approved ranges before proceeding. QA/QC / Independent Lab / Client rep (W) Field test report
Plasticizer loss tracking and re-dosing (as needed) Periodic slump/flow checks Re-dosing within manufacturer/project limits; no water addition. Supplier QC / Site Engineer Tracking log; re-dose record
Ongoing fresh tests during pour ASTM tests per frequency Within approved tolerances. Independent Lab / QA/QC Field test reports
Consolidation quality Observation; trial removal of small form panel if specified No visible voids/honeycombing; proper vibrator technique. Site Engineer / QA/QC Supervisor log; photos
Immediate curing verification Evaporation rate calc; visual timing check Top surface covered within 10 min; continuous moisture. QA/QC / Curing Crew Curing log
Temperature/thermal differential monitoring Thermocouple readings Within specified differential and max temp limits. QA/QC / Lab Temperature logs
Specimen preparation and curing ASTM C31 Specimens labeled and cured correctly. Independent Lab Cylinder logs
Compressive strength testing ASTM C39 at 7d/28d (or per spec) Per ACI 318 acceptance criteria [Verify]. Independent Lab / QA/QC Test reports
Dimensional and plumbness survey Total station/laser Within project tolerances. Surveyor / QA/QC As-built survey
Formwork stripping authorization (Hold) Strength verification/maturity ≥ specified stripping strength; curing maintained. QA/QC / Engineer Strip permit

This table is a read-only public reference. Download the PDF or Excel version, or customize this ITP to edit it for your project.

Frequently asked questions

No. Only controlled HRWR re-dosing within approved limits is permitted. Water addition will invalidate compliance with the mix design.

The first truck is a mandatory hold for fresh tests. Subsequent steps proceed under continuous surveillance with defined witness points.

Demonstrated stripping strength via cylinder breaks or maturity correlation and confirmation that curing requirements have been satisfied. [Verify per project specifications]
