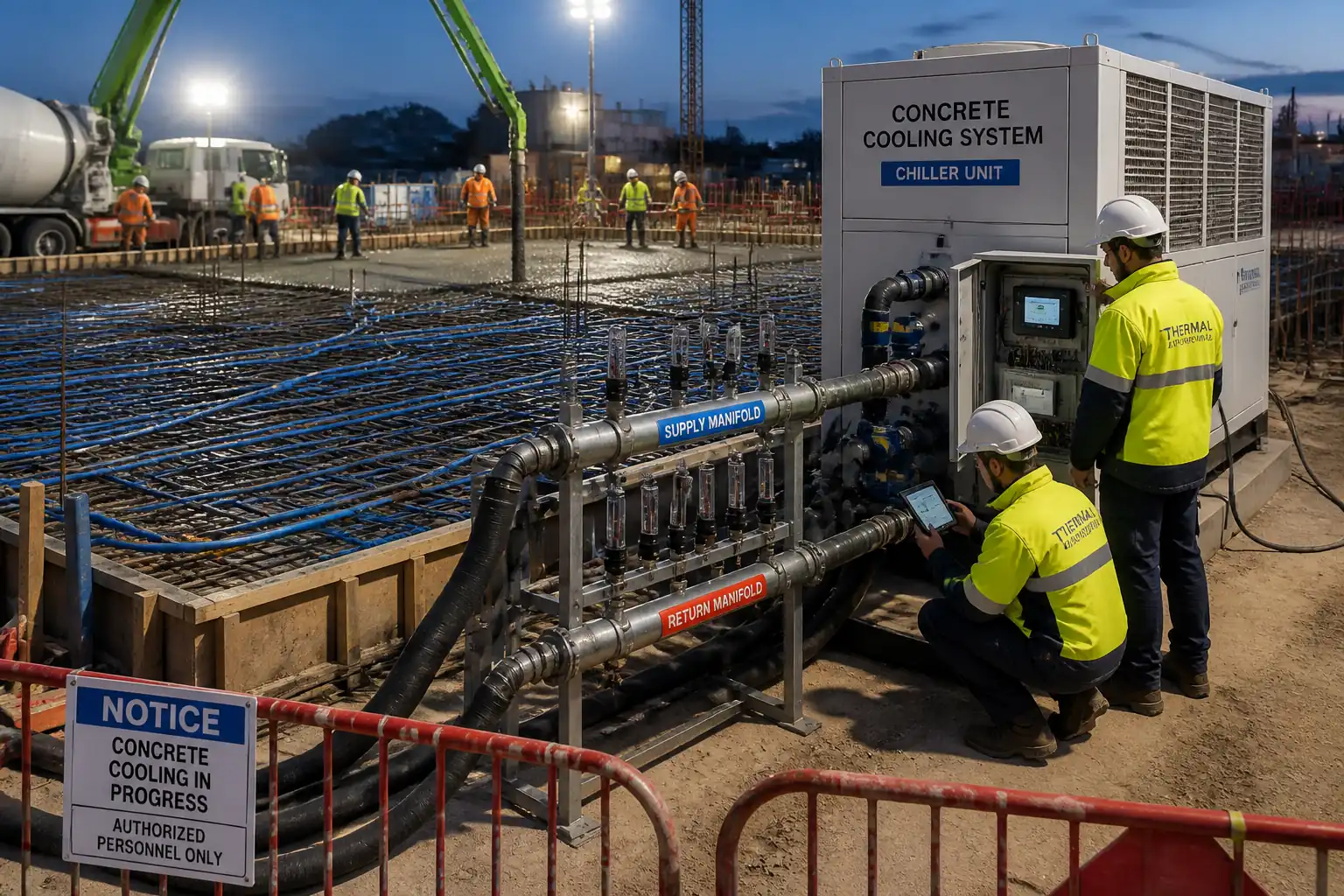

Method Statement: Mass Concrete Cooling Pipe System Installation and Operation inspection and test plan example.

Inspection and Test Plan for Method Statement: Mass Concrete Cooling Pipe System Installation and Operation

AI-assisted inspection and test plan connected to a method statement, with PDF and Excel export.

Published 25 Sep 2026 Rev. 00 1 views
About this ITP: Defines inspection points and acceptance criteria for cooling pipe systems in mass concrete from material receipt to final thermal performance acceptance.

More than a static template

Unlike a downloadable Word or PDF template, this ITP is an AI-assisted editable starting point directly connected to its method statement. Every inspection activity, hold point, and acceptance criterion is structured and ready to adapt to your project.

  • AI-assisted customization — Tailor inspection activities and acceptance criteria to your specific project scope.
  • Linked method statement — This ITP is connected to the corresponding method statement describing the work sequence.
  • Multiple export formats — Download as a formatted PDF or editable Excel spreadsheet.
  • Editable starting point, not a final document — Review and verify all content against your project specifications and standards before use.

What you can customize

When you save this ITP to your account, every inspection row becomes editable. You can add, remove, or modify:

  • Inspection activity — Description of what is being inspected.
  • Inspection type — Hold point (H), Witness point (W), Review (R), or Monitor (M).
  • Responsibility — Contractor, subcontractor, engineer, or client.
  • Frequency — How often the inspection occurs.
  • Acceptance criteria — Referenced standard or specification requirement.
  • Records — Forms, test reports, or checklists required as evidence.

Why this ITP is used

To verify installation quality and thermal performance comply with project specifications and ACI/ASTM references.

Who uses this inspection and test plan

Contractor QA/QC, Site Engineers, MEP team, Engineer/Employer’s Representative, and third-party inspectors.

When this ITP is prepared and submitted

From materials receipt through installation, hydrotest, cooling operation, and final acceptance of thermal performance.

Who receives or approves this ITP

Engineer/Employer’s Representative for review and approval.

Inspection scope

Covers materials verification, installation layout, hydrostatic leak testing, instrumentation setup, start-up, continuous monitoring, ramp-down, and final documentation.

Typical hold, witness, and review points

Pre-pour installation (Hold), thermocouple function (Hold), start of circulation (Hold), hydrotest (Witness), ramp-down approval (Hold), final acceptance (Witness).

Typical inspection records

Material COCs/MTCs, leak test certificates, calibration certificates, inspection requests, daily thermal logs, performance reports, and as-built drawings.

Important approval note

This ITP is an AI-assisted editable starting point, not a pre-approved document. Before use on any project, all inspection activities, hold points, and acceptance criteria must be reviewed and approved by the relevant parties (superintendent, principal contractor, or client representative) in accordance with your contract and project quality plan.

Always verify acceptance criteria against your applicable drawings, specifications, and regulatory requirements. Hold points must be confirmed with the relevant authority before work proceeds past that point.

Inspection and test plan

Activity Inspection / Test Acceptance Criteria Responsibility Record
Materials receipt (pipes, valves, instruments) Conform to approved specs and standards; no damage QA/QC Material inspection report
Pipe prefabrication and identification Lengths and IDs match drawings; bend radius met Site Engineer Shop log/checklist
Installation layout and supports Routing, spacing, supports, clearances per drawings; protection in place QA/QC Inspection request (IR)
Hydrostatic leak test Hydrotest per ASTM F2164 (HDPE) or project spec No visible leaks; pressure maintained for 2 h; drop ≤5% [Verify] QA/QC Leak test certificate
Thermocouple installation and function Function/spot calibration Readings within ±0.5–1.0°C; mapping matches plan QA/QC Calibration & layout record
Data logger and instrumentation setup Channel verification; time sync All channels logging at required interval; alarms set QA/QC/MEP Setup/commissioning sheet
Start of circulation Flow, pressure, supply/return temps Stable operation; no leaks; flows within ±10% MEP Start-up record
Ongoing temperature monitoring Data review Peak temp, ΔT, dT/dt within approved limits QA/QC Daily thermal logs
Ramp-down and shutdown approval Stable temps within limits for ≥24–48 h [Verify] Engineer/QAQC Approval memo
Final acceptance and records All documentation submitted; no outstanding NCRs; as-builts complete Engineer Acceptance certificate

This table is a read-only public reference. Download the PDF or Excel version, or customize this ITP to edit it for your project.

Frequently asked questions

No visible leaks and pressure maintained during the 2-hour hold with pressure drop within the specified limit (e.g., ≤5% for PE) unless project spec states otherwise.

Initially every 10 minutes, then every 30 minutes after stabilization, or as specified in the approved thermal control plan.

The Contractor’s QA/QC raises the inspection request; the Engineer/Employer’s Representative signs off Hold Points following satisfactory inspection.

Related method statement

This Inspection and Test Plan is associated with the Method Statement: Mass Concrete Cooling Pipe System Installation and Operation method statement, which describes the step-by-step construction sequence, resources, materials, equipment, safety controls, and environmental controls for this activity.

View the Method Statement: Mass Concrete Cooling Pipe System Installation and Operation method statement →
