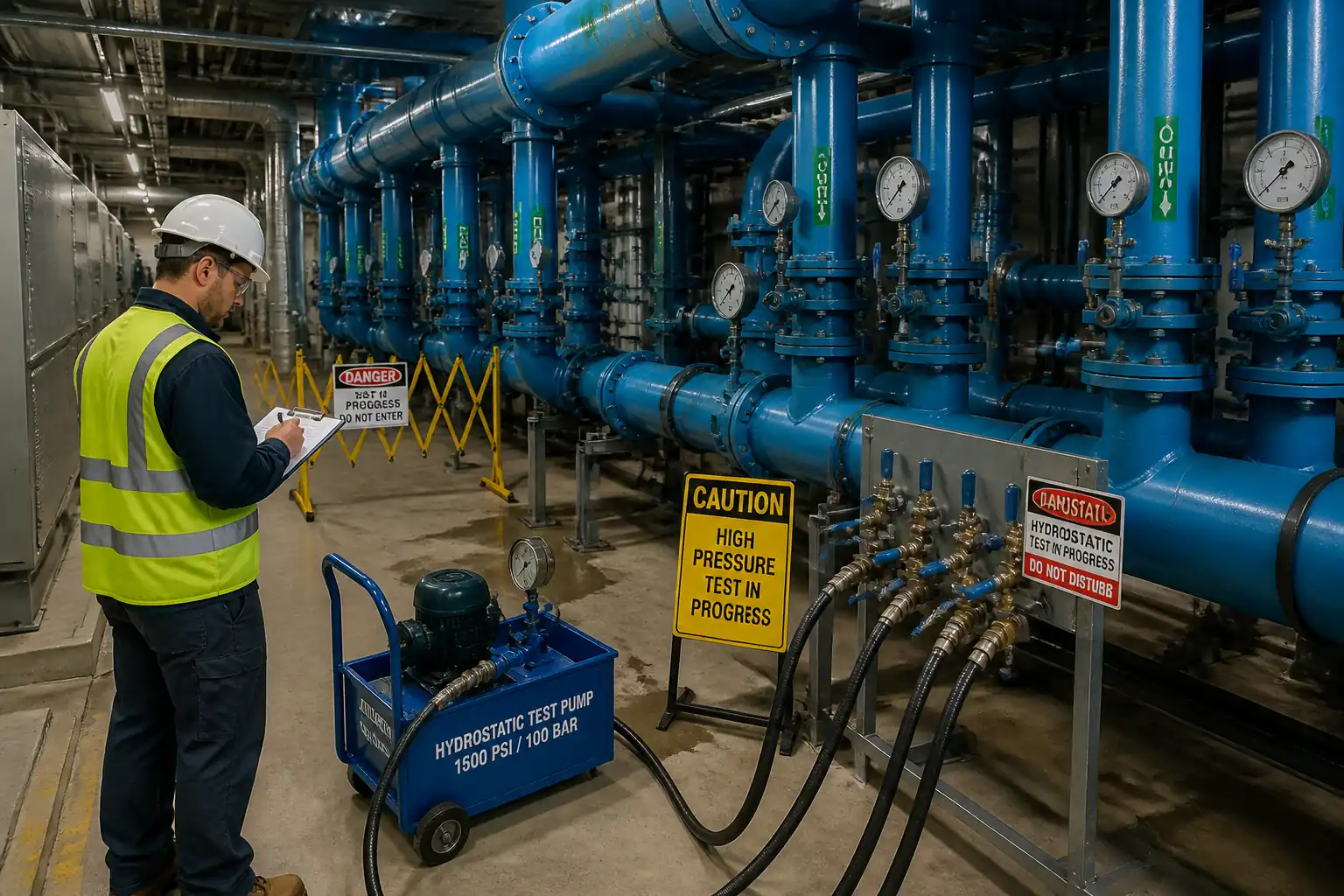

Inspection and Test Plan for Method Statement: Hydrostatic Pressure Testing of Chilled Water (CHW) Piping Networks
AI-assisted inspection and test plan connected to a method statement, with PDF and Excel export.
More than a static template
Unlike a downloadable Word or PDF template, this ITP is an AI-assisted editable starting point directly connected to its method statement. Every inspection activity, hold point, and acceptance criterion is structured and ready to adapt to your project.
- AI-assisted customization — Tailor inspection activities and acceptance criteria to your specific project scope.
- Linked method statement — This ITP is connected to the corresponding method statement describing the work sequence.
- Multiple export formats — Download as a formatted PDF or editable Excel spreadsheet.
- Editable starting point, not a final document — Review and verify all content against your project specifications and standards before use.
What you can customize
When you save this ITP to your account, every inspection row becomes editable. You can add, remove, or modify:
- Inspection activity — Description of what is being inspected.
- Inspection type — Hold point (H), Witness point (W), Review (R), or Monitor (M).
- Responsibility — Contractor, subcontractor, engineer, or client.
- Frequency — How often the inspection occurs.
- Acceptance criteria — Referenced standard or specification requirement.
- Records — Forms, test reports, or checklists required as evidence.
Why this ITP is used
To ensure CHW piping is pressure-tested in accordance with code and project requirements with auditable records.
Who uses this inspection and test plan
QA/QC engineers, mechanical engineers, supervisors, commissioning teams, and Client/Consultant representatives.
When this ITP is prepared and submitted
After mechanical completion of a piping section and before insulation and pre-commission cleaning.
Who receives or approves this ITP
Client/Consultant for review and approval before testing.
Inspection scope
Document verification, calibration checks, site readiness, staged pressurization, 24‑hour hold monitoring, drainage, and documentation closeout.
Typical hold, witness, and review points
Calibration verification (Hold), reaching test pressure (Witness), start and end of 24‑hour hold (Hold/Witness), final document acceptance (Hold).
Typical inspection records
Approved test pack, calibration certificates, checklists, stage and hold logs, temperature records, witness forms, NCRs (if any), final test report.
Important approval note
This ITP is an AI-assisted editable starting point, not a pre-approved document. Before use on any project, all inspection activities, hold points, and acceptance criteria must be reviewed and approved by the relevant parties (superintendent, principal contractor, or client representative) in accordance with your contract and project quality plan.
Always verify acceptance criteria against your applicable drawings, specifications, and regulatory requirements. Hold points must be confirmed with the relevant authority before work proceeds past that point.
Inspection and test plan
| Activity | Inspection / Test | Acceptance Criteria | Responsibility | Record |
|---|---|---|---|---|
| Review of IFC drawings, specs, and test calculations | Check WP, Pt = 1.5 × WP unless limited by component rating | Documents approved; pressures defined; boundaries identified [Verify per project] | QA/QC Engineer / Mechanical Engineer | Approved Test Pack |
| Calibration verification of gauges and thermometer | Validity, range, and accuracy class | ISO/IEC 17025 traceability; accuracy ≤1% F.S.; range 1.5–2.0 × Pt | QA/QC Engineer | Calibration Certificates |
| Pre-test installation inspection (vents, drains, supports, isolation) | Walkdown with checklist | All high points vented; low points drainable; equipment isolated; supports complete | Mechanical Engineer / Supervisor | Pre-Test Checklist & Photos |
| Filling and de-aeration | Air expelled; initial pressure ~0.2–0.3 bar | Air-free water at vents; no immediate leaks | Supervisor / QA/QC | Pre-Test Log |
| Staged pressurization to test pressure | Visual inspection at each stage | No leaks/sweating; gauges stable | Supervisor / QA/QC | Stage Hold Log |
| Stabilization soak | 30–60 min stabilization | Stable readings prior to 24-h hold | QA/QC Engineer | Soak Log |
| 24-hour pressure hold monitoring | Pressure & temperature logging | No visible leaks; pressure within tolerance after temp correction [Verify] | QA/QC / Supervisor | Pressure-Hold Log / Datalog |
| Drainage and reinstatement | Controlled discharge; component reassembly | No environmental incident; system restored | Supervisor | Drain/Reinstatement Checklists |
| Final documentation and acceptance | Completeness and approvals | All records complete; Consultant approval | QA/QC Engineer / Consultant | Signed Test Report & ITP |
This table is a read-only public reference. Download the PDF or Excel version, or customize this ITP to edit it for your project.
Frequently asked questions
Related method statement
This Inspection and Test Plan is associated with the Method Statement: Hydrostatic Pressure Testing of Chilled Water (CHW) Piping Networks method statement, which describes the step-by-step construction sequence, resources, materials, equipment, safety controls, and environmental controls for this activity.
View the Method Statement: Hydrostatic Pressure Testing of Chilled Water (CHW) Piping Networks method statement →
