Review façade tolerances and visual acceptance criteria in specifications

Definition: Review façade tolerances and visual acceptance criteria in specifications for construction QA teams, ensuring dimensional limits and visual benchmarks are captured, traceable, risk-assessed, and contractually enforceable before fabrication, procurement, and on-site installation.

Define measurable limits for plumb, level, flatness, and joint variation.
Clarify visual benchmarks: viewing distance, lighting, colour range, and defects.
Prevent disputes by locking mock-up standards into contract deliverables.

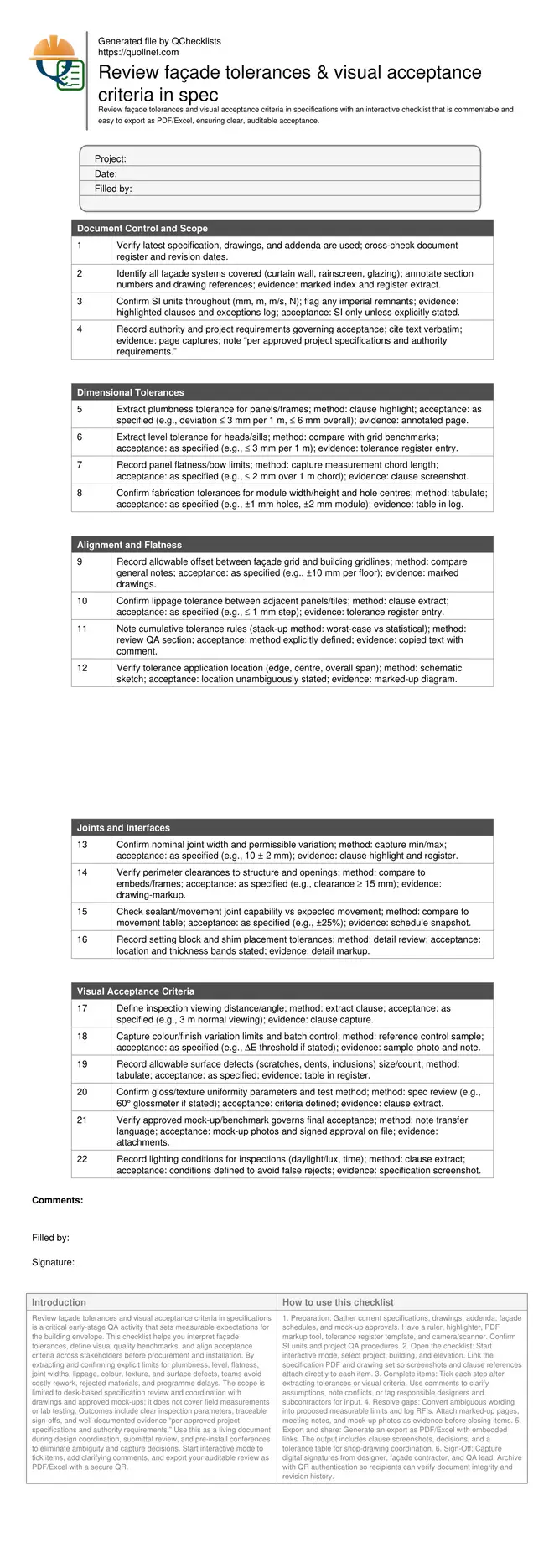

Interactive, commentable checklist with export and QR code verification.

Start Interactive
Checklist

Review façade tolerances and visual acceptance criteria in specifications is a critical early-stage QA activity that sets measurable expectations for the building envelope. This checklist helps you interpret façade tolerances, define visual quality benchmarks, and align acceptance criteria across stakeholders before procurement and installation. By extracting and confirming explicit limits for plumbness, level, flatness, joint widths, lippage, colour, texture, and surface defects, teams avoid costly rework, rejected materials, and programme delays. The scope is limited to desk-based specification review and coordination with drawings and approved mock-ups; it does not cover field measurements or lab testing. Outcomes include clear inspection parameters, traceable sign-offs, and well-documented evidence “per approved project specifications and authority requirements.” Use this as a living document during design coordination, submittal review, and pre-install conferences to eliminate ambiguity and capture decisions. Start interactive mode to tick items, add clarifying comments, and export your auditable review as PDF/Excel with a secure QR.

Establish unambiguous dimensional tolerances for the façade system before procurement. Consolidate plumb, level, flatness, and joint-variation limits into a single, cited register, preventing conflicting interpretations and ensuring shop drawings, mock-ups, and inspection plans align with the agreed acceptance thresholds.
Define visual acceptance criteria that mirror real inspection conditions. Record viewing distances and angles, lighting levels, and acceptable ranges for colour, gloss, and texture, then bind them to the approved mock-up to control batch variation and reduce subjective disputes during practical completion.
Close coordination gaps at interfaces and joints by confirming clearances, movement allowances, and sealant capabilities. Translate these into measurable acceptance checks that façade installers and inspectors can apply consistently across elevations, corners, penetrations, and transitions, reducing punch-list volume and rework risk.
Interactive online checklist with tick, comment, and export features secured by QR code.

Document Control and Scope

1. Verify latest specification, drawings, and addenda are used; cross-check document register and revision dates.
2. Identify all façade systems covered (curtain wall, rainscreen, glazing); annotate section numbers and drawing references; evidence: marked index and register extract.
3. Confirm SI units throughout (mm, m, m/s, N); flag any imperial remnants; evidence: highlighted clauses and exceptions log; acceptance: SI only unless explicitly stated.
4. Record authority and project requirements governing acceptance; cite text verbatim; evidence: page captures; note “per approved project specifications and authority requirements.”

Dimensional Tolerances

5. Extract plumbness tolerance for panels/frames; method: clause highlight; acceptance: as specified (e.g., deviation ≤ 3 mm per 1 m, ≤ 6 mm overall); evidence: annotated page.
6. Extract level tolerance for heads/sills; method: compare with grid benchmarks; acceptance: as specified (e.g., ≤ 3 mm per 1 m); evidence: tolerance register entry.
7. Record panel flatness/bow limits; method: capture measurement chord length; acceptance: as specified (e.g., ≤ 2 mm over 1 m chord); evidence: clause screenshot.
8. Confirm fabrication tolerances for module width/height and hole centres; method: tabulate; acceptance: as specified (e.g., ±1 mm holes, ±2 mm module); evidence: table in log.

Alignment and Flatness

9. Record allowable offset between façade grid and building gridlines; method: compare general notes; acceptance: as specified (e.g., ±10 mm per floor); evidence: marked drawings.
10. Confirm lippage tolerance between adjacent panels/tiles; method: clause extract; acceptance: as specified (e.g., ≤ 1 mm step); evidence: tolerance register entry.
11. Note cumulative tolerance rules (stack-up method: worst-case vs statistical); method: review QA section; acceptance: method explicitly defined; evidence: copied text with comment.
12. Verify tolerance application location (edge, centre, overall span); method: schematic sketch; acceptance: location unambiguously stated; evidence: marked-up diagram.

Joints and Interfaces

13. Confirm nominal joint width and permissible variation; method: capture min/max; acceptance: as specified (e.g., 10 ± 2 mm); evidence: clause highlight and register.
14. Verify perimeter clearances to structure and openings; method: compare to embeds/frames; acceptance: as specified (e.g., clearance ≥ 15 mm); evidence: drawing-markup.
15. Check sealant/movement joint capability vs expected movement; method: compare to movement table; acceptance: as specified (e.g., ±25%); evidence: schedule snapshot.
16. Record setting block and shim placement tolerances; method: detail review; acceptance: location and thickness bands stated; evidence: detail markup.

Visual Acceptance Criteria

17. Define inspection viewing distance/angle; method: extract clause; acceptance: as specified (e.g., 3 m normal viewing); evidence: clause capture.
18. Capture colour/finish variation limits and batch control; method: reference control sample; acceptance: as specified (e.g., ΔE threshold if stated); evidence: sample photo and note.
19. Record allowable surface defects (scratches, dents, inclusions) size/count; method: tabulate; acceptance: as specified; evidence: table in register.
20. Confirm gloss/texture uniformity parameters and test method; method: spec review (e.g., 60° glossmeter if stated); acceptance: criteria defined; evidence: clause extract.
21. Verify approved mock-up/benchmark governs final acceptance; method: note transfer language; acceptance: mock-up photos and signed approval on file; evidence: attachments.
22. Record lighting conditions for inspections (daylight/lux, time); method: clause extract; acceptance: conditions defined to avoid false rejects; evidence: specification screenshot.

Why specification clarity on façade tolerances prevents rework

Ambiguity in façade tolerances is a leading cause of late-stage disputes and rework. Before procurement, consolidate plumbness, level, flatness, and joint-variation limits in one tolerance register, each tied to a traceable clause and drawing detail. Confirm where measurements apply—edge, centre, or overall span—and how cumulative deviations are treated across floors. Align fabrication tolerances with installation tolerances to prevent clash at interfaces, particularly at corners, soffits, and mullion transitions. Require SI units to avoid conversion errors. Where language is vague (e.g., “visually true”), draft a request for information that proposes specific, measurable limits “per approved project specifications and authority requirements.” This approach equips design, procurement, and site teams with clear acceptance gates and a defensible audit trail when assessing shop drawings, mock-ups, and, later, installed work.

Build a single tolerance register with clause references.
Define where and how each tolerance is applied.
Align fabrication limits with installation allowances.
Use SI units exclusively to avoid conversion mistakes.

Setting visual acceptance criteria that reflect real inspections

Visual quality disputes often stem from mismatched expectations. Lock down the viewing distance and angle, lighting conditions, and observer position that will be used during acceptance. Tie colour, gloss, and texture tolerances to an approved control sample and mock-up, and state how batch-to-batch variation will be checked. For surface blemishes, specify count, size, and distribution limits rather than generic terms like “minor.” If instrumental methods are named in the specification (e.g., glossmeter or colorimeter), list them alongside pass/fail thresholds; otherwise, define qualitative criteria and reference the mock-up. Always describe the inspection background and contrast effects, as shadows can exaggerate defects. Capture these rules in the checklist to ensure consistent application across all elevations and handovers.

Define viewing distance, angle, and lighting conditions.
Bind acceptance to the approved mock-up/control sample.
Quantify blemish size, count, and distribution limits.
Note any required instruments and measurement geometry.

Coordinating joints and interfaces to absorb real movement

Interfaces drive many façade issues. Confirm joint width ranges, permissible variation, and the movement capability of sealants and gaskets against predicted thermal, structural, and seismic movements. Check perimeter clearances to structure and openings, ensuring enough tolerance for setting, shimming, and sealant depth. Record rules for corners and returns, where joint offsets and lippage are most visible. Ensure tolerance stack-up methodology is defined so accumulative deviations do not exceed limits at span ends or alignment breaks. State inspection evidence requirements: annotated details, photos of control samples, and signed mock-up approvals. Clear joint criteria help installers maintain consistent shadow gaps and sealant profiles while giving inspectors objective pass/fail cues.

State joint ranges and allowable variation explicitly.
Match sealant capability to predicted movement.
Protect corners from visible offset and lippage.
Document evidence: marked details and approvals.

How to prepare, use, and sign off this interactive checklist

Preparation: Gather current specifications, drawings, addenda, façade schedules, and mock-up approvals. Have a ruler, highlighter, PDF markup tool, tolerance register template, and camera/scanner. Confirm SI units and project QA procedures.
Open the checklist: Start interactive mode, select project, building, and elevation. Link the specification PDF and drawing set so screenshots and clause references attach directly to each item.
Complete items: Tick each step after extracting tolerances or visual criteria. Use comments to clarify assumptions, note conflicts, or tag responsible designers and subcontractors for input.
Resolve gaps: Convert ambiguous wording into proposed measurable limits and log RFIs. Attach marked-up pages, meeting notes, and mock-up photos as evidence before closing items.
Export and share: Generate an export as PDF/Excel with embedded links. The output includes clause screenshots, decisions, and a tolerance table for shop-drawing coordination.
Sign-Off: Capture digital signatures from designer, façade contractor, and QA lead. Archive with QR authentication so recipients can verify document integrity and revision history.
