Inspect GRC or GFRC Panel Anchors & Support Framing

Definition: Inspect GRC or GFRC panel anchors and support framing for façade engineers and site inspectors, focusing on connection integrity, alignment, corrosion protection, and documented evidence before panel hoisting or final sign-off.

Confirm load path, anchor capacity, bracket alignment, and joint allowances.
Prevent corrosion with correct materials, isolation, drainage, and coatings.
Use calibrated tools to verify torque, embedment, and survey tolerances.
Interactive, commentable, export options with QR code traceability.

Start Interactive
Checklist

Inspect GRC or GFRC panel anchors and support framing to verify every connection that carries the façade’s weight and wind loads. This checklist targets GFRC cladding anchors, support brackets, and secondary steel or aluminum subframing that position glass fiber reinforced concrete panels. It excludes architectural sealant aesthetics or full panel installation, focusing strictly on anchors, fixings, and framing before hoisting. You will confirm bracket stand-off, rail alignment, joint allowances, corrosion protection, and proof testing so the load path is continuous and resilient. By controlling tolerances early, you prevent cracked panels, rattling façades, galvanic corrosion, water traps, and costly rework. Evidence-based steps capture torque logs, pull-test results, coating thickness, and as-built surveys per approved project specifications and authority requirements. Use this interactive checklist to tick items, add comments with photos, and export as PDF/Excel; a QR code secures traceability across reviews and handover.

Validate the complete load path from anchors to subframing using calibrated instruments and visual criteria. Early detection of misaligned brackets, short embedment, or missing isolation pads prevents panel stress, long-term cracking, and callbacks once the façade is closed and access becomes limited and costly.
Control geometry by surveying bracket elevations and rail lines, then confirming joint allowances and movement slots. Tight tolerances on stand-off and plumb support accurate panel setout, ensuring consistent shadow lines and avoiding shim stacks that compromise bearing, drainage, and future maintenance access.
Reduce corrosion risk by confirming correct stainless grades, compatible coatings, isolation washers, and clear drainage paths. Proper documentation of coating thickness and material certificates builds a defensible record that withstands audits and protects warranty eligibility over the façade’s service life.
Interactive online checklist with tick, comment, and export features secured by QR code.

Pre-Inspection and Documents

1. Verify latest approved shop drawings, structural calculations, and fixing schedules against actual gridlines and levels using a marked-up set; acceptance: current revisions only; evidence: photos of revision stamps and a signed field verification sheet.
2. Confirm material certificates for anchors, bolts, brackets, and coatings; method: collect and review MTRs and batch labels; acceptance: grades and coatings per approved submittals; evidence: upload certificates and batch photos.
3. Check access and edge protection for inspection points; method: review scaffold/MEWP tags; acceptance: in-date tags and rescue plan available; evidence: tag photos and access permit.
4. Verify inspection and testing plan (ITP) hold points for anchors and framing; method: compare ITP to area; acceptance: signed ITP including pull-out test frequency; evidence: ITP excerpt with inspector initials.

Subframe and Brackets

5. Survey embed plates or primary structure locations and elevations; method: total station; tolerance: ±5 mm to grid/level; evidence: as-built points plot and station report.
6. Confirm bracket type, size, and stand-off vs. schedule; method: tape/caliper and part stamp check; acceptance: matches schedule and stand-off range; evidence: close-up photo with measurement.
7. Check bracket plumbness and perpendicularity; method: digital level and square; tolerance: ≤2 mm per 1 m; evidence: instrument readings and bracket ID tag photo.
8. Verify isolation pads/shims material and bearing; method: feeler gauge; acceptance: correct material and ≥80% contact area; evidence: macro photo showing pad edges and gauge.

Anchors and Fasteners

9. Confirm anchor type and embedment depth; method: manufacturer depth gauge/caliper and drilling logs; acceptance: ≥ specified embedment and edge distance; evidence: depth gauge photo and lot number.
10. Verify hole cleanliness for post-installed anchors; method: brush–blow–vacuum sequence; acceptance: per manufacturer installation steps; evidence: checklist with brush size, photo of cleaned hole.
11. Check adhesive anchor curing conditions; method: record substrate temperature with IR thermometer and cure time; acceptance: within manufacturer’s range; evidence: temperature reading, cartridge batch/expiry photo.
12. Torque-test bolted connections; method: calibrated torque wrench; acceptance: torque matches approved values; evidence: torque log, paint-marked nuts/bolts, wrench calibration certificate.

Alignment and Tolerances

13. Set and verify rail alignment; method: laser line/level; tolerance: ±3 mm over 10 m; evidence: laser reading photos and station reference.
14. Confirm movement slots/clearances at brackets and rails; method: feeler gauge; acceptance: clearances per drawings (e.g., 6–12 mm); evidence: measurement photo at each slot.
15. Check seating pad thickness and uniformity at panel bearing points; method: caliper; tolerance: ±1 mm across points; evidence: thickness log and photos.
16. Verify panel joint width achievable from subframe setout; method: spacer gauges and tape; tolerance: per façade drawings ±2 mm; evidence: gauge photo and grid reference.

Protection and Durability

17. Inspect coating/galvanizing on steelwork; method: dry film thickness (DFT) gauge; acceptance: DFT ≥ specified and no holidays; evidence: DFT readings with locations and photos.
18. Verify stainless fastener grade and isolation; method: head stamp check and isolation washers/sleeves; acceptance: correct grade and no direct dissimilar contact; evidence: close-up stamps and washer photo.
19. Check drainage/weep paths at brackets and rails; method: visual or light water test; acceptance: unobstructed flow paths; evidence: short video/photo sequence.
20. Seal penetrations per details without restraining movement; method: visual; acceptance: approved sealant type, neat finish, labels recorded; evidence: sealant lot/expiry and photo.

Testing and Sign-Off

21. Perform proof load tests on sample anchors; method: calibrated pull-tester; acceptance: ≥ design test load with <1 mm permanent set; evidence: test report with curves and photos.
22. Inspect welds on support framing; method: visual testing per approved project specifications and authority requirements; acceptance: no cracks, porosity, or undercut; evidence: VT report and welder ID.
23. Verify earthing/bonding continuity where required; method: multimeter; acceptance: resistance ≤0.5 Ω between points; evidence: readings log and tag locations.
24. Complete as-built survey and hold-point sign-off before panel hoisting; method: total station and digital signatures; acceptance: deviations within tolerances and all NCRs closed; evidence: stamped survey and sign-off sheet.

Load path clarity and bracket stand-off control

A reliable GFRC façade starts with a clear load path from panel fixings into the bracket, through the subframing, and finally the primary structure. Bracket stand-off affects eccentricity and resulting moments at anchors. Too much stand-off or skewed brackets can overload fasteners, misalign rails, and force excessive shimming. Use a total station to confirm embed plate locations and elevations, then verify bracket type, size, and stand-off against schedules. Digital levels and squares help keep brackets plumb and perpendicular, minimizing torsion on rails. Isolation pads reduce point stress and break thermal or galvanic bridges, but they must bear uniformly. Record every measurement and tag each bracket location so deviations are traceable and corrected before panels arrive. These checks prevent cracked corners, out-of-plane panels, and noisy façades under wind gusts.

Survey embed plates within ±5 mm to grid and level.
Measure bracket stand-off and document with photos.
Keep plumb within 2 mm per 1 m for brackets.
Ensure isolation pads provide at least 80% bearing.

Anchor selection, installation sequence, and proof testing

Anchors transfer gravity and wind loads; selection depends on substrate, edge distances, and stand-off. Post-installed adhesive anchors demand strict hole preparation: brush, blow, and vacuum sequences, followed by temperature-compliant curing. Mechanical anchors require correct torque to seat expansion elements without crushing substrates. For cast-in plates, verify stud size and embedment with accessible measurements and submittals. Always record batch numbers, expiry dates, and tool calibrations. Perform proof load tests on representative anchors using a calibrated pull-tester, capturing load–displacement curves. Acceptance is reaching the specified test load without unacceptable movement or damage. Document failures transparently and expand testing if patterns emerge. These practices ensure anchors meet the design intent per approved project specifications and authority requirements.

Use brush–blow–vacuum for adhesive anchor hole cleaning.
Record substrate and ambient temperatures at installation.
Torque-test mechanical bolts with calibrated tools.
Pull-test a representative sample and save curves.

Geometry, movement allowances, and corrosion protection

Accurate geometry sets the stage for consistent panel joints and durable performance. Establish rail lines with a laser and confirm joint allowances using spacer gauges so panels seat without stress. Movement slots at brackets accommodate thermal and building drift; blocked slots can shear bolts or fracture panels. Prevent corrosion by combining correct stainless grades, compatible coatings, and isolation washers or sleeves. DFT gauges verify coating thickness, while clear drainage and weeps avoid water traps behind panels. Seal penetrations as detailed without bonding moving parts. Meticulous documentation—photos, readings, and batch labels—creates reliable traceability for audits and warranty. Address issues before hoisting to avoid working over live edges or finished façades.

Hold rail straightness within ±3 mm over 10 m.
Maintain panel joint width within drawing tolerance.
Keep movement slots clear with specified clearance.
Verify DFT meets or exceeds specified thickness.

How to Use This Interactive Inspection Checklist

Preparation: Gather approved drawings, fixing schedules, ITP, and submittals. Bring a total station/laser, digital level, torque wrench, pull-tester, calipers, feeler gauges, DFT gauge, IR thermometer, and PPE. Confirm safe access (scaffold/MEWP tags), permits, and a clean inspection area.
Using the Interactive Checklist: Open the relevant area, start interactive mode, tick each item as completed, and attach photos, readings, and batch labels in comments. Tag locations by gridline. When finished, export the record as PDF/Excel and share via QR for verification.
Sign-Off: Resolve comments and NCRs, then obtain digital signatures from inspector, contractor, and designer as required. Archive the signed checklist, test reports, and as-built survey. Store the QR-authenticated package in the project CDE for traceable closeout.

Inspect GRC or GFRC Panel Anchors & Support Framing

Start Interactive Checklist

GRC/GFRC Panel Anchor & Support Framing Inspection

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “GRC/GFRC Panel Anchor & Support Framing Inspection by Quollnet” with a link to this source page.

Download Excel - GRC/GFRC Panel Anchor & Support Framing Inspection
Download PDF - GRC/GFRC Panel Anchor & Support Framing Inspection

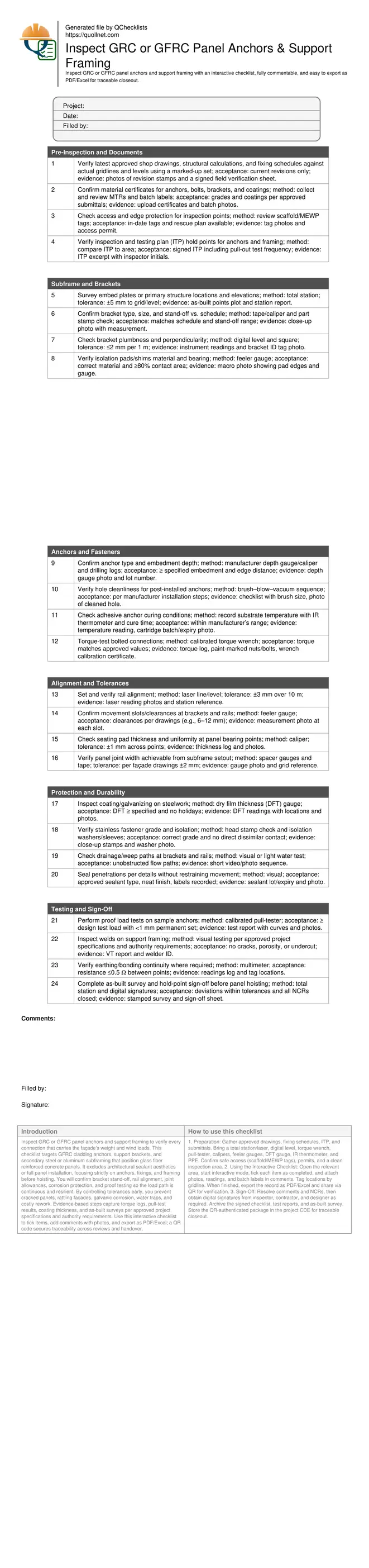

View Image - GRC/GFRC Panel Anchor & Support Framing Inspection

Zuri Mwangi Zuri Mwangi

Aug 18, 2026

FAQ

Question: What tolerances should I apply for GFRC support framing alignment and joints?

Use project drawings and submittals as the authority. Common practice is rail straightness within ±3 mm over 10 m, bracket plumb within 2 mm per 1 m, and joint widths held within ±2 mm. Always verify against the approved façade details and per approved project specifications and authority requirements.

Question: Do I need pull-out tests for anchors in existing concrete?

Yes, proof load tests are strongly recommended to confirm site-specific capacity and installation quality. Use a calibrated pull-tester on a representative sample, follow manufacturer procedures, and record load–displacement curves. Increase test frequency if failures occur. File reports with photos, batch numbers, and tool calibration certificates for traceability.

Question: How can I prevent galvanic corrosion between stainless fasteners and carbon steel framing?

Use isolation washers, sleeves, or pads between dissimilar metals. Apply compatible coatings to carbon steel and ensure intact coating at contact points. Keep drainage paths clear to avoid standing water. Verify stainless grade via head stamps and document installed isolation components with close-up photos for the QA record.

Question: What evidence should I capture to close out the anchor and framing inspection?

Collect as-built surveys, torque logs, pull-test reports, DFT readings, photos of embedment depth and bracket measurements, material certificates, batch and expiry labels, and signed ITP hold points. Export the complete, commentable record as PDF/Excel and secure it with the checklist’s QR code for audit and warranty.
