Façade Shop Drawings & Interface Coordination Pre-Release Review

Inspect façade shop drawings and interface coordination before release is a decisive quality gateway that prevents clashes, leaks, and costly rework. This checklist supports façade detailing review, interface coordination audits, and shop drawing verification by aligning drawings with approved specifications, the latest IFC/BIM models, and stakeholder inputs. It focuses on geometry, tolerances, movement, performance continuity (air, water, thermal), and buildability, while clearly defining responsibilities at interfaces with structure, MEP, waterproofing, fire-stopping, and access systems. The scope ends at pre-release drawing approval; it does not cover onsite installation, testing, or code interpretations beyond “per approved project specifications and authority requirements.” By catching misaligned brackets, missing fire barriers, interrupted air/vapour lines, or impractical sequencing early, teams avoid delay claims and redesign loops, shorten submittal cycles, and improve cost certainty. Start in interactive mode to tick, add comments, attach markups, and export PDF/Excel with a QR-secured trail for approvals.

Inspect façade shop drawings and interface coordination before release

Inspect façade shop drawings and interface coordination before release to verify dimensional accuracy, system compatibility, and buildability for design managers, façade engineers, coordinators, and general contractors.

  • Verify dimensions, tolerances, and movement allowances against BIM and benchmarks.
  • Coordinate interfaces with structure, MEP, waterproofing, fire, and access systems.
  • Assess buildability, sequencing, drainage paths, and maintenance access requirements.
  • Interactive, commentable checklist; export and authenticate via QR code.

The checklist

Submittal & Compliance

  1. Confirm submittal package completeness against the approved submittal log using the document control platform; include drawings, schedules, calcs, samples, and method notes. Acceptance: 100% required items present. Evidence: upload submittal register snapshot and version numbers.
  2. Verify title blocks show correct project ID, building/zone, issue purpose, scale, and date using a title-block audit. Acceptance: conforms to naming convention with zero omissions. Evidence: annotated screenshot of a representative sheet.
  3. Check revision clouds, delta tags, and revision index align using PDF compare/overlay. Acceptance: zero untagged or unexplained changes. Evidence: comparison overlay with discrepancies resolved or noted.
  4. Include a compliance note referencing performance “per approved project specifications and authority requirements.” Acceptance: statement present and unambiguous. Evidence: highlighted note on GA and details.

Geometry & Tolerances

  1. Validate grids, levels (±0.005 m), and benchmark coordinates with latest IFC/BIM using a model viewer. Acceptance: coordinate variance ≤ ±5 mm vs model. Evidence: coordinate check report and marked plan.
  2. Confirm panel/module dimensions, joint widths, and gasket allowances using calibrated measurement tools in PDF/BIM. Acceptance: fabrication ±2 mm; installation ±5 mm; joints per schedule. Evidence: redlined elevations/sections.
  3. Verify bracket set-out from slab edges/columns with control lines tied to survey datums. Acceptance: horizontal/vertical offset within ±5 mm. Evidence: annotated setting-out drawings with datum references.
  4. Assess cumulative tolerances across bays using a tolerance stack-up spreadsheet. Acceptance: accumulated drift/gap within allowed serviceability limits. Evidence: attached stack-up calculation sheet.

Interfaces & Coordination

  1. Overlay façade GAs with structure and MEP to locate penetrations, embeds, and waterproofing returns. Acceptance: continuous air/water barrier at all interfaces. Evidence: coordination overlays with colored continuity lines.
  2. Run clash detection for brackets vs rebar, embeds, BMU tracks, and services. Acceptance: zero hard clashes; soft clashes risk-assessed. Evidence: clash report with resolved items flagged ‘closed’.
  3. Confirm fire-stopping details at slab edges/spandrels match the fire strategy drawings. Acceptance: approved system referenced per approved project specifications and authority requirements. Evidence: tagged details with system identifiers.
  4. Define shared datums, gaps, and tolerances with roofing terminations, screeds, balustrades, and interiors using an interface matrix. Acceptance: matrix signed by responsible trades. Evidence: uploaded, dated interface matrix.

Structural & Movement

  1. Verify anchor loads and bracket capacities against structural calculations. Acceptance: factors of safety per project specifications achieved. Evidence: signed calculation excerpt and fixings schedule.
  2. Confirm movement joints accommodate interstorey drift and thermal expansion. Acceptance: joint width supports ± predicted movement from design tables. Evidence: movement summary table on drawings.
  3. Check glass make-up and support conditions vs design wind pressures (Pa) and impact zones. Acceptance: thickness and support meet design pressures. Evidence: glazing schedule with load case notes.
  4. Validate fastener grades, corrosion protection, and isolation pads for dissimilar metals. Acceptance: specified grades and isolation shown on details. Evidence: material callouts and notes highlighted.

Performance, Access & Buildability

  1. Trace air, vapour, water, and thermal continuity through all junctions using colored overlays. Acceptance: no discontinuities. Evidence: exported overlay images attached to the review.
  2. Review drainage/weep paths and sill inclinations. Acceptance: visible weep routes; falls ≥ 1:20; outlets unobstructed. Evidence: detailed section markups with gradient notes.
  3. Confirm access/maintenance clearances, BMU reach, and unit replacement strategy. Acceptance: maintenance clearances ≥ 600 mm where required; safe replacement route defined. Evidence: access plan with dimensions.
  4. Assess installation sequencing and temporary works for lifting, restraint, and weather protection. Acceptance: sequence minimises rehandling; crane pick weights listed. Evidence: sequence diagram and method statement reference.

Documentation & Release

  1. Prepare transmittal with drawing register, revision status, approvers, and distribution list. Acceptance: fields complete and consistent. Evidence: signed transmittal PDF.
  2. List outstanding RFIs/assumptions with drawing impact tags and due dates. Acceptance: all open items traceable to sheets/details. Evidence: RFI tracker extract with links.

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

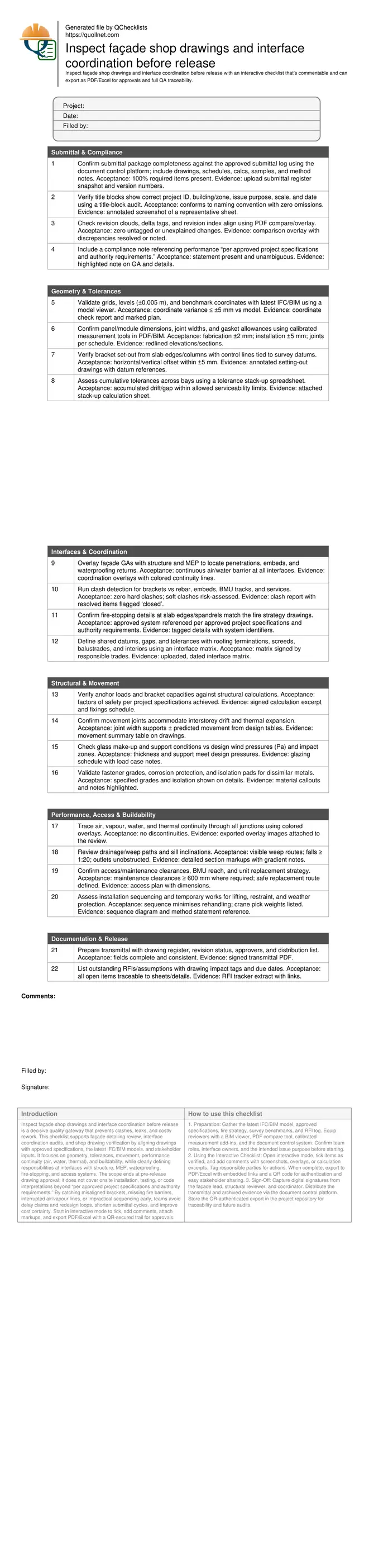

First-page preview of the Façade Shop Drawing & Interface Coordination Review printable checklist template.
Façade Shop Drawing & Interface Coordination Review · Page 1 preview · Open image with all pages

At a glance

  • Use this checklist to validate drawing completeness, naming, and revisions; confirm dimensions and tolerances from BIM/IFC; and verify interfaces with structure, MEP, waterproofing, and fire containment. Reduce ambiguities by recording assumptions, RFIs, and shared datums before formal release.
  • Demonstrate structural adequacy and movement compliance by confirming bracket capacities, interstorey drift allowances, thermal expansion joints, and glazing thicknesses against design pressures. Capture evidence via annotated overlays, calculation extracts, and coordinated matrices signed by accountable parties.
  • Interactive online checklist with tick, comment, and export features secured by QR code. It also supports attaching marked-up PDFs, clash reports, and photos, ensuring a defensible audit trail that streamlines consultant responses, contractor coordination, and client approvals.
  • Improve buildability by reviewing drainage/weep routes, sill falls, tolerances stack-ups, access and replacement strategies, and temporary works sequencing. Clarify installation order and site constraints to minimize crane picks, remedial works, and re-fabrication risk.

How to Use This Checklist

  1. Preparation: Gather the latest IFC/BIM model, approved specifications, fire strategy, survey benchmarks, and RFI log. Equip reviewers with a BIM viewer, PDF compare tool, calibrated measurement add-ins, and the document control system. Confirm team roles, interface owners, and the intended issue purpose before starting.
  2. Using the Interactive Checklist: Open interactive mode, tick items as verified, and add comments with screenshots, overlays, or calculation excerpts. Tag responsible parties for actions. When complete, export to PDF/Excel with embedded links and a QR code for authentication and easy stakeholder sharing.
  3. Sign-Off: Capture digital signatures from the façade lead, structural reviewer, and coordinator. Distribute the transmittal and archived evidence via the document control platform. Store the QR-authenticated export in the project repository for traceability and future audits.

Coordinate Versions, Context, and Responsibilities Before Approval

Start by locking the drawing set against the latest IFC/BIM model and submittal log. A disciplined version control step prevents outdated embeds, rebar, or MEP penetrations from colliding with façade brackets. Overlay general arrangements, sections, and details onto structural and architectural backgrounds to confirm references, grids, and benchmark levels. Use PDF compare to isolate changes and ensure revision clouds and indices match. Assign owners for each interface in an approval matrix so responsibilities are clear before issue. For example, one project avoided 6 weeks of rework when an overlay revealed a 10 mm slab edge tolerance not carried into bracket offsets; the team corrected the setting-out and added isolation pads to prevent bimetallic corrosion. Acceptance cues include zero untagged changes, consistent title blocks, and a complete transmittal. Capture redlines, overlays, and matrix signatures as evidence so consultants can approve without ambiguity.

  • Freeze to latest IFC model before any coordination overlays.
  • Use PDF compare to flag untagged edits and deltas.
  • Assign interface owners in an approval matrix.
  • Attach annotated overlays and version screenshots.
  • Ensure transmittal and register fields are complete.

Manage Tolerances, Movement, and Interface Continuity

Façades succeed when tolerance stack-ups and movement allowances are explicit. Validate bracket set-out to survey datums and check cumulative tolerances across bays using a simple spreadsheet. Confirm expansion joints and interstorey drift tables, then verify joint widths can accept ± movement without pinching gaskets or binding anchors. Trace air, vapour, water, and thermal continuity through all junctions—don’t let a flashing or membrane stop at the wrong plane. Ensure fire-stopping lines match the fire strategy and that approved systems are cited per approved project specifications and authority requirements. In one tower, early detection of a misaligned BMU track prevented a façade panel redesign by adjusting anchor positions in the shop drawings. Acceptance cues include movement summaries on drawings, colored continuity overlays, and signed interface matrices.

  • Dimension from fixed datums; note survey benchmarks.
  • Publish movement tables and joint widths.
  • Color-code air, water, vapour, thermal lines.
  • Match fire-stopping to the fire strategy.
  • Document shared gaps and tolerances.

Buildability, Access, and Sequencing to Reduce Rework

Even perfect drawings can fail if they ignore access or sequencing. Verify panel weights and pick points against crane charts and temporary works notes. Confirm drainage and weep routes, ensuring sill falls of at least 1:20 and unobstructed outlets. Check maintenance strategies—BMU reach, cradle clearances, anchor locations, and unit replacement sequences—so nothing requires dismantling adjacent bays. Coordinate with roofing, balustrades, and interiors to agree handover lines, sealant responsibilities, and datums. Where dissimilar metals meet, detail isolation pads and compatible sealants to avoid corrosion. Add a concise method sequence showing weather line closure floor-by-floor to prevent water ingress during installation. Acceptance cues include a documented sequence diagram, access plans with clearances, and explicit drainage details that survive real site conditions.

  • Publish lifting data and temporary restraints.
  • Confirm maintenance reach and replacement paths.
  • Provide sill falls and clear weep paths.
  • Define sealant responsibilities and handover lines.
  • Detail isolation for dissimilar metals.
