Review façade dead-load and live-load support strategy before coordination

Definition: Review façade dead-load and live-load support strategy before coordination ensures structural and façade teams validate load paths, supports, and movements to prevent overstress, clashes, delays, and rework before multidisciplinary coordination meetings.

Confirm load paths, support capacities, and anchor details against design intent.
Verify movement allowances and tolerances to avoid binding and façade distress.
Coordinate interfaces early to eliminate clashes and temporary support gaps.
Interactive, commentable checklist with export and QR code record security.

Start Interactive
Checklist

Review façade dead-load and live-load support strategy before coordination is the critical gateway to confirm how gravity and imposed loads transfer safely from cladding and curtain wall systems into the primary structure. This pre-coordination review aligns structural assumptions, façade support design, and anchor strategy, while validating serviceability limits for deflection, drift, and thermal movement. It focuses on support brackets, shelf angles, anchors, embeds, and movement joints rather than installation sequencing or final inspection. By verifying load combinations, capacities, fixings, corrosion performance, and clearances, teams avoid overstress, cracked finishes, water ingress, misaligned panels, and costly redesigns later. Outcomes include a clear load path, accepted tolerances, clash-free details, and a signed calculation package ready for multidisciplinary coordination. Use this interactive checklist to tick items, add accountable comments, upload photos of mark-ups or model extracts, and export consolidated evidence to PDF/Excel. Finish by generating a QR-secured record for meeting packs and approvals.

Establish a verified load path for dead-load and live-load transfer from façade elements to the primary structure, with summaries of reactions, connection schedules, and model snapshots, minimizing redesign risk before coordination lock.
Validate support components—brackets, shelf angles, anchors, thermal breaks—against demand, movement, and corrosion requirements. Capture datasheets, calculation outputs, and approvals to build a defensible technical record for stakeholders.
Avoid clashes and tolerance conflicts by documenting embed positions, slot requirements, drift clearances, and drainage paths. Provide clear interface notes and responsibilities to streamline multidisciplinary coordination workshops.
Interactive online checklist with tick, comment, and export features secured by QR code. Centralize decisions, attach photos or test plans, and distribute signed outputs as structured PDF/Excel for reliable traceability.

Design Basis and Load Cases

1. Confirm the governing load cases for self-weight and imposed maintenance loads per approved project specifications and authority requirements.
2. Recalculate typical unit reactions (kN) using current mass properties; cross-check model weights with supplier data within ±5%; attach signed calculation sheet.
3. Document load combinations used for ultimate and serviceability checks; verify that creep, shrinkage, and construction stages affecting supports are included; upload combination summary.
4. Produce a load-path diagram from panel to primary structure showing all intermediate supports; ensure a single, unambiguous gravity path; attach annotated diagram.

Primary Support Elements

5. Check shelf angles, transoms, and brackets utilization ≤ 1.0 under factored loads; method: section capacity verification; evidence: calculation output and mark-up.
6. Verify bracket spacing and eccentricity against drawings and supplier guidance; tolerance: spacing within ±10 mm; upload dimensioned GA extract with check marks.
7. Confirm bearing pad or shim stack compressive stress ≤ manufacturer allowable; include pad hardness and thickness; evidence: datasheet and calc snippet.
8. Check thermal break plates for compressive capacity and long-term creep under dead-load; acceptance: predicted creep ≤ serviceability allowance; attach supplier report.

Anchors and Fasteners

9. Validate anchor type, diameter, and embedment meet or exceed manufacturer minimums for base material strength; evidence: marked detail and manufacturer table.
10. Confirm minimum edge distances and spacings for anchors are respected; tolerance: no dimension below catalog minimum; attach dimensioned detail snapshot.
11. Plan proof/pull-out testing where required; acceptance: test capacity ≥ 1.5× design tension or shear; evidence: approved test plan and lot traceability.
12. Specify torque/preload values and tools (calibrated torque wrench) for bolted fixings; evidence: torque schedule with tool calibration certificates.
13. Confirm corrosion protection (e.g., stainless grade, galvanizing thickness) suitable for exposure category; evidence: materials list and environmental classification.

Movements, Deflection, and Tolerances

14. Verify vertical dead-load transfer points are distinct from lateral restraints to avoid load lock; evidence: detail mark-up highlighting fixed vs sliding points.
15. Check interstorey drift accommodation: slot lengths/clearances ≥ calculated drift + installation tolerance; attach drift calcs and annotated connection detail.
16. Confirm support member deflections under dead/live loads within serviceability limits (e.g., L/deflection criteria per project); evidence: deflection table.
17. Ensure thermal movement (ΔT) is accommodated at interfaces without binding; method: expansion estimate; evidence: clearance schedule and temperature basis.
18. Define allowable shim stack height and adjustability ranges for plumb/alignment; acceptance: within supplier limits; evidence: installation note and sketch.

Interfaces and Coordination Data

19. Run clash detection with structure, fire-stopping, and MEP; resolve conflicts at anchors and angles; evidence: clash report with closed issues list.
20. Issue embed/insert coordinates with setting-out tolerances and datum references; tolerance: coordinate accuracy within ±5 mm; evidence: BIM extract.
21. Confirm drainage/weep paths remain unobstructed by brackets or anchors; evidence: section detail highlighting clear gaps and fall directions.
22. Define temporary support/handling strategy for panel installation so live loads are not carried by unintended fixings; evidence: method statement excerpt.

Documentation and Approvals

23. Compile a signed calculation package and bracket/anchor schedules with tag references; evidence: PDF with engineer signature and revision control.
24. Record approvals per approved project specifications and authority requirements; attach RFIs, deviations, and material submittal acceptance letters.

Establishing Design Basis and a Clear Load Path

A robust façade support review begins with a shared design basis. Confirm self-weight, maintenance live loads, and combination rules align with current specifications and authority requirements. Reconcile modelled masses to supplier data and recalculate typical reactions in kN, then draw an explicit load path from panel to primary frame. Distinguish components carrying gravity from those restraining lateral drift to avoid unintended load lock. Scrutinize support elements—shelf angles, transoms, and brackets—for utilization at ultimate and serviceability states, and verify bearing pads and thermal breaks for compressive strength and creep. Acceptance cues include a utilization ratio not exceeding design limits, reaction tables matching GA locations, and a complete diagram free of parallel, competing gravity paths. On real projects, these checks regularly expose under-counted accessories, missing sealant weights, or unmodelled glass fins. Closing those gaps now prevents overstress and misaligned interfaces later in coordination.

Reconcile model mass with supplier weights within ±5%.
Show a single, unambiguous gravity load path.
Separate gravity supports from lateral restraints.
Verify bearing pad stresses and creep allowances.
Attach signed reaction and utilization tables.

Anchors, Fasteners, and Corrosion Performance

Anchors and fasteners are the critical link between design intent and reality. Validate anchor type, diameter, embedment, and base material strength against manufacturer data. Confirm edge distances, spacings, and group effects in concrete or steel substrates. Define torque and preload procedures with calibrated tools, and plan any proof or pull-out testing with acceptance thresholds exceeding design demands by a suitable margin. Align materials and coatings with the exposure category to guard against corrosion—especially at balcony edges, coastal zones, or de-icing salt environments. Thermal break elements must resist compressive stresses without long-term settlement that could re-level the façade. Typical evidence includes redlined details showing clear dimensions, datasheets highlighting minimums, and test plans with traceable lots. In practice, early anchor validation avoids site substitutions that can compromise capacity or durability.

Check embedment, edge distance, and spacing minima.
Specify torque values and calibration evidence.
Plan pull-out tests with clear acceptance.
Select materials suited to exposure category.
Confirm thermal break compressive performance.

Movements, Tolerances, and Multidisciplinary Interfaces

Serviceability governs façade performance as much as strength. Verify interstorey drift allowances with slotted connections sized for calculated drift plus installation tolerance. Confirm thermal expansion clearances so brackets and transoms do not bind across temperature extremes. Define shim stack and adjustability ranges to achieve plumb without exceeding supplier limits. Coordinate embeds, fire-stopping, and MEP to prevent clashes at anchors and shelf angles, and protect drainage paths and weeps. Provide coordinate schedules with datum references and accuracy targets to streamline setting out. Acceptance cues include deflection tables at or below project limits, annotated details evidencing clearances, and clash reports with closed actions. On busy elevations, these checks often reveal small but critical conflicts—like fire collars intruding into bracket zones—that are inexpensive to fix now and disruptive later.

Size slots for drift plus tolerance.
Respect thermal expansion clearances.
Limit shim stacks to supplier guidance.
Issue accurate embed coordinates.
Close clashes before coordination lock.

How to Use This Checklist for Pre-Coordination Review

Preparation: Gather latest GA/details, structural models, supplier data, and exposure category. Have a calculator, BIM viewer, torque schedules, and test plans ready. Confirm applicable project specifications and authority requirements.
Open the interactive checklist and select project, elevation, and revision. Assign responsible engineers for each group: design basis, supports, anchors, movements, interfaces, and approvals.
Work through items sequentially. Tick completed checks, attach calculation pages, redlined details, or model snapshots. Use comments to capture assumptions and cross-discipline queries with @mentions.
Record measurements and numeric results directly in fields (kN, mm, MPa). Link datasheets and calibration certificates for anchors, torque tools, and materials.
Run a coordination pass: export a draft PDF/Excel, circulate to stakeholders, collect comments, and resolve clashes or deviations. Re-import feedback into the checklist thread.
Finalization: Mark outstanding RFIs closed, upload approvals, and ensure each item has evidence. Generate the QR-secured export for meeting packs and model coordination.
Sign-Off: Capture digital signatures from façade, structural, and contractor leads. Archive the checklist and export in the project document management system.

Review façade dead-load and live-load support strategy

Start Interactive Checklist

Façade Load Support Strategy Review (Pre-Coordination)

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Façade Load Support Strategy Review (Pre-Coordination) by Quollnet” with a link to this source page.

Download Excel - Façade Load Support Strategy Review (Pre-Coordination)
Download PDF - Façade Load Support Strategy Review (Pre-Coordination)

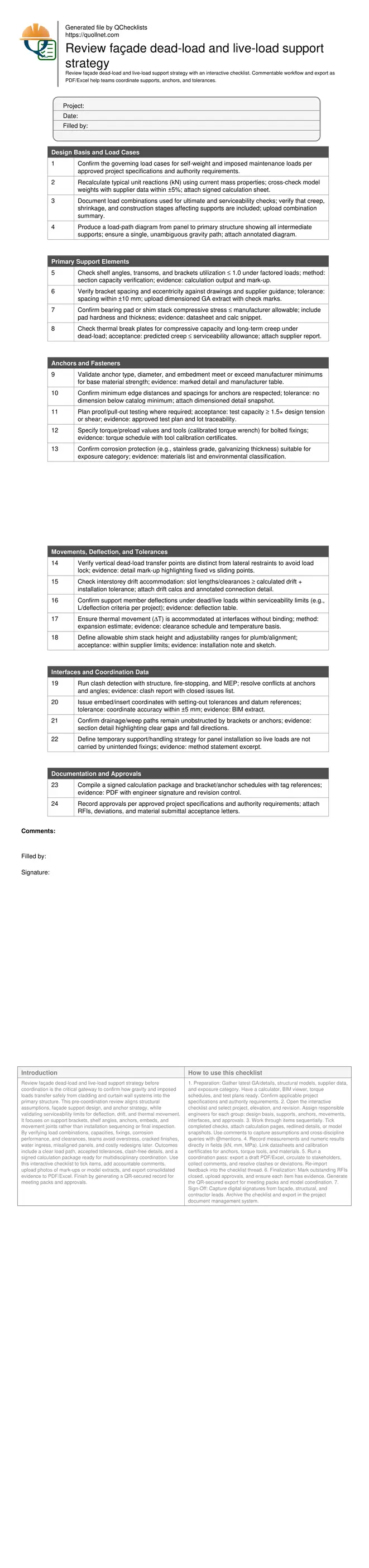

View Image - Façade Load Support Strategy Review (Pre-Coordination)

Santiago Torres Santiago Torres

Jul 23, 2026

FAQ

Question: What counts as live load on façade supports during this review?

For façades, live loads typically include maintenance loads from access equipment, service loads on sills or parapets, and any temporary erection loads. Wind is often handled as a lateral action, but confirm its contribution to connection forces where relevant. Use the project load definitions and document assumptions in the checklist.

Question: How do I verify anchor suitability without on-site testing yet?

Use manufacturer design tables with the specified base material strength, verify embedment, spacing, and edge distances, and check load combinations for both tension and shear. Plan proof or pull-out tests where required and include the approved test procedure now, so procurement and programming can proceed without delay.

Question: What tolerances should I reserve for embeds and brackets?

State coordinate accuracy for setting out (e.g., ±5 mm), slot lengths to accommodate drift plus installation tolerance, and allowable shim stack ranges from the supplier. Document the tolerance envelope on GA/details and confirm adjacent trades understand the reserved zones before coordination lock.

Question: How do thermal breaks affect dead-load support checks?

Thermal breaks reduce thermal bridging but must carry compressive forces from dead-load without excessive creep or crushing. Check compressive strength, long-term deformation under sustained load, and stiffness compatibility with brackets. Attach datasheets and calculations showing stresses within allowable limits across the design temperature range.

Question: When should temporary supports be addressed in coordination?

Define temporary support needs during this pre-coordination review. Identify lifting points, staging loads, and any periods when permanent anchors cannot yet take full load. Include a method statement excerpt so sequence-related loads do not overstress unintended fixings or finishes.
