Façade System Selection vs Geometry and Exposure Checklist

The checklist

Geometry Verification

1. 1Confirm horizontal gridline spacing against BIM and setting-out; use calibrated laser distance meter and total station; acceptance: cumulative deviation ≤ ±5 mm over 10 m; evidence: annotated survey extract and photo of instrument setup.
2. 2Measure floor-to-floor and clear story heights against system mullion span limits; tool: laser level; acceptance: spans within manufacturer-rated limits without extra mid-supports; evidence: highlighted datasheet and recorded heights.
3. 3Check slab edge straightness and level using a 2 m straightedge and laser; acceptance: local deviation ≤ 3 mm and levelness within ±5 mm; evidence: photos with straightedge and measured readings.
4. 4Verify corner angles and façade curvature radii; tool: laser scanner or angle finder; acceptance: within ±1° or ±10 mm of design; evidence: point cloud snapshot and marked-up drawings.
5. 5Confirm joint allowances for construction tolerances and fit-up; method: compare as-built variance vs designed joint width; acceptance: remaining reserve ≥ 20% after worst-case; evidence: joint schedule with reserve noted.
6. 6Review interstory drift compatibility; method: compare structural model outputs with system tested displacement; acceptance: system accommodates calculated drift or ≥ H/400, whichever governs; evidence: calculations and manufacturer statement.

Exposure and Climate Assessment

1. 7Establish design wind pressures by elevation and zone; tool: wind study or engineer’s calc; acceptance: system rating ≥ design ultimate/service pressures (kPa); evidence: report excerpt and capacity table.
2. 8Assess driving rain exposure by height and orientation; method: climate data and facade zoning; acceptance: drained and pressure-moderated design on windward zones; evidence: zoning diagram and rationale.
3. 9Check temperature and UV range against sealants and gaskets; tool: product datasheets; acceptance: validated performance from −20 °C to +50 °C, UV-stable; evidence: manufacturer compliance letter.
4. 10Confirm corrosion exposure (coastal/industrial) and specify protection; method: site proximity and pollutants; acceptance: corrosion category and finishes per approved project specifications; evidence: finish schedule and notes.
5. 11Evaluate thermal and seismic movements; method: calculation of combined movements; acceptance: joint capacity ≥ calculated movement + 20% reserve; evidence: movement table and detail references.

System Compatibility and Detailing

1. 12Verify substrate type (concrete/steel/CMU) matches tested fixing details; method: compare submittals to test evidence; acceptance: same or engineering-verified equivalent; evidence: test reports and marked details.
2. 13Review slab edge/column interface details; method: tolerance stack-up; acceptance: shimming/packing capacity for ±10 mm misalignment using non-combustible materials; evidence: detail markup and materials list.
3. 14Validate glazing/infill weight and thickness vs mullion/transom capacity; method: datasheet check; acceptance: panel mass ≤ rated kg/m² and thickness within tested range; evidence: product datas and calc note.
4. 15Confirm fire performance at floor zones; method: review cavity barriers and fire-stops; acceptance: continuous barriers and tested assemblies per approved project specifications; evidence: shop drawings with approvals.
5. 16Check acoustic targets (Rw/CTR) vs system performance; method: compare lab reports; acceptance: rated values meet or exceed specification; evidence: accredited test reports attached.

Structural and Fixing Checks

1. 17Verify anchor edge distances and embedment depths; tool: manufacturer calc and typical detail; acceptance: dimensions within ±5 mm of design; evidence: signed calc extract and detail callouts.
2. 18Confirm bracket spacing along mullions; method: compare layout to structural design; acceptance: centres ≤ calculated maximum (e.g., 600–1200 mm as designed); evidence: layout drawing with check marks.
3. 19Check allowance for differential vertical and horizontal movements; method: slot length and shim review; acceptance: ±15 mm capacity or per calculation; evidence: photo of slotted holes and detail markup.
4. 20Verify fastener and bracket metallurgy to avoid galvanic corrosion; method: materials pairing table; acceptance: compatible pairings per approved project specifications; evidence: material certificates and table.
5. 21Confirm serviceability deflection limits under design loads; method: engineering check; acceptance: L/240 or stricter as specified; evidence: calculation page signed by responsible engineer.

Drainage and Moisture Management

1. 22Verify rainscreen cavity continuity and depth; tool: detail review and ruler at mock-up; acceptance: ≥ 25 mm clear, unobstructed top and bottom vents; evidence: mock-up photos with measurements.
2. 23Check weep/pressure moderation openings; method: detail and prototype inspection; acceptance: slot width ≥ 8 mm and spacing per design; evidence: prototype test notes and images.
3. 24Confirm head, sill, jamb waterproofing with end dams and laps; tool: detail audit; acceptance: laps ≥ 100 mm with positive fall; evidence: water test report or annotated photos.
4. 25Review vapor control strategy for climate; method: hygrothermal assessment; acceptance: no interstitial condensation under design conditions; evidence: model outputs and narrative.

Documentation and Approvals

1. 26Obtain manufacturer selection matrix mapping elevations to systems and variants; acceptance: matrix signed by designer and supplier; evidence: uploaded PDF with signatures.
2. 27Record design assumptions: loads, movements, tolerances; method: controlled register; acceptance: versioned entry with date and responsible person; evidence: issue log export.
3. 28Capture 360° photos of critical interfaces and upload; tool: site camera; acceptance: links embedded in checklist with captions; evidence: QR-linked gallery.
4. 29Verify maintenance access and replacement logistics; method: BMU reach study and handling plan; acceptance: safe access and panel handling strategy documented; evidence: O&M note and drawings.
5. 30Hold final approval review with stakeholders; method: meeting minutes; acceptance: actions closed and digital signatures captured; evidence: signed meeting record stored.

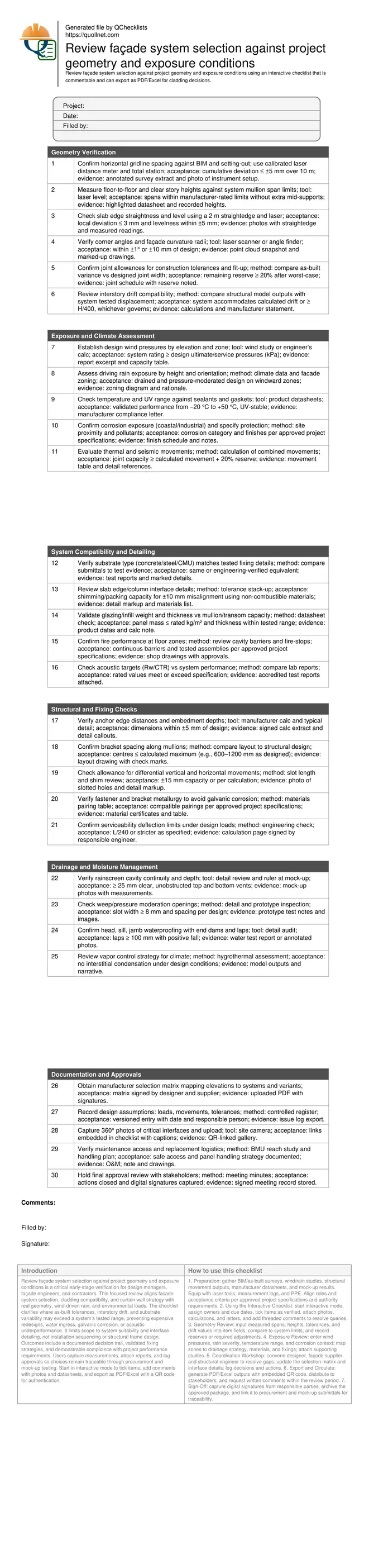

Preview the printable checklist
