Review façade stone cladding support concept and panel restraint design for façade engineers and contractors, validating loads, movements, fixings, and interfaces before shop drawings, procurement, and fabrication.
- Validate loads, movement, fixings, and materials before fabrication.
- Reduce breakage, water ingress, and out-of-tolerance rails on site.
- Apply practical tolerances, tested anchors, and durable isolation details.
- Interactive, commentable, export with QR code for authenticated records.
The checklist
Design Basis and Loads
- Confirm design actions: wind pressure/suction and specified seismic where applicable; method: review wind study and loading combinations; acceptance: loads tabulated with governing cases; evidence: upload report excerpt and engineer sign-off.
- Verify dead-load path from each stone panel to brackets and primary structure; method: mark up load-path diagram; acceptance: no unintended bearing on rails; evidence: annotated drawing and referenced calculations.
- Check serviceability deflection of rails/brackets under SLS; method: span/FE calculations; acceptance: max deflection ≤ L/360 and ≤ 3 mm; evidence: signed calculation sheet.
- Validate anchor pull-out and shear versus design actions; method: compare test/ETA data to demands; acceptance: demand/capacity ≤ 0.6, edge distances within manufacturer limits; evidence: capacity table and highlighted margins.
- Confirm panel size, aspect ratio, and thickness suit spans and fixings; method: compare to manufacturer tested ranges; acceptance: within approved chart limits; evidence: attach product chart with selected ranges highlighted.
Materials and Components
- Specify corrosion-resistant grades: A4/316 stainless for fixings, suitable alloy/temper for rails; method: review specifications; acceptance: materials match corrosion category; evidence: spec extract and supplier datasheet.
- Verify stone properties (density, flexural strength) from quarry/DoP certificates; method: document check; acceptance: values meet design inputs; evidence: upload CE/DoP PDFs with properties marked.
- Confirm isolators/thermal breaks between dissimilar metals and structure; method: detail review; acceptance: non-conductive pads at all brackets; evidence: detail callouts and product datasheet attached.
- Approve coatings/finishes for rails/brackets and fastener protection; method: system datasheet review; acceptance: coating thickness and system per spec; evidence: coating schedule and datasheets uploaded.
Support Brackets and Rails
- Set bracket stand-off to accommodate substrate tolerance ±15 mm; method: survey vs slot adjustment check; acceptance: adjustment range ≥ measured deviation; evidence: survey report and bracket schedule.
- Determine bracket spacing from loads and substrate capacity; method: span and anchor group calculations; acceptance: spacing ≤ calculated maximum; evidence: calc excerpt and bracket layout drawing.
- Verify substrate fixings: type, embedment, and torque; method: anchor schedule; acceptance: embedment ≥ manufacturer minimum, torque value specified; evidence: anchor table with values highlighted.
- Detail rail joints and thermal expansion gaps; method: rail shop drawings; acceptance: joints at calculated intervals with gap dimension shown; evidence: annotated drawing and movement calc.
- Maintain ventilation/drainage continuity behind rails; method: section detail review; acceptance: unobstructed cavity and top/bottom openings; evidence: section markup and airflow/drain path notes.
Panel Restraint and Fixings
- Select a single fixing system (undercut anchors or kerf clips) across the façade; method: design decision log; acceptance: fully compatible components listed; evidence: decision memo and supplier confirmation.
- Design primary dead-load supports at defined points; method: fixing layout with load share; acceptance: dead load carried only by designated supports; evidence: layout drawing and calc note.
- Size restraint fixings for wind actions (pressure/suction) in all zones; method: calculation; acceptance: demand/capacity ≤ 0.6; evidence: calculation PDF and capacity reference.
- Check stone edge distances and fixing spacing; method: overlay template on shop drawing; acceptance: values within manufacturer/tested limits; evidence: marked shop drawing and template reference.
- Control hole/kerf tolerances and alignment; method: jig drawing and sample measurement; acceptance: diameter/kerf width within ±0.5 mm; evidence: measurement photo with scale.
- Define joint width and sealant/backer (if used) for movement; method: thermal/differential movement calc; acceptance: joint ≥ required movement plus erection tolerance; evidence: calc sheet and sealant datasheet.
Interfaces and Documentation
- Coordinate with windows, fire barriers, and waterproofing membranes; method: 3D clash and section review; acceptance: continuous barriers and unbroken drainage planes; evidence: model screenshots and marked sections.
- Plan safe access/replacement of individual panels; method: maintenance strategy; acceptance: replace a panel without removing more than two adjacent; evidence: O&M draft with sequence noted.
- Compile full calculations, tests, and product approvals; method: document index; acceptance: single controlled register with revisions; evidence: uploaded index and file links.
- Obtain formal design approval per approved project specifications and authority requirements; method: submit coordinated package; acceptance: stamped approval received; evidence: approval letter and dates recorded.
Preview the printable checklist

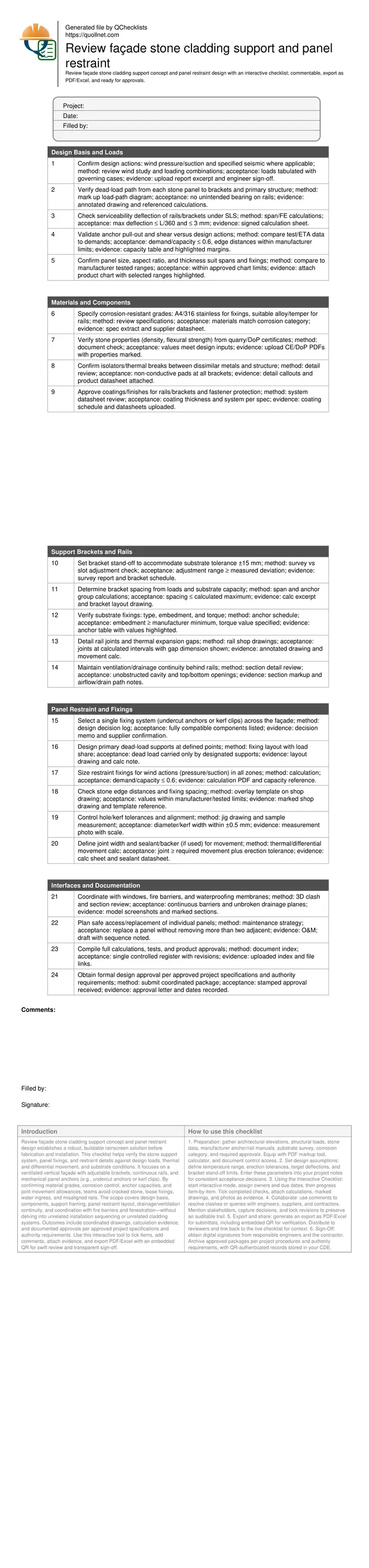

Preview page one below. Open the image or download the PDF for all pages.
At a glance
- This checklist streamlines engineering review of stone rainscreen support and restraint by confirming load paths, verified anchor capacities, realistic site tolerances, and coordinated interfaces. It reduces redesign cycles, material waste, and site rework by aligning design intent with tested products and buildable details.
- It applies practical acceptance cues: demand/capacity ratios within conservative limits, bracket stand-off accommodating survey tolerances, controlled rail deflection under service loads, correctly sized joint movements, and corrosion-resistant materials. Evidence requirements harden accountability and ensure traceable approvals.
- Interactive online checklist with tick, comment, and export features secured by QR code. It centralizes design inputs, drawings, calculations, and test data, enabling reviewers, suppliers, and contractors to collaborate asynchronously, resolve clashes early, and maintain a single source of truth throughout submittals and fabrication.
How to Use This Interactive Façade Support & Restraint Review
- Preparation: gather architectural elevations, structural loads, stone data, manufacturer anchor/rail manuals, substrate survey, corrosion category, and required approvals. Equip with PDF markup tool, calculator, and document control access.
- Set design assumptions: define temperature range, erection tolerances, target deflections, and bracket stand-off limits. Enter these parameters into your project notes for consistent acceptance decisions.
- Using the Interactive Checklist: start interactive mode, assign owners and due dates, then progress item-by-item. Tick completed checks, attach calculations, marked drawings, and photos as evidence.
- Collaborate: use comments to resolve clashes or queries with engineers, suppliers, and contractors. Mention stakeholders, capture decisions, and lock revisions to preserve an auditable trail.
- Export and share: generate an export as PDF/Excel for submittals, including embedded QR for verification. Distribute to reviewers and link back to the live checklist for context.
- Sign-Off: obtain digital signatures from responsible engineers and the contractor. Archive approved packages per project procedures and authority requirements, with QR-authenticated records stored in your CDE.
Load Paths and Buildable Support Concept
A reliable stone rainscreen starts with explicit dead-load and wind-load paths. Dead load should travel from each panel through primary supports into adjustable brackets and then the primary structure, avoiding unintended bearing at rails or adjacent panels. Wind suction and pressure act through restraint fixings into rails and brackets. Rail spans, bracket spacing, and anchor embedment must reflect real site tolerances and substrate capacity. Keep serviceability deflection tight so joints remain even and anchors avoid prying. Detail rail joints and expansion gaps so continuity is maintained without binding. Where loads concentrate at corner fixings, validate local stone stresses against tested configurations. Use conservative demand/capacity ratios to allow for construction variability. Finally, keep drainage and ventilation uninterrupted; do not block the cavity with oversized pads or misaligned brackets that trap water or debris and elevate risk of freeze–thaw damage.
- Trace dead and wind loads with annotated diagrams.
- Limit rail deflection to protect joints and anchors.
- Bracket spacing tied to loads and substrate capacity.
- Keep cavity ventilation and drainage paths unobstructed.
Thermal and Differential Movement Strategy
Stone, aluminum, and concrete move differently with temperature and moisture. The support concept must accommodate combined movements without over-stressing anchors or closing joints. Provide slotted holes, expansion joints, and isolators so rails expand freely, while primary supports carry dead load with minimal creep. Joint widths must cover calculated thermal movement, frame drift, and erection tolerance. Use movement calculations tied to project temperature range and panel geometry; document how gaps at rail joints and panel joints absorb that movement. Check hole or kerf tolerances so the intended slippage or restraint function is actually achieved in fabrication. Detailing should prevent stone-to-metal hard contact at restraint points, using shims or sleeves that maintain alignment while avoiding point loading.
- Calculate movement over realistic temperature ranges.
- Provide slotted holes and rail expansion joints.
- Size panel joints for movement plus tolerance.
- Avoid hard contacts that create point loads.
Durability, Fire, and Maintainability Considerations
Durability depends on compatible materials and effective separation. Use A4 stainless fixings and appropriate aluminum or protected steel, isolating dissimilar metals with durable pads to reduce galvanic risk. Keep water off anchors: maintain cavity ventilation, ensure drainage at rail interruptions, and avoid capillary traps. Coordinate non-combustible components, fire-stopping at floor lines, and continuous air/water barriers so performance is not compromised. Where sealants are used, confirm substrate compatibility and access for periodic replacement. Plan for maintainability: panels should be removable with standard tools from a cradle or MEWP, and replacement should not require dismantling large façade areas. Document all selections with datasheets and test reports to support approvals and long-term asset records.
- Isolate dissimilar metals to reduce corrosion.
- Maintain drainage and ventilation in the cavity.
- Coordinate fire barriers and membrane continuity.
- Plan panel replacement with minimal removals.
