Façade slab-edge details and dimensional reservation review

Review façade slab-edge details and dimensional reservation requirements is a focused quality-control process that verifies the concrete edge geometry, anchor zones, and interface allowances before façade works proceed. This checklist targets façade edge coordination, slab-edge reservations, and embed plate layout so tolerances, clearances, and adjustability stack-ups are proven on site. By checking survey control, straightness, recesses, upstands, anchor edge distances, thermal breaks, waterproofing upturns, and firestop cavities, teams avoid costly drilling conflicts, misaligned brackets, and water ingress. The scope excludes full façade system design and structural calculations; it validates built concrete and reserved spaces against approved shop drawings, BIM models, and project specifications. Outcomes include predictable bracket setting, compliant joint widths, continuous insulation, service clash avoidance, and documented evidence suitable for approvals. Use this interactive checklist to tick items, add field comments with photos, and instantly export to PDF or Excel via a secure QR-linked record.

Review façade slab-edge details and dimensional reservations

Review façade slab-edge details and dimensional reservation requirements for construction managers and façade coordinators, validating geometry, anchor zones, and interface allowances before procurement, fabrication, and installation to prevent rework and cladding misalignment.

  • Confirm grid, level, and straightness against BIM and drawings.
  • Validate anchor zones, embeds, and adjustability with measurable tolerances.
  • Protect thermal, waterproofing, and firestop reservations across interfaces.
  • Interactive, commentable, export, QR code verification for audit trails.

The checklist

Survey Control & Reference Data

  1. Verify slab-edge grid alignment to BIM/drawings using a total station; acceptance ≤ ±5 mm plan position over 10 m. Upload survey report, instrument calibration certificate, and annotated screenshots.
  2. Check slab-edge level (RL) against specified FFL using auto level/laser; acceptance ±5 mm across bay. Record benchmark references, level book entries, and a photo of staff readings.
  3. Confirm façade primary datum offsets (bracket centrelines) are set out and marked; acceptance ±5 mm to datum. Upload marked-edge photos and coordinate file with datum layers visible.

Slab-Edge Geometry & Tolerances

  1. Measure edge straightness with a 3 m straightedge and feeler gauges; out-of-straight ≤ 5 mm. Photograph gauge readings at quarter points and note corrective grinding if needed.
  2. Check perpendicularity of edge to adjacent walls/frames using laser square; deviation ≤ 5 mm over 3 m. Capture laser layout photo and sketch showing measured deviations.
  3. Verify rebates, steps, chamfers, and drip grooves match drawings; dimension tolerance ±5 mm depth/width. Attach tape-measure photos and redlined detail referencing drawing number and revision.
  4. Confirm concrete cover to edge reinforcement at anchor zones using cover meter; acceptance per approved project specifications and authority requirements, documented reading ≥ specified minus 5 mm. Upload readings and reinforcement layout sketch.

Façade Anchorage & Embeds

  1. Locate cast-in anchors/plates with cover meter and tape; position to shop drawings within ±5 mm, never infringing minimum edge distances. Record plate IDs, weld stamps, and location photos.
  2. Check embed plate levelness and face flatness with digital level and straightedge; ≤ 3 mm over 1 m. Photograph bubble/reading and note any shimming plan if outside tolerance.
  3. Verify clear rebar/MEP-free drilling corridor at post-installed anchor zones using rebar scanner; acceptance: no bars/services within the manufacturer’s exclusion envelope. Upload scan maps and calibrated tool certificate.
  4. Confirm thermal-break plate or pad recess dimensions against shop drawings; tolerance ±5 mm in length/width, ±3 mm in depth. Photo with steel rule and material submittal reference.

Thermal/Waterproofing Interfaces

  1. Measure reserved thickness for continuous insulation/thermal break at slab edge with caliper; acceptance: design thickness ±3 mm along tested points. Upload measurement log and continuity photos.
  2. Verify waterproofing upturn/downstand heights at edges/thresholds using tape; acceptance per approved project specifications and authority requirements, tolerance ±5 mm. Attach QA hold-point release and photos before concealment.
  3. Check drip details, sills, and falls away from interior with digital level; slope ≥ 1:100. Document spot readings and water test evidence with timestamped images.

Fire/Movement & Envelope Gaps

  1. Measure façade-to-slab edge joint width with feeler gauges/tape; acceptance: design joint width 0/+10 mm to preserve adjustability. Upload joint map and bracket slot capacity check.
  2. Confirm reserved firestop cavity depth and backing support match the approved system; tolerance ±5 mm. Attach system approval reference, mock-up photos, and installation sequencing note.
  3. Validate movement joint gaps and cover-plate fixing zones are clear of reinforcement/services; dimensions per drawings ±5 mm. Provide annotated photos and detail callout reference.

Coordination & Documentation

  1. Clash-check MEP penetrations within 300 mm of slab edge against reserved façade zones using federated BIM; acceptance: zero unresolved clashes. Upload Navisworks screenshot and RFI closeout number.
  2. Verify temporary edge protection fixings avoid façade anchor areas; acceptance: no holes within reserved zones. Provide marked-up edge photos and supervisor sign-off.
  3. Confirm tolerance stack-up: structure, bracket slots, unit adjusters; acceptance: residual adjustability ≥ ±15 mm vertically and horizontally. Upload calculation sheet and bracket data sheet.
  4. Check latest approved shop drawings/revisions used on site; acceptance: stamps current and consistent with BIM issue. Attach approval stamps and transmittal references.
  5. Log nonconformances and corrective actions for any deviations; acceptance: agreed rectification plan with dates and responsible parties. Upload NCR forms and closeout evidence.

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

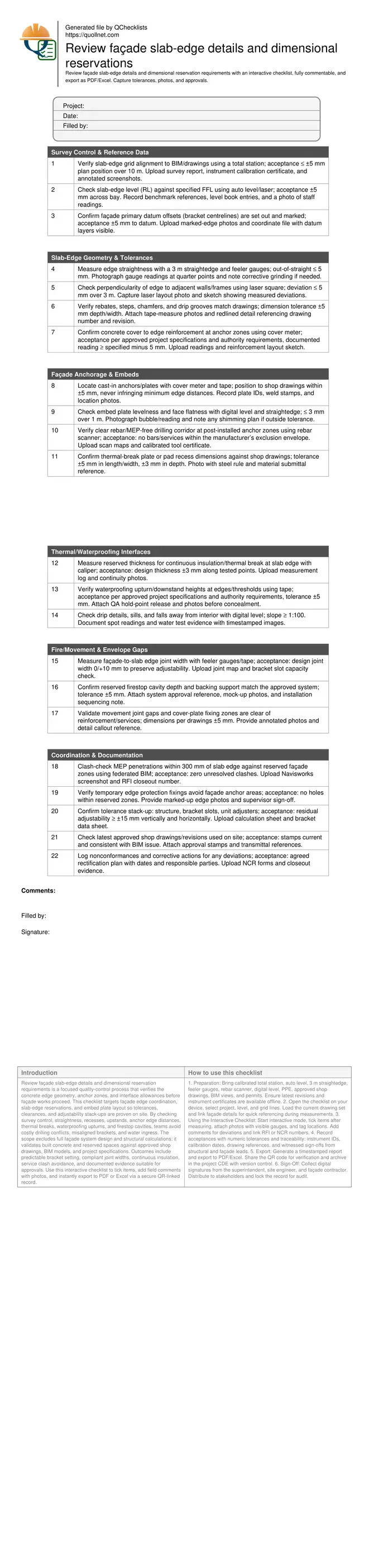

First-page preview of the Façade Slab-Edge Review & Dimensional Reservations printable checklist template.
Façade Slab-Edge Review & Dimensional Reservations · Page 1 preview · Open image with all pages

At a glance

  • Validate slab-edge geometry, datums, and tolerances early to lock predictable façade bracket setting-out. This avoids rework from misaligned anchors, insufficient cover, or uneven edges, improving cycle times and reducing remedial concrete grinding or patching.
  • Prove dimensional reservations for thermal breaks, waterproofing upturns, and firestop depth so envelope performance is achievable. Document acceptance with survey reports, calibrated tool readings, marked-up photos, and cross-referenced shop drawing revisions.
  • Coordinate anchor zones clear of reinforcement and services to protect edge distances and drilling access. Confirm residual adjustability accommodates structural tolerance stack-ups, keeping units plumb while maintaining design joint widths.
  • Interactive online checklist with tick, comment, and export features secured by QR code.

How to Use This Interactive Slab-Edge Review Checklist

  1. Preparation: Bring calibrated total station, auto level, 3 m straightedge, feeler gauges, rebar scanner, digital level, PPE, approved shop drawings, BIM views, and permits. Ensure latest revisions and instrument certificates are available offline.
  2. Open the checklist on your device, select project, level, and grid lines. Load the current drawing set and link façade details for quick referencing during measurements.
  3. Using the Interactive Checklist: Start interactive mode, tick items after measuring, attach photos with visible gauges, and tag locations. Add comments for deviations and link RFI or NCR numbers.
  4. Record acceptances with numeric tolerances and traceability: instrument IDs, calibration dates, drawing references, and witnessed sign-offs from structural and façade leads.
  5. Export: Generate a timestamped report and export to PDF/Excel. Share the QR code for verification and archive in the project CDE with version control.
  6. Sign-Off: Collect digital signatures from the superintendent, site engineer, and façade contractor. Distribute to stakeholders and lock the record for audit.

Why slab-edge reservations decide façade buildability

Façade slab-edge reservations determine whether brackets, gaskets, and firestops can fit and perform as designed. Early verification finds straightness issues, short edge distances, or missing recesses before procurement commits to fixed hardware. On real projects, a 10 mm overpour at the edge can wipe out bracket slot capacity, forcing unplanned grinding, lost cover, and delayed drops. Conversely, an unchecked tight joint can eliminate firestop depth and create water tracking paths. This checklist focuses strictly on slab-edge details—rebates, steps, chamfers, upturns, and anchor zones—cross-checked to approved shop drawings and BIM. Acceptance cues include measurable tolerances for straightness, plate flatness, and joint width; evidencing with calibrated readings and marked photos prevents subjective disputes later. When reservations are proven, façade installers can set brackets plumb, maintain joint lines, and keep thermal and fire continuity without field improvisation.

  • Detect geometry issues before bracket fabrication and delivery.
  • Protect anchor edge distances and concrete cover reliably.
  • Preserve thermal, waterproofing, and firestop continuity.
  • Capture calibrated evidence to support sign-offs.

Survey control, tolerances, and acceptance evidence

Reliable survey control underpins every slab-edge decision. Establish grid and RLs with a calibrated total station and auto level, then validate straightness with a 3 m straightedge. Practical tolerances like ±5 mm on position and level, ≤5 mm out-of-straight, and ≤3 mm plate flatness keep façade adjusters within their slots. Field teams should tag each measurement to a station ID, instrument certificate, and drawing callout. Photographs with visible gauges and datums eliminate ambiguity. Where joints define movement and fire barriers, joint widths should be 0/+10 mm so installers retain shim and sealant options. If conflicts arise—such as reinforcing discovered in an anchor zone—use a rebar scanner to map alternatives and issue an RFI before drilling. Acceptance is not only numeric; it is also traceability: the latest revisions, approvals, and closeout records must accompany the measurements.

  • Use calibrated instruments and record certificates.
  • Tie readings to drawing callouts and datums.
  • Hold 0/+10 mm on façade joint widths.
  • Escalate conflicts with documented scans and RFIs.

Interfaces: thermal, waterproofing, and fire integrity

Interface reservations make performance achievable, not aspirational. Thermal breaks and continuous insulation require confirmed thickness across the run, with tight depth control in recesses for bearing plates. Waterproofing relies on sufficient upturns, downstands, and fall away from interiors; even small deviations can redirect water behind cladding. Fire protection depends on joint depth, backing support, and compatibility with the approved system. Coordinate these with anchor positions to avoid crowding the same cavity. Field photos should show rulers and levels in frame, plus labels linking to submittal IDs and details. Where tolerances stack unfavorably, consider minor grinding or packer adjustments—never eroding required firestop depth or breaking waterproofing continuity. Sequencing matters: verify structural edges and embeds first, then release membranes and firestops, and only then set façade brackets to keep warranties intact.

  • Prove insulation and thermal-break thickness continuity.
  • Maintain waterproofing upturns and outward falls.
  • Keep firestop depth and backing per approved system.
  • Sequence checks to protect warranties and performance.

Lila Gonzalez's photo
Lila Gonzalez
24107
213
21
33

Frequently asked questions

What tolerances should I apply to slab-edge straightness and level for façade brackets?

Common practice is out-of-straight not exceeding 5 mm over a 3 m straightedge and level within ±5 mm across a bay. Always align with approved project specifications and authority requirements, then verify that façade bracket adjustability can absorb the residual deviations with documented calculations.

How do I protect anchor edge distances when reinforcement is close to the slab edge?

Scan the edge with a calibrated rebar locator and compare results to shop drawings. If conflicts appear, pause drilling, issue an RFI with scan maps, and propose alternate locations or bracket types. Maintain minimum edge distances and concrete cover per approved project specifications and capture approvals before proceeding.

When should waterproofing and firestopping be installed relative to bracket setting?

Verify and accept slab-edge geometry and embeds first. Next, install waterproofing upturns and any protection layers as specified. Then set façade brackets without damaging membranes. Firestopping is typically installed after bracket setting, maintaining the approved system depth and backing. Sequence sign-offs to protect warranties and compliance.

What evidence is required to close out slab-edge dimensional reservations?

Provide survey reports, level books, calibrated tool certificates, marked-up photos with visible gauges, rebar scan maps, approved shop drawing revisions, and any RFIs or NCR closeouts. Include a tolerance stack-up note showing residual façade adjustability, and export a signed PDF/Excel report with a QR-verifiable record.
