Review façade interface with balustrades, guardrails, and edge protection is a field checklist for site engineers and inspectors to verify safe, watertight, compliant barrier-to-façade junctions on occupied and construction projects.
- Verify structural fixings, seals, and tolerances against approved drawings and methods.
- Prevent water ingress, corrosion, thermal bridging, and façade surface damage early.
- Record measurements, photos, batch data, and signatures for traceable compliance.
- Interactive, commentable checklist with export and QR code authentication.
The checklist
Pre-Installation Verification
- Confirm latest approved drawings/specifications and method statements are on site; cross-check interface details; record document numbers/revisions; capture photos of posted sets; acceptance: documents match current approvals per project specifications and authority requirements.
- Survey slab edge/façade reference lines with a calibrated laser level; record level/plumb deviations; acceptance: ≤ 5 mm over 2 m and cumulative ≤ 10 mm; attach marked-up photos and instrument calibration certificate.
- Measure embed plates/inserts coordinates and edge distances using a steel tape; acceptance: within ± 5 mm of setting-out; minimum edge distances per approved drawings; log measurements and upload redlined layout.
- Verify material compatibility: stainless, galvanised steel, aluminium, and façade fixings; check isolation pads/washers; acceptance: documented isolation/compatibility per submittals; attach product datasheets and corrosion category confirmation.
Structural Fixings & Anchors
- Confirm anchor type/capacity vs design loads and substrate (concrete, steel, masonry); acceptance: approved anchor model matches submittal; evidence: packaging photos, approval/ETA references, and batch/lot numbers.
- Check anchor spacing and edge distances with tape and template; acceptance: per approved drawings; no anchor closer than the specified edge distance; attach measurement log and marked photos.
- For bonded anchors, verify hole diameter/depth, blow–brush–blow cleaning, and curing time; acceptance: embedment depth within ± 3 mm; no installation before full cure; record adhesive batch/expiry and time-stamped photos.
- Torque-test mechanical anchors with a calibrated torque wrench; acceptance: achieve specified torque within ± 10%; record readings per anchor, wrench serial number, and calibration date; attach photos of gauge during test.
- Inspect baseplate welds/brackets using weld gauges; acceptance: weld size/length and continuity per approved WPS; no cracks/undercut; record welder ID and close-up photos.
- Check post plumb and rail level using a digital inclinometer/laser; acceptance: ≤ 2 mm per 1 m or ≤ 0.2° from true; attach readings and overview photos.
Interface Detailing & Waterproofing
- Verify continuity of air/water barriers at penetrations: sleeves, collars, tapes; acceptance: fully bonded laps with no fish-mouths; evidence: close-ups before/after bracket installation.
- Confirm sealant joint width/depth and backer rod placement with a depth gauge; acceptance: dimensions per manufacturer; clean, primed substrates; attach product label, lot number, and bead close-ups.
- Install thermal break pads/shims at metal-to-metal interfaces; acceptance: thickness per drawing within ± 1 mm; continuous coverage under brackets; evidence: measurements and photos before bolting.
- Check flashings/drip edges around balcony/edge details; acceptance: outward fall ≥ 5° and overhang ≥ 10 mm; no reverse fall; attach photos and inclinometer reading if applicable.
- Treat cut edges and site-drilled areas with approved coating; acceptance: dry film thickness per submittal measured with a DFT gauge (µm); record readings and product batch.
Alignment, Tolerances & Clearances
- Measure top rail/guard height from finished floor level with a steel rule; acceptance: height per approved drawings and authority requirements; record min/average values and location-tagged photos.
- Verify baluster/infill spacing using a go/no-go gauge; acceptance: maximum opening per approved drawings; no oversized gaps at corners; upload gauge photos and measurement sheet.
- Check glass infill edge clearances to channels/gaskets with feeler gauges; acceptance: per drawing, typically uniform ± 1 mm; no edge contact; attach close-up photos.
- Confirm rail offsets/returns avoid contact with façade glazing; acceptance: maintain ≥ 50 mm clearance to glass/frames; evidence: measured photos with scale and marked clearances.
- Verify balcony/edge drainage paths are unobstructed by posts/baseplates; acceptance: ≥ 10 mm free gap to scuppers/channels; perform small water pour test; attach video/photo and notes.
Temporary Edge Protection Controls
- Confirm temporary edge protection class/layout matches the risk assessment; acceptance: installed by a competent person; current inspection tag present; attach tag photo and installer ID.
- Check clamps/pads do not damage façade finishes; acceptance: soft isolation pads fitted; no scratching/cracking; before-and-after photos at each clamp point.
- Apply a 0.3 kN lateral load (controlled) to mid-rail; acceptance: no contact with façade surfaces; deflection within specified limits; record displacement with tape and photo.
- Establish inspection frequency and bay IDs; acceptance: daily/weekly checks logged; QR stickers applied at access points; upload register screenshots and sample sign-offs.
Documentation & Handover
- Collect approvals: shop drawings, method statements, installation manuals; acceptance: revisions current; upload PDFs to checklist and note superseded sets removal.
- Record materials certification: stainless grade, galvanizing thickness, sealant type; acceptance: matches submittals; attach mill certificates, galvanizing reports (µm), and product data.
- Capture as-built photos of each interface: fixings, seals, covers; acceptance: clear, time-stamped, location-referenced; link to drawing grid/bay; include overview and detail shots.
- Obtain final acceptance: supervisor and safety officer digital signatures; generate punch-list closeout; acceptance: all items closed or approved deviations documented; export PDF/Excel.

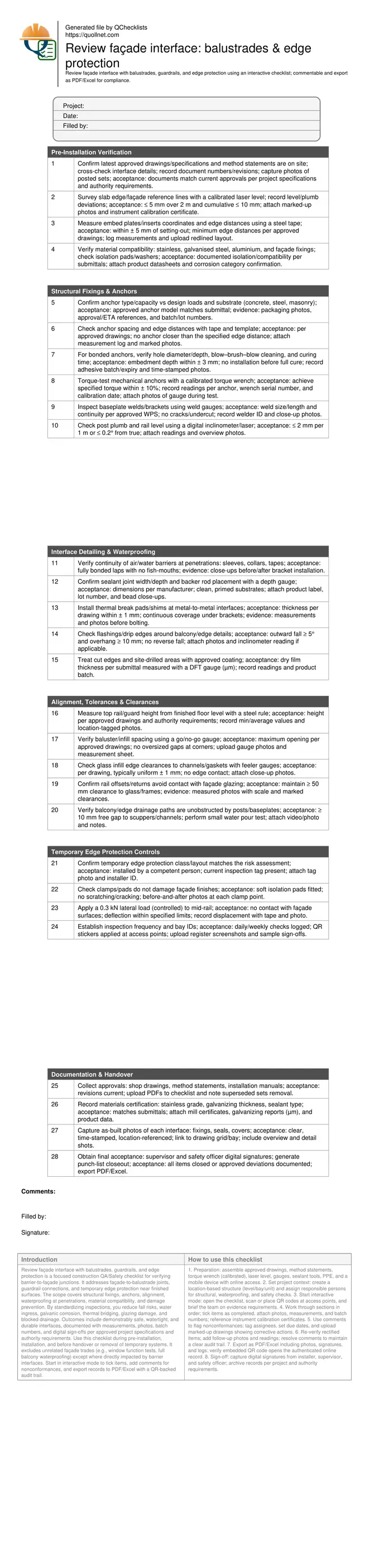

Preview the printable checklist
Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Ensure barrier posts, rails, and infills connect to façades without compromising structure, waterproofing, or finishes. The checklist guides surveys, anchor selection, torque verification, membrane detailing, sealant dimensions, and alignment tolerances, while capturing photographic evidence, measurements, and product credentials for traceable acceptance.
- Avoid rework by catching clashes, insufficient edge distances, and incompatible materials before installation. Practical steps validate embed plate locations, anchor embedment, thermal breaks, drip edges, and drainage continuity. Acceptance cues, tolerances, and tools are embedded to drive repeatable, defensible inspections on live projects.
- Temporary edge protection near finished façades receives special attention. Controls verify isolation pads, load/deflection behavior, inspection tags, and no-contact with glazing. Records include tag IDs, bay references, dates, and stakeholder approvals to maintain safety without damaging completed work or water barriers.
- Interactive online checklist with tick, comment, and export features secured by QR code.
How to prepare, use, and sign off this interactive checklist
- Preparation: assemble approved drawings, method statements, torque wrench (calibrated), laser level, gauges, sealant tools, PPE, and a mobile device with online access.
- Set project context: create a location-based structure (level/bay/unit) and assign responsible persons for structural, waterproofing, and safety checks.
- Start interactive mode: open the checklist, scan or place QR codes at access points, and brief the team on evidence requirements.
- Work through sections in order; tick items as completed, attach photos, measurements, and batch numbers; reference instrument calibration certificates.
- Use comments to flag nonconformances; tag assignees, set due dates, and upload marked-up drawings showing corrective actions.
- Re-verify rectified items; add follow-up photos and readings; resolve comments to maintain a clear audit trail.
- Export as PDF/Excel including photos, signatures, and logs; verify embedded QR code opens the authenticated online record.
- Sign-off: capture digital signatures from installer, supervisor, and safety officer; archive records per project and authority requirements.
Why interface checks matter for safety, durability, and handover
Façade–barrier junctions combine structural demand, weatherproofing, and finish protection in a small footprint. Misplaced anchors reduce capacity; poorly sealed penetrations channel water into walls; incompatible metals create galvanic corrosion; and tight tolerances risk damaging glazing. This checklist sequences verification from drawings and surveys through anchors, waterproofing, and alignment so issues surface before finishes or occupants are at risk. Acceptance cues specify measurable tolerances, e.g., embedment within millimetres, torque ranges, clearances to glass, and minimum overhangs/falls for flashings. Evidence—photos, readings, batch numbers, and signatures—translates inspections into auditable records per approved project specifications and authority requirements. On high-rise balconies, winter gardens, or podium edges, robust documentation reduces rework, accelerates approvals, and protects warranties. Examples include confirming edge distances before coring, checking collar tapes before post-installation, and proving torque with a calibrated wrench rather than “tight-by-feel.”
- Measure, don’t guess—record values with calibrated tools.
- Seal penetrations before loading brackets or posts.
- Prevent galvanic action with isolation pads and sealants.
- Protect drainage continuity with minimum free gaps.
- Back findings with photos, batches, and signatures.
Anchors, membranes, and the sequence that prevents rework
Anchors succeed when substrate, drilling, cleaning, embedment, and torque align. Bonded anchors fail early if dust remains; mechanical anchors slip without verified torque. Membranes perform only when collars, tapes, and terminations are continuous around penetrations and protected by flashings that shed water forward. Sequence inspections to lock fundamentals first: survey and set-out, then anchor installation/verification, then membrane detailing and sealant dimensions before claddings close access. Where glass infills are used, protect edges, verify gasket compression, and set uniform clearances before fixing caps. Always log batch data—adhesives, sealants, isolation materials—and retain calibration certificates for wrenches and levels. Close-out succeeds when each junction proves structural capacity and water integrity with traceable evidence rather than assumptions or memory.
- Clean holes: blow–brush–blow before adhesive injection.
- Verify torque with a calibrated wrench, not “feel.”
- Install collars/tapes before covers and caps.
- Maintain uniform gasket compression and glass clearance.
Temporary edge protection near finished façades
Temporary edge protection keeps teams safe but easily scars completed façades. Use load-rated systems with isolation pads on clamps, check no-contact under lateral loads, and keep inspection tags current. Plan routes and storage to avoid dragging rails across glazing or coatings. Confirm deflection limits with measured tests and remove systems methodically, patching penetrations and recoating cuts immediately. Document bay IDs with QR stickers, log inspection dates, and photograph condition before and after removal. Balance safety and finish protection by assigning competent persons and scheduling frequent checks during high-traffic phases. This disciplined approach sustains fall protection while preventing damage-driven delays and warranty disputes at handover.
- Fit soft pads at all clamp contact points.
- Prove no-contact under measured horizontal load.
- Keep tags current and legible at access points.
- Photograph façades before and after removal.
