Review façade interface with podium waterproofing and plinth

Definition: Review façade interface with podium waterproofing and plinth details is a field-ready construction checklist for engineers and inspectors to verify continuous waterproofing, robust plinth protection, and compliant façade base terminations.

Confirms continuous waterproofing from podium upstand into façade termination.
Prevents moisture ingress, staining, and freeze–thaw damage at plinth.
Standardized methods, measurable tolerances, and photo-based evidence capture.
Interactive, commentable, export with QR code for authenticated records.

Start Interactive
Checklist

Review façade interface with podium waterproofing and plinth details is essential to ensure a watertight base junction where vertical façades meet horizontal podium slabs. This checklist focuses on the façade base junction, podium waterproofing terminations, and durable plinth protection, including upstands, flashings, drip edges, and drainage. By standardizing inspections around substrate preparation, membrane continuity, termination bars, cavity drainage, and movement accommodation, teams prevent leaks, efflorescence, and spalling near the building base. The scope stops at the interface: it does not cover full façade systems, entire podium membranes, or unrelated roof elements. It targets areas around sills, curtain wall anchors, stone or metal plinths, and adjacent drainage. Outcomes include traceable approvals, measurable installation quality, and defensible sign-offs per approved project specifications and authority requirements. Use this interactive checklist to tick tasks, record dimensions, add annotated photos and comments, and export PDF/Excel with a QR code for authenticated distribution.

Verify continuous waterproofing from podium slab upstands into façade terminations, including chases, termination bars, and sealant caps. Measured tolerances and documented tests reduce water ingress risk and future remediation costs significantly across podium edges and façade bases.
Establish robust, maintainable plinth details: protection boards, drip edges, cavity drainage, and thermal breaks. Targeted checks manage impact damage, staining, and condensation at the façade base while maintaining aesthetics and long-term durability for high-traffic podium zones.
Interactive online checklist with tick, comment, and export features secured by QR code. Capture photos, readings, and approvals in one place, then share authenticated records with contractors, consultants, and owners for clear, auditable sign-off.
Field-proven methods: moisture content limits, upstand heights, overlap dimensions, gradient verification, and leak detection. Practical acceptance cues and examples help teams resolve clashes early and coordinate sequencing without delaying adjacent trades.

Design and Approvals

1. Confirm latest issued-for-construction interface details (upstand heights, overlaps, joint movements) against site conditions using marked-up drawings; acceptance: latest revision stamped and discrepancies listed; evidence: upload redlined sheets with reviewer signature.
2. Verify material compatibility among membrane, primers, flashing metals, façade sealants, and cleaners via manufacturer datasheets; acceptance: written compatibility confirmation; evidence: attach datasheets and manufacturer emails.
3. Check drainage strategy at façade base (weep locations, cavity trays, scuppers) matches drawings; acceptance: weeps shown at ≤1.2 m centres; evidence: photo of installed weeps with tape measure and location tags.
4. Confirm approved sequencing and access plan: waterproofing first, protected; then façade base; temporary protection maintained; acceptance: approved method statement; evidence: signed RAMS/ITP excerpt uploaded.

Substrate and Upstand Preparation

5. Measure podium upstand height above finished surface using a steel tape; acceptance: ≥150 mm or per approved project specifications and authority requirements; evidence: photo with dimension shown.
6. Record substrate moisture using a concrete moisture meter; acceptance: ≤5% or as specified by membrane manufacturer; evidence: meter readings with date/time and location grid.
7. Check surface regularity with a 2 m straightedge; acceptance: deviation ≤5 mm; method: mark highs/lows with chalk; evidence: photos and rectification log.
8. Cut clean chase for membrane termination (approx. 25 mm deep × 10 mm wide) using an angle grinder with dust extraction; acceptance: continuous, debris-free; evidence: close-up photos before priming.

Waterproofing Termination and Integration

9. Prime and install membrane upstand continuously into the chase; acceptance: full adhesion with wet film thickness per system (record readings); evidence: WFT gauge photos and batch numbers.
10. Fix stainless termination bar at ≤200 mm centres using corrosion-resistant anchors; torque to ~6 N·m; seal top edge; evidence: torque readings and bead continuity photos.
11. Lap façade sill or base flashing over membrane upstand by ≥75 mm with a formed drip projecting ≥10 mm; evidence: side-profile photo with ruler and seam continuity check.
12. Reinforce internal/external corners with prefabricated corners or double layer extending ≥150 mm each way; method: heat-weld or saturate per system; evidence: photos and installer sign-off.
13. Conduct field adhesion test (100 mm strip peel) on upstand; acceptance: ≥100 N/50 mm or per specification; evidence: force gauge reading, location, and repair notes if required.

Plinth Detailing and Protection

14. Install plinth protection board (6–10 mm HD board) over membrane; acceptance: full coverage without punctures; method: compatible adhesive or mechanical fixings; evidence: photos and product lot numbers.
15. Fit metal skirting/capping above termination, allowing movement slots per design; acceptance: even alignment ±3 mm over 3 m; evidence: level readings and fixing schedule.
16. Install thermal break/insulation at façade base where specified; acceptance: continuous line with gaps ≤5 mm; evidence: in-progress photos before closing the detail.
17. Provide drip grooves to stone/metal plinths (≈10×10 mm) continuous along edges; evidence: underside close-up with vernier dimension and continuity check.
18. Maintain temporary protection to membrane during façade works; acceptance: intact edges taped, no exposed corners; evidence: daily photos and protection inspection log.

Drainage and Moisture Management

19. Verify falls away from façade are ≥1:80 using a digital level; evidence: slope readings at start/mid/end of each bay with location references.
20. Confirm drains/scuppers serving the interface are installed and accessible; acceptance: grate tops flush within ±5 mm; evidence: photos with straightedge and test water pour.
21. Install and clear weep holes/cavity drainage behind façade at ≤1.2 m centres; evidence: endoscope photo of cavity and proof of unobstructed outlet.

Testing and Sign-off

22. Perform electronic leak detection or holiday test along terminations; acceptance: zero defects after repairs; evidence: calibrated report, marked-up plan, and retest results.
23. Where permitted, conduct controlled flood test to 25 mm depth for 24 h; acceptance: no level drop or ingress; evidence: start/finish level photos and nearby ceiling inspection.
24. Final sealant QA: joint width uniform ±2 mm, depth 6–12 mm, proper tooling; perform adhesion probe check; evidence: close-ups and sealant batch/expiry records.
25. Compile as-built details, warranties, and maintenance notes; obtain digital signatures from contractor, consultant, and client; evidence: exported PDF/Excel with QR-verified record.

Why the façade–podium interface demands targeted verification

The junction where a façade meets podium waterproofing concentrates multiple risks: horizontal-to-vertical membrane transitions, drainage changes, impact exposure, and variable tolerances. Small discontinuities at the base—missed corner reinforcement, short laps, or shallow upstands—become chronic leak paths that stain plinths, corrode anchors, and damage interiors. This checklist organizes the review around substrate readiness, membrane continuity, and coordinated flashings so teams can catch errors before enclosure. Practical cues—like upstand height measurements, chase quality, and drip edge projection—translate drawings into field realities. Acceptance targets are measurable, and evidence is photo-anchored to location grids, preventing disputes. Sequencing is equally important: protecting fresh membranes during façade installation avoids punctures and trapped moisture. Finally, explicit drainage checks near the base ensure water leaves the interface quickly, reducing hydrostatic pressure against terminations. Use these steps to achieve robust, maintainable junctions per approved project specifications and authority requirements while preserving façade aesthetics and durability.

Continuity at corners and terminations prevents capillary tracking.
Upstand height and overlap dimensions are critical acceptance checks.
Drainage away from base reduces standing water and staining.
Sequencing and protection prevent membrane damage during façade works.

Building durable plinth details that resist impact and moisture

Plinth zones face foot traffic, cleaning equipment, and splash-back. Protection boards shield membranes from abrasion, while drip grooves and base flashings push water out and away from the façade. Thermal breaks at the base mitigate condensation and thermal bridging where metal profiles meet colder podium slabs. The review includes verifying insulation continuity, fixing alignment, and workable maintenance access. Where stone or metal skirts are specified, consistent projections and movement allowances stop buckling and staining lines. Behind the surface, cavity drainage and weeps relieve moisture trapped by façade systems, particularly at curtain wall sills. Every item pairs a method with a measurable tolerance so crews know when work is acceptable. Field photos with rulers, levels, and gauges add objective proof, streamlining approvals and warranty claims.

Protection boards prevent abrasion and punctures at the base.
Drip edges and grooves keep water off visible faces.
Thermal breaks reduce condensation and cold-bridge risks.
Cavity drainage relieves hidden moisture behind façades.

Testing, documentation, and clear sign-off for watertight delivery

Verification does not end at installation. Electronic leak detection, localized flood tests, and infrared scans expose hidden breaches before handover. Joint sealant checks verify correct geometry and adhesion, while documented torque settings and peel tests confirm mechanical and adhesive performance. This checklist captures all results within an interactive record—photos, readings, lot numbers, and approvals—linked to a plan grid. Exported, QR-authenticated files allow consultants, clients, and insurers to trace accountability. Maintenance notes and as-builts help operators understand access points, cleaning limits, and inspection intervals around the plinth. With this approach, the façade–podium interface becomes defensible, auditable, and maintainable over the building’s lifecycle.

Leak detection validates continuity at critical terminations.
Flood tests confirm resistance to ponding at bases.
IR scans reveal concealed moisture patterns for remediation.
QR-authenticated exports secure project records and approvals.

How to use this interactive checklist for façade–podium interfaces

Preparation: review IFC details and method statements; gather tools (steel tape, digital level, moisture meter, straightedge, torque wrench, WFT gauge, peel tester, endoscope, ELD kit, IR camera). Ensure access, lighting, weather windows, and PPE. Confirm materials and approvals are on site.
Using the Interactive Checklist: start interactive mode, select location grid, tick items, enter measurements, and attach annotated photos. Add comments for clashes and assign actions to trades. On completion, export to PDF/Excel with embedded QR for authentication.
Sign-Off: compile test reports, lot numbers, and as-built redlines. Capture digital signatures from contractor, consultant, and client. Archive the QR-verified export and share with stakeholders for records and warranty submission.

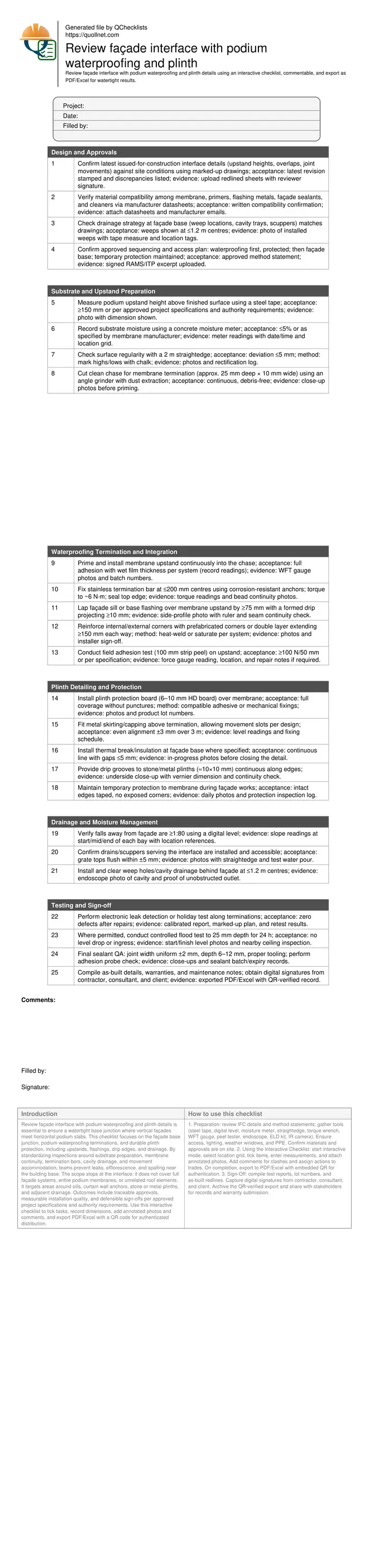

Review façade interface with podium waterproofing and plinth

Start Interactive Checklist

Façade–Podium Interface and Plinth Review

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Façade–Podium Interface and Plinth Review by Quollnet” with a link to this source page.

Download Excel - Façade–Podium Interface and Plinth Review
Download PDF - Façade–Podium Interface and Plinth Review
View Image - Façade–Podium Interface and Plinth Review

Miguel Garcia GeoMiguel

Jul 18, 2026

FAQ

Question: What minimum upstand height should I target at the façade–podium interface?

As a rule of thumb, target at least 150 mm above finished surface, measured with a steel tape. Verify any exceptions—such as door thresholds or terrace edges—per approved project specifications and authority requirements. Where lower upstands are unavoidable, add enhanced detailing like drainage channels, metal flashings, and robust sealant caps.

Question: How do I coordinate façade base flashings with movement and drainage?

Confirm movement allowances at the base joint, then set laps and termination bars accordingly. Provide drip edges projecting about 10 mm and align weep holes or cavity drainage at approximately 1.2 m centres. Maintain continuous upstands and sealant caps, and validate with photos, measurements, and a brief water pour test at low points.

Question: Which tests best verify waterproofing continuity at this interface?

Combine methods: electronic leak detection (or holiday testing) along terminations, localized flood testing where structure allows, and infrared scans at dusk for moisture anomalies. Add adhesion checks (peel tests), torque readings for fixings, and visual sealant inspections. Record locations, results, repairs, and retests within the checklist for auditable evidence.

Question: What documentation should be archived for handover and warranty?

Keep redlined as-built details, product datasheets, batch and expiry records, test reports (ELD, flood, IR), measurement logs, photos, and digital signatures. Export the interactive, commentable checklist as PDF/Excel with a QR code to authenticate the record set for clients, consultants, and insurers.
