Inspect waterproofing at planter-to-façade interfaces to prevent hidden leaks, façade staining, and structural moisture damage. This focused checklist covers planter interface waterproofing, façade joint sealing, and membrane terminations where planters abut walls, cladding, or glazing bases. You’ll confirm slopes, substrate moisture limits, primer coverage, upstand heights, and compatible sealant transitions, while validating drainage layers, overflows, and root barriers. The scope stops at the interface zone from planter base and curb upstand to façade transition hardware; it excludes full façade systems, standalone roof fields, or general landscaping. Done correctly, this inspection reduces costly rework, protects interior finishes, and preserves building envelopes by catching defects before protection boards and soil conceal them. Use the steps to demand evidence: calibrated readings, photos with scales, batch labels, and signatures per approved project specifications and authority requirements. Start the interactive checklist now—tick items, add comments, and export your record as PDF/Excel with a secured QR for site posting.

Target the critical joint where planters meet façades. Confirm slopes, moisture thresholds, primers, membrane laps, and termination bars before backfilling, preventing concealed leaks that stain cladding and migrate into interiors.
Validate drainage performance with correctly set inverts, clean strainers, and working overflows. Confirm drainage composites and filter fabrics are continuous, lapped, and unobstructed to avoid waterlogging and hydrostatic pressure at the façade.
Enforce compatible transitions from waterproofing to façade sealants and flashings. Measure upstand heights above finished soil, verify movement joint geometry, and record adhesion details to ensure durable, serviceable terminations.
Interactive online checklist with tick, comment, and export features secured by QR code.

Pre-Inspection & Controls

1. Review approved drawings, details, and product data specific to planter-to-façade terminations; highlight hold points; obtain written approvals per approved project specifications and authority requirements; attach marked-up set to the checklist.
2. Confirm weather window: no rain forecast for 24 h, ambient 5–35°C, substrate ≥3°C above dew point; record readings from a calibrated thermo-hygrometer with timestamped photo.
3. Isolate and cap irrigation lines within the planter zone; pressure-relieve and tag-out; photo evidence of caps and isolation tags before waterproofing work resumes.

Substrate & Joint Preparation

4. Verify falls to drains at planter base: slope ≥1:80 (1.25%) toward outlets; tolerance ±0.25%; document with a digital level reading and overview photo.
5. Measure substrate surface moisture; acceptance ≤5% by mass (or per product data, whichever stricter); record capacitance meter model, calibration date, and readings at three locations.
6. Clean and prepare curb and façade interface: dust-free, laitance removed; apply compatible primer at manufacturer’s specified WFT (e.g., 100 ± 20 µm); verify with WFT gauge and photo of coverage.
7. Install a continuous fillet at internal curb-to-base corner, 10–20 mm radius using approved mastic; verify radius with fillet gauge and close-up photo before membrane.
8. Inspect façade movement joint at interface: size backer rod 25–33% larger than joint width; ensure bond breaker to prevent three-sided adhesion; sealant depth 6–12 mm; photo with ruler.

Membrane & Terminations

9. Install base membrane (sheet or liquid) per data sheet; confirm side/end laps ≥75 mm for sheets; probe seams, roll under pressure; document with seam probe photo and lap measurements.
10. Verify upstand height at façade termination: ≥150 mm above finished soil/mulch level; if FFL unknown, set ≥250 mm above base and recheck post-fill; record tape-measure photo.
11. Fix termination bar or reglet at façade per detail; stainless/compatible fasteners at ≤150 mm centres, staggered; continuous sealant bead 10 mm; capture close-up photos at 1 m intervals.
12. At penetrations (irrigation sleeves, anchors), install preformed collars or 2-layer patches extending ≥100 mm beyond cut; clamp stainless bands where required; pressure-test lines before cover; photo and test log.
13. Transition to façade cladding/flashings: counterflashing overlap ≥50 mm with 10 mm drip edge; ensure compatibility with membrane; document with section photo and material batch labels.

Drainage & Overflows

14. Confirm primary drain inverts at lowest point; install strainers; perform a controlled pond test for 15 min—residual ponding ≤5 mm depth; record level readings and photos.
15. Install drainage composite and filter fabric: shingle laps ≥100 mm, outlets unobstructed; wrap around drains without blocking perforations; photo with a scale and lap measurement.
16. Set overflow scuppers 25–50 mm above primary drain level; verify free discharge path clear of façade elements; measure elevation difference and photograph flow test with bucket pour.
17. Install root barrier continuous and compatible with membrane; seal laps per manufacturer; terminate ≥50–75 mm above finished soil; record roll numbers and close-ups at corners.

Protection & Backfill

18. Place protection board over membrane: thickness 3–6 mm, tight-butted, taped where specified; no exposed fasteners penetrating membrane; photo before backfill.
19. Backfill growing media in ≤150 mm lifts using light compaction (hand tamp only); keep soil 20–30 mm below overflow; protect façade from staining; photo after each lift.
20. Hydrotest irrigation within planter: pressurize to 0.5 MPa for 30 min; acceptance 0 kPa loss and no visible leaks; attach gauge photo before/after with timestamps.

Testing & Handover

21. Perform 24 h controlled water test before backfill where permitted: hold water 25–50 mm below termination; acceptance: no leaks and ≤1 mm level drop after temperature correction; record log and photos.
22. If flood testing not permitted, conduct electronic leak detection (EFVM or equivalent); acceptance: no breach indications; upload technician report, grid map, and defect clearances.
23. Compile as-builts: photo set with scales, material batch/lot numbers, primers and sealants used, test results, and installer/inspector/consultant signatures per approved project specifications and authority requirements.

Critical details at planter-to-façade junctions

The interface where a planter meets a façade concentrates water, movement, and soil acidity. Failures typically start at poor membrane terminations, insufficient upstand height, clogged outlets, or incompatible sealants touching bituminous layers. Inspect falls first; a minimum 1:80 slope towards drains directs water away from the façade. Confirm substrate moisture within product limits before priming to prevent blistering. At corners, a 10–20 mm fillet relieves stress for sheet or liquid membranes. Upstands should project at least 150 mm above finished soil/mulch so splashes and irrigation cannot overtop the line. Where the façade includes movement joints, size backer rod correctly and avoid three-sided adhesion using a bond breaker for durable cycling. Counterflashings must shed water with a 10 mm drip. Record each verification with measurements and geo-tagged photos. By resolving these details before protection boards and soil conceal them, you avert capillary tracking into façades and interior damp patches.

Set slopes ≥1:80 toward drains, verify with digital level.
Keep upstands ≥150 mm above finished soil.
Use fillets 10–20 mm at internal corners.
Prevent three-sided adhesion at façade joints.
Add drip edges to shed water cleanly.

Drainage, testing, and evidence that survives handover

Even perfect terminations fail if water cannot escape. Confirm inverts, clear strainers, and overflows 25–50 mm above primaries to limit head pressure against the façade. Drainage composites and filter fabrics must shingle-lap and run free into outlets without blockage. Before backfilling, conduct a controlled water test wherever allowed, holding water below the termination. If flooding is restricted, specify electronic leak detection to locate breaches without saturation. Document alternative approvals. At penetrations for irrigation or anchorage, use preformed collars or double patches extending 100 mm beyond cuts, and pressure-test lines to 0.5 MPa for 30 minutes. During backfill, install protection boards to shield membranes and raise root barriers above soil level. Capture batch labels, calibrated instrument readings, and signatures. The best inspection record is searchable: timestamps, locations, and photos at set intervals provide defensible evidence and speed up warranty acceptance.

Verify overflows 25–50 mm above main drains.
Flood test 24 h, or use electronic detection.
Collar penetrations with 100 mm beyond coverage.
Pressure-test irrigation at 0.5 MPa, 30 minutes.
Archive photos, readings, and batch labels.

Compatibility and sequencing to prevent hidden conflicts

Material compatibility and work sequencing decide long-term durability at planter-to-façade interfaces. Confirm primers, membranes, sealants, and root barriers are mutually compatible and listed for direct contact by their manufacturers. Where dissimilar materials touch, insert bond breakers or transition strips to prevent adhesion conflicts or plasticizer migration. Sequence work so flood or electronic testing occurs before protection boards and growing media conceal defects; only then proceed with root barriers, drainage composites, and backfill in controlled lifts. Maintain a clean façade during works; cover stone or glazing to avoid staining from bitumen or soil fines. When elevations change, recheck upstand height relative to the final soil level and adjust terminations or counterflashings. Collect approvals and test sign-offs per approved project specifications and authority requirements. This disciplined sequence avoids destructive rework and minimizes post-planting interventions that risk damaging the façade.

Confirm all materials are mutually compatible.
Insert bond breakers between dissimilar products.
Test before protection boards and backfill.
Protect façades from stains during works.

How to use this interactive planter-to-façade waterproofing checklist

Preparation: Gather approved drawings, product data, and permits. Equip with digital level, moisture meter, WFT gauge, probe roller, EFVM kit (if used), pressure gauge, PPE, and cleaning tools. Set weather constraints and isolate irrigation. Establish hold points with stakeholders.
Using the Interactive Checklist: Open interactive mode, assign responsible parties, and work item-by-item. Tick completed tasks, attach photos with scales and readings, and add comment threads for issues. Generate and share interim exports to PDF/Excel for daily reports.
Sign-Off: Capture final test results and as-built photos. Collect digital signatures from installer, inspector, and consultant. Export the complete, commentable record as PDF/Excel, post the QR-secured link on site, and archive according to project requirements.

Inspect Waterproofing at Planter-to-Façade Interfaces

Start Interactive Checklist

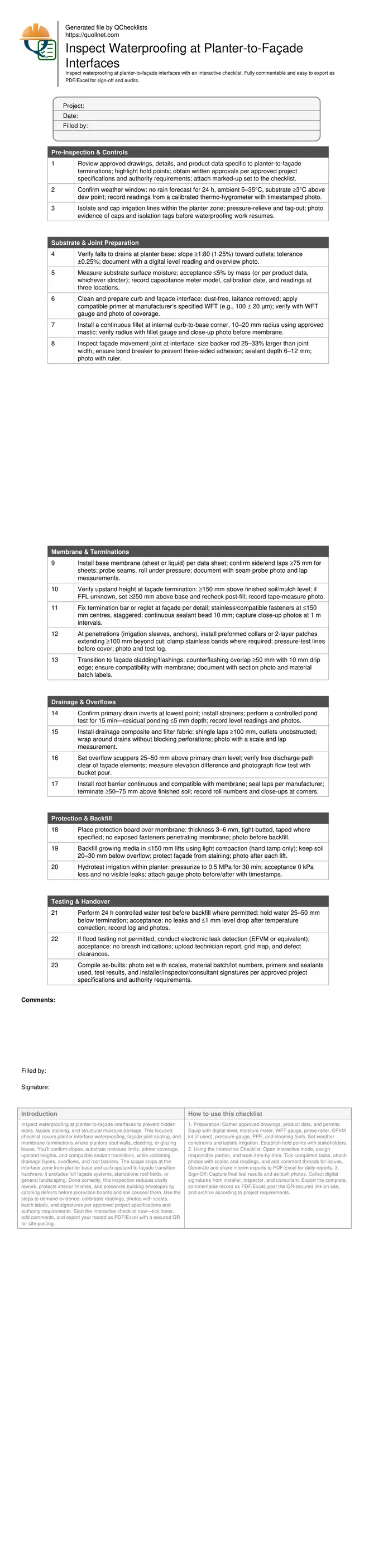

Planter-to-Façade Waterproofing Inspection
