Inspect waterproofing at balcony threshold and façade junctions

The checklist

Pre-Inspection & Documentation

1. 1Verify latest approved drawings, waterproofing details, ITP, and method statements are uploaded. Acceptance: current revisions only. Evidence: file references, dates, and responsible engineer’s digital signature.
2. 2Confirm membrane, primer, and sealant datasheets are on-site. Record product names, lot numbers, and expiry dates. Acceptance: within shelf life and specified system. Evidence: photos of labels and recorded batches.
3. 3Record ambient temperature, substrate temperature, and relative humidity using calibrated meters. Acceptance: within manufacturer application ranges. Evidence: readings (°C, %RH), device ID, and timestamped photos.
4. 4Confirm edge protection and access are in place to prevent damage to finished membranes. Acceptance: barriers installed and tagged. Evidence: photos and site safety permit reference.

Substrate & Slope

1. 5Inspect substrate for soundness and cleanliness; remove laitance, dust, and protrusions. Perform adhesion pull-off test if required. Acceptance: pull-off strength meets manufacturer minimum. Evidence: MPa readings and patch photos.
2. 6Measure slope to drain with digital level or laser. Acceptance: even falls toward outlets, typically 1:80–1:100 unless specified otherwise. Evidence: mm per metre readings and marked slope photos.
3. 7Check formed upstands, rebates, and fillets at internal corners around the threshold and façade junctions. Acceptance: dimensions per detail; smooth radii for membrane continuity. Evidence: measured dimensions (mm) and close-up photos.
4. 8Measure substrate moisture with a concrete moisture meter. Acceptance: ≤ 5% surface moisture or per specification. Evidence: meter model, calibrated date, and logged readings with photos.

Membrane & Flashings

1. 9Apply primer uniformly; verify coverage using a wet film thickness gauge. Acceptance: within manufacturer-stated microns. Evidence: WFT readings, batch number, and area photos before/after.
2. 10Install membrane with rolled seams. Acceptance: laps meet or exceed manufacturer minimum (typically ≥ 75 mm), no fish-mouths. Evidence: measured lap widths and seam roller photos.
3. 11Reinforce all internal/external corners and changes of plane with pre-formed corners or extra plies. Acceptance: wrinkle-free, fully bonded. Evidence: close-up photos and marked locations.
4. 12Extend vertical upstands at threshold and façade junctions to the specified height; terminate with termination bar or compatible sealant. Acceptance: height and termination per detail. Evidence: measured heights (mm) and fixings photos.
5. 13Install metal flashings/drip edges aligned with falls; fasteners located above waterline and sealed. Acceptance: continuous drip and sealed penetrations. Evidence: fastener spacing (mm) and edge profile photos.

Threshold Interface Details

1. 14Install a sill pan at the door threshold with end dams, lapped over the balcony membrane. Acceptance: watertight continuity beneath frame. Evidence: photos before frame fix and lap measurements.
2. 15Seal threshold upstand to door frame using compatible sealant and backer rod. Acceptance: joint width/depth per system; full adhesion without voids. Evidence: measured joint dimensions and sealant batch record.
3. 16Verify door track/drainage weep paths are unobstructed and discharge to balcony drainage. Acceptance: free flow. Evidence: pour 1–2 L water; record flow video and time to clear.
4. 17Confirm protection angles or trims at the threshold do not puncture the primary membrane, or penetrations are sealed with system accessories. Acceptance: no exposed fasteners in wet zone. Evidence: close-up photos.

Façade Junction Details

1. 18Tie balcony membrane into façade cladding/rainscreen air/water barrier with compatible materials. Acceptance: continuous barrier with shingle laps. Evidence: overlap dimensions (mm) and sequence photos.
2. 19Detail movement joints at the façade–balcony junction using bond breaker tape and compatible sealant. Acceptance: joint geometry per manufacturer; no three-sided adhesion. Evidence: joint measurements and backer installation photos.
3. 20Seal through-fixings, balustrade stubs, and brackets near junctions with grommets or boots. Acceptance: fully bonded collars; correct torque on fixings. Evidence: collar photos and torque values (N·m).
4. 21Install cavity trays/flashings with drip edges and clear weeps above junctions as detailed. Acceptance: continuous drip; unobstructed weeps. Evidence: photos and verified weep spacing (mm).

Testing, Protection & Handover

1. 22Conduct drainage test by pouring 10–20 L water near threshold. Acceptance: water reaches outlets without ponding; clears in ≤ 3 minutes. Evidence: timestamped video and notes.
2. 23Perform controlled flood test if permitted: maintain 25–50 mm head for 24 h per approved project specifications and authority requirements. Acceptance: no leakage below. Evidence: start/finish photos, level marks, and sign-offs.
3. 24Run uniform hose/spray test at threshold and façade junctions for 15 minutes. Acceptance: no internal moisture; post-test meter ≤ 0.5% at sensitive areas. Evidence: photos and readings.
4. 25Install protection boards or separation layers before screeds/pavers; tape seams and protect edges. Acceptance: full coverage; no exposed membrane. Evidence: area photos and material records.
5. 26Complete as-built updates, warranties, and this checklist; obtain digital signatures from contractor, consultant, and client. Acceptance: all items closed with evidence. Evidence: exported PDF/Excel and QR-authenticated archive link.

Preview the printable checklist

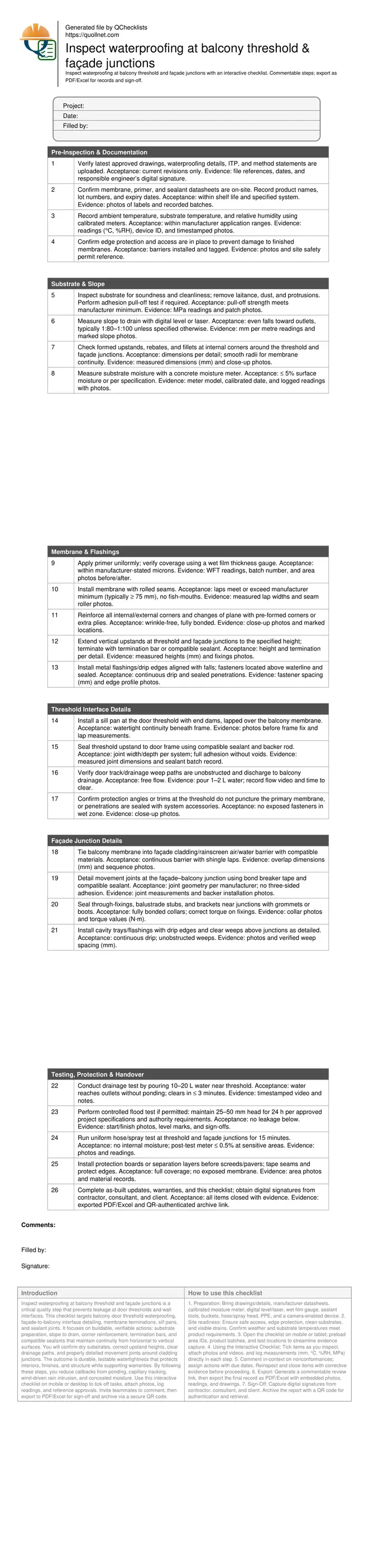

Preview page one below. Open the image or download the PDF for all pages.

At a glance

• Establishes repeatable inspection points focused on substrate condition, slope, membrane continuity, and terminations at thresholds and façade junctions. Each step includes tools, tolerances, and evidence requirements to drive objective acceptance and reduce ambiguity.
• Reduces leakage risks from wind-driven rain and backflow by validating sill pans, upstands, laps, corner reinforcement, and sealed fixings. Integrated drainage and spray testing confirms performance before finishes, protecting interiors and guaranteeing maintainable, accessible junctions.
• Interactive online checklist with tick, comment, and export features secured by QR code. Works on mobile or desktop, timestamps evidence, and centralizes approvals for transparent handover, warranty support, and future maintenance reference without rework or data loss.
• Aligns installation and inspection with manufacturer instructions and project details. Captures lot numbers, wet film thickness, joint dimensions, moisture readings, and test videos, ensuring traceable compliance per approved project specifications and authority requirements.

How to Use This Interactive Inspection Checklist

1. Preparation: Bring drawings/details, manufacturer datasheets, calibrated moisture meter, digital level/laser, wet film gauge, sealant tools, buckets, hose/spray head, PPE, and a camera-enabled device.
2. Site readiness: Ensure safe access, edge protection, clean substrates, and visible drains. Confirm weather and substrate temperatures meet product requirements.
3. Open the checklist on mobile or tablet; preload area IDs, product batches, and test locations to streamline evidence capture.
4. Using the Interactive Checklist: Tick items as you inspect, attach photos and videos, and log measurements (mm, °C, %RH, MPa) directly in each step.
5. Comment in-context on nonconformances; assign actions with due dates. Reinspect and close items with corrective evidence before proceeding.
6. Export: Generate a commentable review link, then export the final record as PDF/Excel with embedded photos, readings, and drawings.
7. Sign-Off: Capture digital signatures from contractor, consultant, and client. Archive the report with a QR code for authentication and retrieval.

Why Thresholds and Façade Junctions Fail—and How to See It Early

Balcony thresholds and façade junctions concentrate water from wind-driven rain, splash-back, and runoff. Small errors—like a missing end dam, an underlapped membrane, or a blocked weep—can bypass interior defenses and wet finishes. This checklist sharpens your focus on the high-risk transitions: horizontal-to-vertical turns, corners, and penetrations clustered near doors and cladding. Acceptance cues include uniform primer coverage, rolled seams without fish-mouths, clean slopes to outlets, and terminations protected by bars or compatible sealants. Field evidence should prove continuity: overlap measurements, corner reinforcements, joint geometry, and batch records that trace materials back to the box. Practical tools—digital levels, moisture meters, wet film gauges—turn subjective judgments into simple passes or fails. When issues appear, photos with markings and dimensions guide immediate corrective actions instead of late-stage rework. Following these cues prevents hidden moisture, blistered membranes, and recurring leak investigations that drain budgets and tenant confidence.

• Focus on horizontal-to-vertical transitions and corners.
• Confirm slopes, upstands, and clear drainage paths.
• Measure laps, joint sizes, and film thicknesses.
• Capture batch numbers and calibration details.
• Photograph defects with annotated dimensions.

Detailing Essentials at Door Thresholds and Cladding Interfaces

Good waterproofing details rely on buildable geometry and compatible materials. At the threshold, a sill pan with end dams lapped over the balcony membrane routes water outward, while an upstand to the frame creates a secondary defense. At façade interfaces, shingle-lapped barriers and cavity trays prevent reverse flow, and movement joints relieve stress without tearing the membrane. Metal flashings finish edges with durable drips, provided fasteners sit clear of ponding zones and penetrations are sealed. Before covering works, verify each layer: fillets ease membrane turns; corner patches bridge stress points; and laps are rolled firmly. Field tolerances—slope evenness, joint proportions, and lap widths—must align with manufacturer instructions and project details. Testing with water, not just sight, validates performance prior to finishes, when repairs are cost-effective and access is simple.

• Create outward drainage with sill pans and end dams.
• Lap barriers in a shingle sequence toward outlets.
• Provide bond breakers at movement joints.
• Keep fasteners above wet zones and seal them.
• Verify details before covering with finishes.

Proving Performance: Water Testing, Protection, and Traceability

Testing turns workmanship into evidence. A quick drainage test shows how water moves; a controlled flood test, if permitted, proves overall containment; and a targeted spray test stresses the threshold and façade junctions where leakage typically starts. Meter readings after tests confirm interiors stayed dry. Protect the successful installation with boards or separation layers before heavy trades arrive; many failures begin with post-install damage. Traceability closes the loop: record product batches, wet film and lap measurements, environmental conditions, and videos of tests. Export the complete package and archive it so future teams can find the facts quickly during handovers, warranty reviews, or refurbishments. Clear records reduce disputes, enable like-for-like repairs, and support preventive maintenance planning.

• Use water tests to validate critical interfaces.
• Protect membranes before screeds and pavers.
• Record readings and test videos.
• Archive signed checklists for handover.
• Trace materials to batch and lot numbers.
