Inspect façade interface with balustrades and guardrail fixings

Definition: Inspect façade interface with balustrades and guardrail fixings to verify structural anchorage, watertight penetrations, thermal separation, and corrosion resistance for engineers, supervisors, and inspectors on new-build and refurbishment projects.

Confirms anchor type, embedment, torque, and pull-out performance on site
Prevents water ingress, corrosion, loosening, and unsafe edge protection failures
Aligns with approved drawings, manufacturer data, and authority requirements
Interactive, commentable, export-ready checklist secured with QR code

Start Interactive
Checklist

Inspect façade interface with balustrades and guardrail fixings is a critical site activity ensuring safe, durable edge protection at building perimeters. This checklist targets façade interface details, balustrade anchorages, guard rail connections, and penetration sealing on concrete, steel, and masonry substrates. It excludes handrail fabrication quality and unrelated façade cladding systems. By verifying substrate capacity, anchor embedment, corrosion protection, waterproofing continuity, thermal breaks, and tolerance control, teams prevent water ingress, bimetallic corrosion, thermal bridging, loosening fixings, and fall hazards. Outcomes include traceable torque and pull-out readings, photographic evidence, batch records, alignment measurements, and approvals that support progressive sign-off and commissioning. Use this interactive, commentable tool to tick items, log observations, assign actions, and export evidence-rich reports as PDF/Excel via a secure QR link.

This checklist focuses on the critical junction between the façade and balustrade or guardrail posts, verifying substrate capacity, anchor selection, embedment depth, and torque. It prevents loosened fixings and unsafe edges by enforcing measurable acceptance criteria and capturing photographic evidence and calibration records.
Waterproofing and thermal performance are addressed through compatible sealants, sleeves, EPDM collars, and thermal break pads. Checks confirm continuity around penetrations, correct overlaps per approved project specifications, and effective drainage paths, reducing risks of water ingress, condensation, and bimetallic corrosion throughout the service life.
Interactive online checklist with tick, comment, and export features secured by QR code.
Alignment, proof testing, and documentation ensure posts are plumb, centres are correct, and anchors meet design service loads. The workflow consolidates torque logs, pull-out results, batch numbers, curing times, as-built dimensions, and digital sign-offs, forming a robust audit trail for handover and future maintenance.

Pre-Inspection & Safety

1. Confirm permit-to-work, task briefing, and fall protection in place using harnesses, edge protection, and tags; capture JSA/RA sign-off and site photos before accessing the façade line.
2. Review approved drawings, specifications, and manufacturer data for anchor type, embedment, spacing, and loads; record document numbers and revision dates in the checklist.
3. Verify torque wrench and pull-tester calibration certificates are valid (≤6 months) and within range; attach certificates and tool serial numbers.
4. Establish an exclusion zone below the working area with barriers and signage; photograph set-up and note times to control third-party risk.

Substrate & Interface Preparation

5. Confirm substrate strength via core test report or rebound hammer readings; acceptance: meets or exceeds design values per approved project specifications; upload report.
6. Mark fixing layout from control lines using laser and chalk; verify edge distances and centres within ±5 mm of drawings; photograph markings.
7. Check bearing surface flatness under baseplates with a 300 mm straightedge; acceptance: gaps ≤2 mm; record measurement photos.
8. Clean fixing zones of dust, laitance, oils using vacuum and solvent wipes; acceptance: visually clean and dry; capture before/after images.

Anchors & Fixings Installation

9. Confirm anchor type, diameter, embedment depth, and drill diameter against manufacturer data; measure with callipers and depth gauge; tolerance: ±5 mm; record values.
10. Drill holes using a rotary hammer and correct bit; control depth with stop and maintain perpendicularity within ±2°; log depth and angle checks.
11. Clean each drilled hole with blow–brush–blow sequence using oil-free air and nylon brush; acceptance: no visible dust; attach cleaning photos or short video.
12. Install chemical anchors using approved resin; discard first mix, inject from base, and note ambient/substrate temperatures; record batch/expiry and curing time per TDS.
13. Tighten mechanical anchors with a calibrated torque wrench to manufacturer N·m value; acceptance: achieves torque without spinning or pull-out; record torque.
14. Verify stainless steel grade, protective coatings, and fastener markings; acceptance: materials match approved submittals; upload mill certificates and coating reports.
15. Install dielectric isolators, sleeves, or washers to prevent bimetallic contact between dissimilar metals; acceptance: continuous separation; photograph details.

Waterproofing & Thermal Separation

16. Prime substrates where required and apply compatible sealant around penetrations; tool continuous 360° bead (10–15 mm); acceptance: full adhesion; photo evidence.
17. Fit EPDM/compression collars or preformed gaskets at posts; ensure uniform compression without gaps; wet test if specified; record observations and images.
18. Install thermal break pads beneath baseplates to reduce thermal bridging; ensure full bearing; shim with non-absorbent packers ≤2 mm; record pad type and thickness.
19. Reinstate membranes or flashings around fixings with approved overlaps and sealant; acceptance: continuous weatherproof layer; document with close-up photos.

Alignment, Testing & Documentation

20. Plumb each post with a digital level; acceptance: deviation ≤2 mm per 1 m; upload level readings and images.
21. Verify post centres and offsets using laser distance meter; tolerance: ±5 mm to drawings; record as-built dimensions in checklist.
22. Perform on-site proof pull-out tests on sample anchors using a calibrated tester; acceptance: achieves design service load without movement; log kN values and graphs.
23. Compile material batch numbers, TDS, curing times, torque logs, and photos; acceptance: all traceability fields completed and cross-referenced to location IDs.
24. Obtain digital sign-offs from supervisor, inspector, and contractor; export report to PDF/Excel with embedded QR for authentication and archive.

Structural anchorage at the façade interface

Balustrade and guardrail performance starts with anchors that match the substrate and design loads. Confirm the correct anchor type, diameter, and embedment before drilling. Control hole depth with a stop and maintain near-perpendicular drilling to avoid slotting. Dust-free holes are essential; use an oil-free air blower and nylon brush in a blow–brush–blow sequence. For mechanical anchors, reach the specified torque with a calibrated wrench, noting values per location. For bonded anchors, record resin batch, ambient temperature, and curing time from the technical data sheet; never load anchors before full cure. Verify baseplate bearing on the prepared surface and eliminate rocking with approved, non-absorbent shims. Stainless grades and coatings must match submittals to resist corrosion. When evidence is required, perform proof pull-out tests with a calibrated gauge, achieving at least the design service load without slip or cracking, per approved project specifications and authority requirements.

Measure embedment depth with a depth gauge.
Record torque values per anchor location.
Clean drilled holes thoroughly to bare substrate.
Do not load bonded anchors before full cure.
Use non-absorbent shims for full bearing.

Waterproofing and thermal separation at penetrations

Interfaces through façades are frequent leak paths. Prime compatible substrates, then apply a continuous sealant bead around posts and fixings, tooling firmly to close micro-voids. Where specified, install EPDM or preformed collars and ensure uniform compression without fishmouths. Reinstate membranes and flashings to maintain continuity at the penetration, using overlaps and terminations as per approved project specifications. Provide drainage paths so trapped water cannot pond around baseplates. Thermal break pads under baseplates reduce cold-bridging and condensation risk; ensure full bearing and record pad type and thickness. Isolate dissimilar metals with sleeves or washers to prevent bimetallic corrosion. After works, inspect with close-up photos and, if required, perform a simple wet test or dye test to verify watertightness without overpressurising sensitive details.

Tool a continuous 360° sealant bead.
Ensure collars show uniform compression.
Reinstate membranes with approved overlaps.
Install thermal pads with full bearing.
Provide drainage away from baseplates.

Alignment, tolerances, testing, and traceability

Guardrail and balustrade safety depends on straight, plumb posts and consistent centres. Use a digital level to keep posts within tight vertical tolerances and a laser distance meter for offsets and spacing. Check baseplate flatness and re-shim if readings change after torquing. Where specified, perform proof pull-out tests and document kN values and displacement. For bonded anchors, recheck torque on connected fasteners after resin cure. Compile a traceable record: material certificates, batch numbers, torque logs, pull-test results, photos of each detail, and location IDs referenced to drawings. Finish with digital sign-offs and an exported PDF/Excel report. This package accelerates approvals, supports future maintenance, and demonstrates compliance with the approved project specifications and authority requirements.

Verify plumb with a digital level.
Measure centres with a laser meter.
Log pull-out tests with kN values.
Recheck torque after resin curing.

How to Use This Interactive Inspection Checklist

Preparation: gather approved drawings, manufacturer data sheets, torque wrench, pull-tester, laser, digital level, PPE, and fall-protection equipment.
Set up the project in the platform, define façade grid locations, and add anchor types, materials, and responsible persons.
Open interactive mode on a mobile or tablet, start at the first location, and tick items as you verify conditions.
Attach photos, torque readings, pull-test results, and batch labels to each line item; add comments and @assign actions.
Use validation prompts to ensure tolerances are entered; unresolved comments remain flagged until closed by a responsible party.
Export the completed checklist to PDF/Excel, embedding photos and data tables; share the QR-secured link with stakeholders.
Obtain digital signatures from contractor, supervisor, and inspector; archive the signed report to the project document control system.

Inspect façade interface—balustrades and guardrail fixings

Start Interactive Checklist

Façade Interface with Balustrades and Guardrail Fixings Inspection

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Façade Interface with Balustrades and Guardrail Fixings Inspection by Quollnet” with a link to this source page.

Download Excel - Façade Interface with Balustrades and Guardrail Fixings Inspection
Download PDF - Façade Interface with Balustrades and Guardrail Fixings Inspection

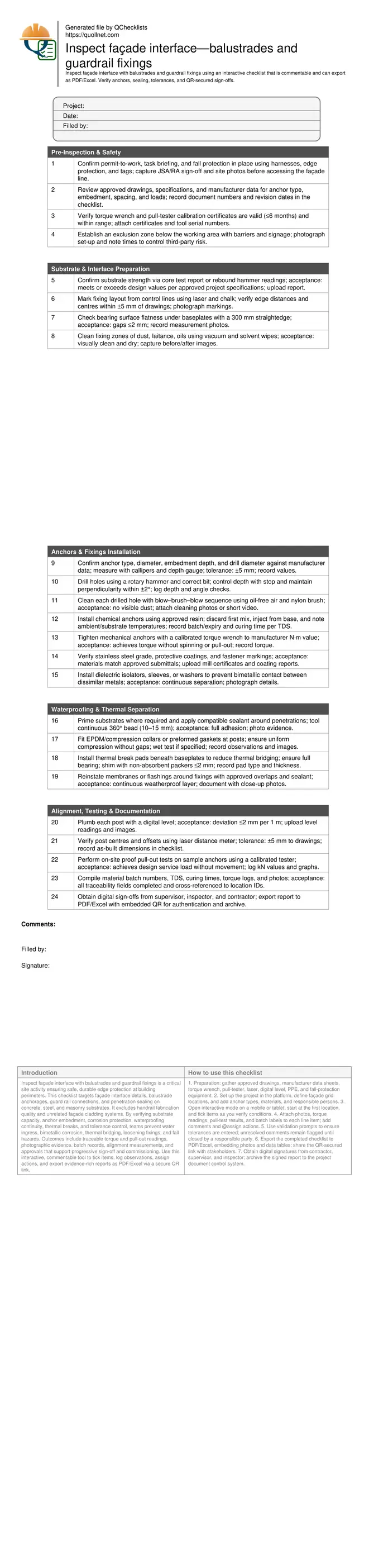

View Image - Façade Interface with Balustrades and Guardrail Fixings Inspection

Miguel Garcia GeoMiguel

Jul 11, 2026

FAQ

Question: What tests should be performed on balustrade and guardrail anchors at the façade interface?

Typical tests include torque verification for mechanical anchors and on-site proof pull-out tests for representative samples. Record kN values, hold time, and displacement. For bonded anchors, verify ambient temperature, curing time, and batch details. Always test against design service loads per approved project specifications and use calibrated equipment.

Question: How do I prevent water ingress around guardrail posts and baseplates?

Use compatible primers and sealants to create a continuous tooled bead around penetrations, add EPDM or preformed collars if specified, and reinstate membranes or flashings with approved overlaps. Ensure drainage away from baseplates and avoid trapping water. Photograph finishes, and perform a controlled wet test if required by the specification.

Question: When should torque be applied to anchors, and do I need to recheck it?

Apply torque only after the anchor is correctly installed and, for bonded systems, after full cure per the manufacturer’s data. Use a calibrated wrench and record values by location. Recheck connected fasteners after cure or after alignment adjustments, documenting any changes and confirming compliance with the approved project specifications.

Question: What documentation is needed for sign-off at the façade–balustrade interface?

Collect approved drawings, material certificates, batch and expiry labels, torque logs, pull-out test reports, photos showing sealing and isolation details, and as-built dimensions. Secure digital signatures from responsible parties and export the report as PDF/Excel with a QR link for authentication and future maintenance reference.
