Review Façade Louver Design for Airflow, Drainage, and Maintenance

Definition: Review façade louver design for airflow, drainage, and maintenance clearance to guide architects, MEP engineers, and façade specialists in validating ventilation performance, rain defense, and safe service access before fabrication.

Validate free area, face velocity, and pressure drop against duty points.
Detail sills, flashings, and weeps to control wind‑driven rain.
Plan safe clearances, access doors, and safe working methods.

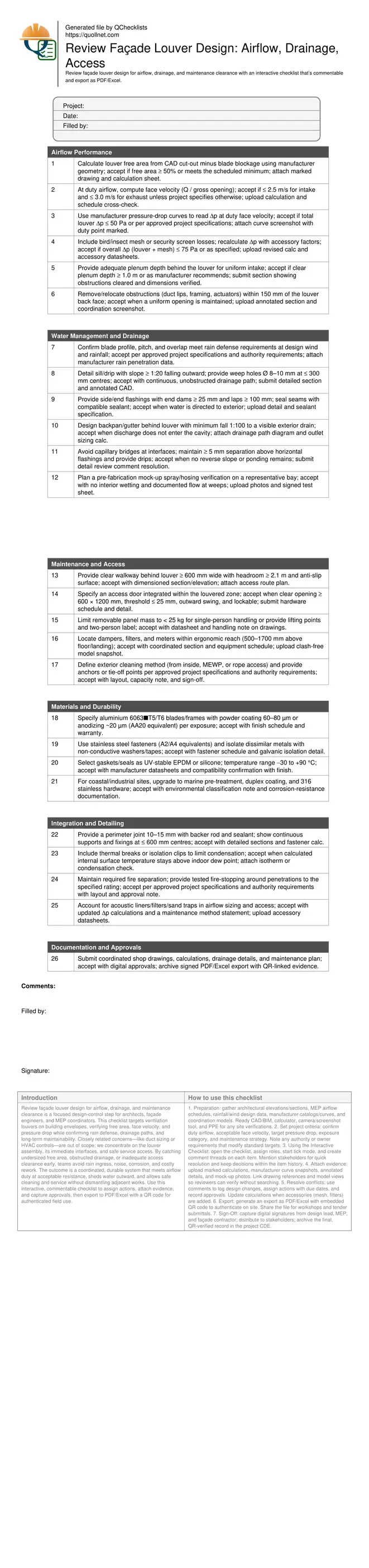

Interactive, commentable checklist with export and QR code verification.

Start Interactive
Checklist

Review façade louver design for airflow, drainage, and maintenance clearance is a focused design-control step for architects, façade engineers, and MEP coordinators. This checklist targets ventilation louvers on building envelopes, verifying free area, face velocity, and pressure drop while confirming rain defense, drainage paths, and long-term maintainability. Closely related concerns—like duct sizing or HVAC controls—are out of scope; we concentrate on the louver assembly, its immediate interfaces, and safe service access. By catching undersized free area, obstructed drainage, or inadequate access clearance early, teams avoid rain ingress, noise, corrosion, and costly rework. The outcome is a coordinated, durable system that meets airflow duty at acceptable resistance, sheds water outward, and allows safe cleaning and service without dismantling adjacent works. Use this interactive, commentable checklist to assign actions, attach evidence, and capture approvals, then export to PDF/Excel with a QR code for authenticated field use.

Reduce performance risk by validating free area, duty face velocity, and total pressure drop using manufacturer curves and updated mesh/filter allowances. Early detection of undersizing prevents fan penalties, noise, and hot spots while preserving façade aesthetics and avoiding late-stage rework or overspecification costs.
Interactive online checklist with tick, comment, and export features secured by QR code. Teams attach calculations, annotated details, and photos; assign actions; and maintain a single source of truth. This improves traceability, accelerates approvals, and ensures the built solution matches the coordinated design and maintenance strategy.
Control rain entry by detailing sills, flashings, end dams, and weeps with correct slopes and outlets, then verify with a mock-up spray test. Plan access doors, reach ranges, and panel weights to support safe maintenance, cutting lifecycle costs and minimizing shutdowns for cleaning or filter replacement.

Airflow Performance

1. Calculate louver free area from CAD cut-out minus blade blockage using manufacturer geometry; accept if free area ≥ 50% or meets the scheduled minimum; attach marked drawing and calculation sheet.
2. At duty airflow, compute face velocity (Q / gross opening); accept if ≤ 2.5 m/s for intake and ≤ 3.0 m/s for exhaust unless project specifies otherwise; upload calculation and schedule cross-check.
3. Use manufacturer pressure-drop curves to read Δp at duty face velocity; accept if total louver Δp ≤ 50 Pa or per approved project specifications; attach curve screenshot with duty point marked.
4. Include bird/insect mesh or security screen losses; recalculate Δp with accessory factors; accept if overall Δp (louver + mesh) ≤ 75 Pa or as specified; upload revised calc and accessory datasheets.
5. Provide adequate plenum depth behind the louver for uniform intake; accept if clear plenum depth ≥ 1.0 m or as manufacturer recommends; submit section showing obstructions cleared and dimensions verified.
6. Remove/relocate obstructions (duct lips, framing, actuators) within 150 mm of the louver back face; accept when a uniform opening is maintained; upload annotated section and coordination screenshot.

Water Management and Drainage

7. Confirm blade profile, pitch, and overlap meet rain defense requirements at design wind and rainfall; accept per approved project specifications and authority requirements; attach manufacturer rain penetration data.
8. Detail sill/drip with slope ≥ 1:20 falling outward; provide weep holes Ø 8–10 mm at ≤ 300 mm centres; accept with continuous, unobstructed drainage path; submit detailed section and annotated CAD.
9. Provide side/end flashings with end dams ≥ 25 mm and laps ≥ 100 mm; seal seams with compatible sealant; accept when water is directed to exterior; upload detail and sealant specification.
10. Design backpan/gutter behind louver with minimum fall 1:100 to a visible exterior drain; accept when discharge does not enter the cavity; attach drainage path diagram and outlet sizing calc.
11. Avoid capillary bridges at interfaces; maintain ≥ 5 mm separation above horizontal flashings and provide drips; accept when no reverse slope or ponding remains; submit detail review comment resolution.
12. Plan a pre-fabrication mock-up spray/hosing verification on a representative bay; accept with no interior wetting and documented flow at weeps; upload photos and signed test sheet.

Maintenance and Access

13. Provide clear walkway behind louver ≥ 600 mm wide with headroom ≥ 2.1 m and anti-slip surface; accept with dimensioned section/elevation; attach access route plan.
14. Specify an access door integrated within the louvered zone; accept when clear opening ≥ 600 × 1200 mm, threshold ≤ 25 mm, outward swing, and lockable; submit hardware schedule and detail.
15. Limit removable panel mass to < 25 kg for single-person handling or provide lifting points and two-person label; accept with datasheet and handling note on drawings.
16. Locate dampers, filters, and meters within ergonomic reach (500–1700 mm above floor/landing); accept with coordinated section and equipment schedule; upload clash-free model snapshot.
17. Define exterior cleaning method (from inside, MEWP, or rope access) and provide anchors or tie-off points per approved project specifications and authority requirements; accept with layout, capacity note, and sign-off.

Materials and Durability

18. Specify aluminium 6063‑T5/T6 blades/frames with powder coating 60–80 µm or anodizing ~20 µm (AA20 equivalent) per exposure; accept with finish schedule and warranty.
19. Use stainless steel fasteners (A2/A4 equivalents) and isolate dissimilar metals with non-conductive washers/tapes; accept with fastener schedule and galvanic isolation detail.
20. Select gaskets/seals as UV-stable EPDM or silicone; temperature range −30 to +90 °C; accept with manufacturer datasheets and compatibility confirmation with finish.
21. For coastal/industrial sites, upgrade to marine pre-treatment, duplex coating, and 316 stainless hardware; accept with environmental classification note and corrosion-resistance documentation.

Integration and Detailing

22. Provide a perimeter joint 10–15 mm with backer rod and sealant; show continuous supports and fixings at ≤ 600 mm centres; accept with detailed sections and fastener calc.
23. Include thermal breaks or isolation clips to limit condensation; accept when calculated internal surface temperature stays above indoor dew point; attach isotherm or condensation check.
24. Maintain required fire separation; provide tested fire-stopping around penetrations to the specified rating; accept per approved project specifications and authority requirements with layout and approval note.
25. Account for acoustic liners/filters/sand traps in airflow sizing and access; accept with updated Δp calculations and a maintenance method statement; upload accessory datasheets.

Documentation and Approvals

26. Submit coordinated shop drawings, calculations, drainage details, and maintenance plan; accept with digital approvals; archive signed PDF/Excel export with QR-linked evidence.

Airflow performance you can build and operate

Reliable louver airflow starts with free area and face velocity at the real duty point. Use manufacturer geometry to compute free area and confirm the opening supports the scheduled flow without exceeding recommended face velocities. Then read pressure drop from catalog curves and add losses from meshes, filters, or acoustic liners. A shallow plenum or nearby obstructions will create hot spots and noise, so maintain depth and clear the first 150 mm behind the louver. Coordinate transitions to avoid abrupt changes that elevate turbulence and Δp. Document your duty point on the curve, upload the calc sheet, and snapshot sections proving clearances. On a recent retrofit, recalculating with insect mesh exposed a 20 Pa shortfall; upsizing one module preserved fan selection and avoided late facade surgery.

Calculate free area from actual modeled geometry.
Keep intake face velocity at or below 2.5 m/s.
Mark the duty point on manufacturer Δp curves.
Maintain uniform plenum depth and remove obstructions.

Drainage and rain defense that protect interiors

Wind-driven rain exploits every gap. Choose blade profiles and pitch that meet the project’s rain defense requirement, then detail the sill, flashings, and end dams to shed water outward. Provide a positive slope (at least 1:20) and frequent weeps sized to pass debris without clogging. Use a backpan or gutter with gentle fall to a visible outlet so water never migrates into cavities. Maintain separation gaps to break capillary action and avoid reverse slopes. Before procurement, validate your details with a representative mock-up and a controlled spray or hose test. Photos of dry interiors and flowing weeps will convince stakeholders and avoid expensive fit-out damage later.

Slope sills outward; provide frequent, open weeps.
Add end dams and properly lapped flashings.
Route backpan drainage to a visible exterior outlet.
Test a mock-up and record dry interior results.

Maintenance clearance and safe, fast service

A maintainable louver zone prevents shutdowns and access hazards. Provide a continuous walkway at least 600 mm wide with 2.1 m headroom, anti-slip finish, and lighting. Integrate a door in the louvered zone sized for equipment and filter swaps, and limit removable panel weight to 25 kg unless lifting points are provided. Place dampers and filters within ergonomic reach and coordinate space for tool swing. Decide if cleaning is internal, via MEWP, or rope access, then place the anchors, tie-offs, or sockets accordingly per approved project specifications and authority requirements. Label routes and include the method in O&M. Evidence—dimensioned sections, hardware schedules, and anchor layouts—accelerates sign-off and reduces lifecycle costs.

Keep a 600 mm clear walkway and 2.1 m headroom.
Size an access door for routine filter replacement.
Limit panel mass or provide safe lifting points.
Define cleaning method and provide anchors.

How to Use the Interactive Louver Design Checklist

Preparation: gather architectural elevations/sections, MEP airflow schedules, rainfall/wind design data, manufacturer catalogs/curves, and coordination models. Ready CAD/BIM, calculator, camera/screenshot tool, and PPE for any site verifications.
Set project criteria: confirm duty airflow, acceptable face velocity, target pressure drop, exposure category, and maintenance strategy. Note any authority or owner requirements that modify standard targets.
Using the Interactive Checklist: open the checklist, assign roles, start tick mode, and create comment threads on each item. Mention stakeholders for quick resolution and keep decisions within the item history.
Attach evidence: upload marked calculations, manufacturer curve snapshots, annotated details, and mock-up photos. Link drawing references and model views so reviewers can verify without searching.
Resolve conflicts: use comments to log design changes, assign actions with due dates, and record approvals. Update calculations when accessories (mesh, filters) are added.
Export: generate an export as PDF/Excel with embedded QR code to authenticate on site. Share the file for workshops and tender submittals.
Sign-Off: capture digital signatures from design lead, MEP, and façade contractor; distribute to stakeholders; archive the final, QR-verified record in the project CDE.

Review Façade Louver Design: Airflow, Drainage, Access

Start Interactive Checklist

Façade Louver Design Review – Airflow, Drainage, Access

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Façade Louver Design Review – Airflow, Drainage, Access by Quollnet” with a link to this source page.

Download Excel - Façade Louver Design Review – Airflow, Drainage, Access
Download PDF - Façade Louver Design Review – Airflow, Drainage, Access
View Image - Façade Louver Design Review – Airflow, Drainage, Access

Tatiana Ivanova Tatiana Ivanova

Oct 09, 2026

712

FAQ

Question: What free area and face velocity should I target for façade louvers?

Start by meeting the scheduled airflow at a face velocity around 2.5 m/s for intake and up to 3.0 m/s for exhaust, then check total pressure drop on the manufacturer’s curves. If accessories like mesh or filters are included, add their losses. Always confirm final criteria per approved project specifications and authority requirements.

Question: How can I verify rain defense before fabrication begins?

Select a blade profile and pitch with proven rain penetration performance in the manufacturer’s data, detail positive sills, flashings, and weeps, and conduct a representative mock-up spray/hosing test. Accept only when no interior wetting occurs and drainage flows outward. Record photos, flow observations, and a signed test sheet for approvals.

Question: What maintenance clearance is adequate behind louvers?

Provide a continuous walkway at least 600 mm wide with 2.1 m headroom where routine access is required. Place dampers and filters within a 500–1700 mm reach band, size an access door no smaller than 600 × 1200 mm, and limit panel mass to 25 kg unless lifting points are provided. Validate clearances on coordinated sections.

Question: Do bird or insect screens significantly change airflow sizing?

Yes. Screens reduce open area and add resistance. Recalculate total pressure drop using manufacturer loss factors for the selected mesh or expanded metal. Many designs gain 15–30 Pa once screens are included. Re-check the duty point, and upsize the opening or adjust fan selection if the pressure budget is exceeded.
