Review Façade Shading Device Design for Projection, Drainage, and Cleaning Access

The checklist

Projection and Geometry

1. 1Verify scheduled projection depth against solar analysis at key dates; measure on GA/sections with BIM dimension tools; acceptance: depth within ±5 mm of schedule; evidence: upload marked-up sheets and takeoff report.
2. 2Check clearance to operable windows and doors; simulate swing/slide paths in BIM; acceptance: minimum 25 mm clear at full travel; evidence: clash snapshot and annotated section.
3. 3Confirm louver pitch and alignment across bays; use array dimensioning over a 3 m run; acceptance: pitch variation ≤ ±3 mm and alignment within ±2 mm; evidence: dimensioned screenshot.
4. 4Run tolerance stack-up for brackets, stand-offs, and substrate; spreadsheet or BIM parameters; acceptance: net projection within ±10 mm of intent; evidence: uploaded calculation sheet with reviewer initials.

Drainage and Water Management

1. 5Provide falls on horizontal shading surfaces away from glazing; annotate gradients on sections; acceptance: slope ≥ 1:80 continuous to outlet; evidence: marked-up details with slope arrows.
2. 6Detail drip edges/grooves to shed rainwater clear of façades; check underside of leading edges; acceptance: 3×3 mm groove located 10–15 mm from edge; evidence: enlarged detail with dimensions.
3. 7Size gutters/outlets to design rainfall; perform calculation per approved project specifications; acceptance: capacity ≥ peak flow with 20% contingency; evidence: calc sheet and outlet schedule.
4. 8Define overflow paths that bypass glazing and finishes; review sections and elevations; acceptance: discharge point throws ≥ 50 mm beyond outermost glazing plane; evidence: annotated sections and note.

Cleaning and Access Provision

1. 9Validate manual cleaning reach envelopes; prepare reach diagrams from safe positions; acceptance: all surfaces within 600 mm from standing or cradle positions; evidence: plan/section overlays.
2. 10Confirm safe standing areas and approach routes for maintenance; review plans; acceptance: continuous clear width ≥ 600 mm without trip hazards; evidence: highlighted plans and risk notes.
3. 11Schedule anchor points/tie-offs compatible with BMU or rope access; check load ratings; acceptance: anchors certified per approved project specifications; evidence: manufacturer data, layout, and certification IDs.
4. 12Specify hinge-out or removable panels where rear faces need cleaning; hardware review; acceptance: panels open ≥ 90° with stays and positive locks; evidence: product submittal and annotated detail.

Materials and Fixings

1. 13Select corrosion-resistant materials and finishes; verify grades/coatings; acceptance: substrate and fixings suitable for site exposure, e.g., powder coat ≥ 60 μm; evidence: datasheets and finish schedule.
2. 14Isolate dissimilar metals to prevent galvanic corrosion; review connection details; acceptance: continuous non-conductive isolator at each interface; evidence: detail markup and material callouts.
3. 15Ensure fixing recesses permit tool access and water egress; section review; acceptance: ≥ 5 mm clearance around heads and open drain path; evidence: annotated section and note.
4. 16Provide gaskets/weep provisions that vent cavities; detail review; acceptance: weep slots ≥ 6 mm diameter at ≤ 1 m centres; evidence: detail callouts and photo of mock-up.

Coordination and Documentation

1. 17Coordinate shading arrays with BMU cradle paths and rope drops; run clash detection; acceptance: zero interference in any operating position; evidence: clash report and overlay.
2. 18Issue a cleaning and maintenance method statement; include access equipment and PPE; acceptance: step-by-step sequence and isolations defined; evidence: uploaded draft O&M section.
3. 19Define mock-up testing for drainage and operability; plan witness criteria; acceptance: no backflow to façade and smooth operation; evidence: test plan and sign-off sheet.
4. 20Publish setting-out references and tolerance matrix; list gridlines and control dimensions; acceptance: tolerances aligned with fabrication capability; evidence: GA sheet numbers noted.

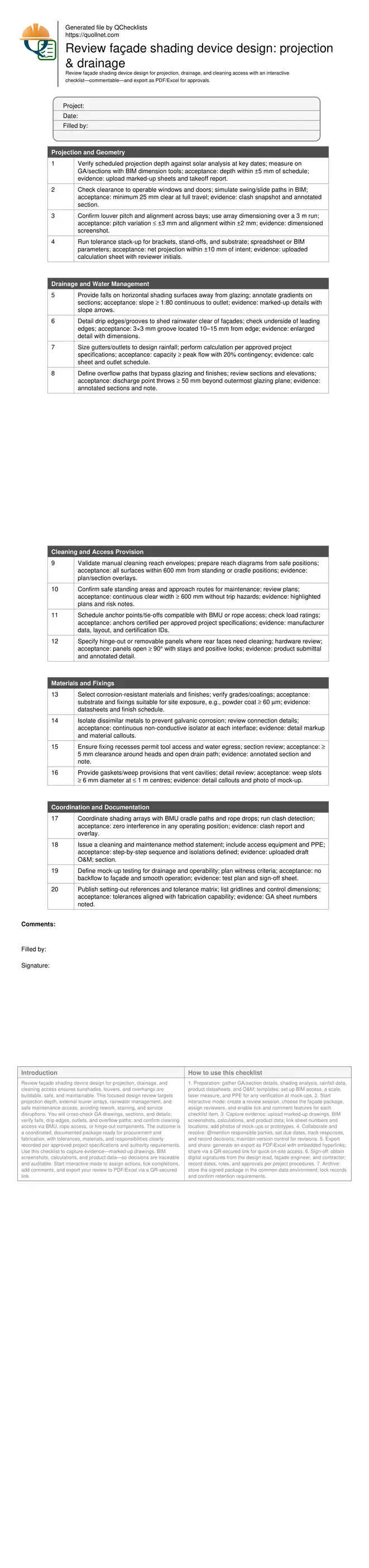

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

At a glance

• Ensure projection and geometry achieve intended solar control without clashing with openings or structure. This checklist guides dimension verification, bracket stand-off calculations, array alignment, and clearance checks, capturing marked-up drawings and tolerances so fabrication proceeds with clear, buildable, and coordinated details.
• Control rainwater with positive falls, drip details, and right-sized outlets and overflow paths. The steps confirm gradients, groove dimensions, discharge distances, and compatible materials, preventing backflow, streaking, and corrosion while documenting calculations, sections, and product data for traceable acceptance by the design team and stakeholders.
• Interactive online checklist with tick, comment, and export features secured by QR code. Collaborate across disciplines, attach photos, BIM snapshots, and calculations, assign actions, obtain digital sign-offs, and export as PDF/Excel for transparent approvals and long-term records in your common data environment.

How to Use This Interactive Design Review Checklist

1. Preparation: gather GA/section details, shading analysis, rainfall data, product datasheets, and O&M templates; set up BIM access, a scale, laser measure, and PPE for any verification at mock-ups.
2. Start interactive mode: create a review session, choose the façade package, assign reviewers, and enable tick and comment features for each checklist item.
3. Capture evidence: upload marked-up drawings, BIM screenshots, calculations, and product data; link sheet numbers and locations; add photos of mock-ups or prototypes.
4. Collaborate and resolve: @mention responsible parties, set due dates, track responses, and record decisions; maintain version control for revisions.
5. Export and share: generate an export as PDF/Excel with embedded hyperlinks; share via a QR-secured link for quick on-site access.
6. Sign-off: obtain digital signatures from the design lead, façade engineer, and contractor; record dates, roles, and approvals per project procedures.
7. Archive: store the signed package in the common data environment; lock records and confirm retention requirements.

Optimizing Projection Without Compromising the Envelope

Projection drives solar performance and constructability. Start by validating the scheduled projection depth against the solar analysis that informed energy and glare targets. Then confirm how stand-offs, bracket tolerances, and substrate flatness may shift the realized projection. Check clearances to operable sashes and doors using swing or slide envelopes, and ensure the leading edge neither obstructs views nor conflicts with building movement joints. For multi-bay arrays, assess cumulative pitch and alignment so the visual rhythm remains consistent across spandrels and mullions. Use BIM dimension tools, mark up GA/sections, and build a simple tolerance stack. The acceptance cue is a projection that remains within the intended range after tolerances, matches the solar model, and preserves safe clearances. Document each check with screenshots and annotated drawings so procurement and fabrication are unambiguous.

• Use BIM dimensions; target projection within ±5 mm overall.
• Maintain 25 mm clearance to fully open operable sashes.
• Check bracket stand-off keeps alignment across tolerances.
• Verify expansion joints don’t shift visible rhythm.

Designing Positive Drainage and Stain Control

Rainwater must leave the shading device predictably, without wetting glazing or soiling finishes. Provide continuous falls away from the façade, and add drip grooves under leading edges to break surface tension. Where gutters or channels collect water, size outlets to design rainfall per approved project specifications and authority requirements, and define an overflow path that bypasses the façade. Avoid ponding at bracket seats and recesses by shaping seats and keeping fastener heads clear of drainage routes. On complex corners, add local drips or diverters. Acceptance cues include measured gradients, detailed drip dimensions, adequate capacity, and discharge points that throw clear of the building. Record calculations, annotated details, and any mock-up spray observations to prove the drainage concept before fabrication.

• Provide minimum 1:80 falls away from glazing.
• Add 3×3 mm drips 10–15 mm from edges.
• Size outlets for peak rainfall per specifications.
• Define overflow clear of fragile finishes.

Providing Safe, Practical Cleaning Access

Every exposed surface should be cleanable without dismantling assemblies or introducing unsafe practices. Determine whether building maintenance units, rope access, or from-inside reach will service the device. Map safe standing positions and approach routes, keeping reach envelopes practical. Where rear faces or cavities collect dust, specify hinge-out or removable elements with stays and positive locks. Coordinate anchor layouts with BMU travel paths, and ensure fixings and recesses allow tool access without trapping water. Acceptance cues include confirmed reach distances, defined standing areas, certified anchor points, and operable panels opening sufficiently for safe work. Capture method statements, equipment specifications, and annotated plans so facility teams can maintain performance without damaging finishes or compromising safety.

• Keep surfaces within 600 mm from safe standing positions.
• Coordinate anchors with BMU or rope travel paths.
• Specify hinges, stays, and locks rated for maintenance loads.
• Include cleaning method statement in O&M manuals.
