Façade Access and BMU Interface Requirements Review (Design Stage)

The checklist

Access Strategy & Coverage

1. 1Verify façade reach and coverage using elevation grids and cradle envelope overlays; accept 100% vertical/horizontal reach with maximum untreated gap ≤ 300 mm; evidence: annotated PDFs and coverage matrix signed by design lead.
2. 2Confirm drop zones and rope clearances at setbacks/balconies using section overlays; accept minimum 450 mm clearance from obstructions; evidence: marked sections with dimensions and reviewer initials.
3. 3Define roof approach routes and staging zones on plans; measure paths; accept clear walkway width ≥ 600 mm and turning radius ≥ 1.5 m; evidence: dimensioned plan and route legend.
4. 4Validate BMU jib/boom operating angles using manufacturer envelopes; accept all required positions within published limits; evidence: cross-referenced envelope sheets and page numbers on GA drawings.

Structural & Load Interface

1. 5Confirm BMU rail/davit base reactions with structural engineer via load spreadsheet; accept members and fixings sized per approved project specifications and authority requirements; evidence: signed calc summary and revision record.
2. 6Coordinate parapet/guard and fall protection heights in sections; accept safe edge protection per approved project specifications and authority requirements; evidence: detailed sections with level callouts and notes.
3. 7Schedule embedded plates/inserts for rails and davits; set out from gridlines; accept position tolerance ±10 mm and level ±5 mm; evidence: embed layout drawing and plate schedule.
4. 8Review building movement, rail expansion joints, and thermal gaps; accept joints and gaps sized to calculated movements; evidence: movement study excerpt and annotated detail references.

Roof Equipment & Fixings

1. 9Align BMU rails/monorails in BIM; check levels along runs; accept variance ±3 mm over 10 m; evidence: BIM screenshot with spot levels and model timestamp.
2. 10Set out davit sockets using a coordinated template; accept spacing matching cradle reach and manufacturer setbacks; evidence: setout drawing with manufacturer page reference.
3. 11Provide dedicated power at BMU park and emergency stops; accept lockable isolator within 1.5 m and circuits per equipment load; evidence: stamped single-line diagram and GA note.
4. 12Detail wash-down and park area drainage; set falls and traps; accept minimum fall 1:100 to trapped drain; evidence: drainage calc and roof detail cross-reference.

Façade Restraint & Tie-In Points

1. 13Locate tie-back anchors near edges/returns; accept spacing and capacity per manufacturer and approved specifications; evidence: anchor schedule with capacities and tag locations on plan.
2. 14Detail temporary restraint sockets at recesses/atria; accept ratings suitable for rescue loads; evidence: detailed sections with load note and designer initials.
3. 15Coordinate monorail brackets with cladding substructure; accept fixings into primary structure with resolved thermal/waterproofing interfaces; evidence: coordination minutes and marked details.
4. 16Confirm ergonomic access to anchors; model reach arcs; accept no connection point requiring reach > 600 mm beyond safe line; evidence: reach diagram on roof plan.

Safety & Compliance

1. 17Place fixed lifelines/anchors and signage on roof plan; accept certified lifeline layout per approved project specifications and authority requirements; evidence: plan with sign schedule and product datasheets.
2. 18Document rescue strategy (rescue anchor, controlled descent/power lowering); accept method achieving retrieval without overexposure; evidence: signed RAMS and rescue diagram.
3. 19Specify edge protection/temporary barriers for maintenance; accept barrier ratings per approved specifications; evidence: sequencing note, detail reference, and product sheet.
4. 20Assess wind operating limits and lightning bonding; accept declared safe wind speed and equipotential bonding detail; evidence: wind study extract and bonding schematic.

Coordination & Documentation

1. 21Plan equipment lifting/maintenance routes; check roof load limits and door widths; accept clash-free routes within load ratings; evidence: lifting plan signed by structural lead.
2. 22Compile manufacturer approvals, O&M, and calculations pre-IFC; accept current datasheets and certifications logged; evidence: submittal tracker export and approval stamps.
3. 23Issue coordinated GA/details through a review meeting; accept zero level-1 clashes and resolved keynotes; evidence: meeting minutes and stamped drawing set.
4. 24Register residual risks on the design risk log; accept risks communicated to contractor/FM; evidence: risk log entry and distribution list.

Preview the printable checklist

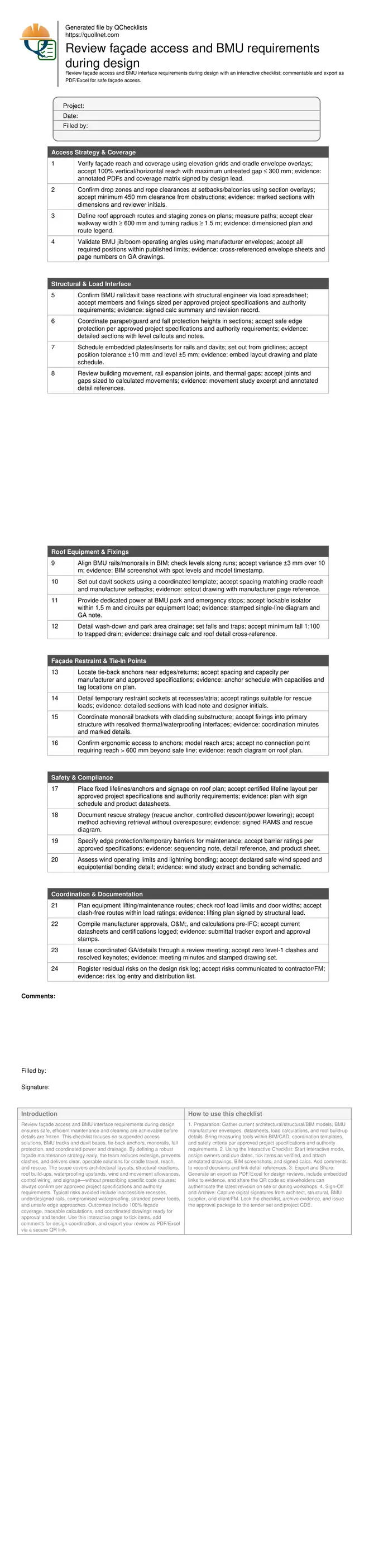

Preview page one below. Open the image or download the PDF for all pages.

At a glance

• Establish complete façade access coverage, clear drop zones, and safe approach routes early, using marked elevations, sections, and 3D overlays. Capture decisions and upload manufacturer envelopes so reach, angles, and rescue are validated before tender.
• Coordinate BMU rails, davit bases, tie-back anchors, lifelines, power, and drainage with structural capacity, roof build-ups, and waterproofing details. Record reactions, tolerances, and embed positions to prevent rework and protect warranties.
• De-risk wind, building movement, lightning bonding, and maintenance logistics with quantified criteria and evidence. Store signed calculations, annotated drawings, and BIM screenshots to create a traceable compliance trail for stakeholders.
• Interactive online checklist with tick, comment, and export features secured by QR code. Use it to drive workshops, assign actions, and generate a coordinated, approval-ready façade access package for project gateways.

How to apply and sign off this façade access & BMU checklist

1. Preparation: Gather current architectural/structural/BIM models, BMU manufacturer envelopes, datasheets, load calculations, and roof build-up details. Bring measuring tools within BIM/CAD, coordination templates, and safety criteria per approved project specifications and authority requirements.
2. Using the Interactive Checklist: Start interactive mode, assign owners and due dates, tick items as verified, and attach annotated drawings, BIM screenshots, and signed calcs. Add comments to record decisions and link detail references.
3. Export and Share: Generate an export as PDF/Excel for design reviews, include embedded links to evidence, and share the QR code so stakeholders can authenticate the latest revision on site or during workshops.
4. Sign-Off and Archive: Capture digital signatures from architect, structural, BMU supplier, and client/FM. Lock the checklist, archive evidence, and issue the approval package to the tender set and project CDE.

Define access strategy, reach, and safe operating envelopes early

Begin with a coverage study using elevation grids, plan drop zones, and rope paths. Overlay manufacturer jib and cradle envelopes to confirm movement around setbacks, balconies, and recessed bays. Validate approach routes, staging areas, and parapet interfaces to avoid late geometry conflicts. Quantify minimum clearances and turning radii so operational access is predictable. Where geometry is complex, combine 2D markups with 3D viewpoints to expose blind spots. Check that façade modules, window washing patterns, and maintenance hatches align with the suspended access sequence. State the allowed operating wind speed and rescue path in the notes, and cross-reference to the access GA. Avoid overreliance on typicals—adjust for local parapet details, roof plant, and skylights. Capture evidence with annotated PDFs, BIM snapshots, and a coverage matrix signed by the design lead. Escalate unresolved gaps immediately and assign actions before issuing for coordination or tender.

• Prove 100% reach with ≤ 300 mm untreated gaps.
• Show ≥ 450 mm rope clearance at obstructions.
• Walkways clear width ≥ 600 mm with safe turns.
• Include wind limit and rescue path on GA.

Engineer interfaces: structure, waterproofing, power, and drainage

Translate coverage into buildable interfaces. Confirm BMU rail and davit reactions with the structural engineer and size fixings per approved project specifications and authority requirements. Lock embedded plate positions early to protect reinforcement and avoid drilling later. Coordinate rails, monorail brackets, and tie-backs with roof build-ups, thermal breaks, and waterproofing upstands; call out upstand heights, seal types, and inspection hatches. Provide dedicated power at the BMU park with local isolation and emergency stops. Add wash-down points and trapped drainage with graded falls so water does not pond near penetrations. For movement and temperature, include expansion joints and sliding connections where needed and note inspection access. Keep all criteria measurable, record datasheet references, and link drawing detail numbers so installers and inspectors can trace design intent.

• Embed plates set within ±10 mm horizontally.
• Rails level within ±3 mm over 10 m.
• Falls to drains at least 1:100.
• Isolation within 1.5 m of equipment park.

Coordinate safety systems, rescue, and documentation for approval

Place lifelines, anchors, and signage where users can connect without unsafe leaning. Model reach arcs to prove ergonomics. Define a rescue strategy that avoids prolonged suspension, including rescue-rated anchors or powered lowering. Address lightning bonding and declare the maximum operating wind speed. Plan lifting and maintenance routes for equipment installation and periodic servicing, checking door widths and load ratings. Use BIM clash detection to eliminate level-1 conflicts and record decisions in meeting minutes. Assemble manufacturer approvals, calculations, and O&M content prior to IFC so procurement is clear. Maintain a design risk log, ensuring residual risks are handed to the contractor and facilities team. This approach shortens approvals, reduces RFIs, and secures a maintainable façade access system.

• Anchor access without reaching > 600 mm beyond edge.
• Rescue method documented with RAMS and diagram.
• Lightning bonding and wind limits declared.
• Zero level-1 clashes before issue.
