Review façade constructability and installation sequence before tender issue helps design managers, façade consultants, and estimators confirm buildability, interfaces, and safe sequencing, reducing risk and claims before procurement proceeds.
- Validate buildability, tolerances, and interfaces with coordinated BIM and drawings.
- Define safe, logical erection sequencing and temporary weather-tight strategies.
- Derisk access, lifting, and logistics to cut programme slippage.
- Interactive, commentable checklist; export and share with QR code.
The checklist
Design & Documentation
- Verify completeness of façade GA drawings, details, schedules, and fixing layouts against BIM model; acceptance: no missing references or TBD notes; evidence: signed document register and annotated review log.
- Validate façade zone depth and offsets against structure/MEP using federated BIM clash detection; acceptance: zero hard clashes and soft clearance ≥25 mm; evidence: clash report PDF with date and model version.
- Review material and system specifications for durability, fire resistance, and warranties using data sheets; acceptance: meets approved project specifications and authority requirements; evidence: compiled submittal list with responsible party and due dates.
- Confirm testing and mock-up scope (air/water, structural, acoustic) from specifications; acceptance: clearly defined test types, locations, and acceptance criteria; evidence: test and mock-up matrix approved by design manager.
Interfaces & Structure
- Check calculated anchor loads versus base material capacity using structural calculations; acceptance: demonstrated safety factors per approved project specifications; evidence: signed connection calculations and anchor schedule.
- Coordinate embed/insert locations with bracket geometry using setting-out drawings and model; acceptance: positional deviation ≤10 mm in x/y and ≤5 mm in z; evidence: coordinated drawings with clouded changes.
- Verify building drift, thermal and seismic movements against joint allowances using movement summary; acceptance: joint/reserve movement ≥ predicted movement + 5 mm; evidence: movement table linked to details.
- Confirm water-management at interfaces (sills, upstands, membranes) via detail review; acceptance: continuous laps ≥100 mm and positive drainage paths; evidence: redlined details and interface register.
Tolerances & Adjustability
- Assess bracket adjustability ranges (x/y/z) versus survey tolerances using manufacturer data; acceptance: vertical ±15 mm, horizontal ±10 mm, stand-off ±15 mm minimum; evidence: datasheets highlighted and tolerance matrix.
- Check glazing/panel dimensional tolerances and gasket bite using manufacturer manuals; acceptance: edge clearance 2–6 mm; gasket bite ≥6 mm; evidence: specification extract and calculation snippet.
- Confirm subframe straightness and deflection under service loads via span check; acceptance: deviation ≤8 mm between adjacent brackets; evidence: simple calc sheet and span layout.
- Compile tolerance stack-up from structure to finished face using matrix; acceptance: residual install tolerance ≥5 mm after allowances; evidence: approved tolerance matrix signed by stakeholders.
Access, Lifting & Logistics
- Select access method (mast climbers, cradles, MEWPs) using reach studies; acceptance: 100% elevation coverage with ≥500 mm overlap; evidence: access layout drawings and elevation markups.
- Prepare lifting study for heaviest unit and maximum radius using crane charts; acceptance: WLL ≥2 × component weight at planned radius; evidence: lift plan, crane chart, and route sketch.
- Plan on-site storage and protection using logistics plan; acceptance: pallets off-ground, covered, strapped; aisles ≥1.2 m; evidence: logistics drawing and material protection method statement.
- Sequence deliveries by elevation/zone tied to install dates using lookahead; acceptance: just-in-time arrival within 24 h of install; evidence: delivery schedule linked to programme IDs.
Sequence & Temporary Works
- Map installation sequence from primary brackets to final sealant using method statement; acceptance: clear predecessors, no inaccessible fixings; evidence: step-by-step flowchart and WBS codes.
- Define temporary weather-tightness strategy per floor using details and materials list; acceptance: no exposed joints after shift; evidence: sketch details and material take-off.
- Set QA hold and witness points in ITP (first-off bracket, first panel, water test); acceptance: roles/responsibilities and records defined; evidence: draft ITP with signatures.
- Establish remediation methods for misaligned embeds or out-of-plumb structure; acceptance: approved shimming/packers or remedial anchors; evidence: remedial detail and approval note.
Quality Records & Approvals
- Specify as-built survey method using total station or laser scan; acceptance: point grid ≤2.0 m and datum agreed; evidence: survey plan and template CSV.
- Create photographic evidence checklist for each activity; acceptance: overview, close-up of fixings, torque reading, and lot labels; evidence: photo checklist embedded in ITP.
- Define anchor verification (pull-out or torque) using calibrated tools; acceptance: results meet manufacturer limits; evidence: calibration certificate and test log with N·m/kN readings.
- Agree RFI/submittal workflow and response times with stakeholders; acceptance: turnaround ≤5 working days; evidence: communication plan with contacts and escalation path.

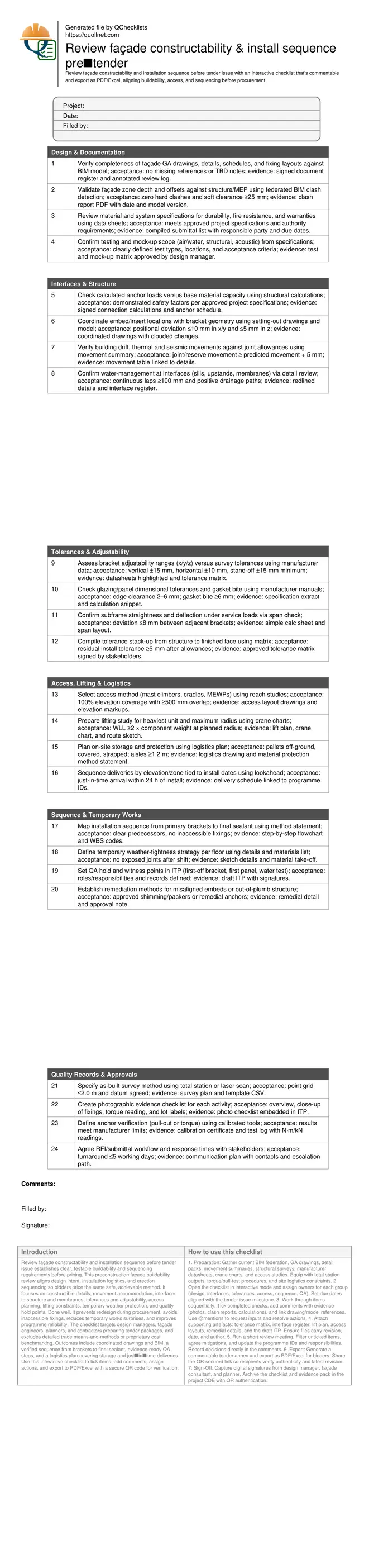

Preview the printable checklist
Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Establish a shared, constructible façade sequence before tender to eliminate scope gaps. Coordinate anchors, subframes, panels, gaskets, and sealants with structure and MEP. Validate tolerances, adjustability, movement, and weather paths so bidders price the same safe, achievable methodology without contingencies.
- Lock in practical access and lifting strategies using reach studies, crane charts, and logistics plans. Define temporary weather-tightness by floor and schedule QA hold points. The result is fewer RFIs, cleaner bids, and reduced programme and safety risks during award and mobilisation.
- Interactive online checklist with tick, comment, and export features secured by QR code. Assign responsibilities, capture photos, attach clash reports, and generate an auditable approval trail. Export structured evidence for tender issue packs and archive with the design manager’s sign-off.
How to Use This Pre‑Tender Façade Review Checklist
- Preparation: Gather current BIM federation, GA drawings, detail packs, movement summaries, structural surveys, manufacturer datasheets, crane charts, and access studies. Equip with total station outputs, torque/pull-test procedures, and site logistics constraints.
- Open the checklist in interactive mode and assign owners for each group (design, interfaces, tolerances, access, sequence, QA). Set due dates aligned with the tender issue milestone.
- Work through items sequentially. Tick completed checks, add comments with evidence (photos, clash reports, calculations), and link drawing/model references. Use @mentions to request inputs and resolve actions.
- Attach supporting artefacts: tolerance matrix, interface register, lift plan, access layouts, remedial details, and the draft ITP. Ensure files carry revision, date, and author.
- Run a short review meeting. Filter unticked items, agree mitigations, and update the programme IDs and responsibilities. Record decisions directly in the comments.
- Export: Generate a commentable tender annex and export as PDF/Excel for bidders. Share the QR-secured link so recipients verify authenticity and latest revision.
- Sign-Off: Capture digital signatures from design manager, façade consultant, and planner. Archive the checklist and evidence pack in the project CDE with QR authentication.
Why sequence early drives façade constructability and tender clarity
Establishing sequence logic before tender underpins realistic programmes, safe access, and coherent interface detailing. Start upstream: confirm the order from structural surveys to bracket installation, subframe alignment, unit/panel placement, perimeter sealing, and QA verification. Map constraints such as crane radius, mast climber offsets, and handover floors. A pilot-bay methodology on paper—complete with hold points and evidence lists—lets bidders price the same activity flow, rather than guessing. Detail temporary weather-tightness between shifts and floors so interior trades can progress. Feed movement data and tolerance allowances into the sequence so brackets and shims are sized for real survey conditions, not idealized drawings. Record each dependency in a flowchart tied to WBS and programme IDs, then cross-reference logistics and delivery runs to avoid double-handling. This discipline minimizes RFIs after award and removes ambiguity that often inflates contingency or leads to claims when site realities surface.
- Define the order from brackets to final sealant, with hold points.
- Tie sequence to WBS codes and programme activities.
- Include temporary weather protection between daily stop points.
- Reference movement and tolerance data in each step.
- Pilot-bay methodology forms the pricing baseline.
Control interfaces, movement, and tolerances to avoid rework
Interfaces are where façades fail—plan them rigorously. Confirm how sills, membranes, trays, and flashings overlap and drain, avoiding reverse laps and trapped water. Check structural drift, thermal, and seismic movements against joint capacities and gasket bite. Build a tolerance matrix from concrete frame through embeds, brackets, subframe, and finishes; ensure residual installation play remains after survey corrections. Define remediation pathways for common issues: misaligned inserts, shallow edge distances, or warped slabs. Specify verification methods—torque settings, pull-out tests, and as-built surveys—so acceptance criteria are measurable. Use BIM federation to test space claims at corners, transitions, and abutments with adjacent systems. Capture decisions in an interface register and issue clouded details for pricing. This approach reduces downstream redesign, eliminates inaccessible fixings, and sustains water-shedding continuity across the envelope, improving quality while compressing installation cycles.
- Publish a tolerance matrix with residual play allowances.
- Verify movement joints exceed predicted movement plus margin.
- Detail laps with positive drainage and no reverse laps.
- Predefine remediation for inserts and edge-distance issues.
- Measure acceptance via survey, torque, and pull tests.
Access, lifting, and logistics that keep the programme reliable
Access and handling dictate productivity and safety. Choose mast climbers, cradles, or MEWPs using reach studies validated at corners, setbacks, and podiums. Confirm tie-in locations, clearances, and overlap zones so no panel is unreachable. Prepare lifting studies for the heaviest unit at maximum radius, including taglines, exclusion zones, and wind limits. Plan storage to protect finishes and avoid double handling: covered, off-ground pallets, clear aisles, and sequenced deliveries aligned to installation zones. Define temporary weatherproofing by floor—tapes, membranes, or temporary panels—so interiors start on time even in poor weather. Coordinate with façade testing and QA hold points to minimize rework. Lock these decisions into a logistics plan, lift plan, and access drawings included in the tender pack. The result is safer, faster installation with predictable outputs and fewer claims during procurement and mobilisation.
- Prove 100% coverage with reach studies and overlap.
- Lift plan covers worst-case radius and wind conditions.
- Sequence deliveries to avoid on-site double handling.
- Protect finishes with covered, off-ground storage.
- Define temporary weatherproofing per elevation and floor.
