Test façade pressure-equalization chamber continuity where applicable equips façade inspectors and installers to verify rainscreen chamber continuity, isolation, and venting with repeatable field methods and documented acceptance evidence.
- Verify continuous chambers, sealed partitions, and unobstructed vent paths.
- Reduce water ingress, wind pumping, and premature façade deterioration.
- Use manometer, smoke pencil, borescope, and flow checks with photos.
- Interactive, commentable checklist; export and authenticate with a QR code.
The checklist
Pre-Test Conditions and Safety
- Confirm the assembly is a pressure-equalized rainscreen per drawings and mock-up; mark test elevations and compartments; capture annotated photos as evidence.
- Verify weather: wind speed ≤ 3 m/s, no precipitation; maintain stable conditions ≥ 10 minutes; attach site weather log screenshot.
- Establish safe access and edge protection per the method statement; photograph guardrails, harness tie-offs, and equipment tags; record permit numbers.
- Notify stakeholders and control adjacent mechanical systems; isolate makeup/relief vents influencing the test area; upload permit-to-work confirmations.
Instruments and Calibration
- Calibrate differential manometer (0–250 Pa, ±1 Pa) on test day; log zero/span checks; photograph calibration certificate.
- Prepare smoke pencil, borescope, flow hood or anemometer, ruler/feeler gauges, and sealing tapes; record inventory and expiry dates.
- Set data logger sampling ≥ 1 Hz; time-sync logger and camera; upload a time-sync screenshot as evidence.
Chamber Isolation and Vent Verification
- Identify chamber boundaries and compartmentation from drawings; mark extents with tape/paint pen; upload marked-up photos for each bay.
- Mask unintended gaps to the interior for test control while keeping designed vent/drain slots open; record material lot numbers used.
- Measure vent slot free area using a ruler/feeler gauge; compare with design; photograph measurements and note dimensions in mm.
- Inspect cavity continuity with a borescope through removable caps/panels; document baffles/dividers; upload images confirming unobstructed pathways.
- Verify gaskets, baffles, and fire stops are present and not blocking vents; capture close-up photos and supervisor acknowledgment.
Pressure Response Testing
- Install airtight pressure tap at top, mid, and bottom of the same chamber; soap-test fittings; photograph each port.
- Apply a façade face pressure step to 50 Pa (or project-specified); record chamber pressure via manometer until steady state; save raw data.
- Measure equalization time: time for chamber pressure to be within ±5 Pa of exterior step; perform three repeats; log times in seconds.
- Compare repeats at the same port; acceptance consistency within ±10% between repeats; attach plot overlays for verification.
- Compare top/mid/bottom port responses within the same chamber; target time constants within ±15%; upload comparative plots.
- Perform release test: reduce to 0 Pa; confirm chamber returns within ±5 Pa in similar time; save decay curve.
- Monitor interior zone pressure during steps using a second manometer; acceptance: interior differential change < 2 Pa; upload synchronized logs.
- Use smoke pencil along joints and penetrations during pressurization; acceptance: no smoke drawn to interior; capture video stills.
- Check vent function with an anemometer at each slot during 50 Pa; record velocity (m/s) and note any zero-flow zones with photos.
Diagnostics and Remediation
- If responses are uneven, trace with smoke and ultrasonic leak detector along partitions; mark breaches; upload annotated photos.
- Install temporary seals at suspect bypasses; retest to verify improved equalization; attach before/after plots and notes.
- Remove debris or misplaced insulation blocking vents; bag and tag waste; photograph cleared vents and disposal record.
Documentation and Sign-Off
- Compile data logs, plots, photos, videos, and marked drawings; upload to the checklist record for each chamber and elevation.
- Record acceptance per approved project specifications and authority requirements; register variances and nonconformances with corrective actions.
- Capture digital signatures from contractor, consultant, and client; export PDF/Excel with embedded QR code; archive in the project CDE.
Preview the printable checklist

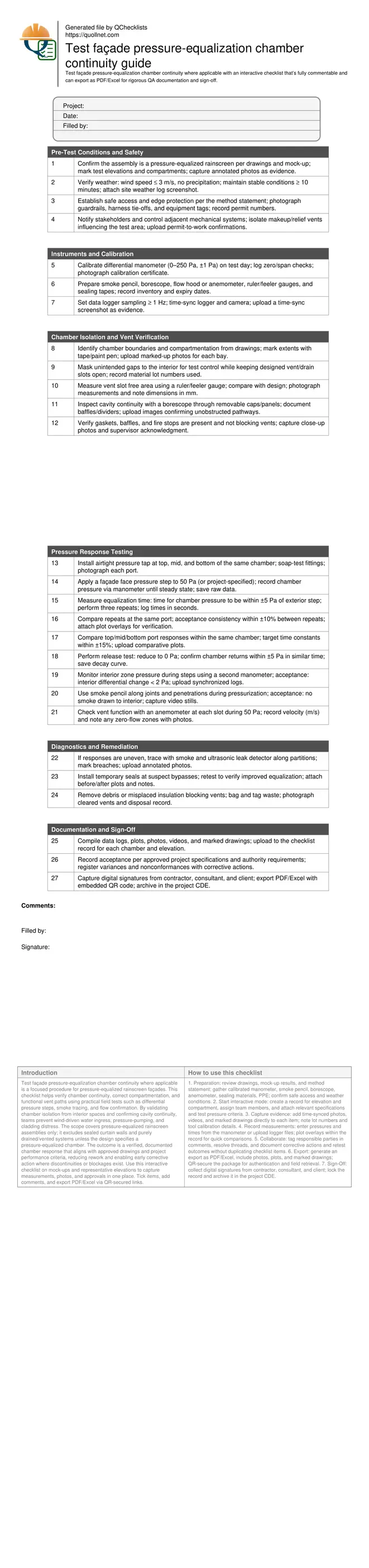

Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Confirm chamber continuity, correct compartment boundaries, and vent free area to prevent wind-induced pressure imbalances. Field evidence includes synchronized manometer readings, smoke visualization, borescope images, and flow data. Early detection of bypasses around brackets, corners, and service penetrations reduces water ingress and warranty exposure.
- Interactive online checklist with tick, comment, and export features secured by QR code.
- Standardized methods—pressure step response, release checks, and interior leakage monitoring—yield consistent, repeatable results. Acceptance is documented per approved project specifications and authority requirements, with transparent plots, photos, and signatures. Findings inform targeted remediation, retesting, and clear sign-off for each elevation and compartment.
How to Prepare, Use, and Sign Off This Interactive Checklist
- Preparation: review drawings, mock-up results, and method statement; gather calibrated manometer, smoke pencil, borescope, anemometer, sealing materials, PPE; confirm safe access and weather conditions.
- Start interactive mode: create a record for elevation and compartment, assign team members, and attach relevant specifications and test pressure criteria.
- Capture evidence: add time-synced photos, videos, and marked drawings directly to each item; note lot numbers and tool calibration details.
- Record measurements: enter pressures and times from the manometer or upload logger files; plot overlays within the record for quick comparisons.
- Collaborate: tag responsible parties in comments, resolve threads, and document corrective actions and retest outcomes without duplicating checklist items.
- Export: generate an export as PDF/Excel, include photos, plots, and marked drawings; QR-secure the package for authentication and field retrieval.
- Sign-Off: collect digital signatures from contractor, consultant, and client; lock the record and archive it in the project CDE.
Principles of Pressure Equalization in Rainscreen Chambers
Pressure-equalized rainscreen façades minimize water ingress by allowing a controlled cavity (the pressure-equalization chamber) to quickly match exterior pressure, thereby removing the driving force across cladding joints. For this to work, each compartment must have a continuous air path within the chamber, be isolated from the building interior, and include correctly sized vent/drain openings. Discontinuities—such as unintended gaps to interior spaces, blocked vents, or broken dividers—slow or distort the pressure response, creating wind pumping and moisture risks. Field verification focuses on measuring the chamber’s pressure response to an exterior step, observing smoke behavior, checking vent free area, and confirming isolation. Acceptance is recorded per approved project specifications and authority requirements, but practically, teams expect fast, repeatable equalization and similar response at the top, middle, and bottom ports of the same chamber. Early testing on mock-ups and first-installed bays prevents systemic defects from propagating.
- Continuity inside each chamber; isolation from interior air.
- Vent sizing and free area drive response speed.
- Broken baffles or gaps cause pressure lag.
- Equalize quickly and repeatably across all ports.
- Verify on mock-ups and early bays.
Field Methods, Instrumentation, and Acceptance Cues
Reliable testing pairs a calibrated differential manometer with controlled exterior pressure steps, a smoke pencil, and a borescope for internal confirmation. Start by confirming compartment boundaries and keeping designed vents open while masking unintended interior leaks. Record pressure response at multiple ports along the same chamber to evaluate continuity and uniformity. A consistent time constant across top, mid, and bottom suggests a continuous air path without blockages. Monitor interior zone pressure to ensure isolation, and use smoke to visualize unwanted bypass. Flow checks at vents help confirm adequate free area. Document every reading, plot overlays, and capture photos and videos. Acceptance is based on project criteria; however, teams commonly seek matched step and release behavior, minor hysteresis, and minimal interior pressure change during tests.
- Use a manometer with ±1 Pa accuracy.
- Sample at ≥ 1 Hz for clear plots.
- Compare top, middle, and bottom ports.
- Interior pressure change should be minimal.
- Record plots, photos, and videos.
Frequent Defects and Effective Corrective Actions
Typical problems include missing or damaged dividers at compartment lines, blocked vent/drain slots by sealant squeeze-out, misaligned brackets puncturing baffles, over-packed insulation intruding into the cavity, and poorly sealed penetrations that connect to interior spaces. Corner transitions are especially vulnerable to unintended openings that short-circuit neighboring compartments. When the step response is slow or inconsistent between ports, trace with smoke and ultrasonic tools to map the bypass. Implement temporary seals or clear obstructions and retest to confirm improvement before issuing permanent fixes. Always document lot numbers for gaskets and tapes used and validate that fire stops are present yet not obstructing the vent path. Close the loop with repeat tests and add findings to redlined drawings for installers and supervisors.
- Corners and bracket zones are common leak points.
- Sealant squeeze-out can block vent slots.
- Overstuffed insulation narrows cavity paths.
- Fire stops must not block ventilation.
- Retest after any corrective action.
