Test façade firestop systems at perimeter joints before concealment to verify continuity, compression, and sealing quality for contractors, inspectors, and façade installers before the assembly is covered.
- Validate joint width, mineral wool compression, and sealant depth.
- Prove continuity behind mullions using mirrors and borescopes.
- Record photos, measurements, batch numbers, and digital approvals.
- Interactive, commentable, export, QR code for secure sign-offs.
The checklist
Pre-Testing Documentation
- Confirm approved submittals and shop drawings for the perimeter firestop joint system are current and applicable to this area; review latest revisions and design details; acceptance: matches approved project specifications and authority requirements; evidence: upload signed review pages and referenced drawing numbers.
- Verify safe access and working platforms at the façade perimeter; inspect guardrails, lifelines, and anchorage points; acceptance: compliant fall protection in place; evidence: photographs of access, permit numbers, and daily safety sign-in.
- Notify GC, façade installer, and inspector of test schedule and boundaries; issue marked plans with grid references; acceptance: written acknowledgments received; evidence: email confirmations and uploaded marked plan.
- Calibrate and verify measuring tools (steel rule, calipers, depth probe, torque wrench); acceptance: calibration within valid date; evidence: calibration certificates and tool serial numbers.
Materials Verification
- Record firestop sealant manufacturer, product name, lot and expiry; acceptance: product matches approved submittal and within shelf life; evidence: photos of cartridges/tubes and recorded lot data.
- Confirm mineral wool safing type, density, and thickness; acceptance: matches approved submittal; evidence: packaging label photos and delivery tickets.
- Verify accessories (backer rod, sprays, safing clips) are correct size and type; acceptance: consistent with approved submittal; evidence: photos with scale and part numbers.
- Check substrates are clean, dry, and free of contaminants; method: wipe test and moisture reading; acceptance: moisture within manufacturer limits; evidence: photos and moisture meter readings.
Installation Condition at Perimeter Joint
- Measure joint width at 1 m intervals along the perimeter; acceptance: within specified range; evidence: dimension log noting min/max values and location-tagged photos.
- Verify mineral wool installed continuous with correct orientation; method: visual check and probe; acceptance: fibers oriented to design, no voids; evidence: photos showing probe depth and orientation.
- Check mineral wool compression uniformity; method: compare installed thickness to nominal using calipers/feeler gauge; acceptance: compression per approved project specifications; evidence: recorded measurements and images.
- Confirm firestop continuity behind mullions, anchors, and brackets; method: mirror or borescope; acceptance: uninterrupted contact at all obstructions; evidence: borescope images with location tags.
- Verify smoke seal is continuous along the joint; method: close visual inspection; acceptance: no gaps, holidays, or pinholes; evidence: close-up photos with a 10 mm scale.
- Measure sealant depth and bead profile at sample cut-outs; method: depth gauge and clean cross-section; acceptance: depth/profile per approved submittal; evidence: measurements recorded with annotated photos.
Continuity and Sealing Tests
- Perform gentle pick test at random points to assess sealant bond; method: blunt probe; acceptance: cohesive response without adhesive failure; evidence: photos of probe points and notes.
- Conduct localized smoke-pencil check with small fan to induce flow; acceptance: no visible smoke passage through the joint; evidence: video/photos and test locations logged.
- Verify safing clips and mechanical restraints are installed to design spacing; method: measure centre-to-centre distances; acceptance: spacing per approved submittal; evidence: photos with tape measure and log.
- Torque-check accessible anchors/clips; method: calibrated torque wrench; acceptance: torque values per approved project specifications; evidence: recorded torque values and digital signature.
- Confirm fire-resistive coating/spray coverage where required at spandrel; method: film thickness gauge and visual; acceptance: thickness per approved submittal; evidence: readings and photos with gauge.
- Validate movement allowance remains unobstructed for thermal/drift; method: measure free space and check for rigid bridges; acceptance: clear of restraints per design; evidence: annotated photos and dimensions.
Records and Sign-Off
- Capture as-built photos at max 2 m spacing, plus overall context; acceptance: full visual coverage prior to concealment; evidence: geotagged or grid-referenced images.
- Mark tested areas on plans and assign unique joint IDs; acceptance: IDs traceable to measurements and media; evidence: uploaded redlined plans.
- Record ambient temperature and relative humidity during testing; method: thermometer/hygrometer; acceptance: within application limits; evidence: logged readings with timestamps.
- Obtain pre-concealment approvals from installer, GC, and inspector; method: digital signatures; acceptance: signed records archived; evidence: sign-off sheet with time/date and QR link.

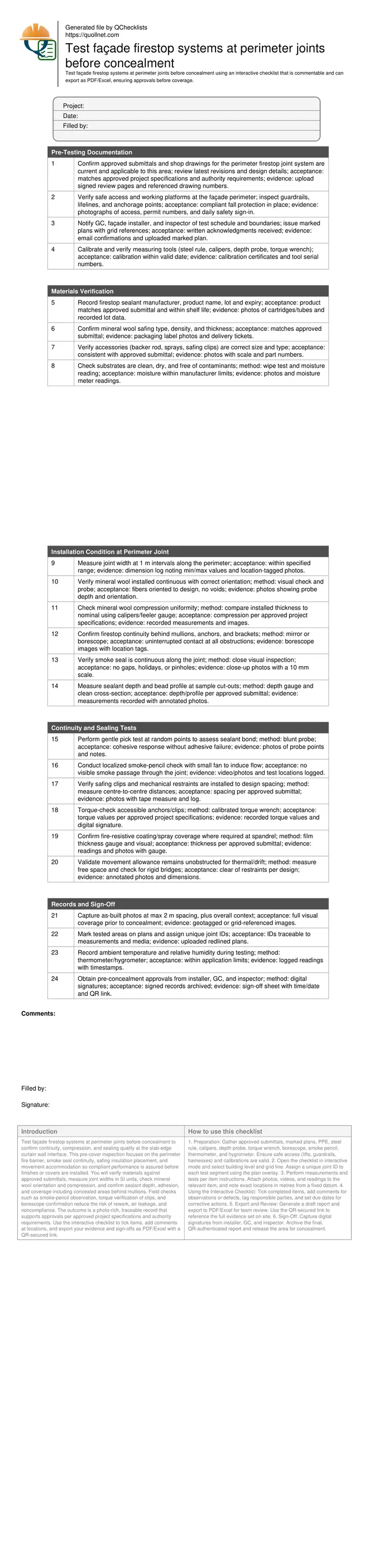

Preview the printable checklist
Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Ensure perimeter fire barrier integrity before finishes hide defects. Verify approved materials, measure joint dimensions, confirm mineral wool compression, and inspect continuous smoke seals, including behind obstructions, reducing rework and ensuring compliant performance at the façade-slab edge.
- Capture defensible evidence with photos, measurements, batch numbers, torque values, and signatures. Achieve traceability by tagging locations on marked plans, logging ambient conditions, and linking each tested segment to unique IDs for rapid audits and handover.
- Interactive online checklist with tick, comment, and export features secured by QR code. Standardize site workflows, enable real-time collaboration between installer, GC, and inspector, and streamline approvals before covering the joint.
- Reduce project risk by catching gaps, voids, improper depths, or obstructed movement allowances early. Document corrective actions and retests, and maintain a clear chain of custody aligned with approved project specifications and authority requirements.
How to Use This Pre-Concealment Testing Checklist
- Preparation: Gather approved submittals, marked plans, PPE, steel rule, calipers, depth probe, torque wrench, borescope, smoke pencil, thermometer, and hygrometer. Ensure safe access (lifts, guardrails, harnesses) and calibrations are valid.
- Open the checklist in interactive mode and select building level and grid line. Assign a unique joint ID to each test segment using the plan overlay.
- Perform measurements and tests per item instructions. Attach photos, videos, and readings to the relevant item, and note exact locations in metres from a fixed datum.
- Using the Interactive Checklist: Tick completed items, add comments for observations or defects, tag responsible parties, and set due dates for corrective actions.
- Export and Review: Generate a draft report and export to PDF/Excel for team review. Use the QR-secured link to reference the full evidence set on site.
- Sign-Off: Capture digital signatures from installer, GC, and inspector. Archive the final, QR-authenticated report and release the area for concealment.
Why pre-concealment testing of perimeter firestopping matters
Before cladding or finishes hide the slab-edge interface, confirming the perimeter fire barrier is essential to life safety and building performance. Pre-concealment testing ensures the joint width follows design tolerances, mineral wool safing is oriented correctly and uniformly compressed, and smoke seals are continuous with proper adhesion to both substrates. It also verifies movement accommodation for thermal and drift, so firestopping will not crack or disengage in service. Inspectors should use SI tools—steel rules, calipers, depth gauges—to capture objective data. Mirrors and borescopes help confirm continuity behind mullions, anchors, and brackets that can mask discontinuities. By recording photos with measurement scales, batch numbers, and ambient conditions, teams produce a defensible record that supports approvals per approved project specifications and authority requirements, preventing costly rework and program delays once the façade line advances.
- Measure joint width at 1 m intervals and record min/max.
- Confirm mineral wool compression is uniform and documented.
- Verify smoke seal continuity, depth, and adhesion.
- Check continuity behind mullions using mirror or borescope.
- Capture photos with scales and location tags.
Field methods that reveal hidden gaps and failures
Use systematic, repeatable checks to surface issues early. Cross-section a small sample to measure sealant depth and bead shape; compare results to the approved submittal and record the values with photos. Perform gentle pick tests to confirm cohesive sealant behavior rather than adhesive peel. Where practical, run a smoke pencil with localized airflow to see if any leakage paths exist through the joint or penetrations. Verify safing clips and fasteners: measure their spacing, then apply a torque wrench to accessible anchors to confirm installation per specification. For concealed areas, insert a borescope behind mullions and anchors to verify firestopping continuity. Each method should be executed on representative locations and the most vulnerable transitions, with results documented and linked to unique grid references for quick retrieval during audits.
- Cross-section check for bead depth and profile.
- Smoke pencil test for visible leakage paths.
- Probe sealant bond with a blunt pick at random points.
- Measure clip spacing and verify anchor torque.
- Use borescopes to confirm behind-obstruction continuity.
Documentation, approvals, and avoiding rework
Consistent documentation closes the loop between installation and acceptance. Start by verifying materials against the approved submittal, including product names, lot numbers, and expiry dates. Mark the tested perimeter on plans and assign unique IDs to each segment so measurements, images, and observations are traceable. Record ambient conditions to confirm application within manufacturer limits. Identify nonconformities such as voids, discontinuous sealant behind mullions, improper compression, or obstructed movement gaps; then document corrective actions and retests before approval. Obtain digital signatures from the installer, general contractor, and the inspector, and archive the package in a central repository. This disciplined approach generates a verifiable record aligned with approved project specifications and authority requirements, strengthening turnover documentation and preventing concealed defects that lead to rework and delays.
- Trace each result to a unique joint ID.
- Log lot numbers and expiry for all materials.
- Record temperature and relative humidity.
- Document corrective actions and retests.
- Secure digital sign-offs before concealment.
