Inspect curtain wall perimeter firestopping before concealment for site inspectors and superintendents, detailing pre-cover verification of rated joints, safing compression, smoke seals, and documentation required to release the concealment hold-point.
- Confirm tested system, rating, materials, and qualified installer approvals.
- Measure joint geometry and safing compression with recorded photo evidence.
- Verify sealant depth, adhesion, and continuous smoke seal interfaces.
- Interactive, commentable checklist; export reports with QR code authentication.
The checklist
Documentation and Approvals
- Confirm basis of acceptance, competent parties, and hold-point controls.
- Verify tested system and rating match location; record system ID, rating (h), and drawing/detail reference; attach plan markup and photos of tags.
- Confirm approved submittals and shop drawings on site; check latest revision; capture superintendent/installer acknowledgment and date-stamped photo of documents.
- Verify installer qualifications/training for specified products; record company, card/certificate numbers, and expiry; attach photos of credentials.
Materials and Compatibility
- Record mineral wool safing product, thickness (mm), and density (kg/m³) from label; photograph packaging and lot/batch numbers.
- Verify fire/smoke sealant and any primer are the approved brands/types; log lot numbers and expiry; attach SDS and datasheets.
- Check mechanical retainers/safing clips or compression systems per submittal; confirm corrosion protection and compatibility with aluminum/steel; photo each type installed.
- Confirm any facings, backpans, and intumescent components match approved system; record part numbers; photo installed condition before sealing.
Substrates and Joint Conditions
- Measure joint width at 1 m intervals and at corners using a steel rule/feeler gauges; acceptance: within design ±5 mm; log min/avg/max.
- Inspect slab edge and mullion areas for protrusions/voids; grind/patch as needed; acceptance: no gaps behind safing > 5 mm; photo before/after.
- Check anchor, bracket, and embed locations; maintain clear annular space for safing/sealant; acceptance: required clearance achieved; photo each condition.
- Verify spandrel insulation height and continuity at the slab edge; acceptance: no exposed glazing pocket at joint line; photo with scale.
- Record substrate temperature and moisture using surface thermometer/moisture meter; acceptance: within product limits; log readings (°C, %).
Installation Quality
- Confirm safing orientation/fiber direction correct and pieces tightly butted; acceptance: no open seams > 2 mm; photo along joint.
- Measure safing compression by pre/post thickness check; acceptance: compression per approved system; record calculated % at 3 locations per 10 m.
- Verify retainer/clip spacing and embedment with a tape measure; acceptance: uniform and within specified maximum spacing; photo and spacing log (mm).
- Check sealant/smoke seal at exterior or interior face per system; acceptance: continuous bead with depth ≈ width/2 ± 3 mm unless detailed otherwise; record depths.
- Probe sealant adhesion to both substrates (gentle pick test); acceptance: firm bond, no debond > 10 mm; photo any repairs.
- Inspect corners, mullion intersections, and changes in plane; acceptance: neatly lapped/formed, no voids > 2 mm; close-up photos.
Continuity, Penetrations, and Interfaces
- Verify tie-in to air/water barrier or backpan; acceptance: sealed laps and smoke seal continuity; photo overall and detail shots.
- Seal around brackets, anchors, and penetrations; acceptance: no unsealed annular space > 2 mm; photo each penetration.
- Confirm mullion heat/fire barriers at slab edge where required; acceptance: correct parts installed and continuous; record part numbers and photos.
- Verify terminations at rated walls/columns; acceptance: continuous fire/smoke seal to adjacent rated construction per approved details; photo with referenced detail.
Evidence and Sign-off
- Capture photo documentation every ≤1.5 m with a scale and location ID; acceptance: clear, in-focus images stored in project folder.
- Mark up as-built sketch showing joint widths, system IDs, and repair areas; attach to checklist.
- Record ambient conditions (°C, %RH, wind) during sealant application; acceptance: within manufacturer limits; log instrument and readings.
- Obtain installer self-check and inspector approval before concealment; acceptance: digital signatures and QR-authenticated report filed.
Preview the printable checklist

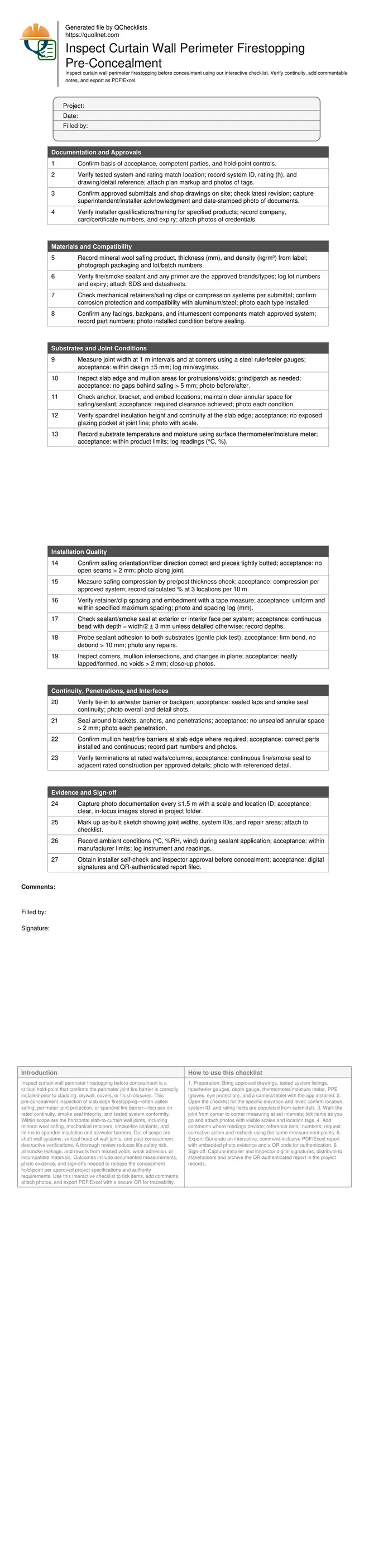

Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Validate the installed perimeter joint fire barrier against approved tested systems, ensuring the required fire-resistance rating, specified materials, and installer qualifications are documented before concealment. Capture drawings, lot numbers, and approvals to align field conditions with submittals and authority requirements.
- Measure and record joint widths, safing compression, sealant depths, adhesion, and continuity at corners, mullions, spandrel insulation, and air/water barrier interfaces. Photo evidence with scales and location references supports acceptance and reduces disputes, punch lists, and costly rework.
- Interactive online checklist with tick, comment, and export features secured by QR code. Field teams capture notes and photos, supervisors review in real time, and stakeholders receive authenticated PDF/Excel reports to release the hold-point confidently and maintain traceable quality records.
How to use this interactive pre-concealment inspection checklist
- Preparation: Bring approved drawings, tested system listings, tape/feeler gauges, depth gauge, thermometer/moisture meter, PPE (gloves, eye protection), and a camera/tablet with the app installed.
- Open the checklist for the specific elevation and level; confirm location, system ID, and rating fields are populated from submittals.
- Walk the joint from corner to corner measuring at set intervals; tick items as you go and attach photos with visible scales and location tags.
- Add comments where readings deviate; reference detail numbers; request corrective action and recheck using the same measurement points.
- Export: Generate an interactive, comment-inclusive PDF/Excel report with embedded photo evidence and a QR code for authentication.
- Sign-off: Capture installer and inspector digital signatures; distribute to stakeholders and archive the QR-authenticated report in the project records.
Why pre-concealment inspection matters
Before covers or finishes hide the slab-to-curtain wall joint, confirming the perimeter joint fire barrier is essential. Failures often stem from mismatched tested systems, inadequate safing compression, discontinuous smoke seals, or unsealed mullion intersections. These issues compromise compartmentation, allow smoke migration, and can increase condensation or air leakage. A disciplined inspection validates the correct fire-resistance rating, material compatibility, and workmanship while jobsite conditions still permit access. Using measurement tools—a steel tape, feeler gauges, depth gauge, and thermometer—teams capture objective data instead of visual impressions. Photos with scales provide indisputable evidence. Documenting results unlocks the hold-point, prevents rework after finishes, and supports compliance per approved project specifications and authority requirements. This checklist focuses solely on horizontal slab-edge curtain wall joints and their interfaces to spandrel insulation and air/water barriers.
- Catch gaps and weak adhesion before finishes conceal defects.
- Match tested system, rating, and products to submittals.
- Measure joint widths, depths, and compression—don’t guess.
- Seal penetrations and mullion interfaces for smoke control.
Methods, tolerances, and acceptance cues
Accuracy depends on consistent methods and clear acceptance cues. Measure joint width at regular intervals, log min/avg/max, and compare to design tolerances. Determine safing compression from pre/post thickness measurements and document the calculated percentage required by the approved system. For sealant, confirm bead continuity, depth, and adhesion to both faces. Inspect corners and changes in plane for lapped, void-free transitions. Substrate conditions matter: temperature and moisture must be within product limits to avoid cure or adhesion issues. Interfaces to spandrel insulation and air/water barriers should be sealed and continuous. Photographic evidence with rulers at fixed spacing creates repeatable, auditable records that withstand third-party review.
- Use depth gauges and feeler gauges for reliable readings.
- Record compression percentage at multiple locations.
- Sealant depth ≈ width/2 unless the system states otherwise.
- Photo every 1.5 m with a visible scale and location.
Common field issues and practical fixes
Typical nonconformities include under-compressed safing, overlarge joint segments, debris-contaminated substrates, and skipped sealant behind mullions or brackets. Where the slab edge is uneven, pre-fill voids to limit sealant consumption and prevent hidden cavities. If joints exceed the design width, consult the approved detail to adjust safing thickness or add retainers per the tested system. For adhesion issues, clean substrates, apply specified primer, and retest. At terminations to rated partitions or columns, verify continuous tie-in using the detailed transition. All fixes should be re-measured and photographed before releasing the hold-point. Keep changes aligned with approved project specifications and authority requirements, and document any variance approvals.
- Fix substrate defects before installing seals or safing.
- Prime per manufacturer instructions when adhesion is weak.
- Rework must be re-measured, photographed, and logged.
- Maintain tested system continuity at all transitions.
