Review façade spandrel design for insulation, fire, and visual consistency equips façade engineers, architects, and contractors to verify thermal, fire, and aesthetic criteria early, preventing redesign, delays, and costly remanufacture before procurement.
- Consolidates drawings, samples, and test data into clear decision checkpoints.
- Reduces condensation, flame spread, and misalignment risks across elevations.
- Aligns submittals to project specifications and authority requirements efficiently.
- Interactive, commentable checklist with export and QR code verification.
The checklist
Design Inputs & Submittals
- Confirm spandrel locations and sizes match elevations and schedules using GA–BIM overlays; acceptance: 100% alignment; evidence: annotated overlay with reviewer initials and date.
- Verify spandrel glass/backpan/insulation build-ups match approved project specifications; method: submittal review; acceptance: no deviations; evidence: approved submittal numbers and page references.
- Check insulation data sheets for thermal conductivity (λ) and service temperature; acceptance: meets performance targets; evidence: controlled datasheets with version numbers in register.
- Validate opacity solution (ceramic frit/opacifier/film) compatibility with sealants; method: manufacturer letters; acceptance: written confirmation; evidence: compatibility letters filed against product IDs.
- Ensure tested firestop and perimeter seal systems are nominated per interface; method: system matrix; acceptance: each detail mapped; evidence: signed matrix referencing drawings.
Thermal & Condensation Control
- Review spandrel U‑value calculations (W/m²·K); method: calculation report; acceptance: ≤ project target; evidence: signed report with inputs, assumptions, and outputs.
- Confirm insulation thickness and density meet design; method: section take‑off; acceptance: thickness ≥ specified mm; evidence: marked‑up details and take‑off sheet.
- Verify thermal breaks at anchors/transoms are continuous; method: detail trace; acceptance: no exposed metal bridging; evidence: highlighted prints and approved mockup photos.
- Check interior surface temperature factor (fRsi) at cold spots; method: hygrothermal model; acceptance: ≥ project minimum (e.g., 0.75); evidence: model screenshots and sign‑off.
- Confirm vapor control layer on warm side with sealed laps; method: detail review; acceptance: continuity at joints and penetrations; evidence: redlines and sealant/tape specifications.
Fire & Compartmentation
- Validate slab‑edge firestop continuity through the spandrel zone; method: detail walk‑through; acceptance: tested assembly per approved project specifications and authority requirements; evidence: system certificate and detail references.
- Check mineral wool safing thickness and compression; method: quantity take‑off; acceptance: 25±5% compression, joints ≤ 3 mm; evidence: take‑off sheet and mockup photos.
- Ensure façade‑to‑slab smoke seals accommodate movement; method: drift calculation; acceptance: seals sized for ± expected interstorey drift; evidence: calculation and detail callouts.
- Confirm spandrel insulation non‑combustibility where required; method: classification review; acceptance: material classification per approved project specifications and authority requirements; evidence: accredited test reports.
- Verify fire‑rated spandrel panels/glazing at required locations; method: plan/elevation overlay; acceptance: all locations tagged; evidence: marked drawings and approval email.
Visual & Alignment Criteria
- Evaluate colour/reflectance match in full‑size mockup under daylight; acceptance: ∆E ≤ project limit, reflectance within ±3%; evidence: photos and signed mockup report.
- Confirm sightlines and transom heights align across grids; method: elevation stringline check; acceptance: offsets ≤ 2 mm on drawings; evidence: annotated elevations.
- Assess risk of insulation/backpan read‑through; method: lightbox and raking‑light tests; acceptance: no discernible telegraphing; evidence: test photos and reviewer note.
- Verify masking coverage hides attachments and insulation edges; method: section review; acceptance: coverage margin ≥ 10 mm beyond obstructions; evidence: detailed markups.
- Ensure cavity venting or sealing strategy is consistent; method: system note review; acceptance: approach uniform across elevations; evidence: design note and sign‑off.
Documentation & Approvals
- Compile materials schedule: glass make‑ups, insulation type/thickness, firestop systems; acceptance: complete and coordinated; evidence: issued schedule with revision number.
- Record compatibility approvals for adjacent sealants, gaskets, and tapes; method: vendor confirmations; acceptance: project‑specific and current; evidence: letters and product IDs.
- Log design risks and mitigation actions with owners; method: risk register; acceptance: actions assigned, due dates set; evidence: exported register with status.
- Obtain final approvals from façade consultant, fire engineer, and client; acceptance: digital signatures; evidence: signed approval page and QR‑linked archive.

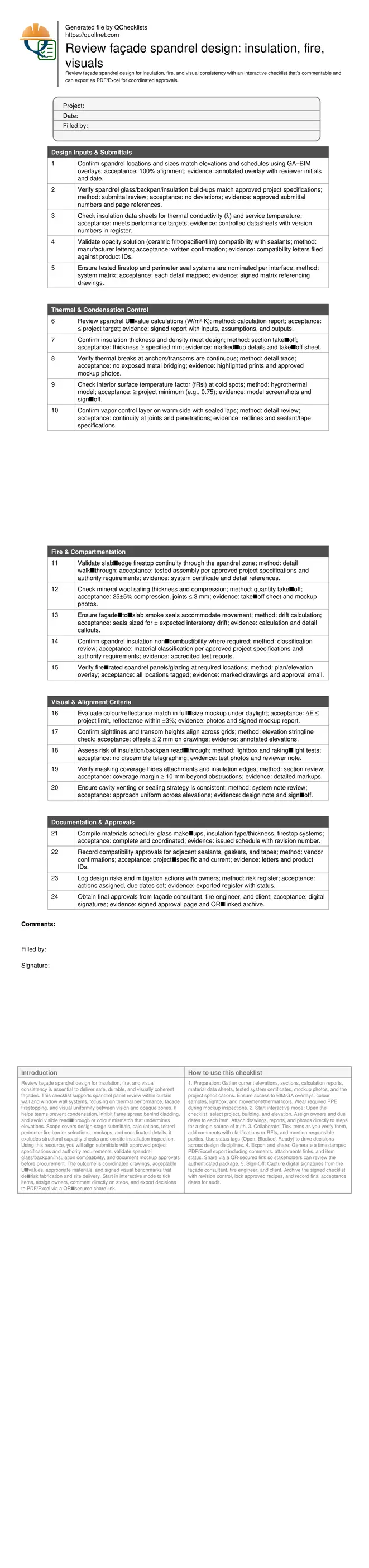

Preview the printable checklist
Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Ensure spandrel zones meet thermal targets by validating insulation type, thickness, conductivity, and thermal bridges at anchors and transoms. Capture signed calculation reports, annotated details, and mockup evidence to prove condensation control and interior surface temperature compliance at known cold spots.
- Mitigate fire and smoke risks at perimeter slab edges by mapping tested firestop and safing systems to each interface. Document system certificates, joint compression criteria, and movement capabilities, ensuring selections meet approved project specifications and authority requirements across all elevations.
- Deliver visual consistency between spandrel and vision areas using daylight mockups, colour/reflectance measurements, masking coverage checks, and raking‑light inspections. Confirm no read‑through of insulation or backpans, aligned sightlines, and acceptable reflectance tolerances before authorizing procurement and fabrication.
- Interactive online checklist with tick, comment, and export features secured by QR code.
How to use this interactive spandrel design checklist
- Preparation: Gather current elevations, sections, calculation reports, material data sheets, tested system certificates, mockup photos, and the project specifications. Ensure access to BIM/GA overlays, colour samples, lightbox, and movement/thermal tools. Wear required PPE during mockup inspections.
- Start interactive mode: Open the checklist, select project, building, and elevation. Assign owners and due dates to each item. Attach drawings, reports, and photos directly to steps for a single source of truth.
- Collaborate: Tick items as you verify them, add comments with clarifications or RFIs, and mention responsible parties. Use status tags (Open, Blocked, Ready) to drive decisions across design disciplines.
- Export and share: Generate a timestamped PDF/Excel export including comments, attachments links, and item status. Share via a QR-secured link so stakeholders can review the authenticated package.
- Sign-Off: Capture digital signatures from the façade consultant, fire engineer, and client. Archive the signed checklist with revision control, lock approved recipes, and record final acceptance dates for audit.
Thermal performance and condensation control
A robust spandrel design manages heat flow and moisture while avoiding interior surface condensation. Begin with verified U‑value calculations using documented material properties and realistic boundary conditions. Confirm that insulation thickness and density meet targets and that thermal breaks at anchors and transoms are continuous. Place the vapor control layer on the warm side and specify sealed laps and penetrations to maintain continuity. Evaluate interior surface temperature factors (fRsi) at known cold spots such as slab edges and anchorage points; values must meet the project minimum to prevent mould risk. Validate cavity venting or sealing strategy consistently across elevations; mismatched strategies can trap moisture or admit dust. Use a full‑size mockup to compare thermal break layouts and observe condensation under controlled temperature/humidity differences. Archive the signed calculation report, annotated details, mockup photos, and a concise narrative explaining assumptions and acceptance criteria for traceability.
- Verify U‑value inputs, boundary conditions, and summaries.
- Trace thermal breaks through all metal interfaces.
- Confirm vapor control layer continuity at penetrations.
- Test mockup for condensation under differential conditions.
- Document fRsi results and acceptance thresholds.
Fire and compartmentation at perimeter zones
Spandrel areas intersect the building’s perimeter fire barrier and must inhibit vertical fire and smoke spread. Map each slab‑edge condition to a tested firestop or safing system and confirm compatibility with curtain wall frames, backpans, and insulation. Review joint geometry, mineral wool thickness, and compression, and confirm smoke seals accommodate expected interstorey drift. Where requirements call for it, specify non‑combustible insulation and fire‑rated spandrel glazing or panels at critical adjacencies. Ensure drawings show continuous barriers around anchors and bracket penetrations without voids. Document system certificates, movement calculations, and a coordinated interface matrix linking details to assemblies. All selections must follow approved project specifications and authority requirements. Validate constructability during a perimeter mockup, capturing photos of safing placement and seal continuity so site teams have clear acceptance cues.
- Link each detail to a tested system.
- Confirm safing compression and joint gap limits.
- Check smoke seals for expected drift movement.
- Specify non‑combustible insulation where required.
- Capture mockup photos and matrix sign‑off.
Visual consistency and mockup acceptance
Visual uniformity between vision and spandrel zones is critical to façade composition. Assess colour and reflectance using manufacturer samples first, then confirm through a full‑size daylight mockup positioned against the actual sky backdrop. Aim for a measurable colour difference within the project’s ∆E limit and reflectance within an agreed band. Verify masking coverage to fully conceal insulation, edges, and attachments, and test for read‑through under raking light and lightbox conditions. Align transom heights and sightlines across grids to prevent stepping or broken datum lines. Document the approved recipe (glass make‑up, frit/film, backpan finish, insulation) and archive photos showing performance at different sun angles. Once accepted, lock the specification to avoid visual drift during value‑engineering substitutions.
- Measure colour/reflectance against approved benchmarks.
- Test raking light for read‑through artifacts.
- Align sightlines and transom datums.
- Record the final visual recipe and photos.
