Review façade firestopping strategy at slab edges and compartment lines for construction managers, façade leads, and inspectors to verify tested systems, movement compliance, and continuous compartmentation at horizontal perimeter interfaces.
- Clarifies tested systems, substrates, joint ranges, and movement criteria.
- Reduces perimeter fire and smoke spread through continuous compartmentation.
- Stepwise field checks with measurable tolerances and photo evidence prompts.
- Interactive, commentable checklist with export and QR code verification.
The checklist
Documentation & Design
- Confirm scope limits to slab-edge perimeter joints and compartment line interfaces; method: review GA plans and fire strategy overlays; acceptance: only horizontal interfaces included; evidence: marked-up drawings uploaded.
- Verify fire-resistance continuity around each floor plate; method: overlay fire compartments on façade elevations/BIM; acceptance: uninterrupted line at every slab edge; evidence: overlay screenshots with date stamp.
- Check tested system equivalence for joint width, substrates, and orientation; method: compare details to manufacturer test/assessment; acceptance: substrates and joint within tested range ±5 mm; evidence: annotated datasheets.
- Confirm structural drift, slab deflection, and thermal movement criteria; method: review engineer calculations; acceptance: system accommodates ± expected movement without loss of seal; evidence: calculation extract filed.
- Verify approvals route and responsibilities; method: check submittals, ITP, and permits; acceptance: approvals complete per approved project specifications and authority requirements; evidence: approval letters and ITP sign-off.
Materials & Certificates
- Validate mineral wool safing density and facing; method: weigh sample and inspect labels; acceptance: density within ±10 kg/m³ of specification; evidence: label photos and weigh log signed.
- Verify intumescent mastic/coat type and rating; method: check packaging and TDS; acceptance: fire-resistance performance per project specification; evidence: TDS, DoP/CoC, and batch photos.
- Confirm support angles, retainers, and fasteners specification; method: review mill certificates; acceptance: grade and corrosion resistance per specification; evidence: certificates and delivery dockets.
- Record batch/lot numbers for all firestopping components before install; method: materials log; acceptance: 100% lots captured and traceable; evidence: signed log with photos.
- Obtain compatibility confirmations with curtain wall frames, membranes, and coatings; method: OEM/manufacturer letters; acceptance: written confirmation for contact materials; evidence: correspondence filed.
Substrates & Geometry
- Measure slab-edge to façade joint width every 2 m; method: laser/feeler gauge; acceptance: within tested system range ±5 mm; evidence: geo-tagged photos with ruler and log.
- Verify concrete edge integrity and cleanliness; method: hammer tap, vacuum, moisture meter; acceptance: sound, dust-free, moisture ≤ 75% RH; evidence: readings and pre-install photos.
- Check anchor pull-out capacity on first-off; method: pull-out tester; acceptance: meets/exceeds design load; evidence: calibrated test report and sign-off.
- Confirm spandrel zone height and backpan/fireboard configuration; method: tape measure and inspection; acceptance: ≥ design dimension, continuous at mullions; evidence: photos with scale.
- Identify obstructions within firestop path (brackets, services); method: coordination walkdown; acceptance: maintain ≥ 25 mm clearance around barriers; evidence: clash list and action log.
Installation & Detailing
- Install mineral wool with fibers perpendicular to joint; method: serrated knife and gauge; acceptance: uniform pre-compression 10–25%; evidence: close-up photos and supervisor sign-off.
- Fit support angles/retainers to drawings; method: torque wrench/riveter; acceptance: spacing per detail, torque within manufacturer range; evidence: torque log and fixings photos.
- Apply intumescent seal continuous both sides; method: cartridge gun and wet-film gauge; acceptance: bead 10–12 mm, no voids; evidence: gauge card photo and bead continuity photos.
- Detail mullion/transom intersections and brackets; method: preformed boots/tapes; acceptance: airtight and fire-resistive continuity maintained; evidence: macro photos at each feature.
- Continue cavity barriers across internal compartment lines to façade; method: measure and fix; acceptance: overlaps ≥ 50 mm onto partitions; evidence: photos and marked elevation.
- Demonstrate movement accommodation; method: mock movement test on first-off; acceptance: ± expected movement without cracking/disbonding; evidence: video or photo sequence with measurements.
- Protect installed firestopping prior to enclosure; method: temporary covers and signage; acceptance: no damage or moisture ingress; evidence: daily inspection photos.
Inspection & Records
- Complete progressive inspections per floor; method: this checklist in interactive mode; acceptance: 100% locations checked, NCRs closed; evidence: signed digital records.
- Affix durable identification tags at completed locations; method: printed tags/QR; acceptance: tag shows system ID, date, installer; evidence: tag close-up photos.
- Capture as-built prior to cladding closure; method: geo-tagged photos; acceptance: minimum three angles per location; evidence: uploaded photo set with location reference.
- Perform preliminary air/smoke integrity check; method: flashlight, smoke pencil, temporary pressurization if feasible; acceptance: no visible leaks; evidence: test log and photos.
- Schedule third-party or witness inspection; method: coordinated visit; acceptance: report issued and all actions closed; evidence: final sign-off letter.
Preview the printable checklist

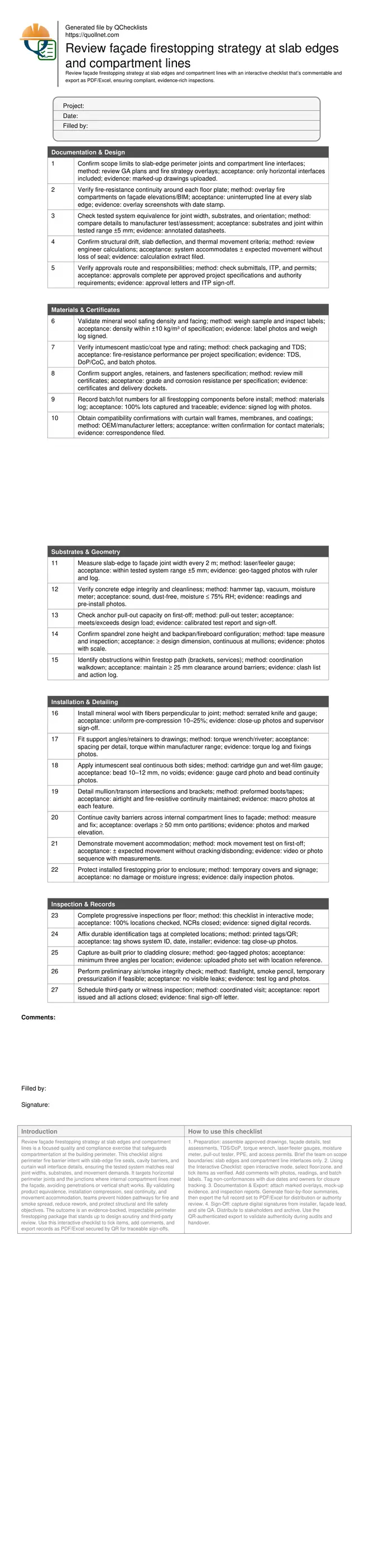

Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Ensure the perimeter fire barrier matches tested assemblies and movement requirements, using measurable checks for joint width, compression, and continuity. This reduces risk of fire and smoke bypass at slab edges and at façade intersections with internal compartmentation lines.
- Standardize submittal, material, and geometry verification so onsite teams catch mismatches early. Capture batch numbers, density, sealant properties, and substrate conditions, with photos and readings. Progressive reviews across floors create a consistent compliance trail for authorities and stakeholders.
- Interactive online checklist with tick, comment, and export features secured by QR code.
- Translate design intent into practical installation controls at the spandrel zone. Confirm pre-compression of mineral wool, support hardware spacing, sealant coverage, and airtight detailing at mullions. Close findings before enclosure to avoid destructive rework and maintain façade program certainty.
How to Use This Interactive Checklist
- Preparation: assemble approved drawings, façade details, test assessments, TDS/DoP, torque wrench, laser/feeler gauges, moisture meter, pull-out tester, PPE, and access permits. Brief the team on scope boundaries: slab edges and compartment line interfaces only.
- Using the Interactive Checklist: open interactive mode, select floor/zone, and tick items as verified. Add comments with photos, readings, and batch labels. Tag non-conformances with due dates and owners for closure tracking.
- Documentation & Export: attach marked overlays, mock-up evidence, and inspection reports. Generate floor-by-floor summaries, then export the full record set to PDF/Excel for distribution or authority review.
- Sign-Off: capture digital signatures from installer, façade lead, and site QA. Distribute to stakeholders and archive. Use the QR-authenticated export to validate authenticity during audits and handover.
Why slab-edge and compartment-line perimeter firestopping matters
The slab edge is a critical horizontal interface where fire and smoke can bypass internal compartmentation if the perimeter fire barrier is incomplete or mismatched. At compartment lines meeting the façade, cavity barriers must link partitions to the curtain wall or rainscreen to maintain compartment integrity. A robust review focuses on tested system equivalence, continuous detailing across mullions and brackets, and movement accommodation for drift, deflection, and thermal expansion. Early discovery of gaps—such as joint widths exceeding the tested range or missed overlaps at partitions—prevents expensive rework after cladding closure. Acceptance cues include uniform mineral wool pre-compression, continuous intumescent seals both sides, support hardware spacing to drawings, and airtight transitions at façade framing. The strategy aligns design, materials, and workmanship into traceable, photo-rich evidence for authorities and client assurance.
- Maintain continuous fire and smoke barriers at every floor plate.
- Match tested system to substrates, joint range, and orientation.
- Accommodate structural and thermal movements without losing seal.
- Close detailing at mullions, transoms, and bracket interfaces.
Controlling materials, geometry, and installation quality
Material identity and geometry control are decisive at the perimeter. Verify mineral wool density and facing, sealant type, and fixing grades with certificates and batch logs. Measure joint widths along the slab edge and confirm spandrel zone depths before first-off installation. Clean, sound substrates support adhesion and fire performance; remove dust and verify moisture with meter readings. During installation, maintain 10–25% wool pre-compression, apply continuous intumescent seals, and protect completed works from damage or wetting. Detail intersections and bracket penetrations with compatible boots or tapes, and prove movement capability on a mock-up. These checks, combined with progressive inspections per floor and durable tags, produce a repeatable, auditable process that sustains quality through schedule pressure and changing site conditions.
- Capture batch numbers and certificates for full traceability.
- Measure joint width at regular spacing; record with photos.
- Maintain mineral wool pre-compression within 10–25%.
- Use compatible detailing at frames, backpans, and brackets.
Evidence-driven verification and turnover records
An evidence-led workflow keeps teams aligned and speeds approvals. Start with overlaying fire compartments on façade elevations to visualize continuity and identify gaps. Log measurements with geo-tagged photos and retain TDS, DoP/CoC, and mill certificates against each location. Durable tags or QR labels link physical installations to digital records, making spot checks efficient. Before enclosure, capture three-angle photo sets, then perform smoke-pencil or flashlight checks to catch visible leakage paths. Schedule third-party or witness inspections to confirm completeness and close non-conformances. At turnover, export consolidated records, including marked drawings, measurement logs, and sign-offs, giving authorities and clients confidence that perimeter compartmentation is continuous and tested system intent is met.
- Link tags or QR labels to location records.
- Collect three-angle photos before enclosure.
- Export consolidated sign-offs for turnover.
