Inspect smoke barrier continuity at façade interfaces using this professional checklist for site inspectors and façade contractors, ensuring continuous perimeter seals around curtain walls and slab edges.
- Verify continuous smoke seals at curtain wall and slab interfaces
- Measure gaps, overlaps, and compression with clear acceptance tolerances
- Use tracer fog and pressure to reveal leakage paths reliably
- Interactive, commentable checklist; export reports with QR code verification
The checklist
Documentation and Approvals
- Confirm current approved façade and smoke barrier drawings are on site; compare revision numbers with the document register; acceptance: latest revisions stamped Approved; evidence: photos of title blocks and signed register excerpt.
- Validate requirements per approved project specifications and authority requirements; review product data sheets for smoke resistance and temperature range; acceptance: specified performance clearly stated; evidence: linked submittal IDs in checklist.
- Hold a coordination briefing with façade installer and firestop contractor; method: attendance sheet and meeting minutes; acceptance: agreed interface responsibilities and inspection hold points; evidence: signed minutes uploaded.
- Define inspection lots and location IDs on elevation grids; method: mark drawings and onsite tags; acceptance: unique IDs visible from work position; evidence: photo of tag and annotated grid.
Materials and Traceability
- Check product labels on smoke barrier blankets/mineral wool/tapes/sealants; method: verify manufacturer, product, batch/lot; acceptance: matches approved submittals; evidence: close-up photos of labels.
- Verify storage is dry, elevated, and protected; method: visual and moisture check; acceptance: packaging intact, no wetting/damage; evidence: storage photos and any corrective action log.
- Confirm accessory compatibility (foil tapes, primers, mechanical pins/washers); method: cross-check manufacturer guidance; acceptance: written confirmation on file; evidence: compatibility letter/datasheet reference attached.
- Calibrate/verify measuring tools (tape, feeler gauge, manometer, fogger); method: check certificates or field zeroing; acceptance: in-date calibration or documented field check; evidence: certificate photos.
Perimeter Joint (Curtain Wall to Slab)
- Measure slab edge–to–façade gap along run at 1 m intervals; tool: steel rule/feeler gauges; acceptance: within design width ±5 mm; evidence: logged readings with location tags.
- Verify smoke barrier thickness/depth meets design; tool: depth probe/marked rod; acceptance: ≥ design thickness with −0/+10 mm tolerance; evidence: photo with scale marking.
- Check uniform compression of mineral wool against slab and façade; tool: feeler gauge; acceptance: 10–25% compression, no gaps >3 mm; evidence: close-up photos before closure.
- Inspect mechanical fixings or hangers securing the barrier; tool: tape measure/torque driver as applicable; acceptance: spacing ≤200 mm on centres, fixings tight; evidence: photos and spacing log.
- Confirm continuity across mullions and transitions; method: mirror/borescope as needed; acceptance: overlaps ≥50 mm, seams sealed airtight; evidence: photos prior to closure panels.
- Verify interior closure sealant to adjacent partition track; tool: bead gauge; acceptance: width ≥10 mm, depth ≥8 mm, continuous with no voids; evidence: bead close-ups.
- Confirm only noncombustible packers/shims in the joint; method: visual and magnet/ID check; acceptance: no combustible bridges; evidence: photos and removal record if corrected.
Spandrel Zone Continuity and Closures
- Align spandrel insulation with smoke barrier plane; tool: straightedge; acceptance: no voids or steps >5 mm; evidence: progress photos with ruler.
- Check foil facing orientation and lapped joints; method: visual and hand rub; acceptance: laps ≥50 mm, fully taped airtight; evidence: seam photos.
- Seal around façade brackets/anchors; tool: smoke-rated sealant or fitted gaskets; acceptance: annular gaps filled, no openings >3 mm; evidence: macro photos showing closure.
- Inspect back-pan/shadow box integrity; method: visual from interior; acceptance: no punctures, joints sealed; evidence: wide and detail shots.
- Verify continuity at slab edges with steps, columns, and corners; tool: templated pieces; acceptance: fitted closures with overlaps ≥50 mm and airtight finish; evidence: photos pre- and post-taping.
Airtightness Testing and Records
- Conduct local fog test under 25–50 Pa differential; tool: tracer fogger and manometer/fan; acceptance: no visible leakage paths; evidence: video/photos with pressure reading.
- Check adhesion of foil tape and sealant; method: hand-peel at 10 min and 24 h; acceptance: cohesive failure/substrate tear; evidence: peel photos and notes.
- Record ambient conditions during install/testing; tool: thermometer/hygrometer; acceptance: within product limits; evidence: log of temperature (°C) and relative humidity (%).
- Tag inspected locations with durable labels (grid, level, date, initials); method: permanent marker/printed label; acceptance: label legible and photographed; evidence: label photo uploaded.
- Compile before-close-up and after-close-up photos; method: minimum six images per location with scale; acceptance: images clear and geotagged/time-stamped; evidence: photo set attached.
- Obtain installer and inspector sign-offs and competency proofs; method: digital signatures and training records; acceptance: all parties signed; evidence: signed forms stored with QR-authenticated report.

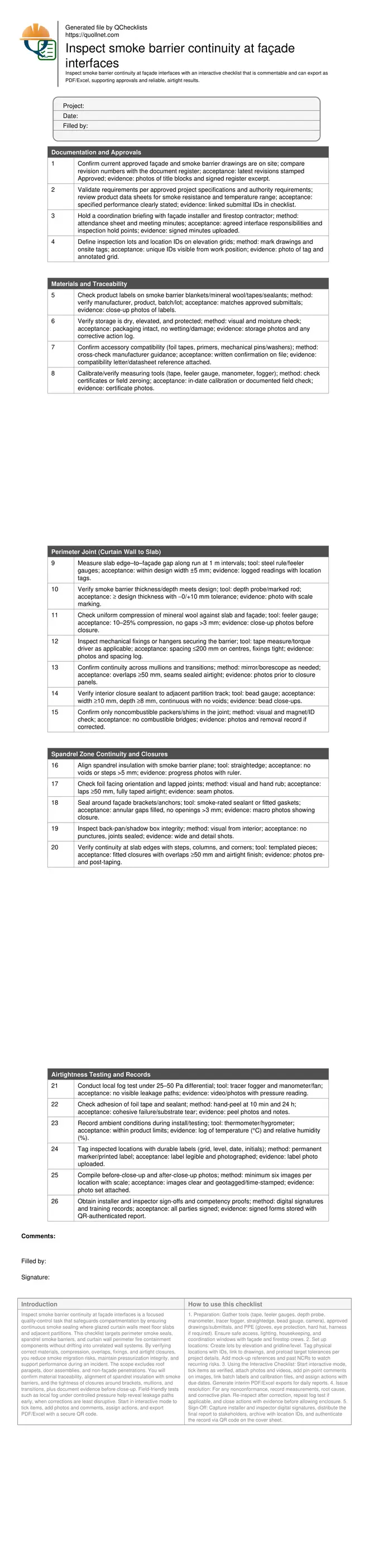

Preview the printable checklist
Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Ensure perimeter smoke barriers at curtain wall slab edges remain continuous, correctly compressed, and sealed. The checklist drives consistent checks on material traceability, foil laps, fasteners, sealant geometry, and transitions around mullions and corners, preventing convective bypass and hidden gaps before façade close-up.
- Apply practical, repeatable methods: depth probes, feeler gauges for gap tolerance, tape measures for fixing centres, bead gauges for sealant, and tracer fog with 25–50 Pa differential. Each step defines clear acceptance limits, photo evidence, and sign-off requirements to streamline approvals and handover.
- Interactive online checklist with tick, comment, and export features secured by QR code. Use location tags, attach batch labels and calibration logs, assign corrective actions with deadlines, and generate audit-ready PDF/Excel outputs to satisfy project specifications and authority requirements while maintaining transparent records.
- Improve sequencing and reduce rework by verifying barriers at mock-ups, early typical bays, and representative transitions. Capture before-and-after photos with a scale, record ambient conditions, and confirm installer competency, ensuring that installed smoke barriers match submittals and remain intact through subsequent façade works.
How to use this façade smoke barrier continuity checklist
- Preparation: Gather tools (tape, feeler gauges, depth probe, manometer, tracer fogger, straightedge, bead gauge, camera), approved drawings/submittals, and PPE (gloves, eye protection, hard hat, harness if required). Ensure safe access, lighting, housekeeping, and coordination windows with façade and firestop crews.
- Set up locations: Create lots by elevation and gridline/level. Tag physical locations with IDs, link to drawings, and preload target tolerances per project details. Add mock-up references and past NCRs to watch recurring risks.
- Using the Interactive Checklist: Start interactive mode, tick items as verified, attach photos and videos, add pin-point comments on images, link batch labels and calibration files, and assign actions with due dates. Generate interim PDF/Excel exports for daily reports.
- Issue resolution: For any nonconformance, record measurements, root cause, and corrective plan. Re-inspect after correction, repeat fog test if applicable, and close actions with evidence before allowing enclosure.
- Sign-Off: Capture installer and inspector digital signatures, distribute the final report to stakeholders, archive with location IDs, and authenticate the record via QR code on the cover sheet.
Why continuity at façade interfaces matters
Smoke moves faster than flame and exploits small discontinuities. At curtain wall slab edges, even a 3–5 mm unsealed path can enable smoke transfer between compartments, compromise stair pressurization, and reduce tenable conditions. Typical failure points include poorly compressed mineral wool, short or untaped foil laps, gaps around façade brackets, interrupted barriers at mullions, and premature close-up before inspection. Focusing on the spandrel zone and the curtain wall–to–slab interface, this checklist drives visual verification before panels conceal the work. You will confirm design thickness, compression, mechanical retention, and airtight finishing with compatible tapes and sealants. Early snapshots at mock-ups and first-installed bays set standards for the rest of the elevation. Where access is tight, mirrors or borescopes help validate laps behind mullions. Correcting small issues early prevents rework that otherwise demands panel removal and schedule hits.
- Small gaps can defeat compartmentation under pressure.
- Verify compression, laps, and fixings before close-up.
- Seal around brackets, mullions, corners, steps.
- Use mirrors or borescopes for hidden laps.
Methods, tolerances, and simple field tests
Consistency beats guesswork. Measure perimeter gaps at 1 m intervals and record min/max with location tags. Probe insulation depth with a marked rod; accept −0/+10 mm versus design, and confirm 10–25% compression using feeler gauges. Set fixing centres no greater than 200 mm, then seal seams with overlaps ≥50 mm and continuous tape. For closures, aim for sealant beads at least 10 mm wide and 8 mm deep, free of voids. Use a tracer fogger and create a 25–50 Pa differential with a temporary fan or available HVAC; observe for leaks and document with photos or video including pressure readings. Record ambient temperature and humidity to align with product limits. If adhesion is questionable, perform quick hand-peel checks at 10 minutes and 24 hours to confirm bond development before enclosure.
- Measure, log, and tag readings consistently.
- Maintain overlaps ≥50 mm on all seams.
- Target 10–25% mineral wool compression.
- Test leakage with fog at 25–50 Pa.
Sequencing, access, and documentation for compliance
Sequencing is critical: inspect the smoke barrier immediately after installation and before back-pans, shadow boxes, or finishes limit access. Verify representative transitions—mullions, corners, slab steps, and columns—early, and replicate the approved approach on typical bays. Keep materials dry and traceable, and upload label photos to tie installation to batches. Use location tagging on elevation grids so future maintenance can find and re-verify the barrier. Attach calibration certificates for gauges and manometers, and link meeting minutes that define trade boundaries at interfaces. Finally, wrap up each lot with clear photo sets, ambient condition logs, and signatures. A QR-authenticated export reassures stakeholders that the record is intact and unaltered, streamlining approvals per approved project specifications and authority requirements.
- Inspect before façade close-up limits access.
- Tag locations on elevation grids for traceability.
- Capture batch labels and tool calibration.
- Export QR-authenticated, signed reports.
