Review façade airtightness line and continuity across interfaces is a field-focused process to confirm a single, unbroken air barrier path before work is concealed. This checklist targets façade air barrier continuity, envelope airtightness, and interface sealing where systems meet: window-to-wall, parapet-to-wall, slab edges, penetrations, and movement joints. By mapping the airtight line on drawings, validating material compatibility, and inspecting installed transitions, teams avoid uncontrolled infiltration, condensation risk, occupant discomfort, and commissioning delays. The scope excludes structural, thermal, or water-shedding performance except where they affect the airtight line. It emphasizes visual and tactile checks, measurable cues such as lap widths and film thickness, and traceable evidence like photos, readings, and batch numbers. Use this to establish hold points, coordinate sequencing with trades, and prepare for whole-building testing per approved project specifications and authority requirements. Start interactive mode to tick items, add comments, and instantly export PDF/Excel using the page QR for team sign-off.

Validate a continuous air barrier path across every façade interface before concealment. The checklist maps the airtight line on details, verifies material compatibility, and inspects installed laps, joints, and terminations to prevent hidden air leaks and costly rework during commissioning.
Standardized acceptance cues improve consistency: minimum lap dimensions, verified adhesion, correct sealant geometry, and documented film thickness. Field teams capture photos with scales, readings, and batch numbers, ensuring traceability and accountability across subcontractors and shifts.
Sequenced hold points target high-risk interfaces—window perimeters, penetrations, slab edges, and roof-to-façade transitions—so defects are corrected early. Coordinated inspections reduce air leakage, moisture accumulation, and draft complaints while supporting timely curtain wall and cladding progress.
Interactive online checklist with tick, comment, and export features secured by QR code. Supervisors see live status, attach approvals, capture signatures, and archive records, enabling smooth closeout and readiness for final envelope verification per approved project specifications and authority requirements.

Pre-Inspection & Documents

1. Confirm approved details show a single continuous airtight line crossing all façade interfaces; redline any gaps and obtain design resolution before work proceeds; upload marked-up drawings as evidence with reviewer signature and date.
2. Verify submittals for membranes, tapes, primers, and sealants are approved and mutually compatible; cross-check manufacturer datasheets; acceptance: all approvals current; evidence: approvals, product datasheets, and batch/lot numbers logged.
3. Define hold points before concealment at window perimeters, slab edges, parapets, and penetrations; acceptance: ITP lists locations and responsible parties; evidence: signed ITP with dates uploaded.
4. Coordinate installation sequencing so air barrier continuity precedes brackets, rails, or cladding; method: coordination meeting; acceptance: documented sequence; evidence: meeting minutes with attendees and action items.

Substrate & Surface Preparation

5. Check substrates are dry, clean, and sound; measure moisture content with a calibrated meter; acceptance: ≤ 5% mass or per product datasheet; evidence: meter readings and location-tagged photos.
6. Verify surface evenness for membranes: deviations ≤ 3 mm over 1 m using straightedge; acceptance: no sharp edges or voids; evidence: photos with straightedge and scale.
7. Confirm required primer is applied within coverage rate; method: record area primed and material used; acceptance: within ±10% of datasheet coverage; evidence: log with quantities, batch numbers, and timestamped photos.
8. Record ambient and substrate conditions; method: thermometer/hygrometer and IR thermometer; acceptance: within manufacturer limits; evidence: readings (air temperature, substrate temperature, RH) with location and time.

Membrane & Coating Continuity

9. Self-adhered membrane side/end laps ≥ 100 mm; roll firmly with hand roller; acceptance: no fishmouths, blisters, or voids; evidence: close-up photos with ruler and peel check record (≥ 0.3 N/mm field tug).
10. Liquid-applied air barrier thickness verified; method: wet film comb and dry film checks; acceptance: meets datasheet (e.g., WFT 1.2 mm, DFT ≥ specified); evidence: gauge readings log and location photos.
11. Corners and changes of plane reinforced with preformed patches or gussets; acceptance: no cuts in primary line; evidence: photos before and after reinforcement.
12. Fasteners through air barrier sealed with compatible gaskets or detailing; acceptance: no exposed punctures without seal; evidence: macro photos and fastener schedule cross-check.
13. Continuity behind façade brackets/rails ensured by shingle laps or tapes; acceptance: no reverse laps; evidence: photos taken before attachment of rails.

Interface Transitions (Windows/Doors/Curtain Wall)

14. Window-to-wall transition tape or membrane bonded to frame and sheathing; method: adhesion tug; acceptance: peel ≥ 0.3 N/mm, no edge lift; evidence: photos of tape bond and tug test.
15. Sill pan or upstand provides airtight turn-up ≥ 100 mm; maintain drainage paths; acceptance: continuous, unbroken corners; evidence: annotated photos before cladding.
16. Perimeter sealant geometry correct: backer rod 25% oversize; depth-to-width ≈ 1:2; acceptance: no three-sided adhesion; evidence: macro photos with gauge and sealant batch logged.
17. Curtain wall anchors sealed: boots/sleeves bonded to membrane around penetrations; acceptance: 360° seal, no gaps; evidence: photos prior to cover plates.
18. Perimeter fire-stopping coordination: maintain air barrier continuity outside fire stop; acceptance: approved detail followed; evidence: photos and approval notes per approved project specifications and authority requirements.

Penetrations & Services

19. MEP penetrations sealed with prefabricated collars or liquid flashing; method: visual and smoke pencil; acceptance: no visible gaps, no smoke draw; evidence: photos/video and product batch numbers.
20. Electrical boxes/outlets on façade air barrier fitted with airtight gaskets or putty pads; acceptance: complete perimeter seal; evidence: photos with cover removed.
21. Vent terminals/flues: flashing sealed 360° to air barrier; ensure components do not obstruct air seal; acceptance: continuous bond; evidence: annotated photos and installer sign-off.
22. Structural ties/ledger penetrations detailed with liquid flashing extending ≥ 50 mm beyond edges; acceptance: target thickness per datasheet; evidence: WFT readings and photos.

Movement Joints & Terminations

23. Movement joints bridged with expansion-capable tape/bellows; acceptance: accommodates design movement (±25% minimum or per detail); evidence: product data and installation photos.
24. Parapet and roof-to-façade transition: airtight turnover onto roof air barrier ≥ 150 mm; acceptance: bonded overlap continuous; evidence: photos with tape measure indicating dimension.
25. Slab edge to façade: membrane continuity behind spandrel and at edge; acceptance: laps ≥ 100 mm, no voids; evidence: progress photos before spandrel closure.
26. Terminations: use termination bars or end dams with continuous bead; acceptance: fixings at ≤ 200 mm centres; evidence: close-ups with measured spacing.

Mapping the Airtight Line and Setting Acceptance Expectations

Begin by tracing a single, continuous airtight path on every relevant elevation and detail. This “line of airtightness” must cross windows, doors, parapets, slab edges, penetrations, and joints without breaks. Practical acceptance cues include documented lap dimensions, verifiable adhesion, correct joint geometry, and film thickness within manufacturer limits. Map high-risk locations where continuity is commonly lost—behind brackets, at sills, and where multiple systems meet. On site, verify substrates are suitable, materials are compatible, and application conditions are within datasheet ranges. Use simple tools: straightedge, moisture meter, film comb, tug tests, and a smoke pencil for pre-checks. Record evidence with clear, location-referenced photos showing scales and tags. Hold points before concealment allow correction while access is easy. Keep the scope on airtightness only; thermal breaks, water-shedding, and structural functions are outside scope unless they affect the air barrier line. Aim for traceable, repeatable acceptance rather than subjective impressions.

Draw one continuous air barrier path on all details.
Target laps, adhesion, geometry, and thickness as acceptance cues.
Focus on high-risk interfaces and concealment points.
Use basic field tools and capture location-tagged photos.
Hold points prevent hidden defects and rework.

Interfaces: Typical Risks, Practical Methods, and Evidence

Interfaces fail when materials change or trades overlap. At windows, check that tapes or membranes bond to both frame and sheathing, and confirm a robust sill upstand. For sealants, use the correct backer rod and depth-to-width ratio to avoid three-sided adhesion. For membranes, confirm lap widths and roll pressure via peel tugs and visual checks. Liquid-applied barriers need measured wet and dry film thickness using comb gauges, especially at corners and terminations. Penetrations require prefabricated collars or liquid detailing extended beyond edges. Movement joints need expansion-capable components, installed in the neutral axis, accommodating specified movement. Before cladding or rails conceal the work, photograph each interface with a ruler or gauge visible, and log batch numbers and readings. Acceptance is visual and measurable: no fishmouths, continuous 360° seals at penetrations, verified adhesion, and dimensions matching approved details.

Verify window tape adhesion and sill upstands.
Measure laps and film thickness with simple gauges.
Form compliant sealant joints with correct backer rod.
Seal penetrations 360° using collars or liquid flashing.
Bridge movement joints with expansion-rated products.

Coordination, Sequencing, and Traceability Before Concealment

Continuity is easiest to secure through coordinated sequencing. Plan for air barrier installation before brackets, rails, or finishes that limit access. Establish inspection test plans listing locations, responsible parties, and hold points tied to work packages. Coordinate with MEP, façade, and roofing trades to avoid cutting or puncturing the barrier. Where penetrations or anchors are unavoidable, agree on prefabricated sleeves, boots, or repair detailing. Require installers to record ambient conditions, product batches, and quantities to support warranties. Evidence should include dated, location-coded photos, gauges in frame, and simple adhesion tugs recorded by lot and installer. Keep change control tight: redline drawings for any deviation and file approvals per approved project specifications and authority requirements. With structured records, closeout is faster, and whole-building testing proceeds with fewer surprises.

Sequence airtight work before limiting access activities.
Use ITPs with clear responsibilities and hold points.
Coordinate penetrations and anchors with preplanned detailing.
Capture batches, conditions, and measurements for traceability.
Redline deviations and file formal approvals.

How to Use the Interactive Façade Airtightness Continuity Checklist

Preparation: Gather approved details, ITP, datasheets, and calibrated tools (moisture meter, hygrometer, IR thermometer, straightedge, film comb, smoke pencil, ruler, hand roller). Confirm safe access (ladders, MEWPs), lighting, and that surfaces are clean and reachable.
Set up locations: Create elevation/zone tags and interface categories in the app. Preload typical details and acceptance notes so inspectors can select and reference them in the field.
Start interactive mode: Open the checklist on a tablet or phone, scan the QR to link the session, and enable photo geotagging. Tick items as you inspect and attach annotated photos with scales.
Comment in context: Use the comment field to flag defects, assign actions to trades, and set due dates. Mention drawings or datasheets and link batch numbers for traceability.
Resolve and recheck: After corrective work, retake photos and update measurements. Add a short verification note and change the item status to closed with your initials and timestamp.
Export records: Generate PDF/Excel exports grouped by elevation, interface, or trade. The export includes photos, readings, comments, and batch logs, secured with a QR code.
Sign-off: Capture digital signatures from installer, supervisor, and consultant. Distribute the final export to stakeholders and archive it with project drawings for closeout.

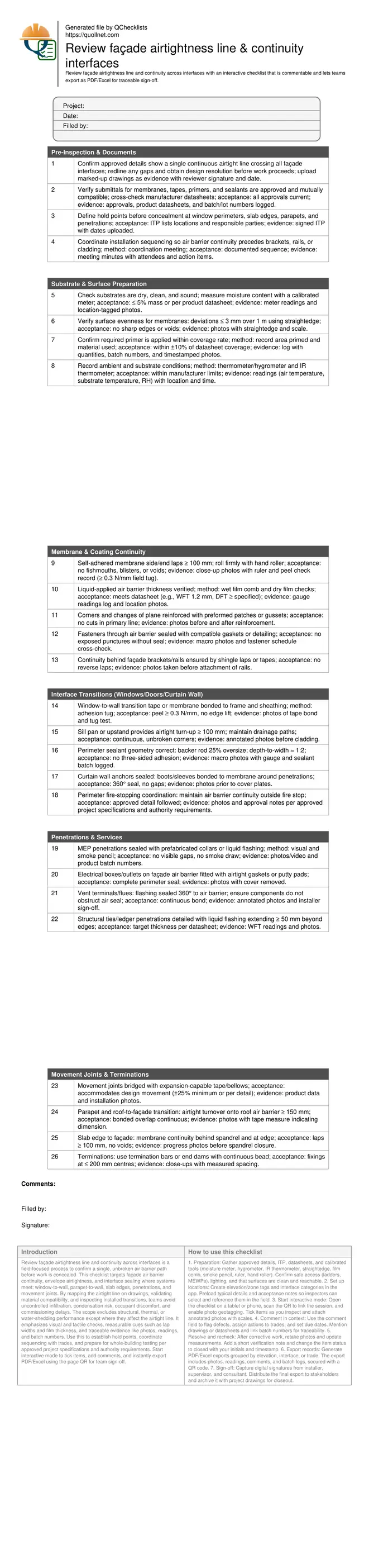

Review façade airtightness line & continuity interfaces

Start Interactive Checklist

Façade Airtightness Line Continuity Review

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Façade Airtightness Line Continuity Review by Quollnet” with a link to this source page.

Download Excel - Façade Airtightness Line Continuity Review
Download PDF - Façade Airtightness Line Continuity Review
View Image - Façade Airtightness Line Continuity Review

kamal tarek EcoArcKamal

Oct 13, 2026

FAQ

Question: When should I review façade airtightness continuity during construction?

Inspect continuity immediately after installing the air barrier at each interface and before any cladding, rails, insulation, or interior finishes conceal the work. Set formal hold points in the ITP for windows, slab edges, parapets, and penetrations. Early review reduces rework, supports manufacturer warranties, and prepares the project for whole-building tests.

Question: What tools provide reliable acceptance evidence on site?

Use a moisture meter for substrates, a hygrometer and IR thermometer for conditions, a 1 m straightedge for flatness, wet film combs for liquid barriers, a ruler for lap widths, and a smoke pencil for quick leak checks. Record peel tugs for tapes and take location-tagged photos showing gauges and scales for traceability.

Question: How do I handle complex interfaces with multiple trades involved?

Map the airtight line on drawings, assign a single owner for each interface, and plan sequencing so the air barrier is continuous before brackets or services go in. Use prefabricated collars or boots for penetrations, and require each trade to document batch numbers and photos. Redline any deviation and seek written approval before proceeding.

Question: Do I need a blower door test to confirm continuity?

This checklist focuses on visual and measurable installation cues that predict airtightness performance. While a blower door verifies overall leakage, pretest checks—laps, adhesion, sealant geometry, and sealed penetrations—catch most issues early. Conduct whole-building testing per approved project specifications and authority requirements after interfaces are signed off.
