Inspect Punched Window Opening Dimensions Before Frame Installation

Definition: Inspect punched window opening dimensions before frame installation is a site-ready checklist for contractors and QA/QC to verify geometry, tolerances, substrates, and interfaces before glazing frames are delivered and fitted.

Verify width, height, plumb, level, square, and diagonals within tolerance.
Confirm rough opening location versus gridlines and shop drawings.
Check substrate flatness, waterproofing returns, and anchor readiness.
Interactive, commentable, exportable report with QR code authentication.

Start Interactive
Checklist

Inspect punched window opening dimensions before frame installation defines the critical verification steps for rough opening checks before glazing frames arrive. This pre-installation review covers rough opening verification, window frame tolerance checks, and plumb-and-square assessments so frames seat correctly without force. You will measure width, height, diagonals, and reveals; verify head and sill levels; confirm substrate flatness; and inspect waterproofing returns, drainage paths, and anchorage readiness. These controls prevent binding sashes, racked frames, failed sealant joints, and leaks that drive rework, schedule impacts, and warranty disputes. Acceptance cues are grounded in project shop drawings, manufacturer data, and field-proven tolerances, using practical tools such as steel tapes, laser distance meters, 2 m levels, and straightedges. Use this checklist to capture readings, photos with scales visible, and stakeholder approvals per approved project specifications and authority requirements. Start interactive mode to tick items, add comments, and export PDF/Excel with a QR.

This checklist ensures punched window rough openings are located, sized, and trued before frames arrive. It sequences measurements at multiple points, highlights acceptance tolerances, and captures photo evidence so installers avoid force-fitting frames and eliminate leak-prone, warranty-risk conditions.
Interactive online checklist with tick, comment, and export features secured by QR code.
Documented measurements, compatibility checks, and anchorage readiness de-risk installation and streamline approvals. The record links to drawings, manufacturer data, and on-site photos, enabling clear nonconformance tracking, timely corrective work, and confident sign-off aligned with project specifications and authority requirements.

Drawings and References

1. Confirm latest approved elevations, shop drawings, and manufacturer data are issued for construction; capture title block photo and revision/date; acceptance: correct revision with approvals visible.
2. Verify opening ID and location against gridlines/levels using total station or tape; acceptance: location within ±10 mm of layout; evidence: layout report or annotated photo.
3. Record nominal frame size and specified rough opening (RO) dimensions from drawings/manufacturer; evidence: checklist entry plus excerpt/photo of schedule.
4. Confirm required shim space and sealant joint target (e.g., 6–12 mm uniform); evidence: manufacturer note or detail reference attached.

Opening Geometry

5. Measure clear RO width at head, mid, and sill with Class II steel tape; acceptance: each reading within ±5 mm of specified RO width; record three values and photo with tape.
6. Measure clear RO height left, center, and right with steel tape; acceptance: each reading within ±5 mm of specified RO height; record three values and photo evidence.
7. Measure diagonals with tape/laser; acceptance: diagonal difference ≤5 mm; record both readings and attach annotated sketch/photo.
8. Check each jamb for plumb using 2 m spirit level or laser; acceptance: deviation ≤2 mm per 2 m; photo of bubble/laser target required.
9. Check head for level with 2 m level or laser line; acceptance: deviation ≤2 mm per 2 m; capture photo of reading.
10. Check sill for level and slope; acceptance: overall level ≤2 mm per 2 m and outward slope 2% ±0.5%; evidence: level photo and slope calculation.
11. Verify corners are square with engineer’s square; acceptance: gap under square ≤2 mm; if square corners required, corner radius ≤5 mm or rectify; photo evidence.
12. Confirm reveal depth/wall thickness supports anchors and embeds; measure at four sides with depth gauge; acceptance: within ±5 mm of detail; record values and photo.

Substrate and Surfaces

13. Check substrate flatness around perimeter using 2 m straightedge; acceptance: gaps ≤3 mm; mark high spots, grind/skim as needed; photo with straightedge.
14. Remove protrusions, loose mortar, shims, and debris; vacuum and brush clean; acceptance: clean, dry, sound surfaces; evidence: before/after photos.
15. Measure moisture at sill/substrate with pin meter; acceptance: ≤5% or per sealant manufacturer; record reading, device model, and calibration date photo.
16. Inspect for cracks/spalls within 75 mm of edges; acceptance: none >2 mm wide or compromising fastener zones; document photos; repair per approved method if exceeded.

Waterproofing and Interfaces

17. Verify WRB/membrane returns at jambs and head are continuous; acceptance: laps ≥100 mm with sealed corners; evidence: close-up photos of seams.
18. Confirm sill pan or membrane installed and sloped to exterior; acceptance: slope ≥2% with end-dam terminations intact; photo and water-drop test optional.
19. Check flashing/sealant compatibility; acceptance: materials documented as compatible; attach manufacturer datasheets and photo of labels.
20. Ensure weeps/drain paths are unobstructed; probe with 3 mm rod; acceptance: free passage achieved; photo of probe and path.
21. Confirm planned joint width supports 2:1 sealant profile post-install; acceptance: uniform 6–12 mm gap target achievable; record sample measurements.

Anchorage and Tolerances

22. Verify embedded plates/inserts/anchors align per shop drawings; acceptance: position within ±5 mm and correct quantity; evidence: measurements and annotated photos.
23. Measure edge distances at fastener zones; acceptance: meets or exceeds manufacturer minimum; record minimum measured value and attach datasheet excerpt.
24. Check substrate thickness at anchor points with depth gauge/borescope; acceptance: ≥ required embed depth + 5 mm; photo and readings required.
25. Confirm installation path and working clearance are unobstructed; acceptance: safe 1 m approach and 500 mm each side; evidence: contextual photos.

Documentation and Sign-Off

26. Complete all measurement fields; tag nonconformances with IDs; upload corrective actions and retest results; evidence: filled checklist and NCR log.
27. Obtain digital sign-offs (installer, QA/QC, GC); export report as PDF/Excel with QR; distribute and archive per project procedures.

Scope, risks, and acceptance criteria

Before glazing frames arrive, verifying punched opening geometry prevents force-fitting, binding sashes, and costly rework. Focus on clear width, height, diagonals, plumb/level, and reveal depth, then confirm substrate flatness and moisture at the sill. Inspect WRB returns, sill pans, and drain paths so water exits to the exterior. Finally, check anchor readiness and edge distances so fasteners achieve full embed without cracking. Typical acceptance cues include width/height within ±5 mm of specified rough opening, jamb and head deviations ≤2 mm per 2 m, diagonal difference ≤5 mm, and outward sill slope about 2%. Use steel tapes, laser distance meters, 2 m levels, straightedges, and depth gauges for consistent results. Document everything with photos showing measuring devices in frame, and link each opening to drawings and schedules. Where limits differ, always follow the approved project specifications and authority requirements.

Verify geometry before frames reach the site.
Measure at multiple points on each side.
Target ±5 mm width/height tolerances.
Keep plumb/level within 2 mm per 2 m.
Record evidence with scaled photos.

Field methods and measurement sequence

Start by confirming the correct drawing revision and opening ID at the grid intersection. Take three width readings (head, mid, sill) and three height readings (left, center, right) using a Class II steel tape; log every value. Shoot diagonals with a tape or laser and compare the difference. Check jamb plumb and head level with a 2 m level or rotary laser. Place a straightedge around the perimeter to assess flatness and use a pin meter to verify sill moisture meets the planned sealant’s requirement. Inspect reveal depth for anchor engagement, and confirm corner squareness. Finish by reviewing WRB returns, sill pans, and drain paths. This repeatable sequence minimizes missed checks, speeds documentation, and surfaces issues early enough for simple fixes, like grinding high spots or applying skim coats, before frames arrive and access becomes restricted.

Confirm drawings, opening ID, and grid first.
Read widths and heights at three points.
Compare both diagonals for squareness.
Use 2 m level or laser for plumb/level.
Photograph tools and readings clearly.

Typical defects and corrective actions

Common issues include out-of-plumb jambs that rack frames, undersized openings from plaster build-up, and flat sills without outward slope that trap water. Other frequent defects are obstructed weeps, discontinuous WRB returns at corners, and anchors too close to edges causing cracks. Address geometry with grinding, localized patching, or controlled saw-cuts to achieve clearance. Rebuild spalled edges using approved repair mortars following manufacturer guidance. Reinstate or extend membranes to create continuous returns and sealed corners. Where edge distances are short, reposition anchors per the frame manufacturer’s instructions or add approved inserts. Always remeasure after corrections and update the nonconformance log. Early identification and methodical fixes keep installation smooth, limit sealant stress, and reduce call-backs after occupancy.

Correct tight spots by grinding or skimming.
Restore continuous WRB returns and sealed corners.
Reposition anchors to meet edge distances.
Re-slope the sill to drain outward.
Retest and document after repairs.

Prepare, Use, and Sign Off the Interactive Inspection

Preparation: Gather Class II steel tape, laser distance meter, 2 m level, 2 m straightedge, depth gauge/borescope, pin moisture meter, chalk/markers, cleaning tools, grinder/skim materials, and PPE (gloves, eye protection, hearing protection). Ensure safe access, adequate lighting, dry surfaces, and current drawings/manufacturer data. Brief the team on acceptance cues and photo evidence requirements.
Using the Interactive Checklist: Open the correct opening ID, start interactive mode, and enter width, height, diagonal, plumb/level, flatness, and interface findings. Attach clear photos showing instruments and scales. Add comments for variances, assign actions, and link documents. When complete, export the commentable report as PDF/Excel with a QR for authentication.
Sign-Off: Review entries and close nonconformances. Obtain digital signatures from installer, QA/QC, and GC. Issue the QR-authenticated report to stakeholders and archive in the project QA system per approved project specifications and authority requirements.

Inspect punched window opening dimensions before frame installation

Start Interactive Checklist

Punched Window Opening Dimension Inspection

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Punched Window Opening Dimension Inspection by Quollnet” with a link to this source page.

Download Excel - Punched Window Opening Dimension Inspection
Download PDF - Punched Window Opening Dimension Inspection

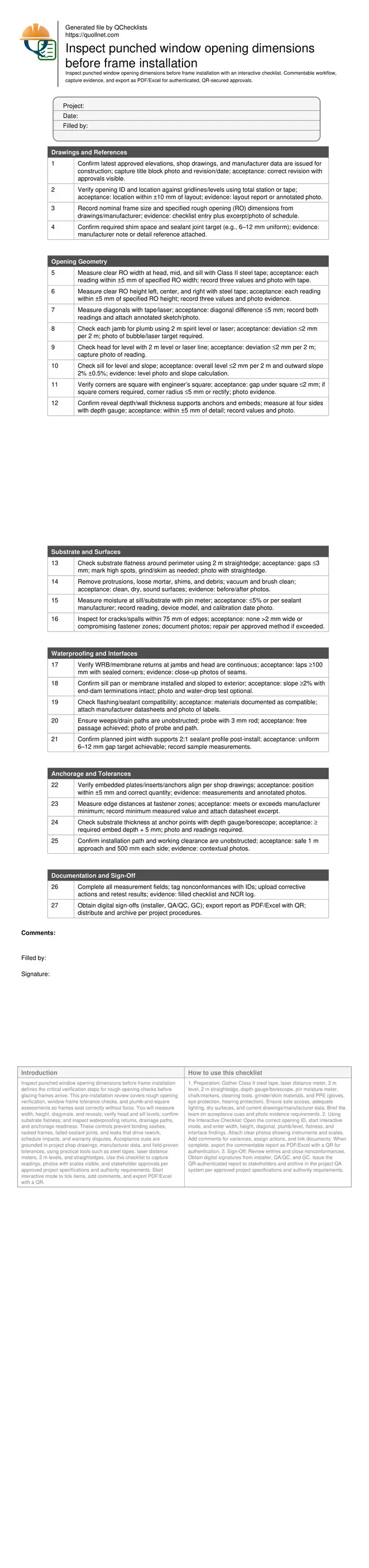

View Image - Punched Window Opening Dimension Inspection

Tatiana Ivanova Tatiana Ivanova

Sep 04, 2026

FAQ

Question: What tolerances should I use for width, height, plumb, and squareness?

Typical field targets are width and height within ±5 mm of the specified rough opening, jamb/head deviations within 2 mm per 2 m, and diagonal difference within 5 mm. Always confirm against the frame manufacturer’s installation instructions and the approved project specifications, then document actual readings with photos that include the measuring tool.

Question: How many measurements are required for each opening and where should I take them?

Take at least three width readings (head, mid, sill) and three height readings (left, center, right). Measure both diagonals, check each jamb for plumb, and check head and sill for level. Add reveal depth checks at multiple points. Photograph each reading with the tape or level visible and log values by location.

Question: What if the rough opening is too tight or out of square?

Identify where the variance occurs, mark high spots, and correct using grinding or localized patching. If clearances remain insufficient, consider controlled saw-cuts, then restore edges with approved repair mortar. Recheck diagonals and plumb/level, update the nonconformance record, and proceed only when measurements meet the manufacturer and project acceptance criteria.

Question: Do I need a sill pan or membrane before installing frames?

Most systems benefit from a sloped sill pan or membrane that directs water to the exterior and protects interiors. Verify continuity with jamb/head returns and sealed corners. Ensure outward slope of about 2% and unobstructed weeps. Follow the approved project specifications and the frame supplier’s details for materials and sequencing.

Question: Which tools provide the most reliable results and how do I document them?

Use a Class II steel tape for dimensions, a laser distance meter for diagonals and long spans, a 2 m level or laser for plumb/level, a 2 m straightedge for flatness, and a pin meter at the sill. Photograph instruments in place showing readings, note model/calibration, and attach images to the opening record.
