Punched Window Perimeter Shims, Packers, and Support Blocks Inspection

Definition: Inspect punched window perimeter shims, packers, and support blocks for installers and inspectors verifying materials, placement, load transfer, drainage, and tolerances to deliver durable, plumb, warrantable window assemblies.

Confirm material ratings, compatibility, and lot traceability before installation.
Verify placement, spacing, and alignment to prevent frame distortion.
Protect drainage paths and sealant performance for long-term durability.
Interactive, commentable steps with export and QR code verification.

Start Interactive
Checklist

Inspect punched window perimeter shims, packers, and support blocks is a focused field task ensuring individual window units are supported, aligned, and sealed correctly. This checklist centers on punched window frames, setting blocks and glazing packers at the perimeter, and jamb shims used to true the installation. You will verify material suitability, chemical compatibility with sealants and membranes, and that all load paths transfer to structure without crushing or inducing twist. Accurate shim placement keeps frames level and plumb, maintains uniform gaps for backer rod, and prevents binding of operable sashes. Proper support blocks safeguard sill drainage and long-term performance by keeping weep paths clear. The outcome is a stable, square, warrantable installation that resists water ingress, thermal movement issues, and call-backs. Use this interactive tool to tick off steps, drop comments with photos, and export your record as PDF/Excel; a QR-linked opening ID keeps documentation traceable and easy to retrieve.

Ensure the right non-absorbent, high-density shims, packers, and support blocks are used, traceable to approved submittals. Confirm compatibility with sealants, membranes, and frame finishes to prevent softening, staining, or bond loss over time.
Control placement and spacing to maintain plumb, level, and square frames. Align shims with anchor points, limit stacking, and verify tolerances with calibrated tools to avoid frame bow/twist, operable sash binding, and premature hardware wear.
Safeguard drainage and durability by keeping weep paths unobstructed, using appropriate support blocks, and validating sealant/backer-rod geometry. Capture water-test evidence and material batch data to strengthen warranty documentation and closeout packages.
Interactive online checklist with tick, comment, and export features secured by QR code.

Pre-Installation Verification

1. Review approved submittals and drawings identify exact shim, packer, and support block types, sizes, and ratings.
2. Inspect rough opening flatness with a 1.2 m straightedge and feeler gauge; record maximum deviation ≤ 3 mm with photo evidence.
3. Measure substrate moisture and temperature using a pinless meter and IR thermometer; confirm within manufacturer limits; log readings with opening ID and time.
4. Confirm measuring tools are in calibration (levels, calipers, torque wrench); photograph calibration stickers and note expiry dates.

Materials and Compatibility

5. Verify shim assortment thicknesses with a digital caliper (1–2 mm increments available); photograph measured samples and packaging labels for traceability.
6. Confirm support blocks are high-density, non-absorbent (e.g., HDPE/neoprene) with compressive rating meeting unit weight; attach datasheet and lot numbers.
7. Cross-check shims/packers with sealant and membrane TDS for chemical compatibility; save manufacturer confirmations per approved project specifications and authority requirements.
8. Reject organic shims (wood/cardboard) and corrodible metals at perimeter; document removal and replacement with compliant materials via photos.

Placement and Spacing

9. Place support blocks at sill within 150 mm of each jamb and at ≤ 600 mm centres or as per drawings; verify with tape measure and photos.
10. Align perimeter shims with anchor points to prevent frame bowing; keep shim centre within ±10 mm of each anchor; annotate photos over drawings.
11. Limit stacked shims to a maximum of two per bearing point; confirm full contact and stability; capture close-up photos at each location.
12. Maintain shim setback from visible frame edges; measure ≥ 5 mm from sightline to avoid exposure; photograph confirmations.

Alignment and Load Transfer

13. Set frame level on support blocks using a digital level; achieve ±2 mm per 1 m; record readouts and opening ID on photo.
14. Plumb both jambs by adjusting perimeter shims; achieve ±2 mm per 2 m; log max offset and attach level photos.
15. Verify frame square by measuring diagonals; difference ≤ 3 mm; record both measurements and keep photo of tape at corners.
16. Check for bow/twist with a string line or laser across head and sill; mid-span deviation ≤ 2 mm; photograph instrument alignment.
17. Tighten anchors after shimming using a torque wrench; achieve torque per approved project specifications; record N·m values and fastener lot numbers.

Moisture Management and Durability

18. Keep weep holes and sill drainage paths unobstructed; run a controlled 1–2 L water test over 5 min; confirm positive discharge to exterior with video/photo.
19. Locate support blocks clear of weep locations (e.g., ≥ 25 mm setback or as drawn); verify with tape measure and annotated photo.
20. Install backer rod and sealant after alignment; confirm backer rod compression 25–50% and smooth tooling; record sealant batch/expiry and photos.
21. Isolate dissimilar metals with non-conductive separators at contact points; verify continuous coverage; capture macro photos.

Documentation and Sign-Off

22. Apply a QR label at each opening linked to this checklist; verify scannability and association to opening ID; photo and scan log required.
23. Upload geo-tagged photos marking shim and support block locations to the project folder; ensure filenames include opening ID; save upload receipt.
24. Capture final measurements and obtain installer and inspector digital signatures; export PDF/Excel and archive in CDE with revision/date stamp.

Materials and Compatibility: Choose Components That Last

The right shims, packers, and support blocks for punched windows must carry loads without creep, resist moisture, and remain compatible with adjacent materials. High-density plastic or elastomeric support blocks at sills prevent compression set and preserve drainage geometry. Perimeter shims should come in precise thickness increments to fine-tune level and plumb without overstacking. Before opening any boxes, cross-check product datasheets against approved submittals and verify chemical compatibility with sealants, membranes, and frame finishes to avoid staining, softening, or bond failure. Reject organic or corrodible materials that absorb water or degrade. Confirm availability of calibration-checked tools—digital level, calipers, torque wrench—to measure, not guess. A brief toolbox talk aligning the crew on acceptable products and tolerances reduces rework and speeds installation. Onsite, photograph packaging labels and retain lot numbers; this anchors traceability and strengthens closeout documentation should warranty queries arise later.

Use non-absorbent, high-density materials for sustained load support.
Cross-check chemical compatibility with sealants and membranes.
Keep shim thickness options in 1–2 mm increments.
Reject organic or corrodible shims at perimeters.
Photograph labels and note lot numbers for traceability.

Placement, Spacing, and Alignment: Control the Geometry

Accurate placement translates directly to long-term performance. Support blocks carry dead loads at the sill; locate them close to jambs and at intervals shown on drawings to distribute weight evenly. Position perimeter shims in line with anchor points to avoid point-loading and frame bow. Limit stacking to two pieces at any bearing location to maintain stability. During setting, use a digital level and a 2 m spirit level to achieve specified level and plumb tolerances; then verify squareness by checking diagonals. Recheck after anchor tightening to confirm the frame did not twist or lift off supports. Keep shims set back from sightlines to avoid visibility and to maintain continuous sealant geometry. Document each measured tolerance with photos of instruments in place and note the opening ID for later retrieval and auditing.

Place supports near jambs and at designed centres.
Align shims with anchors to prevent bow/twist.
Limit stacks to two pieces per point.
Verify level, plumb, and square with calibrated tools.
Recheck geometry after tightening anchors.

Drainage, Sealing, and Evidence: Make Performance Provable

Moisture management at punched windows depends on uninterrupted weep paths and well-formed perimeter seals. Keep support blocks clear of weeps, and never bridge the weep path with shims. After alignment, install correctly sized backer rod to achieve a 2:1 width-to-depth sealant profile and proper compression. Tool sealant for full adhesion to both flanks without three-sided contact. Validate drainage with a small, controlled water test and capture photos or video of positive discharge. Record sealant batch numbers, expiration dates, and ambient conditions at installation. Apply a QR label at each opening that links to the checklist record, then upload geo-tagged photos showing shim and block locations. Export the signed report to PDF/Excel and store it in the common data environment for easy retrieval during commissioning, turnover, or warranty review.

Keep weep holes unobstructed at all times.
Confirm backer rod compression and sealant profile.
Perform and document a controlled water test.
Use QR labels to tie records to openings.
Archive signed reports in the project CDE.

How to Use This Interactive Inspection Checklist

Preparation: Review approved drawings/submittals, gather tools (digital level, 1.2 m straightedge, feeler gauge, calipers, torque wrench, moisture meter, IR thermometer), charge devices, and brief the crew on tolerances and safety.
Site setup: Label openings, stage shims/packers/support blocks by size, protect sills, and verify calibrated tools. Open the checklist on a mobile device for real-time data entry.
Using the Interactive Checklist: Tick items as completed, attach geo-tagged photos, log measurements, and add comment threads to flag issues or request approvals from stakeholders.
Export and share: Generate a commentable record and export as PDF/Excel for distribution to the GC, design team, and owner. Link the file back to the QR label for traceability.
Sign-Off and Archiving: Capture digital signatures from installer and inspector, confirm QR authentication works onsite, and archive the final report in the project CDE with revision/date tags.

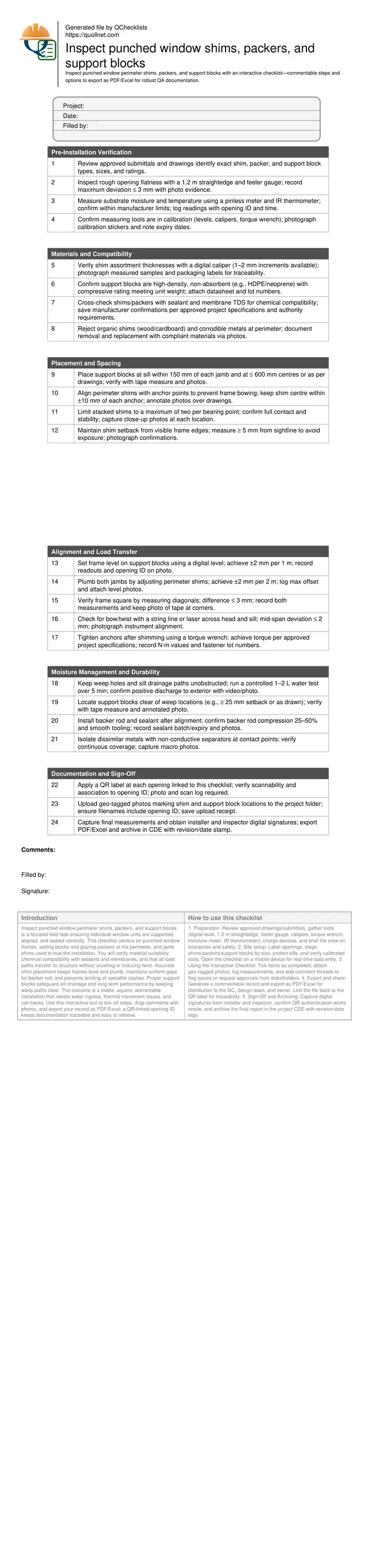

Inspect punched window shims, packers, and support blocks

Start Interactive Checklist

Punched Window Shim, Packer, and Support Block Inspection

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Punched Window Shim, Packer, and Support Block Inspection by Quollnet” with a link to this source page.

Download Excel - Punched Window Shim, Packer, and Support Block Inspection
Download PDF - Punched Window Shim, Packer, and Support Block Inspection
View Image - Punched Window Shim, Packer, and Support Block Inspection

Aisha Khan AquaEngineerAisha

Jul 28, 2026

FAQ

Question: Why are non-compressible support blocks required at the sill of punched windows?

Support blocks transfer dead loads from the window frame to the structure without long-term creep. Non-absorbent, high-density materials maintain geometry and keep weep paths correctly formed. Using soft or organic blocks can compress, close drainage, distort frames, and cause sash binding. Select blocks that match approved submittals and can carry calculated loads.

Question: What spacing and locations should I use for shims and support blocks?

Follow approved project specifications and authority requirements, prioritizing drawings for exact locations. In practice, you’ll typically place support blocks near jambs and at regular centres along the sill, with shims aligned to anchors around the perimeter. Always verify with a tape measure and photograph each location to document distances and alignment.

Question: Can shims or packers obstruct weep holes, and how can I verify drainage?

Shims and support blocks must never obstruct weep paths. Maintain clear setbacks and verify visually during installation. After setting the frame, perform a small controlled water test to confirm positive discharge to the exterior. Capture photos or video and note the opening ID so the evidence can be retrieved during commissioning or warranty review.

Question: What documentation closes out an inspection of shims, packers, and support blocks?

Collect photos of each shim and support block location, instrument readouts for level/plumb/square, product labels and lot numbers, sealant batch data, and torque values. Secure installer and inspector digital signatures. Export the complete, commentable record as PDF/Excel, link it to the opening’s QR code, and archive it in the project CDE.
