Curtain Wall Glass Setting Blocks and Edge Clearances Inspection

Definition: Inspect curtain wall glass setting blocks and edge clearances equips façade teams to verify support, centering, movement allowance, and compatibility for durable, safe glazing installations on new builds and replacements.

Confirm block location, hardness, and size match approved shop drawings.
Measure uniform edge clearances to prevent edge contact and stress cracks.
Verify movement allowance for thermal, sway, and live-load deflection.
Interactive, commentable, export options with QR code for field sign-offs.

Start Interactive
Checklist

Inspect curtain wall glass setting blocks and edge clearances is a precision task that safeguards glass from stress, contact, and premature failure. This checklist focuses on the glazing packers (setting pads) that carry dead load and the consistent edge clearance that preserves glass bite and movement. It addresses monolithic and insulating glass units (IGUs) within curtainwall framing, without extending into unrelated pressure-plate or anchor inspections. You will verify setting block hardness, placement at quarter points, length and thickness per approved drawings, and uniform clearances around the glass perimeter. The outcome is stable support, centered lites, and protected edges for durable performance, watertightness, and thermal movement. By documenting measurements, photos, and batch data, you reduce risks like edge contact, chipping, sealant incompatibility, frame racking transfer, and warranty disputes. Use this interactive checklist to tick items, add comments, and export your record as PDF/Excel with a QR for traceable sign-off.

Ensure setting blocks match approved material, hardness, and dimensions, and sit at correct quarter-point locations to carry dead load without inducing stress. Record measurements and photographs for traceability, preventing premature edge damage and warranty challenges.
Measure and document uniform edge clearances around the lite using feeler gauges and calipers. Consistent clearances preserve specified bite and prevent frame contact, reducing fracture risks from thermal movement, building sway, and live-load deflection.
Verify compatibility among glass, setting blocks, spacers, sealants, and gaskets. Proper materials and movement allowance prevent chemical attack, migration, or stress concentration, supporting long-term performance and watertightness per approved project specifications and authority requirements.
Interactive online checklist with tick, comment, and export features secured by QR code.

Documentation & Conditions

1. Open approved shop drawings and glazing specs; confirm block type, dimensions, hardness, and edge clearance requirements; attach current revisions to the checklist as evidence.
2. Verify frame plumb, level, and square using a spirit level and diagonal measurements; record readings and photos; proceed only if within project tolerances.
3. Confirm environmental conditions suitable for glazing (temperature, wind, precipitation); record ambient temperature (°C) and wind speed (m/s) with a handheld meter.
4. Check that required approvals for glass type and setting block material are issued; upload approvals and manufacturer datasheets to the record.

Tools & Materials Verification

5. Calibrate calipers, durometer (Shore A), and feeler gauges before use; photograph calibration labels and note dates on the checklist.
6. Inspect setting block packaging for manufacturer, batch, and expiry; photograph labels; confirm block hardness matches specification (record durometer reading ±1 Shore A).
7. Measure block length, width, and thickness with calipers; confirm dimensions per drawings (record to 0.5 mm) and capture photos against a scale.
8. Verify chemical compatibility of blocks and edge spacers with sealants/gaskets using approved compatibility reports; upload report references and acceptance letters.

Setting Blocks Installation

9. Place two setting blocks at quarter points along the sill per unit width; mark measured locations with a non-permanent marker and photograph.
10. Confirm blocks bear fully on the frame substrate (no rocking); use a 0.05 mm feeler gauge to check for gaps; shim or reset if gaps exceed gauge.
11. Check block adhesion or mechanical retention (if specified) using manufacturer’s method; document adhesive type, lot number, and curing status with photos.
12. Verify block thickness achieves specified glass edge clearance at sill; measure with calipers; record achieved clearance to 0.5 mm.
13. Ensure blocks are free of debris and burrs; wipe with lint-free cloth and approved cleaner; photograph clean bearing surfaces before setting glass.
14. Confirm block compressive load capacity suits glass weight; record glass dimensions, type, and calculated mass; note manufacturer allowable load and safety factor.

Edge Clearances & Centering

15. After setting the lite, measure edge clearances at four sides using feeler gauges; record each side’s minimum and maximum values to 0.5 mm.
16. Verify glass is centered in the pocket; measure opposing clearances; confirm difference within drawing tolerance; record delta and photo with gauge in place.
17. Confirm specified glass bite (edge cover) is maintained; measure visible bite with a depth gauge or template; record reading and acceptance per drawings.
18. Check that temporary spacers or location blocks used during setting are removed or retained only if specified; photograph condition after removal.
19. For IGUs, confirm the edge spacer is not in contact with frame; use a borescope or mirror to visually verify; capture close-up images.

Movement, Contact & Protection

20. Verify no glass-to-metal or glass-to-fixings contact at any edge; sweep a 0.1 mm feeler gauge; if contact found, re-center and re-measure.
21. Confirm designed movement allowance for thermal/sway is available (sum of clearances per side); record calculation and compare with specification.
22. Inspect gaskets or tapes adjacent to edges for correct seating without twisting; photograph continuous seating and record any splices or joints.
23. Apply protective edge guards or temporary retainers if required; verify they do not reduce clearance; photograph installation and note removal plan.

Records & Sign-off

24. Attach marked-up photos showing block positions, measured clearances, and glass ID; include unit number and elevation grid reference.
25. Log installer and inspector names, date/time, and instrument IDs; capture digital signatures within the checklist platform for traceability.
26. Confirm compliance “per approved project specifications and authority requirements”; mark status (Accepted/Rejected), note punch items, and issue the QR-linked report.

Why setting blocks matter and how to place them

Setting blocks transfer the glass dead load into the curtain wall frame while protecting the vulnerable lower edge from contact and stress. Proper hardness prevents creep or point loading; correct thickness and width deliver the specified edge clearance and bite. Place two blocks at quarter points to avoid cantilevering and distribute load. Blocks must sit flat on clean, stable substrates, secured per manufacturer guidance. Dimensional checks with calipers and durometer readings confirm conformance before the lite is set. For IGUs, compatibility with sealants and edge spacers is critical to avoid chemical attack or migration. Photographs, batch labels, and measurement logs create a defensible record that supports warranty and handover. If the frame is not plumb or level, rework before glazing to avoid compensating with blocks, which can mask misalignment but cause uneven clearances and long-term problems.

Two blocks at quarter points distribute dead load evenly.
Hardness and dimensions must match approved drawings.
Blocks must sit flat; no rocking or gaps under load.
Compatibility with sealants and IGU spacers is essential.
Record photos, labels, and measurements for traceability.

Measuring edge clearances and preserving uniform bite

Uniform edge clearances prevent glass-to-frame contact during thermal movement, building sway, and live-load deflection. After placing the lite on blocks, measure clearances at multiple positions on each side using feeler gauges and record minimum and maximum values. Centering is checked by comparing opposing sides; large deltas indicate misplacement or frame issues. Maintaining the specified bite protects the edge and supports weather seals. Use templates or depth gauges for repeatable bite checks, and verify that temporary spacers are removed if not part of the design. Any point contact, snagging gaskets, or twisted tapes must be corrected immediately. IGUs require special care to avoid compressing the edge spacer. Final documentation should tie readings to unit IDs and elevation references to make future audits simple and defensible.

Measure each side’s minimum and maximum clearance.
Confirm centering by comparing opposing side values.
Maintain specified edge bite using repeatable gauges.
Eliminate any glass-to-frame point contact immediately.
Link measurements to unit and elevation IDs.

Movement allowance, compatibility, and field evidence

Curtain walls experience thermal changes, interstorey drift, and live-load deflection, so gaps must provide the movement allowance detailed in the design. Sum the edge clearances and confirm they meet or exceed the specified requirement. Check that gaskets are seated without twist and that compatible materials are used throughout the glazing pocket. Rubber hardness, sealant chemistry, and IGU edge constructions must align with vendor approvals to prevent staining, embrittlement, or delamination. Evidence capture is more than photos: include durometer readings, caliper logs, tool calibration dates, and material batch numbers. Finally, secure digital sign-offs and a QR-authenticated export to close the loop, enabling quick retrieval during commissioning, maintenance, or incident reviews. This disciplined approach reduces disputes and accelerates approvals.

Verify movement allowance from summed clearances.
Seat gaskets evenly; avoid twists and pinches.
Use materials with documented compatibility approvals.
Capture readings, calibrations, and batch data.
Finalize with QR-authenticated digital sign-off.

How to Use This Interactive Curtain Wall Glazing Checklist

Preparation: stage calibrated calipers, feeler gauges, durometer (Shore A), spirit level, borescope/mirror, lint-free cloths, approved cleaners, PPE (gloves, eye protection), access equipment, and current shop drawings/specifications.
Create a new inspection in the app, select elevation and unit IDs, and preload manufacturer datasheets, compatibility reports, and environmental limits relevant to the glazing scope.
Using Interactive Mode: tick each item as you measure, attach photos with scales, enter readings to the nearest 0.5 mm/Shore A, and log batch numbers. Add comments and assign corrective tasks if deviations appear.
Coordinate fixes: re-center glass, replace blocks, or clean seats as required. Re-measure affected points, update evidence, and close tasks with responsible party, due date, and verification photos.
Export and share: generate a commentable report and export as PDF/Excel including photos, readings, and drawings. Enable QR on the cover page for field retrieval and verification.
Sign-Off: capture installer and inspector digital signatures, confirm compliance per approved project specifications and authority requirements, archive the QR-authenticated record, and distribute to stakeholders.

Inspect Curtain Wall Glass Setting Blocks and Edge Clearances

Start Interactive Checklist

Curtain Wall Glass Setting Blocks & Edge Clearances Inspection

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Curtain Wall Glass Setting Blocks & Edge Clearances Inspection by Quollnet” with a link to this source page.

Download Excel - Curtain Wall Glass Setting Blocks & Edge Clearances Inspection
Download PDF - Curtain Wall Glass Setting Blocks & Edge Clearances Inspection

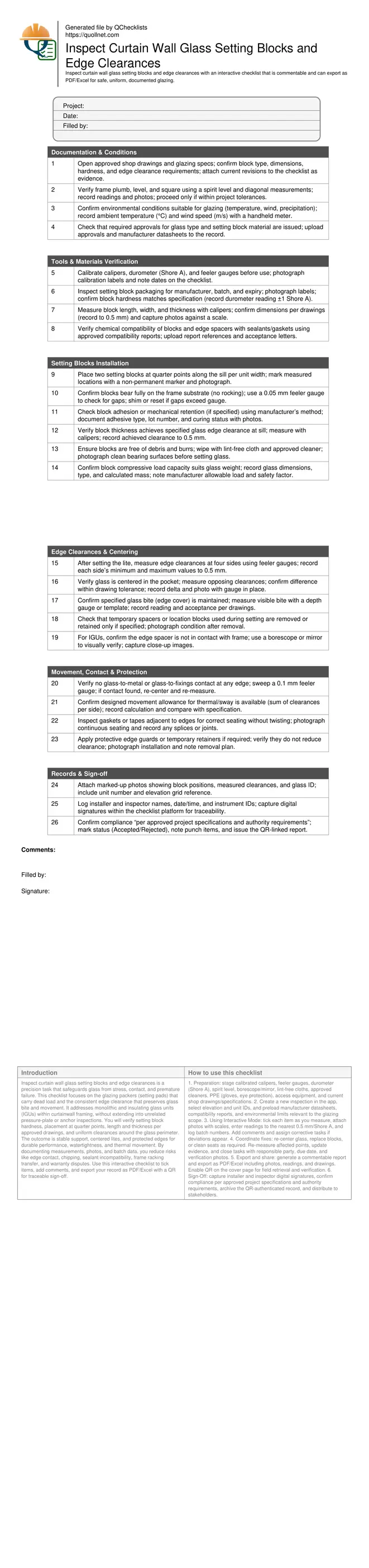

View Image - Curtain Wall Glass Setting Blocks & Edge Clearances Inspection

Esme Dubois Esme Dubois

Jul 29, 2026

FAQ

Question: What durometer hardness should setting blocks have for curtain wall glass?

Follow the approved shop drawings and manufacturer guidance. Record actual Shore A readings with a calibrated durometer and ensure they match the specified range. Hardness balances load support and cushioning; too soft can creep, too hard can induce point stress. Always document batch labels, readings, and acceptance in your inspection record.

Question: How do I confirm adequate edge clearances without removing the glass?

Use feeler gauges at multiple points along each side and compare opposing sides to confirm centering. A borescope or inspection mirror helps verify areas with limited access. Record minimum and maximum values per side, take photos with gauges visible, and compare results to the approved drawing tolerances before sign-off.

Question: Where should setting blocks be placed to support the glass correctly?

Place two blocks at the approximate quarter points along the sill unless drawings specify otherwise. This distributes dead load evenly and prevents cantilevering. Verify block dimensions and seating with calipers and a feeler gauge, document distances from jambs, and capture photos with marked references to show exact positions.

Question: What risks arise if edge clearances are inconsistent around the perimeter?

Inconsistent clearances can cause glass-to-frame contact, stress concentrations, and chipping during thermal movement or building sway. They also reduce specified bite, affecting weather seals. Detect and correct by re-centering the lite, adjusting block thickness as designed, and re-measuring until values align with the approved tolerances.

Question: How should I document compatibility among blocks, sealants, and IGU spacers?

Collect manufacturer compatibility reports and approvals, noting product names, batch numbers, and dates. Photograph packaging labels, upload datasheets, and reference the report IDs in your checklist. During inspection, verify installed products match the approvals, and record visual evidence of proper gasket seating and clean, residue-free edges.
