Inspect Head, Jamb, and Sill Seal Continuity at Openings

Definition: Inspect head, jamb, and sill seal continuity around openings is a practical checklist for site inspectors and installers, verifying continuous weatherproofing transitions at fenestration per approved project specifications and authority requirements.

Confirm continuous seals at head, jamb, and sill interfaces.
Reduce water ingress, air leakage, and thermal bridging risks.
Use probes, gauges, photos, and readings to evidence compliance.
Interactive, commentable checklist; export reports with QR code.

Start Interactive
Checklist

Inspect head, jamb, and sill seal continuity around openings is essential for durable, weatherproof fenestration. This checklist focuses on continuous air and water barrier transitions, sealant and flashing continuity, and reliable interfaces at window and door perimeters. We limit scope to head, jamb, and sill seals only—no structural assessments or full performance testing—so inspectors and installers can concentrate on watertightness, airtightness, and thermal performance where failures commonly start. Poor continuity allows water ingress, air leakage, mold growth, and energy loss; strong continuity preserves finishes, protects insulation, and maintains warranties. You will verify substrates, laps, bead dimensions, end dams, backer rods, gaskets, and transitions across dissimilar materials, using simple tools such as probes, feeler gauges, moisture meters, and measuring tapes. Evidence capture—photos with scales, readings, and lot numbers—creates traceable compliance per approved project specifications and authority requirements. Start in interactive mode to tick items, add comments, and export PDF/Excel; share the QR-linked report with stakeholders.

Verify continuous weatherproofing at head, jamb, and sill by checking bead dimensions, shingle laps, end dams, gaskets, and transitions. Consistent methods and measurable tolerances reduce leaks, drafts, and callbacks while protecting finishes and insulation performance.
Evidence-based verification uses photos with scales, moisture readings, and batch numbers to create traceable records. Visual/probe checks, feeler gauges, and gentle peel assessments help confirm adhesion, joint depth, and gap limits before enclosure or handover.
Interactive online checklist with tick, comment, and export features secured by QR code.
Focused scope avoids ambiguity: perimeter seals only, not structural checks or full chamber testing. The outcome is clear acceptance criteria per approved project specifications and authority requirements, enabling contractors and inspectors to align expectations and close out efficiently.

Pre-Inspection Conditions

1. Confirm latest approved details for head, jamb, and sill seals are on hand; compare opening type and substrate to drawings; upload a photo of the referenced detail with revision noted.
2. Verify weather window: no precipitation, substrate temperature 5–35 °C, wind speed < 8 m/s; record thermometer and anemometer readings with a photo of displays.
3. Check substrates dry and clean: wood moisture ≤ 15% (moisture meter), concrete/metal visibly dry and dust-free (white rag wipe test); upload readings and wipe-test photo.
4. Confirm materials match specifications: sealant type/colour, primer, backer rod diameter 25–50% larger than joint width, tapes/flashing; photograph product labels showing batch/lot and expiry dates.
5. Ensure safe access at elevation: secured ladders/scaffolds and clear working platform ≥ 600 mm wide; capture a context photo and daily safety sign-off.

Head Seal Continuity

6. Measure head flashing/tape shingle-lap over WRB ≥ 75 mm and overlap onto jamb flashing ≥ 50 mm; photograph with measuring tape visible.
7. Inspect sealant bead at head perimeter: continuous concave profile, width 8–12 mm, no voids/holidays > 5 mm; capture close-up photos along entire length.
8. Verify backer rod at head joint: diameter 25–50% over joint width; bead thickness ≈ 50% of width; confirm with depth probe or gauge card and record measurements.
9. Probe head bead with blunt tool along 100% of length; acceptance: no gaps or skips > 1 mm; note any repairs and retake photo evidence.
10. Check head end dams/terminations: upturns ≥ 25 mm, sealed to jamb elements; verify positive slope to exterior; upload measurement and detail-matching photo.

Jamb Seal Continuity

11. Confirm continuous sealant at jamb-to-frame interface: width 8–12 mm with two-sided adhesion; light probe should show cohesive stretch, not edge release; capture photos.
12. Verify jamb flashing/tape continuity: vertical strips extend beyond sill and under head with overlaps ≥ 75 mm; measure laps and photograph with scale.
13. Inspect backer rod along jambs: continuous, no gaps; if spliced, provide diagonal overlap ≥ 50 mm; photograph before sealant placement where visible.
14. Check fastener penetrations near jamb seals: none within 25 mm without sealing; any penetrations must be sealed with compatible material; provide close-up photos.
15. Assess insulation/foam behind trims at jambs: low-expansion foam fills depth without bowing frame; residual gaps ≤ 1 mm (feeler gauge); document with interior/exterior photos.

Sill Seal Continuity

16. Confirm sloped sill or pan: slope ≥ 6° to exterior; verify continuous pan flashing with corner reinforcement; photograph level/angle indicator and pan condition.
17. Inspect sill pan corners and end dams: upturns ≥ 25 mm, fully sealed transitions to jambs; upload corner close-ups with measuring scale.
18. Check sill-to-frame sealant/gasket continuity while keeping weep paths open; confirm weep holes unobstructed and clear; provide probe photo through weep path.
19. Verify compression gasket/threshold seal continuity: no cuts, joint gaps ≤ 1 mm (feeler gauge); record length checked and capture macro photos.
20. Perform localized controlled spray at sill (2–3 L/min for 5 min) while observing interior; acceptance: no moisture penetration; document nozzle type, flow rate, and observations.

Transitions and Terminations

21. Inspect three-way corners where head, jamb, and sill meet: install compatible transition pieces extending ≥ 75 mm each leg; photograph after tooling.
22. Verify primer use and adhesion across dissimilar materials (e.g., metal to masonry): gentle peel check shows no edge lift; document primer product and photo evidence.
23. Confirm termination beads are neatly tooled at 45° covering tape/flashing edges by ≥ 6 mm; capture raking-light photos to show continuity.

Documentation and Sign-Off

24. Capture geo-tagged photos at head, both jambs, and sill with measurement scales visible; verify metadata saved in the report.
25. Record all material batch/lot numbers, colours, and expiry dates used at the opening; upload label photos and enter data in fields.
26. Obtain installer and inspector digital signatures confirming continuous seals around head, jamb, and sill per approved project specifications and authority requirements.

What continuity means at head, jamb, and sill

Continuity at an opening perimeter means each component—sealant, flashing/tape, backer rod, gasket, and substrate—forms an unbroken, positively drained path that resists water and air migration. At the head, shingle-lapped elements direct water outward and beyond the jamb interfaces. Jamb seals must bridge between frame and wall without thin spots, skips, or unbonded edges. Sills require positive slope or pan flashing with end dams to shed incidental water and keep weeps unobstructed. Proper joint design uses a backer rod to control sealant depth and shape for movement capability, with laps and terminations detailed to prevent capillary movement. The result is a resilient, durable interface that accommodates differential movement, thermal cycling, and wind pressure while protecting finishes and insulation. On site, inspectors verify these conditions through visual, tactile, and measured checks, capturing photos with scales and recording material data to ensure repeatable outcomes and traceable approvals across multiple openings.

Shingle-lap weather barriers to shed water outward and down.
Backer rod controls sealant depth, shape, and movement capability.
End dams and upturns prevent lateral water migration at corners.
Gaskets and weeps must remain continuous and unobstructed.

Practical verification methods and acceptance cues

Effective field verification blends simple tools with clear tolerances. A tape measure confirms minimum laps (≥ 75 mm) and transition piece extents. Gauge cards or calipers check bead width (8–12 mm) and depth (~50% of width) over a backer rod. A blunt probe traces the full length to reveal skips; acceptable gaps are none greater than 1 mm. Feeler gauges verify gasket continuity with joint gaps ≤ 1 mm. Moisture meters ensure substrates are dry before sealing, typically ≤ 15% for wood and visibly dry for mineral surfaces. Gentle peel checks help confirm adhesion across dissimilar materials without destructive testing. Where safe, a controlled low-flow spray at the sill can help reveal deficiencies without substituting full performance testing. Each finding should be documented with photos under raking light, clearly showing bead profile, laps, and corner terminations, alongside batch numbers for traceability and acceptance.

Measure laps and bead dimensions with a visible scale.
Probe entire length; no gaps or holidays > 1 mm.
Confirm substrate dryness before any sealing work.
Use raking light photos to show profiles and edges.

Common defects and targeted corrections

Frequent issues include thin or incomplete beads at the head, unsealed jamb fasteners, blocked sill weeps, and missing end dams at corners. Capillary paths arise where laps are reversed or too short, and adhesion failures occur on dusty or wet substrates. Corrective actions should be specific: clean and prime surfaces, replace undersized backer rods, retool beads to 8–12 mm with a smooth concave profile, add end dams with ≥ 25 mm upturns, and re-establish shingle laps of ≥ 75 mm. At sills, clear weeps and confirm positive slope or pan function before resealing. Document each repair with before/after photos and repeat measurements. Avoid overfilling joints, which can bridge weeps or restrict frame movement. Where materials meet (e.g., metal to masonry), confirm primer compatibility and perform a light peel check to verify bond before closing up the assembly and moving to the next opening.

Restore correct laps and end dams at all corners.
Retool beads to 8–12 mm with proper concave profile.
Clear weeps; verify slope or pan drains outward.
Clean, prime, and verify adhesion across dissimilar materials.

How to Use This Interactive Perimeter Seal Continuity Checklist

Preparation: assemble drawings/details, sealant data sheets, gauge card, calipers, moisture meter, measuring tape, feeler gauges, probe, spray bottle (2–3 L/min), PPE, and safe access. Verify dry, clean substrates and a suitable weather window.
Start Interactive Checklist: open the checklist on your device, select the specific opening, enable tick mode, and proceed item-by-item. Attach geo-tagged photos and material label images as you go.
Use Comments and Photos: add notes for observed defects, tag responsible parties, and request corrective actions. Capture raking-light close-ups and include measurements or readings directly in the comment thread.
Sign-Off and Export: finalize by capturing installer/inspector e-signatures, then export the commentable report as PDF/Excel. Share the QR-authenticated file with stakeholders and archive per project requirements.

Inspect head, jamb, and sill seal continuity at openings

Start Interactive Checklist

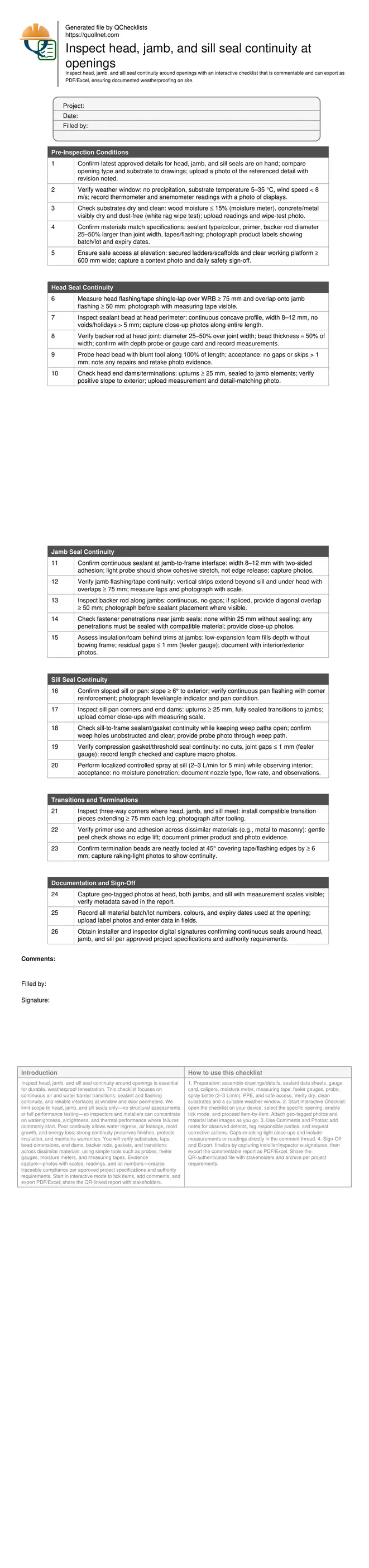

Opening Perimeter Seal Continuity Inspection

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “Opening Perimeter Seal Continuity Inspection by Quollnet” with a link to this source page.

Download Excel - Opening Perimeter Seal Continuity Inspection
Download PDF - Opening Perimeter Seal Continuity Inspection
View Image - Opening Perimeter Seal Continuity Inspection

Esme Dubois Esme Dubois

May 04, 2026

346

FAQ

Question: What does “seal continuity” mean at head, jamb, and sill?

Seal continuity means each element—sealant, flashing/tape, backer rod, and gaskets—forms an unbroken, positively drained barrier around the opening. Laps shed water outward, beads maintain adhesion both sides, and corners include end dams. Continuous elements resist water and air movement while accommodating expected thermal and structural movement.

Question: How can I confirm bead size and depth without cutting it open?

Use a gauge card or calipers to measure bead width (target 8–12 mm). A depth probe at an inconspicuous location can confirm depth is roughly 50% of width over a backer rod. Raking-light photos reveal concave tooling. Combine measurements with a light probe test to detect skips or voids.

Question: When should I avoid spraying water at the sill during inspection?

Avoid spray tests during freezing conditions, on uncured sealants, or where interior finishes are unprotected. Controlled, low-flow misting (2–3 L/min) can supplement visual checks but does not replace formal performance testing. If risk is high, rely on visual/probe verification and request corrective sealing before any water application.

Question: Which materials commonly cause adhesion problems at transitions?

Dusty masonry, oxidized metals, damp wood, and previously coated surfaces often reduce adhesion. Clean thoroughly, ensure substrates are dry, and apply compatible primer where specified. Perform a gentle peel check at dissimilar interfaces to confirm bond. Record primer and sealant batch numbers and capture photos for traceability and accountability.
