Inspect façade setting-out lines and benchmarks before installation ensures survey control readiness for façade teams, confirming grid alignment, elevation datums, and permanent references before fixing any brackets or frames.
- Verify control points, gridlines, and datums with calibrated survey instruments.
- Confirm tolerances for line, level, and plumb against approved drawings.
- Record measurements, photos, and approvals for traceable pre-installation evidence.
- Interactive, commentable checklist with export and QR code authentication.
The checklist
Pre-survey Controls
- Confirm calibration certificates for total station, digital level, and laser are in date; acceptance: current and traceable. Evidence: photos of certificates with instrument serial numbers.
- Review approved setting-out drawings, control coordinates, and grid references; acceptance: latest revision verified. Evidence: drawing numbers logged and revision stamps photographed.
- Resection/backsight to primary control points; acceptance: horizontal residual ≤ 5 mm, vertical ≤ 3 mm. Evidence: instrument resection report attached.
- Select stable instrument setups away from heat shimmer and vibration; use heavy-duty tripod. Evidence: setup photos and brief weather/visibility note recorded.
Benchmarks and Datums
- Level check permanent benchmarks in a closed loop using digital level; acceptance: closure ≤ 3 mm for loop ≤ 100 m. Evidence: level book or digital log uploaded.
- Establish façade elevation datum per drawing (e.g., FFL + datum); acceptance: ±2 mm. Evidence: marked datum (paint/engraved) with photo and coordinates.
- Protect benchmarks and datums with covers/boxes and tag IDs; acceptance: clearly labeled and durable. Evidence: photos and tag list recorded.
- Cross-check datum transfer with rotary laser across working area; acceptance: readings within 2 mm. Evidence: laser readings snapshot and cross-check sheet.
Setting-Out Lines Verification
- Transfer building gridlines to façade face with total station; acceptance: offset to design within ±3 mm. Evidence: as-built coordinate file (.csv/.dxf) uploaded.
- Establish horizontal control lines (chalk/tape) for bracket rows; acceptance: straightness deviation ≤ 2 mm over 10 m. Evidence: stringline check photo with ruler.
- Verify edge-of-slab to façade reference offset every 10 m; acceptance: ±5 mm. Evidence: measurement log with start/end chainages and photos.
- Mark mullion centerline points at each anchor position; acceptance: within ±3 mm of design. Evidence: tagged points photographed and station/offset noted.
Verticality and Plumb Control
- Shoot plumb control using laser plummet or total station; acceptance: variation ≤ 2 mm over 3 m. Evidence: plumb report and close-up photos at reference marks.
- Check story-to-story vertical alignment along full drop; acceptance: cumulative drift ≤ 5 mm over 30 m. Evidence: vertical traverse data attached.
- Survey substrate out-of-plane using 2 m straightedge and feeler gauges; acceptance: ±4 mm over 2 m. Evidence: gauge reading photos at representative spots.
- Identify protrusions/clashes (beams, sleeves) against control lines; acceptance: zero conflict with façade line. Evidence: clash sketch with dimensions and photos.
Tolerances and Adjustments
- Confirm bracket/anchor adjustability covers measured deviations; acceptance: ≥ 5 mm reserve adjustment remaining. Evidence: datasheet extract and calc note.
- Verify control batten/tape fixing at splices and corners; acceptance: gap ≤ 1 mm and secure. Evidence: close-up photos with scale.
- Reconcile grid with panel/module; acceptance: cumulative closure ≤ half joint width. Evidence: annotated overlay of grid vs module uploaded.
- Confirm movement joints and allowances referenced to benchmarks; acceptance: dimensions per drawings. Evidence: measured dimensions recorded with photos.
Documentation and Handover
- Upload raw survey files (.csv/.job/.dxf) and coordinate system notes; acceptance: complete, readable, and named to standard. Evidence: file list screenshot.
- Attach marked-up photos showing lines, datums, and tags; acceptance: clear, labeled, and time-stamped. Evidence: photo set in gallery.
- Capture approvals from surveyor and façade supervisor; acceptance: digital signatures recorded. Evidence: signed inspection record in platform.
- Post QR-coded control plan at workface; acceptance: scan opens latest issue. Evidence: QR test screenshot and location photo.

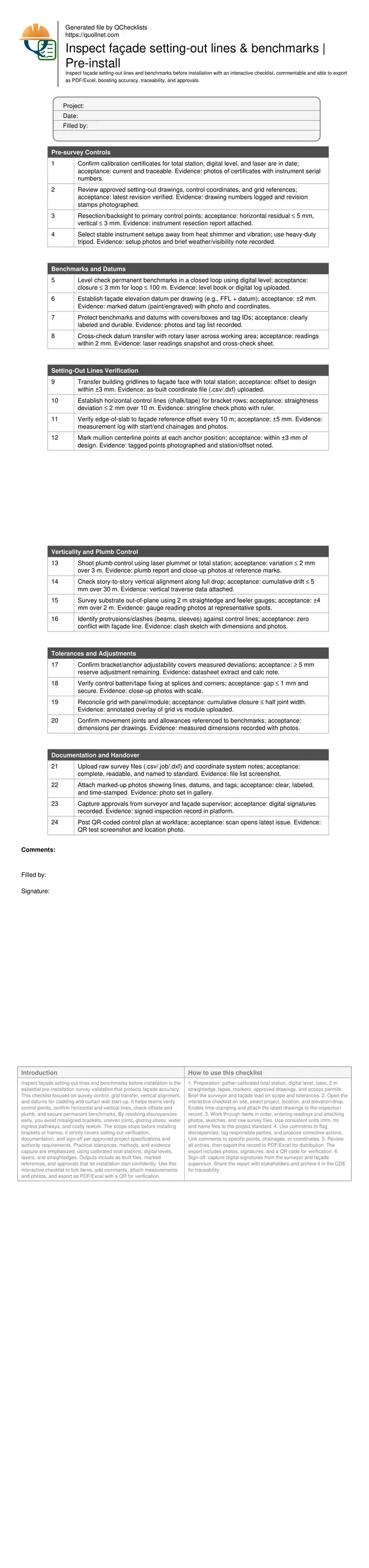

Preview the printable checklist
Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Confirm control network, datums, and façade reference lines before any fixing begins. The checklist drives precise grid transfer, vertical control, and offsets, cutting layout time and minimizing downstream rework, nonconformities, and snagging while enabling a clean, auditable survey trail.
- Define practical acceptance tolerances for line, level, and plumb using calibrated instruments. Items specify tools, methods, and evidence requirements, so teams consistently capture readings, photos, and raw files that prove compliance with approved drawings and project specifications.
- Interactive online checklist with tick, comment, and export features secured by QR code.
- Streamline approvals by collecting surveyor and façade supervisor sign-offs, posting QR-coded control plans on site, and archiving reports in the CDE. This ensures everyone builds from the same verified references, reducing coordination clashes and accelerating start-of-installation readiness.
How to use this checklist
- Preparation: gather calibrated total station, digital level, laser, 2 m straightedge, tapes, markers, approved drawings, and access permits. Brief the surveyor and façade lead on scope and tolerances.
- Open the interactive checklist on site, select project, location, and elevation/drop. Enable time-stamping and attach the latest drawings to the inspection record.
- Work through items in order, entering readings and attaching photos, sketches, and raw survey files. Use consistent units (mm, m) and name files to the project standard.
- Use comments to flag discrepancies, tag responsible parties, and propose corrective actions. Link comments to specific points, chainages, or coordinates.
- Review all entries, then export the record to PDF/Excel for distribution. The export includes photos, signatures, and a QR code for verification.
- Sign-off: capture digital signatures from the surveyor and façade supervisor. Share the report with stakeholders and archive it in the CDE for traceability.
Why setting-out verification precedes any façade fixing
Starting façade work without verified setting-out lines and benchmarks is a common root cause of misaligned brackets, racked frames, uneven joints, and warranty disputes. This verification confirms the project’s survey control network, aligns elevations to a reliable datum, and transfers gridlines accurately to the building face. It also validates vertical control so plumb is maintained across drops. The process captures potential clashes and substrate deviations early, allowing design or bracket adjustments while access is easiest. Acceptance cues—like residuals under a few millimetres and straightness within tight limits—give confidence that subsequent installation will land inside tolerance. Evidence is equally important: raw files, annotated photos, and signatures make findings auditable per approved project specifications and authority requirements. The outcome is faster installation starts, fewer reworks, and a defensible record proving correct geometry before any fixing begins.
- Verify control network, datums, and grid transfer first.
- Confirm vertical control to keep drops plumb.
- Catch clashes and substrate deviations early.
- Record tolerances, readings, and approvals.
- Start installation from trusted geometry.
Practical methods, tolerances, and evidence that stand up
Use a calibrated total station for grid transfer and vertical checks, and a digital level for datums and loop closures. Verify benchmark closure on short loops within a few millimetres, then project horizontal and vertical control to all work zones. For lines, mark with chalk or high-visibility tapes and validate straightness using a taut stringline or laser. Check offsets from slab edges, mullion centerlines at anchor points, and substrate flatness with a 2 m straightedge. For plumb, confirm variation over a measured height and monitor cumulative drift across storeys. Each reading should be recorded in a structured log with photos that clearly show tags, scales, and reference marks. Upload raw coordinate files and note the coordinate system, so others can reproduce results. These practices create traceability and reduce ambiguity when decisions must be made quickly.
- Use total station, digital level, and lasers.
- Hold line straightness within a few millimetres.
- Record offsets at regular chainages.
- Capture raw files and annotated photos.
- State coordinate system and datums.
Coordination, approvals, and controlled release to install
Setting-out verification is a collaborative checkpoint between surveyor, façade lead, and site engineer. Conduct a joint walk-through after measurements, review discrepancies against drawings, and agree on adjustments or design queries. Document decisions in comments with tagged locations, then lock the control plan with signatures. Post a QR-coded copy at the workface so teams always access the latest issue from mobile devices. Export a concise report combining measurement logs, photos, and as-built files, and archive it in the CDE for traceability. These steps prevent crews from using outdated lines, support authority inspections, and give commercial teams robust evidence if variations arise. With approvals complete, the project manager can formally release the area for bracket installation, confident that line, level, and plumb control is in place.
- Hold a joint review and walkthrough.
- Tag issues and agree corrective actions.
- Sign, post, and protect control plans.
- Export report and archive in CDE.
- Release area only after approvals.
