Inspect façade insulation boards before cladding closure guides site supervisors and quality inspectors through pre-closure checks to confirm materials, fixings, fire barriers, and interfaces meet approved drawings, tolerances, and documentation requirements.
- Verify materials, thickness, density, and facing match approved submittals.
- Measure gaps, planarity, and fixing patterns against defined tolerances.
- Confirm cavity barriers and moisture management are continuous and intact.
- Use interactive, commentable, export tools with QR code authentication.
The checklist
Materials Verification
- Confirm insulation board type, thickness, density, and facing match approved submittals; photograph packaging labels and mark lot/batch numbers; acceptance: dimensions within manufacturer tolerance and thickness ≥ specified minus 3 mm.
- Inspect boards for damage (crushed edges, delamination, saturation); reject boards with edge crush >3 mm or wet cores; capture close-up photos and segregation tags for rejected materials.
- Verify conformity markings and documents (CE/UKCA, Declaration of Performance, safety datasheets) are available; upload copies; acceptance: documentation complete, aligned to submitted product codes.
- Check storage conditions: pallets off ground ≥150 mm, under waterproof cover, drains clear; photograph storage and record ambient RH/temperature; acceptance: boards dry to touch, no visible staining.
Substrate and Fixings Readiness
- Verify substrate planarity using a 2 m straightedge; deviation ≤5 mm; record measurement photos with feeler gauge and elevation reference.
- Confirm bracket/rail grid aligns with insulation module; measure centres; tolerance ±5 mm from shop drawings; mark and photograph grid lines before boarding.
- Check fixing type/length and corrosion class match submittals; acceptance: embedment depth ≥30 mm into approved substrate or per specification; photograph packaging and labels.
- Conduct representative pull-out tests per elevation using a calibrated tester; acceptance: results ≥ design value; record readings, tester serial, and calibration date with photos.
Installation Quality and Tolerances
- Verify boards are tight-butted; measure joint gaps; acceptance: ≤2 mm; infill gaps >2 mm with matching strips; photograph repairs before closure.
- Check staggered joints (brick-bond pattern); acceptance: minimum offset 150 mm both directions unless otherwise detailed; capture elevation-wide photo and close-ups.
- Measure local planarity across adjacent boards with a 1 m straightedge; acceptance: steps ≤3 mm; mark high spots and re-seat or replace; photograph rework.
- Count mechanical fixings per board; acceptance: quantity and pattern per drawings (e.g., min 6/board), edge distance ≥50 mm; photo each sample board with marked fixings.
- Spot-check insulation thickness with a steel rule at cut edges; acceptance: average thickness within +0/−3 mm of specified; log 1 check per 20 m² and upload readings.
Fire and Moisture Controls
- Inspect horizontal and vertical cavity barriers at slab edges, perimeters, and compartment lines; acceptance: continuous, compression fit, joints tightly butted (gaps ≤2 mm); photo tags and lot numbers.
- Verify fire-stopping continuity at corners and transitions; acceptance: no visible voids; mechanical retention/brackets installed as detailed; capture close-ups before insulation covers interfaces.
- Check weather-resistive barrier behind insulation is intact, lapped ≥150 mm, taped, and flashed at openings; acceptance: no tears >10 mm (repair with manufacturer patch); photograph repairs.
- Confirm ventilated cavity depth between insulation and cladding rails; measure with a gauge; acceptance: clear cavity within 25–50 mm as specified; record measurements every 10 m.
Penetrations, Openings, and Interfaces
- Seal service penetrations using approved collars or mineral wool packing; acceptance: annular gaps fully filled and surface sealed; upload pre-closure photos with scale.
- Verify window/door reveals have continuous insulation returns; acceptance: reveal thickness ≥80% of wall insulation; clean cuts, no exposed substrate; photo each opening.
- Check base/top terminations: insulation tight to starters and top closures; insect mesh at vents; clearance to finished ground ≥150 mm; photo full-width details.
- Inspect movement joints through insulation; acceptance: joint width per drawings (±3 mm) with preformed strips; label joint locations on photos.
Documentation and Sign-off
- Capture as-built photos at max 10 m spacing and all features; include elevation reference, scale, and north arrow; link images to drawing grid.
- Record environmental conditions during installation: temperature 5–35 °C, wind <10 m/s; upload weather log or site instrument readings with timestamps.
- Complete installer QC and supervisor sign-off; verify all holds cleared per approved project specifications and authority requirements; export signed report to PDF/Excel.
Preview the printable checklist

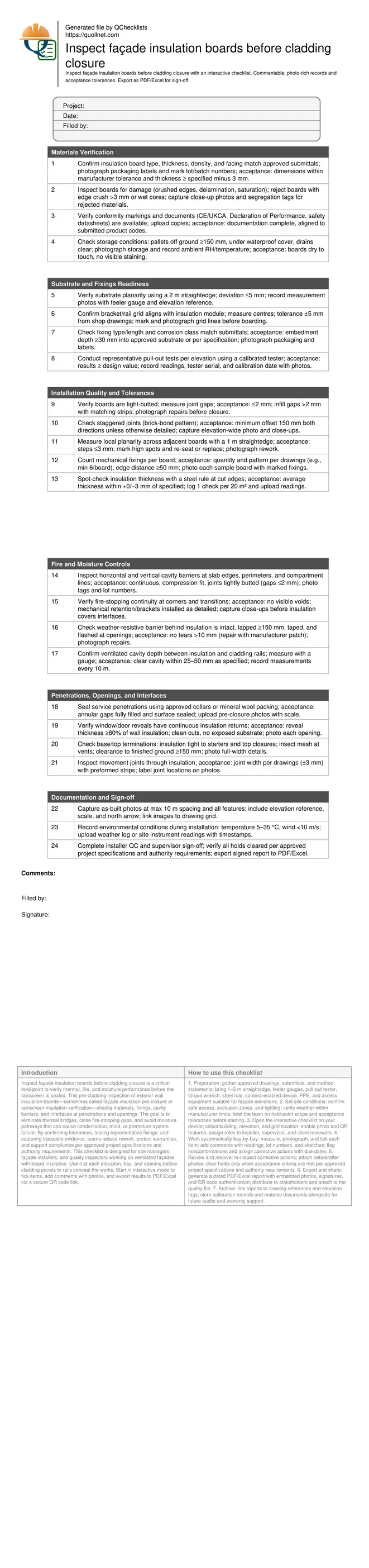

Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Use this checklist as a formal pre-closure hold point to verify insulation board type, thickness, and installation tolerances. Early detection of gaps, misaligned boards, and under-specified fixings prevents thermal bridging, preserves ventilation cavity continuity, and reduces costly dismantling after cladding is installed.
- Document every finding with location-tagged photos, packaging labels, declarations of performance, and calibrated tool readings. Consistent evidence captures support handover, warranty claims, and authority reviews while enabling root-cause analysis in case of water ingress, fire-stopping discontinuities, or cladding fastener clashes discovered later.
- Interactive online checklist with tick, comment, and export features secured by QR code. It standardizes acceptance criteria, timestamps sign-offs, and links each observation to drawings, elevations, and lot numbers—creating an auditable trail that simplifies subcontractor coordination and accelerates approvals without sacrificing rigor.
- Apply it bay-by-bay and around all openings before rails and panels are fixed. Combine dimensional checks with sample pull-out tests, cavity barrier continuity checks, and interface verifications to achieve reliable, repeatable quality while keeping crews aligned with approved project specifications and authority requirements.
How to use this inspection checklist
- Preparation: gather approved drawings, submittals, and method statements; bring 1–2 m straightedge, feeler gauges, pull-out tester, torque wrench, steel rule, camera-enabled device, PPE, and access equipment suitable for façade elevations.
- Set site conditions: confirm safe access, exclusion zones, and lighting; verify weather within manufacturer limits; brief the team on hold-point scope and acceptance tolerances before starting.
- Open the interactive checklist on your device; select building, elevation, and grid location; enable photo and QR features; assign roles to installer, supervisor, and client reviewers.
- Work systematically bay-by-bay: measure, photograph, and tick each item; add comments with readings, lot numbers, and sketches; flag nonconformances and assign corrective actions with due dates.
- Review and resolve: re-inspect corrective actions; attach before/after photos; clear holds only when acceptance criteria are met per approved project specifications and authority requirements.
- Export and share: generate a dated PDF/Excel report with embedded photos, signatures, and QR code authentication; distribute to stakeholders and attach to the quality file.
- Archive: link reports to drawing references and elevation tags; store calibration records and material documents alongside for future audits and warranty support.
Dimensional accuracy and board fit drive cladding performance
Before closing a ventilated façade, confirm the insulation layer is dimensionally accurate and properly restrained. Small defects compound: a 3 mm board step can telegraph through rails, complicate panel alignment, and create intermittent cavity choke points. Use a 2 m straightedge to assess substrate planarity, then a 1 m straightedge across adjoining boards to verify local flatness. Tight butt joints prevent convection loops and thermal bypass; where gaps exceed 2 mm, insert matching insulation strips rather than relying on sealants. Fixing patterns and edge distances must follow the drawings to control wind suction and minimize board bowing. Measure thickness at cut edges to spot substitution or over-compression. Expect to sample at defined intervals and document each reading. On live projects, catching misaligned rails early prevented panel clash, while replacing a crushed board avoided a visible panel kick that would have otherwise required post-closure dismantling.
- Use 2 m straightedge for substrate deviation ≤5 mm.
- Local steps across boards should be ≤3 mm.
- Joint gaps ≤2 mm; infill with matching strips.
- Fixing count/pattern per drawings; edge ≥50 mm.
- Spot-check thickness within +0/−3 mm of spec.
Fire and moisture continuity at interfaces
Cavity barriers and weather-resistive layers must be continuous before cladding conceals them. At floor edges, perimeters, and compartment lines, cavity barriers should be tight and compression-fitted, with joints closely butted. Around penetrations and openings, ensure mineral wool packing or approved collars fill annular gaps, and that flashing and tapes create shingled, downward-facing laps. The weather-resistive barrier behind insulation must be intact and repaired where damaged; even small tears can channel wind-driven rain into the sheathing. Maintain the ventilated cavity depth across the elevation to avoid moisture accumulation or reduced airflow. Field experience shows missing 200 mm of barrier at a corner can compromise compartmentation, and an unsealed WRB slit at a window head can track water to interior finishes. Photographic evidence and tagged lot numbers provide assurance that concealed safety features remain traceable after closure.
- Cavity barriers continuous; joints with gaps ≤2 mm.
- WRB laps ≥150 mm, taped and shingled.
- Seal penetrations with approved collars or packing.
- Maintain ventilation cavity within specified range.
- Photograph tags and barrier continuity before closure.
Evidence, traceability, and hold-point discipline
Pre-closure inspections are only as good as the records behind them. Capture location-tagged photos at intervals and at every opening, including a simple scale reference in frame. Upload packaging labels, Declarations of Performance, and calibration certificates for pull-out testers. Log environmental conditions to demonstrate that installation occurred within manufacturer limits. Structure sign-offs: installer quality checks first, then supervisor verification, and ultimately client or clerk-of-works release of the hold point. Exporting a consolidated report to PDF/Excel helps cross-check elevations and identify gaps before proceeding. On one tower project, consistent pull-out logs avoided blanket retesting demands; on another, linking photos to gridlines sped up handover reviews by days. This discipline safeguards warranties and reduces disputes by presenting clear, timestamped evidence tied to drawings and product data.
- Photo every 10 m and all features with scale.
- Upload labels, DoPs, and calibration records.
- Log temperature, wind, and RH limits.
- Stage installer, supervisor, and client sign-offs.
- Export consolidated PDF/Excel for review.
