Parapet and façade transition waterproofing inspection checklist

The checklist

Documentation & Approvals

1. 1Confirm latest approved detail drawings show parapet–façade transition (upstand height, terminations, drips); record drawing numbers, revisions, and approvals; attach plan markup highlighting inspected locations.
2. 2Verify product data sheets and compatibility letters for membrane, primer, sealant, and metals; capture batch/lot numbers, expiry dates, and manufacturer approvals as photos.
3. 3Review method statement and ITP specific to parapet transitions; confirm hold/witness points; record inspector and installer signatures with date/time stamp.
4. 4Record environmental conditions within manufacturer limits: ambient/surface temperature and relative humidity using a calibrated thermo-hygrometer and IR thermometer; attach readings photo.

Substrate & Geometry

1. 5Measure waterproofing upstand height at transition; accept ≥150 mm above adjacent finished surface unless specified otherwise; photo with tape measure and location tag.
2. 6Check parapet coping or slope towards designated side per detail; accept minimum 1:80; verify with digital level; record slope direction and reading.
3. 7Assess substrate soundness (concrete/masonry/backup): no loose laitance, voids, or sharp arrises; moisture content ≤5% by mass unless product allows more; log moisture meter readings.
4. 8Verify corner treatment: fillet/chamfer 10–20 mm at inside angles; install preformed mitres where required; photo close-ups before membrane application.
5. 9Confirm surface preparation: clean, dry, dust-free; primer applied evenly at manufacturer’s coverage; take wet/dry film gauge readings and record m² primed.

Membrane & Flashing Installation

1. 10Install corner reinforcements/preformed corners at inside/outside parapet returns; no fish-mouths; probe edges with seam probe; photo after installation.
2. 11Ensure membrane turn-up on parapet and turn-down behind façade interface per detail; laps ≥75 mm or per datasheet; verify seams by probe and trial peel; document lap width with ruler.
3. 12Fix termination bar at designated elevation on façade/back-up: stainless fixings at 200 mm centres (or spec); torque to manufacturer value; record spacing and torque sample readings.
4. 13Apply sealant bead over termination bar: width 10–15 mm, fully tooled; confirm joint backing where needed; capture sealant batch/expiry and close-up bead photo with scale.
5. 14Install counterflashing/reglet per detail: chase depth ≈20 mm; laps ≥50 mm, drip hem continuous; fixings stainless; photo reglet depth with probe and show continuous line.

Penetrations & Interfaces

1. 15Detail around façade brackets/anchors at the transition: use preformed collars or compatible liquid flashing; maintain minimum 25 mm cover; photo before and after closure.
2. 16Provide drip edge/weep path on façade side to shed water clear of cladding; continuous through corners; fixings ≤150 mm centres; verify visible drip line; photo underside.
3. 17At terminations near window heads or parapet caps, maintain shingle-lap logic; overlaps ≥75 mm; show continuity behind trims; capture sequence photos before cover.
4. 18Confirm material compatibility: separate bitumen and PVC/TPO with ≥300 g/m² fleece or PE sheet; photo separation layer and label materials.

Drainage & Protection

1. 19Check scuppers/overflows at transition zones: openings clear, edges waterproofed, metal sleeves sealed; dimensions per drawing; water pour test for flow; photo discharge.
2. 20Install protection board/metal flashing to guard membrane from façade works; continuous with taped joints; thickness ≥6 mm or per spec; photo coverage and fixings.
3. 21Verify façade drainage plane terminates above waterproofing with 10–15 mm gap and drip; ensure cavity trays discharge externally; photo gap with feeler gauge.

Testing & Handover

1. 22Perform controlled hose/spray test on transition for ≥30 minutes at 3–5 L/min; inspect interior and cavity; no leaks or dampness; upload video and marked plan.
2. 23Conduct adhesion pull-off on representative areas: accept ≥0.5 MPa or per approved project specifications and authority requirements; record gauge readings and locations.
3. 24Compile as-built evidence: wide/mid/close photos with scale, batch labels, torque log, environmental readings; link to drawing references; verify completeness checklist.
4. 25Obtain final sign-off by installer, GC, and consultant; attach punch-list closure; export PDF/Excel with QR authentication; archive in project QA system.

Preview the printable checklist

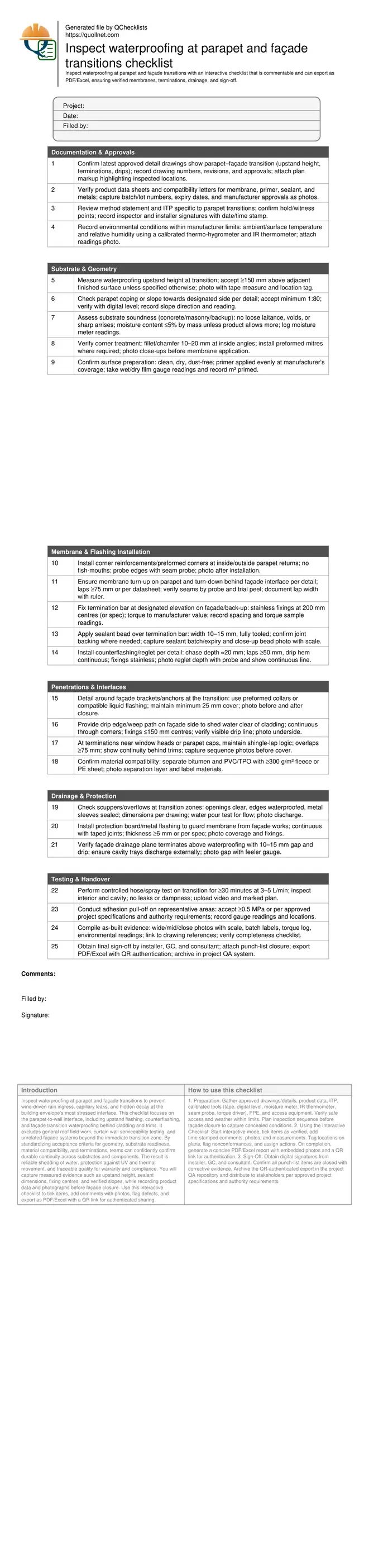

Preview page one below. Open the image or download the PDF for all pages.

At a glance

• Targeted inspection of the parapet-to-façade interface reduces leak risks from poor terminations, sharp corners, or incompatible materials. Practical tolerances and measurement methods help teams confirm continuous waterproofing where membranes, counterflashings, and cladding supports converge.
• Field-proven steps verify substrate soundness, primer coverage, corner reinforcement, termination bars, sealant beads, drip edges, weeps, and overflow details. Each item requests measurable evidence, photos with scale, batch numbers, and signatures for reliable traceability.
• Interactive online checklist with tick, comment, and export features secured by QR code. Teams can log defects, attach corrective evidence, and produce authenticated PDF/Excel records for consultants, owners, and warranty providers without duplicating paperwork.

How to Use This Interactive Checklist

1. Preparation: Gather approved drawings/details, product data, ITP, calibrated tools (tape, digital level, moisture meter, IR thermometer, seam probe, torque driver), PPE, and access equipment. Verify safe access and weather within limits. Plan inspection sequence before façade closure to capture concealed conditions.
2. Using the Interactive Checklist: Start interactive mode, tick items as verified, add time-stamped comments, photos, and measurements. Tag locations on plans, flag nonconformances, and assign actions. On completion, generate a concise PDF/Excel report with embedded photos and a QR link for authentication.
3. Sign-Off: Obtain digital signatures from installer, GC, and consultant. Confirm all punch-list items are closed with corrective evidence. Archive the QR-authenticated export in the project QA repository and distribute to stakeholders per approved project specifications and authority requirements.

Why parapet–façade transitions leak and how to inspect them

Transitions between parapets and façades are exposed to wind-driven rain, thermal movement, and complex geometry. Failures typically start at sharp inside corners, insufficient upstand height, discontinuous laps, or blocked weep paths that trap water behind cladding. During inspection, verify the water-shedding logic before looking at individual materials: water must fall away from the building via a continuous drip edge, slope, and drainage path. Measure upstands (target ≥150 mm unless specified), confirm a consistent slope (≥1:80), and ensure corners are eased with 10–20 mm fillets so membranes can sit flat without fish-mouths. Check substrates are clean, dry, and sound, with moisture within product limits. Primer coverage, reinforcement at corners, and correctly tooled sealant over termination bars are crucial acceptance cues. Document each check with photos showing a scale and location context, and capture batch numbers and environmental conditions to validate manufacturer requirements and warranties.

• Confirm continuous water-shedding geometry before material checks.
• Measure upstand height and slope with calibrated tools.
• Ease corners with fillets to avoid fish-mouths and stress.
• Document photos with scale, location, and batch numbers.

Materials, compatibility, and terminations that make details durable

A robust transition depends on compatible materials and secure terminations. Verify membranes and primers suit the substrate and each other; separate incompatible pairs (e.g., bitumen with PVC/TPO) using fleece or PE sheets. At the façade side, termination bars must be fixed at controlled centres with stainless fasteners and then sealed with a properly tooled bead. Counterflashings seated in a clean reglet (≈20 mm depth) with overlapped joints maintain protection and a functional drip. Reinforcements at inside/outside corners distribute stress and prevent pinholes. Around façade brackets or anchors, use preformed collars or liquid-applied flashing to maintain coverage without bulky build-up. Protect the finished membrane from later trades with boards or metal flashings. Consistently probe seams, spot-check lap widths, and record torque values to confirm installation quality and long-term serviceability.

• Use separation layers between incompatible materials.
• Fix termination bars at set centres and seal over.
• Seat counterflashing in a clean, deep reglet.
• Reinforce corners and probe seams consistently.

Testing, documentation, and handing over a traceable envelope

Testing verifies what the eye can miss. A controlled hose test at the transition demonstrates continuity of laps, terminations, and drip lines under realistic wetting. Combine this with adhesion checks where specified to confirm bond strength. During closure, create a photographic chain-of-custody: wide view, mid view, and close-up with a ruler or gauge, referencing drawing locations. Log environmental conditions and tool calibrations to substantiate installation within manufacturer limits. Maintain a register of batch numbers for membranes, primers, and sealants to support warranty requirements. Before sign-off, review drainage features such as scuppers and weeps to ensure free discharge. Finally, export an authenticated record set with QR linkage so stakeholders can verify the integrity of documentation throughout the building’s life cycle.

• Run hose tests and inspect interiors simultaneously.
• Capture wide, mid, and close-up photos with scale.
• Record environmental and calibration evidence.
• Export authenticated records with QR linkage.
