Inspect Façade Embedded Plates and Cast-In Anchors Checklist

Inspect façade embedded plates and cast-in anchors before façade works to ensure every support point is positioned, fixed, and protected as designed. This checklist targets embedded plates, cast-in anchors, and cast-in channels used to carry façade brackets, avoiding misalignment, inadequate embedment, corrosion, and rejected works. It focuses on pre-facade activities only—verifying coordinates, elevations, welds, surface condition, concrete strength, and coating quality—without covering façade panel installation or bracket setting. You will check survey coordinates with a total station, confirm embedment with gauges, validate weld sizes per WPS, and assess coating DFT. Proof loads, torque checks, and NDT are included where required per approved project specifications and authority requirements. Outcomes are clear: compliant supports, credible as-built data, minimized rework, and rapid façade mobilization. Use this interactive checklist to tick inspections, add photos and comments, and export your record as PDF/Excel with a secured QR code for site traceability.

Inspect façade embedded plates and cast-in anchors – Checklist

Inspect façade embedded plates and cast-in anchors before façade works to verify location, embedment, integrity, and protection for site engineers, QA/QC, and façade specialists ahead of bracket installation.

  • Confirms geometry, embedment, and alignment meet drawings and tolerances.
  • Validates welds, coatings, and materials against approved specifications.
  • Captures survey, test records, photos, and digital sign-offs.
  • Interactive, commentable checklist with export and QR code traceability.

The checklist

Pre-Inspection Documentation

  1. Confirm latest approved documents and test readiness.
  2. Confirm latest IFC, approved shop drawings, and ITP revisions on site; record drawing numbers/revisions; acceptance: documents current; evidence: photos of title blocks and approval stamps.
  3. Verify material certificates for plates and anchors (grade and coating) match schedules; acceptance: heat numbers traceable; evidence: upload MTCs and mark-up correlating tags to lots.
  4. Check approved method statement and ITP include hold/witness points for survey, NDT, and tests; acceptance: approvals in place; evidence: signed permits and ITP with roles/date.
  5. Confirm concrete compressive strength achieved for testing/loads; acceptance: test results ≥ specified MPa; evidence: cube/cylinder reports with batch/date uploaded.

Location and Geometry

  1. Survey each plate/anchor group with total station; acceptance: X/Y within ±5 mm of design; evidence: CSV and annotated plan with point IDs.
  2. Check top-of-plate elevation using levelling staff; acceptance: elevation within ±5 mm of design; evidence: survey screenshot and benchmark reference.
  3. Verify plate projection/stand-off from finished face using tape/laser; acceptance: ±3 mm from design; evidence: side-on photo with steel rule.
  4. Confirm plate/plinth plumb and face alignment using spirit level and 1 m straightedge; acceptance: ≤2 mm deviation per metre; evidence: close-up photos with gauge.
  5. Measure spacing and edge distances of anchors/plates; acceptance: no negative deviation from design minima; evidence: marked-up photo with dimensions.
  6. Scan for rebar/cover with ferroscan; acceptance: cover and clashes per approved project specifications; evidence: scan output and locations referenced.

Anchors and Embedment

  1. Measure embedment depth of cast-in anchors/channels with depth gauge; acceptance: ≥ design embedment; evidence: gauge reading photos and record sheet.
  2. Inspect anchor threads (e.g., M16/M20) with thread gauge; acceptance: nut runs full thread by hand; evidence: photo of gauge and nut engagement.
  3. Confirm cast-in channel type/grade and compatible T-bolts per datasheet; acceptance: batch/ID match submittal; evidence: labels, datasheets, and lot photos.
  4. Check identification tags/markings align with schedule; acceptance: 100% traceable; evidence: tag list cross-referenced to grid/level.
  5. Verify bearing under plates (grout/shims) is full and sound; acceptance: ≤1 mm gap by feeler gauge; evidence: underside photo before closure.

Welding and Plate Condition

  1. Measure fillet weld size/length with weld gauge per WPS; acceptance: ≥ specified size, continuous where required; evidence: photos and WPS reference.
  2. Check plate flatness and distortion with straightedge; acceptance: ≤2 mm out-of-plane over 300 mm; evidence: measurement photos.
  3. Inspect for cracks/porosity/lamination; perform MT/PT where specified; acceptance: no relevant indications; evidence: NDT reports and indication maps.

Corrosion Protection and Isolation

  1. Measure coating/galvanizing DFT with calibrated gauge; acceptance: average ≥ specified µm; evidence: readings, gauge serial, calibration certificate.
  2. Repair damaged coatings with approved system; acceptance: overlap ≥50 mm and DFT within spec; evidence: before/after photos and batch numbers.
  3. Verify isolation between dissimilar metals and concrete with isolators; acceptance: electrical isolation ≥1 MΩ; evidence: multimeter reading and installed pads.

Testing, Survey, and Handover

  1. Perform proof/pull-out tests per ITP; acceptance: test load sustained with residual displacement ≤1 mm or as specified; evidence: test graphs and calibrated jack ID.
  2. Conduct torque verification on sample fasteners; acceptance: achieves specified N·m without rotation slip; evidence: torque log with wrench ID/calibration.
  3. Compile as-built survey of all points; acceptance: dataset complete (ID, X, Y, Z); evidence: exported CSV/PDF and total station file.
  4. Apply QR tag to each inspected location linking records; acceptance: code scans to correct entry; evidence: photo with north arrow and scale.
  5. Obtain sign-offs from contractor, QA/QC, and façade specialist; acceptance: all signatures and NCRs closed; evidence: signed ITP and closure documents.

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

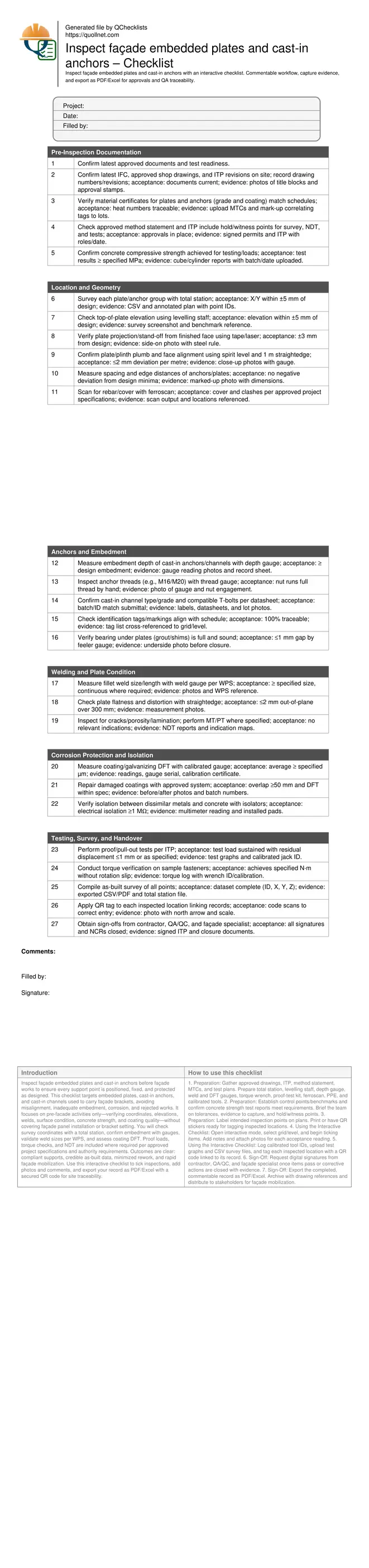

First-page preview of the Façade Embedded Plates & Cast-In Anchors Inspection printable checklist template.
Façade Embedded Plates & Cast-In Anchors Inspection · Page 1 preview · Open image with all pages

At a glance

  • Ensure embedded plates, cast-in anchors, and channels match approved drawings for location, elevation, projection, and spacing. Tolerances, survey evidence, and photo documentation reduce costly façade rework and programme delays while improving traceability across trades and shifts.
  • Verify welds, materials, coating thickness, and isolation in line with approved project specifications and authority requirements. Early detection of defects prevents corrosion, slippage, and misalignment that compromise façade bracket performance and long-term durability.
  • Demonstrate structural readiness by confirming concrete strength, embedment depth, pull-out performance, and torque verification. Record calibrated tool IDs, batch numbers, and test graphs to satisfy ITP hold points and streamline consultant approvals.
  • Interactive online checklist with tick, comment, and export features secured by QR code. Centralized records, photos, and signatures enable fast close-out, easy audits, and clear handovers to façade installers and quality managers.

How to use this interactive checklist on site

  1. Preparation: Gather approved drawings, ITP, method statement, MTCs, and test plans. Prepare total station, levelling staff, depth gauge, weld and DFT gauges, torque wrench, proof-test kit, ferroscan, PPE, and calibrated tools.
  2. Preparation: Establish control points/benchmarks and confirm concrete strength test reports meet requirements. Brief the team on tolerances, evidence to capture, and hold/witness points.
  3. Preparation: Label intended inspection points on plans. Print or have QR stickers ready for tagging inspected locations.
  4. Using the Interactive Checklist: Open interactive mode, select grid/level, and begin ticking items. Add notes and attach photos for each acceptance reading.
  5. Using the Interactive Checklist: Log calibrated tool IDs, upload test graphs and CSV survey files, and tag each inspected location with a QR code linked to its record.
  6. Sign-Off: Request digital signatures from contractor, QA/QC, and façade specialist once items pass or corrective actions are closed with evidence.
  7. Sign-Off: Export the completed, commentable record as PDF/Excel. Archive with drawing references and distribute to stakeholders for façade mobilization.

Why pre-facade inspection of embedded supports matters

Embedded plates and cast-in anchors define the datum for brackets and rails. A small positional error compounds across grids, creating misaligned façade joints, out-of-plumb mullions, and rework. Early inspection verifies coordinates, elevation, projection, and plumb, while also confirming concrete strength and absence of rebar clashes. This stage also identifies issues with welds, surface flatness, and coating continuity that could trigger corrosion or slippage once loads apply. By enforcing tolerances and recording survey evidence, you reduce remedial drilling, avoid hot-works on finished structures, and protect programme. The checklist focuses on pre-facade conditions only, not on bracket installation or panel setting. Acceptance cues are practical: mill certs for traceability, straightedge and weld-gauge readings, DFT checks, and calibrated test records. Capturing this data now gives design teams confidence to proceed and gives installers a clear, verified interface to build from.

  • Catch misalignment before brackets amplify errors.
  • Verify embedment and concrete strength for testing.
  • Prevent corrosion with coating and isolation checks.
  • Use survey data to prove readiness and traceability.

Field methods, tools, and tolerances that hold up on site

Use a total station to fix X/Y within ±5 mm and level staff for ±5 mm elevation. A 1 m straightedge verifies ≤2 mm flatness per 300 mm, while spirit levels confirm plumb. Depth gauges and ferroscan validate embedment and clear cover without destructive checks. Weld sizes are measured against the WPS using fillet gauges, with MT/PT applied where specified. Coating DFT is taken with a calibrated gauge, recording serial and calibration date. For functional assurance, use calibrated jacks to apply proof loads and torque wrenches to verify bolt tension per manufacturer guidance. Always reference approved project specifications and authority requirements for acceptance values. Photograph readings, label points visibly, and cross-reference IDs to gridlines and levels so that every record can be located later without ambiguity.

  • Survey points and elevations with a total station.
  • Measure welds and DFT with calibrated gauges.
  • Validate embedment using depth gauge and ferroscan.
  • Apply proof loads and torque with calibration evidence.

Documentation, nonconformance control, and clean handovers

Documentation closes the loop between fabrication and site conditions. Link each plate or anchor to drawing references, material certificates, and batch numbers. Tag each location with a QR code that opens the exact inspection record and photos, preventing mix-ups during façade mobilization. If deviations arise—edge distance shortfalls, insufficient DFT, or failed pull-out—raise an NCR, propose a methodical correction (e.g., engineered bonded anchor or weld repair), and re-test. Consolidate as-built coordinates and elevations in a CSV and PDF sketch for consultant approval. Record signatures from the contractor, QA/QC, and façade specialist to satisfy ITP hold points. These steps establish a defensible quality trail, support future maintenance investigations, and give installers the confidence to start bracket works without delay.

  • QR tags tie physical points to records.
  • NCRs with re-tests close quality gaps.
  • As-built survey accelerates approvals.
  • Sign-offs prove readiness for façade teams.

Tatiana Ivanova's photo
Tatiana Ivanova
14273
575
16
54

Frequently asked questions

What tolerances should I apply for plate position and elevation before façade works?

Typical site tolerances are ±5 mm in X/Y and ±5 mm in elevation, with plate flatness of ≤2 mm over 300 mm and plumb within 2 mm per metre. Always confirm the exact acceptance criteria per approved project specifications and authority requirements, and record measurements with survey files and annotated photos.

Do I need pull-out or proof load tests on cast-in anchors every time?

Follow your ITP and manufacturer guidance. Many projects require a percentage of anchors or representative locations to be tested, especially at first-of-kind areas. Apply the specified test load with a calibrated jack, record graphs, and verify residual displacement is within the acceptance limit. Document calibration certificates and test locations.

How do I handle insufficient coating thickness or damaged galvanizing?

Perform localized repair with the approved touch-up system, ensuring surface preparation, overlap of at least 50 mm, and dry film thickness within specification. Measure DFT with a calibrated gauge, document batch numbers, and retest repaired areas. If extensive, escalate via NCR and coordinate with the coating specialist.

What evidence convinces consultants that supports are ready for façade installation?

Provide a consolidated package: current approved drawings, MTCs with traceable heat numbers, total station CSV and plan, weld and DFT gauge readings with calibration IDs, pull-out and torque test reports, photos showing measurements, QR tags on locations, and signed ITP checkpoints. This forms a complete, auditable readiness record.
