Inspect detailing at penetrations/terminations checklist

Inspect detailing at penetrations/terminations is the focused quality process that validates how membranes interface with pipes, sleeves, vents, edges, and end conditions. This checklist zeroes in on penetration detailing inspection, termination flashings, and sealant/primer controls that make or break waterproofing performance, while explicitly excluding general membrane works such as field sheet layout and broad substrate preparation. By verifying primers, preformed collars, custom sleeves, mechanical clamps, termination bars, and protective covers, you reduce leak paths, prevent delamination, and safeguard warranties. The scope addresses surface condition, compatibility, bond continuity, curing windows, and evidence capture across roofs, podiums, and walls where membranes end or pass through. Outcomes include documented compliance, repeatable workmanship, and traceable records—batch numbers, torque values, wet film readings, and photo evidence—suitable for internal QA, client verification, and authority inspections per approved project specifications and authority requirements. Start in interactive mode to tick items, add comments, upload photos, and export PDF/Excel with a secure QR code.

Inspect detailing at penetrations/terminations checklist - QA

Inspect detailing at penetrations/terminations guides site inspectors and foremen through primers, collars, sleeves, sealants, and protection at interfaces, focusing on compliant, durable waterproofing terminations and excluding general membrane works.

  • Verify primers, collars, sleeves, sealants, and protection at critical details.
  • Control moisture, adhesion, consolidation, and terminations for watertight reliability.
  • Capture batch numbers, measurements, photos, torques, and approvals for traceability.
  • Interactive, commentable checklist with export and QR code records.

The checklist

Pre-Inspection at Penetrations/Terminations

  1. Confirm penetration location, diameter/shape, and material match approved drawings; measure with callipers/tape; accept within ±2 mm; label and photograph the penetration ID and measurement.
  2. Verify substrate is sound, clean, and dry; measure surface moisture <5% using a calibrated electronic moisture meter; record readings, meter model, and calibration date; photo of display.
  3. Clean and abrade the interface zone at least 100 mm beyond termination line; vacuum and solvent-wipe with approved cleaner; no dust, oil, or laitance; capture before/after photos with a scale.
  4. Record ambient and substrate temperatures and relative humidity; ensure substrate is ≥3 °C above dew point per TDS; log thermometer/hygrometer/dew-point meter readings with timestamp and location.

Primers

  1. Confirm primer brand/type is approved and compatible with membrane and substrate; check expiry; record batch/lot, delivery docket, and SDS; photo of labels.
  2. Apply primer uniformly by roller/brush; measure wet film thickness 0.15–0.25 mm using a comb gauge at three locations; record values and photo each gauge reading.
  3. Allow primer to reach tack-free per manufacturer window; perform finger-drag test (no transfer); document start/finish times and ambient conditions; photo close-up of surface.

Collars and Sleeves

  1. Dry-fit preformed collar/sleeve sized to penetration within ±2 mm; no fishmouths, bridging, or distortion; photo of dry-fit with ruler confirming size.
  2. Bond/weld sleeve to surrounding membrane using approved method; roll with 20–30 N hand roller; probe seams—no openings >2 mm; record welder setpoint or adhesive open time; photo of seams.
  3. Achieve minimum 75 mm overlap of sleeve onto field membrane; measure with steel rule; ensure full consolidation without voids; photo showing overlap dimension and roller marks.
  4. Install stainless clamp band on round penetrations where specified; tighten using calibrated torque wrench to manufacturer torque; record torque value and tool serial; photo of band position.

Sealants and Fillets

  1. Verify sealant compatibility with membrane and substrate; record product name, chemistry, batch/lot, and expiry; attach TDS reference; photo of cartridge labels.
  2. Install bond breaker tape where three-sided adhesion could occur; continuous, wrinkle-free placement; photo prior to sealant application.
  3. Apply and tool sealant to a smooth concave profile 6–10 mm; confirm adhesion on both sides with gentle pull test; no pinholes or voids; macro photo of bead continuity.
  4. Record skin and full-cure times per TDS; protect from water and dust until cured; verify no contamination; photo of protected area and cure log.

Termination Bars and Clamps

  1. Set termination bar straight and level along marked line; fix fasteners at specified centres ±10 mm; verify embedment and edge distance per drawings; photo with tape showing spacing.
  2. Seal the top edge of termination bar with compatible sealant; continuous bead without gaps; measure applied length versus run length; photo along full run.

Protection and Verification

  1. Install specified protection (collar guards, cover plates, or protection board); verify thickness 3–6 mm where applicable; fix without damaging membrane; photos before/after installation.
  2. Add reinforcement patches at re-entrant corners and stress points; extend at least 75 mm beyond corner; no wrinkles or fishmouths; photo with ruler confirming extents.
  3. Conduct localized spray test around penetrations for 10 minutes after full cure; inspect interior for leaks/dampness; document test start/end times; video or photo evidence uploaded.
  4. Tag the detail with a QR label linking photos, readings, and approvals; capture final overview photo; obtain inspector sign-off per approved project specifications and authority requirements.

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

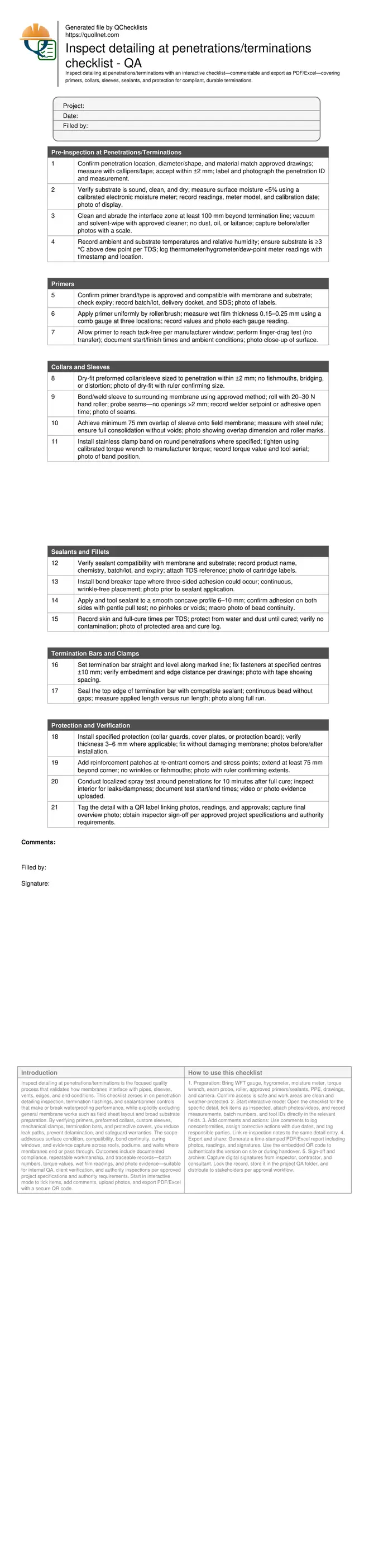

First-page preview of the Penetration/Termination Detailing Inspection printable checklist template.
Penetration/Termination Detailing Inspection · Page 1 preview · Open image with all pages

At a glance

  • Target the highest-risk interfaces—penetrations and terminations—to stop leaks before they start. The checklist validates primers, collars, sleeves, clamps, termination bars, sealants, and protection, with measurable cues such as moisture limits, wet film readings, bond continuity, torque values, and overlap dimensions.
  • Build traceability that stands up to audits. Capture product compatibility, batch/lot numbers, expiry dates, welder setpoints or adhesive open times, torque readings, and calibrated instrument IDs. Photos at key stages create indisputable evidence for handover and warranty submissions.
  • Interactive online checklist with tick, comment, and export features secured by QR code. Use it in the field to assign actions, track closeouts, and instantly generate shareable PDF/Excel reports for supervisors, consultants, and clients without rework or duplication.
  • Practical acceptance cues keep inspections consistent: moisture below limits, tack-free primers, probe-tight seams without fishmouths, smooth concave sealant profiles, correct fastener spacing, and installed protection. The result is reliable, maintainable details that align with approved project specifications and authority requirements.

How to use this interactive checklist

  1. Preparation: Bring WFT gauge, hygrometer, moisture meter, torque wrench, seam probe, roller, approved primers/sealants, PPE, drawings, and camera. Confirm access is safe and work areas are clean and weather-protected.
  2. Start interactive mode: Open the checklist for the specific detail, tick items as inspected, attach photos/videos, and record measurements, batch numbers, and tool IDs directly in the relevant fields.
  3. Add comments and actions: Use comments to log nonconformities, assign corrective actions with due dates, and tag responsible parties. Link re-inspection notes to the same detail entry.
  4. Export and share: Generate a time-stamped PDF/Excel report including photos, readings, and signatures. Use the embedded QR code to authenticate the version on site or during handover.
  5. Sign-off and archive: Capture digital signatures from inspector, contractor, and consultant. Lock the record, store it in the project QA folder, and distribute to stakeholders per approval workflow.

Substrate readiness and primers at penetrations

Reliable penetration and termination detailing starts with a stable, dry substrate. Moisture above limits, dust, or oil drastically reduces primer adhesion and long-term performance. Inspectors should measure surface moisture with a calibrated electronic meter, confirm ambient conditions above dew point, and document readings before any primer or adhesive is opened. Primer selection and compatibility are critical—always match chemistry to the membrane and substrate, check expiry dates, and record batch/lot numbers. Apply primer to the manufacturer’s target coverage and verify uniformity using a wet film thickness gauge; three readings per detail give objective control. Maintain the application window, observe pot life and recoat times, and only proceed when the primer is tack-free without dust transfer. These steps prevent blistering, cold joints, and early bond failure, which are common root causes of leakage at penetrations and terminations. Photos of labels, instruments, and measured wet film readings build traceability for client and authority reviews.

  • Measure surface moisture; target below 5% or per TDS.
  • Record ambient, substrate, and dew point readings.
  • Use WFT gauges to confirm uniform primer thickness.
  • Log batch numbers, expiry dates, and SDS references.
  • Proceed only at tack-free; no dust pickup.

Installing collars, sleeves, and achieving bond continuity

Collars and sleeves bridge complex geometries and must seat tightly without fishmouths or bridging. Dry-fit first to validate sizing within a tight tolerance, then bond or weld following the approved method. When welding or activating adhesives, control heat or open time and document welder setpoints or adhesive data. Roll seams using a hand roller to consolidate the bond, and probe all seams to ensure there are no openings that could channel water. Overlaps should extend sufficiently onto the field membrane to distribute stresses, with reinforcement added at re-entrant corners. Where specified, stainless clamp bands provide positive compression on round penetrations; always torque with a calibrated wrench and record readings. These practices create a continuous, stress-tolerant waterproof path through penetrations and across terminations, reducing risks of peel, shear, and thermal cycling failures.

  • Dry-fit collars within ±2 mm; no distortion.
  • Roll seams; probe to confirm no openings.
  • Maintain minimum 75 mm sleeve overlaps.
  • Torque stainless clamps with calibrated tools.
  • Reinforce re-entrant corners with patches.

Sealants, termination bars, and protection for durability

Sealants finish edges and terminations but only perform when compatible, correctly dimensioned, and properly tooled. Use bond breaker tape to avoid three-sided adhesion, then tool to a smooth concave profile that supports movement. Record skin and cure times, and protect the area until fully cured. Termination bars should be set straight and anchored to specified centres; seal the top edge with a continuous compatible bead to block capillary ingress. Finally, protect exposed details with cover plates, guards, or boards to resist UV, traffic, and debris. Close with a localized spray test after cure to verify performance. Throughout, capture evidence—photos, measurements, torque values, and batch data—to deliver a defensible record for handover and warranty compliance per approved project specifications and authority requirements.

  • Use compatible sealant; verify batch and expiry.
  • Tool concave beads 6–10 mm; no pinholes.
  • Fix termination bars straight; seal top edge.
  • Install UV/mechanical protection as specified.
  • Verify with a 10-minute localized spray test.

Leila Haddad's photo
TransitLeila
14570
721
28
36

Frequently asked questions

What moisture level is acceptable before applying primer at penetrations?

Use a calibrated electronic moisture meter and target less than 5% or the manufacturer’s stated limit, whichever is stricter. Record readings with location and time. If results are borderline, delay work, promote ventilation or gentle heat, and re-test to ensure conditions remain stable during application.

Can I use a general-purpose silicone for sealing terminations?

Not by default. Sealant chemistry must be compatible with the membrane and substrate to prevent poor adhesion or chemical attack. Select the product listed in approved project specifications, verify compatibility in the TDS, and document batch, expiry, and a small on-site adhesion test before full application.

How do I verify collar or sleeve bonds without damaging the detail?

Roll seams with a hand roller, then use a blunt seam probe to gently test edges and laps. Acceptance is a continuous bond without openings or fishmouths. Document overlap dimensions, welder setpoints or adhesive open times, and probe results with close-up photos for traceability.

When should I conduct a water test at penetrations and terminations?

After primers, sleeves/collars, and sealants have fully cured. Perform a localized spray test for about 10 minutes, observing the interior for leaks or dampness. Avoid flood testing if it risks unprotected areas. Record start/finish times, photos or video, and any corrective actions.

What evidence should I capture for approvals and warranty?

Collect product labels and batch numbers, WFT gauge readings, moisture and dew point data, seam probe outcomes, torque values for clamps, anchor spacing photos, sealant cure logs, and before/after images. Export the full record to PDF/Excel with a QR code to authenticate the final version.
