Inspect Curtain Wall Transom Installation: Level & Fixings

Inspect curtain wall transom installation for level and connection quality. This checklist helps you confirm transom leveling, horizontal mullion alignment, and the integrity of mechanical fixings at every transom-to-mullion interface. Focus is limited to installed horizontal members: level tolerance, bracket and shear-block connections, splice joints, gaskets, and drainage/weep details. By standardizing laser level checks, torque verification, and photographic evidence, you avoid glazing stress, facade racking, water ingress, wind-driven noise, and premature seal failures. The outcome is a repeatable, traceable record proving that transoms are straight, secure, and ready for glazing and façade QA hold points. We purposely exclude vertical mullion plumb checks, structural analysis, and whole-system testing; reference those under separate procedures. Use the following steps to capture measurements, serial numbers, and signatures in real time, attach marked-up photos, and flag nonconformances for correction. Start interactive mode to tick items, add comments, and export as PDF/Excel with a project QR for secure sharing.

Inspect Curtain Wall Transom Installation: Level & Fixings

Inspect curtain wall transom installation for level and connection quality guides site engineers to verify horizontal alignment, bracket fixings, and drainage interfaces on installed transoms.

  • Confirm transom levelness with laser; document readings and locations.
  • Verify mechanical connections, torque, and slip resistance at brackets.
  • Check splices, gaskets, and drainage paths for continuous performance.
  • Interactive, commentable checklist with export and QR code verification.

The checklist

Preparation and Calibration

  1. Confirm latest approved shop drawings, installation details, and tolerances are available at point-of-work; record drawing numbers.
  2. Verify laser level calibration certificate is valid (<6 months) and perform a two-peg check; photograph certificate and check result.
  3. Inspect shims/packers (non-compressible, moisture-resistant) are available in 1–5 mm increments; record supplier and batch.
  4. Confirm torque wrench is calibrated; note serial number and calibration date; set target torque per approved project specifications and authority requirements.

Transom Level and Line

  1. Establish control line with laser; mark two reference points per bay; record elevation to ±1 mm and photo the marks.
  2. Measure installed transom top face level across full span; acceptance: ±2 mm over 1 m and ±3 mm overall; log readings.
  3. Check alignment with adjacent transoms; step difference not exceeding 2 mm at mullion interfaces; capture close-up photos with ruler.
  4. Shim bearing points as needed; re-measure after tightening; document shim material, thickness stack, and final readings.
  5. Verify façade datum continuity visually from 10 m stand-off; no visible waviness; attach panoramic photo.

Transom-to-Mullion Connections

  1. Confirm bracket/shear block type matches drawing detail; record part numbers and take identification photo before fixing.
  2. Check fastener specification (diameter, length, coating/grade) against submittals; record lot numbers and packaging photos.
  3. Tighten mullion bracket fixings to target torque (e.g., 18–25 N·m unless otherwise specified); record applied torque and tool ID.
  4. Verify slip-resistant contact: ensure mating surfaces are clean, dry, and burr-free; photo pre-assembly condition as evidence.
  5. Confirm thermal break pads or isolators are installed where detailed; check full contact and no crush; photo before closure.
  6. Check movement allowance at connections (slots/oversize holes) is centered; minimum 3 mm clearance each side; photo slot position.

Splices and Continuity

  1. Inspect transom splice alignment using straightedge; gap uniform, offset ≤1 mm; capture macro photo across joint.
  2. Verify splice sleeve/plate length and fastener pattern per drawings; torque fasteners and record sequence and N·m values.
  3. Confirm sealant or gasket continuity across splice where detailed; no gaps >2 mm; photograph squeeze-out/engagement.

Weatherproofing and Drainage at Transoms

  1. Check transom end dams/end caps installed, seated, and sealed; no distortion; photo each end before glazing.
  2. Verify weep/drain holes are open and aligned; minimum 5 mm diameter; document count and locations.
  3. Inspect glazing rebate gaskets seated without twists; continuous corners; joiners installed; photo 300 mm segment per bay.

Records and Sign-Off

  1. Capture overall bay photo showing laser line, tape readings, and transom; annotate with bay/axis reference.
  2. Log nonconformances (out-of-level, torque shortfalls, missing parts) with corrective action and recheck evidence.
  3. Obtain digital sign-offs from installer, QA, and site supervision; export checklist PDF/Excel with embedded QR for traceability.

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

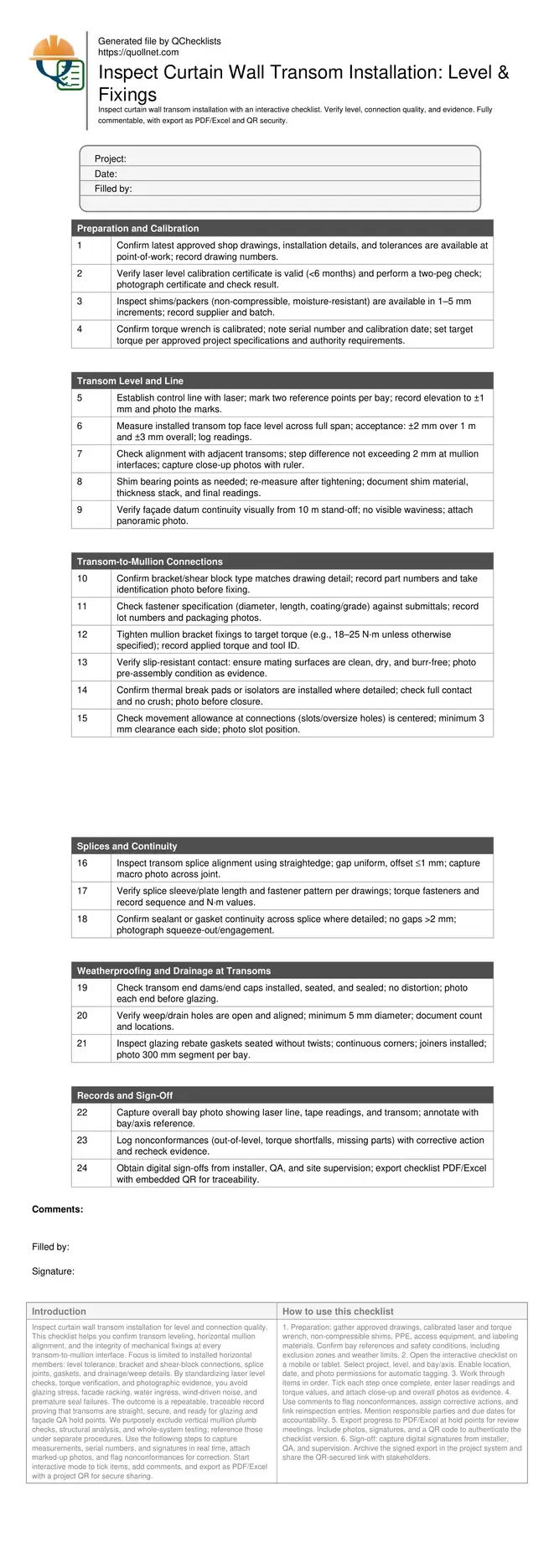

First-page preview of the Curtain Wall Transom Level & Connection Inspection printable checklist template.
Curtain Wall Transom Level & Connection Inspection · Page 1 preview · Open image with all pages

At a glance

  • Ensure transoms are level within agreed tolerances using a calibrated laser and controlled shimming methods, preventing glazing edge loading, air leakage, and aesthetic banding across adjacent bays and spandrels.
  • Confirm connection quality at transom-to-mullion interfaces with verified fastener type, length, and torque, reducing slip under service loads and ensuring consistent movement accommodation at shear blocks and brackets.
  • Validate splice alignment, gaskets, end dams, and drainage paths so pressure equalisation and weeping function as intended, lowering risk of trapped water, corrosion, and staining at façade surfaces.
  • Interactive online checklist with tick, comment, and export features secured by QR code.

How to Use This Transom Level and Connection Checklist

  1. Preparation: gather approved drawings, calibrated laser and torque wrench, non-compressible shims, PPE, access equipment, and labeling materials. Confirm bay references and safety conditions, including exclusion zones and weather limits.
  2. Open the interactive checklist on a mobile or tablet. Select project, level, and bay/axis. Enable location, date, and photo permissions for automatic tagging.
  3. Work through items in order. Tick each step once complete, enter laser readings and torque values, and attach close-up and overall photos as evidence.
  4. Use comments to flag nonconformances, assign corrective actions, and link reinspection entries. Mention responsible parties and due dates for accountability.
  5. Export progress to PDF/Excel at hold points for review meetings. Include photos, signatures, and a QR code to authenticate the checklist version.
  6. Sign-off: capture digital signatures from installer, QA, and supervision. Archive the signed export in the project system and share the QR-secured link with stakeholders.

Practical leveling methods and tolerances that stand up on site

Use a calibrated rotary or cross-line laser to project the datum across each bay before fixing transoms. Mark two control points per opening so you can verify level after tightening. Typical acceptance is ±2 mm over 1 m and ±3 mm per transom span, but always follow approved project tolerances. Where bearing conditions vary, introduce non-compressible shims and recheck after torqueing; avoid stacking more than necessary to prevent creep. Panoramic sightlines from street level help flag cumulative waviness not obvious at close range. Record all readings with bay/axis references and photographs, ensuring repeatability for follow-up inspections. When level cannot be achieved within tolerance, stop, identify root cause (twisted mullion, bracket mis-set, packer compression), and correct before proceeding to glazing. Capturing pre- and post-adjustment photos demonstrates control and prevents disputes later.

  • Laser datum first, then fix and remeasure after torque.
  • Use non-compressible shims; avoid excessive stacking.
  • Sightline checks reveal cumulative waviness early.
  • Document readings with locations and photos.

Connection quality: torque, slip resistance, and movement

Reliable transom performance depends on correct bracket selection, fastener specification, and installation torque. Verify part numbers, fastener grade, and lengths against submittals, then tighten using a calibrated wrench with recorded N·m values. Ensure contact faces are clean and burr-free to maximize slip resistance under wind load. Many systems rely on slotted holes or shear blocks to accommodate thermal and building movement; confirm slots are centered at the inspection temperature and that thermal isolators are present and undamaged. If gaps or misalignment exist at splices, correct them before sealing. Over-torque can crush isolators or strip threads; under-torque leads to rattle, drift, and seal failures. Keep all evidence—photos, batch labels, torque logs—tied to the bay identifier for traceability and warranty support.

  • Record torque values and tool serial numbers.
  • Clean mating faces prevent slip under load.
  • Center slots to allow thermal movement.
  • Protect and verify thermal isolators.

Drainage, gaskets, and readiness for glazing

Even perfectly level transoms can fail if drainage and gasket details are incomplete. Verify end dams or caps are installed and sealed to prevent water bypass. Ensure weep paths are open and continuous; use a gauge pin to confirm clear 5 mm minimum openings. Gaskets must be fully seated without twists or gaps, with joiners or vulcanized corners as detailed. Sealant application at splices should show consistent squeeze-out without voids. These checks safeguard pressure equalisation and reduce staining, corrosion risk, and interior leaks once glazing loads the frame. Complete a final bay photo that shows the laser line, tape readings, gasket seating, and visible weeps to confirm readiness for the next trade.

  • End dams and caps seated and sealed.
  • Weep holes open; confirm with gauge pin.
  • Gaskets continuous, untwisted, fully engaged.
  • Final photo confirms readiness for glazing.

Jeny Johns's photo
Jeny Johns
8117
362
22
36

Frequently asked questions

What is an acceptable level tolerance for curtain wall transoms?

Common practice targets ±2 mm over 1 m and ±3 mm across the full transom. However, always follow the approved project specifications and authority requirements. Record actual readings, locations, and supporting photos. If results exceed tolerance, pause works, correct shimming or bracket settings, and remeasure before proceeding to glazing.

Which tools provide the most reliable transom level checks?

A calibrated rotary or cross-line laser with a staff or digital receiver gives fast, repeatable results. Use a precision spirit level for local verification. Always confirm laser calibration (two-peg check) and document the certificate. For connections, a calibrated torque wrench with recorded N·m readings is essential for consistent fastening quality.

How should I handle a misaligned transom splice joint?

If splice offset exceeds acceptance (e.g., >1 mm), loosen fasteners, clean mating surfaces, realign with a straightedge, and retighten to target torque. Verify gasket or seal continuity across the joint and photograph the correction. Document the cause, action taken, and final measurements to close the nonconformance.

Do I need to check drainage and gaskets before glazing?

Yes. Confirm end dams or caps, open weep paths (≥5 mm), and properly seated gaskets before glass installation. These details protect pressure equalisation and prevent water ingress. Photograph each feature and link evidence to the bay reference. This step reduces rework and supports warranty documentation later.
