Inspect Curtain Wall Brackets for Alignment and Torque

The checklist

Preparation and Safety

1. 1Confirm access equipment (scaffold/MEWP) is inspected and tagged current; wear helmet, gloves, eye protection, and fall arrest. Acceptance: valid permits/tags, PPE log; capture a photo of safe access setup.
2. 2Establish an exclusion zone below work area with barrier tape and signage; coordinate with hoist operations to avoid live loads. Evidence: photo of barriers and coordination log entry.
3. 3Verify torque wrench calibration certificate is within validity (e.g., ≤ 3 months or per QA plan) and tolerance ±4%. Evidence: attach calibration certificate image and tool ID.
4. 4Clean accessible bracket faces and bearing surfaces; remove debris and sealant smears to avoid measurement errors. Evidence: before/after photos of representative brackets.

Documentation and References

1. 5Load latest approved shop drawings, bracket schedule, and manufacturer torque data; verify revision status. Evidence: screenshot or notation confirming current revisions used.
2. 6List bracket IDs by elevation/axis and panel bay; cross-check against installation log. Acceptance: 100% ID match; attach marked elevation with checked IDs.
3. 7Confirm specified torque values by fastener type/size/material and any staged sequence. Evidence: extract or reference from approved submittal; note N·m per fastener.

Bracket Alignment Verification

1. 8Check vertical plumb of bracket faces using laser or digital level. Acceptance: deviation ≤ 2 mm per 1 m or per approved project specifications; record mm and attach photo of reading.
2. 9Check horizontal alignment to control line/string. Acceptance: offset ≤ 2 mm or per approved project specifications; record left/right deviation in mm with photo of setup.
3. 10Measure bracket projection (standoff) from substrate with depth gauge. Acceptance: within ±2 mm of drawing value or per specification; log mm and photo the gauge in position.
4. 11Verify spacer/packer thickness and material match submittal; ensure full bearing contact. Acceptance: thickness within ±1 mm; photo of spacer and label/packaging.
5. 12Confirm slotted holes remain centered to allow movement; maintain minimum adjustment reserve as specified. Evidence: photo showing slot/bolt position with scale.
6. 13Inspect shim stacks for stability and coverage: no point-loading, full-face bearing, corrosion-resistant shims. Acceptance: arrangement per approved project specifications; photo from two angles.

Fastener and Substrate Checks

1. 14Verify anchor/bolt type, grade, and diameter against submittal; check head markings and embedment depth with probe or depth gauge. Acceptance: matches submittal; record depth (mm) and attach close-up photo.
2. 15Measure edge distances and spacing to drawings using steel rule or tape. Acceptance: within drawing limits; record mm for nearest edges and spacing; photo with measurement reference.
3. 16Inspect substrate around anchors for cracks, spalls, or crushing; perform light tap test. Acceptance: sound substrate with no visible defects; record findings and photos.
4. 17Confirm corrosion protection: stainless or coated fasteners intact; isolation pads/breaks installed where required. Evidence: photos and material labels/lot numbers.

Torque Verification

1. 18Mark fastener heads with paint pen, then apply torque with calibrated wrench. Acceptance: achieve specified torque (N·m) within tolerance (e.g., ±10% unless specified otherwise); record reading and photo of witness mark.
2. 19For bolts requiring preload, follow manufacturer method (torque-angle, tension indicator). Acceptance: preload achieved per submittal; record N·m or kN equivalent and attach method used.
3. 20Apply staged torque (e.g., 50%/80%/100%) in cross-pattern where applicable. Acceptance: final pass reaches specified N·m; log each stage and attach sequence photo.
4. 21If fastener turns without reaching torque or substrate rotates, stop and tag nonconformance. Evidence: photo, NCR reference, and isolation of affected bracket.
5. 22Perform back-off verification on a sample set (e.g., 10%) to confirm retention. Acceptance: no significant loss; record initial and back-off readings in N·m.
6. 23Re-check torque after 30 minutes (or per specification) to account for relaxation or embedment. Acceptance: remains within tolerance; record delta N·m and remarks.

Finalization and Records

1. 24Install specified locking devices (lock washers, pins, thread-locker) and verify orientation. Evidence: close-up photos and material references.
2. 25Apply tamper-evident torque seal to all tightened fasteners; color per QA plan. Evidence: photo of seals and bracket ID visible.
3. 26Record final plumb, level, and standoff readings on as-built elevations; annotate slot positions. Evidence: upload marked drawings or digital overlays.
4. 27Complete inspection form with date/time, weather, and zone; obtain installer and inspector digital signatures. Evidence: e-signed report.
5. 28Export the inspection package (photos, torque logs, certificates) and link via QR for site posting. Evidence: exported PDF/Excel and QR link record.

Preview the printable checklist

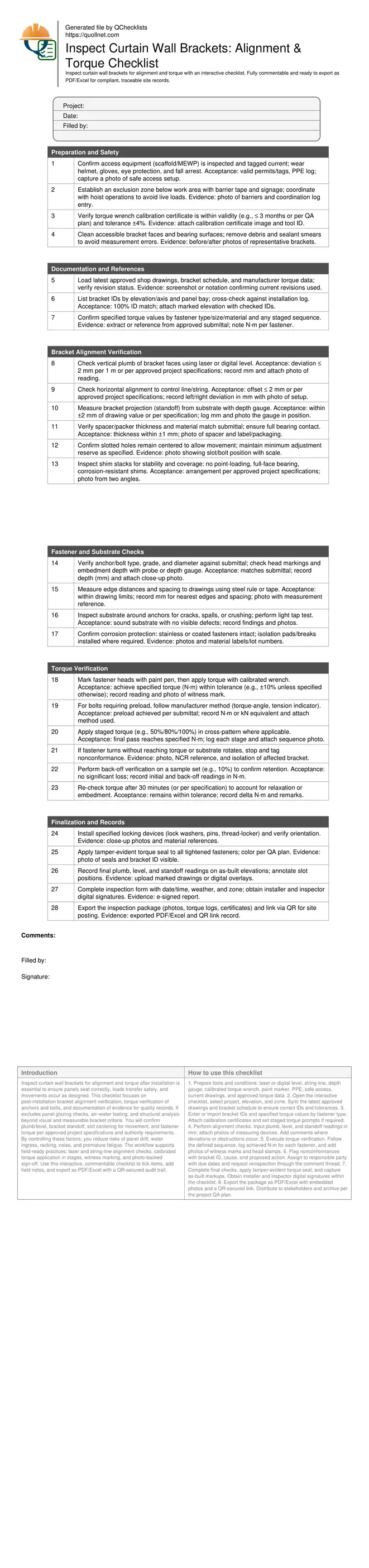

Preview page one below. Open the image or download the PDF for all pages.

At a glance

• Validate bracket alignment, projection, and slot positioning to maintain panel datum, thermal movement allowances, and consistent façade reveals. Document plumb, level, and standoff readings with laser and gauges for defensible acceptance records.
• Apply and record specified torque in N·m using calibrated wrenches and required sequences. Mark fasteners, verify relaxation, and capture photos to prevent loosening, panel drift, and differential movement failures over service life.
• Create traceable evidence: photos of head markings and substrates, torque logs, calibration certificates, and as-built markups. This supports closeout, handover, and dispute avoidance with clear, time-stamped field data.
• Interactive online checklist with tick, comment, and export features secured by QR code.

How to Use This Curtain Wall Bracket Inspection Checklist

1. Prepare tools and conditions: laser or digital level, string line, depth gauge, calibrated torque wrench, paint marker, PPE, safe access, current drawings, and approved torque data.
2. Open the interactive checklist, select project, elevation, and zone. Sync the latest approved drawings and bracket schedule to ensure correct IDs and tolerances.
3. Enter or import bracket IDs and specified torque values by fastener type. Attach calibration certificates and set staged torque prompts if required.
4. Perform alignment checks. Input plumb, level, and standoff readings in mm; attach photos of measuring devices. Add comments where deviations or obstructions occur.
5. Execute torque verification. Follow the defined sequence, log achieved N·m for each fastener, and add photos of witness marks and head stamps.
6. Flag nonconformances with bracket ID, cause, and proposed action. Assign to responsible party with due dates and request reinspection through the comment thread.
7. Complete final checks, apply tamper-evident torque seal, and capture as-built markups. Obtain installer and inspector digital signatures within the checklist.
8. Export the package as PDF/Excel with embedded photos and a QR-secured link. Distribute to stakeholders and archive per the project QA plan.

Field-proven alignment checks that keep panels on datum

Accurate bracket alignment controls panel reveal lines, gasket compression, and long-term serviceability. Begin with a common reference: set laser control lines and confirm zero points on each elevation. Use a laser or digital level to check plumb while a string line reveals local bow. Measure standoff with a depth gauge at consistent locations to avoid skewed readings from fillets or welds. Centering bolts within slots preserves thermal movement and building drift allowances; over-tightening off-center bolts can lock the system and telegraph stress into mullions. Shim stacks should bear across the full bracket footprint without rocking. Accept brackets that meet approved tolerances, or the stricter of drawings and specifications. Reject those with edge-distance violations or cracked substrates. Document readings in millimetres with photos of devices in place for defensible acceptance.

• Use a single control datum per elevation to avoid compounded errors.
• Measure standoff clear of sealant beads and weld crowns.
• Center slots to maintain designed movement allowances.
• Reject point-loaded shims; ensure full-face bearing.
• Record laser and gauge readings with embedded photos.

Reliable torque application and verification on installed brackets

Torque verification prevents loosening, panel drift, and water ingress from joint misalignment. Select the correct torque method for the fastener system—torque-only, torque-angle, or tension indicators—then verify your wrench calibration and apply staged tightening where specified. Mark each fastener with a paint witness line before final pass to confirm movement occurred. Perform a sample back-off or re-check after relaxation; embedment and gasket compression can reduce retained torque. For stainless bolts, follow manufacturer lubrication requirements to mitigate galling and friction variability. If the fastener spins without reaching torque or the substrate crushes, stop and raise a nonconformance for engineering review. Always record N·m achieved, tool ID, and sequence used; photos of markings and head stamps strengthen traceability.

• Use calibrated wrenches with certificates within validity.
• Apply staged torque to minimize settlement effects.
• Mark fasteners to confirm rotation during tightening.
• Re-check torque after short dwell for relaxation.
• Escalate immediately if torque cannot be achieved.

Documentation that stands up to audits and closeout reviews

Clear records reduce disputes and speed handover. Capture bracket IDs tied to elevation grids, head markings, and material labels to connect field conditions with submittals. Embed photos directly alongside measurements and torque entries so reviewers can verify readings without returning to site. As-built markups showing final plumb, level, and standoff consolidate acceptance data on one sheet per elevation. Use QR-linked exports so supervisors, consultants, and authorities access a single, version-controlled package. Nonconformances should note location, cause, and proposed corrective action; after rework, repeat only the affected checks and capture fresh evidence. Digital signatures from installer and inspector complete the chain-of-custody for quality assurance and compliance.

• Tie every photo to a bracket ID and grid location.
• Include tool IDs and calibration dates in torque logs.
• Maintain version control with QR-linked exports.
• Mark as-built elevations with final readings.
• Close NCRs with before/after evidence and sign-off.
