Inspect Aluminum Composite Panel Flatness and Oil-Canning Tolerance

Definition: Inspect aluminum composite panel flatness and oil-canning tolerance with this site-ready checklist for facade engineers and installers, defining measurement methods, acceptable waviness, and documentation during installation and post-installation QA reviews.

Measure planarity with 2 m straightedge and feeler gauges.
Assess oil-canning under controlled lighting and viewing distances.
Capture photos, readings, panel IDs, and responsible approvals.
Interactive, commentable checklist with export and QR code verification.

Start Interactive
Checklist

Inspect aluminum composite panel flatness and oil-canning tolerance to protect facade aesthetics and performance. This checklist focuses on ACP planarity measurement, oil canning assessment, and documentation for exterior cladding, guiding installers, site engineers, and QA inspectors. You will use a 2 m straightedge, feeler gauges, laser level, and controlled viewing conditions to quantify panel waviness and identify visual distortion. The scope excludes structural capacity, fire classification, sealant continuity, and water/air testing, but flags support irregularities and fixing practices that commonly trigger visible rippling. By enforcing consistent methods—diffuse light for flatness, raking light for distortion—you avoid disputes, rework, and warranty exposure while delivering predictable, repeatable acceptance decisions per approved project specifications and authority requirements. Follow the steps to gather calibrated measurements, categorize visual effects, and archive evidence with traceable panel IDs and elevations. Start in interactive mode to tick items, leave comments for nonconformities, and export your sign-off as PDF/Excel with a QR-secured audit trail.

Control flatness and visual distortion using standardized tools and lighting protocols. The checklist establishes consistent readings across horizontal, vertical, and diagonal axes, then validates viewing geometry for oil-canning. Teams reduce subjective judgments, document evidence thoroughly, and align acceptance with approved project specifications and authority requirements.
Shorten punch lists by isolating root causes—subframe misalignment, over-torqued fixings, inadequate clearances, or insulation telegraphing—before panels are widespread. Clear tolerances and photo evidence support timely decisions, minimize rework, and help plan corrective actions such as shim adjustments, fastener redistribution, or panel replacement where necessary.
Interactive online checklist with tick, comment, and export features secured by QR code.
Produce defendable reports with calibrated tool certificates, measurement grids, and severity ratings for oil-canning. The export includes panel IDs, locations, photos with scales, and signatures from installer, QA, and consultant, enabling fast approvals, transparent records, and reliable closeout documentation for handover and maintenance.

Pre-Inspection Conditions

1. Stabilize environmental and site conditions before measuring flatness or assessing visual distortion.
2. Verify ambient temperature 15–30 °C with ≤ ±2 °C change over 1 h using an IR thermometer; acceptance: within range; evidence: time-stamped log.
3. Confirm panels are clean, dry, and acclimated ≥ 24 h; acceptance: no condensation or surface moisture; evidence: photos of representative panels.
4. Check subframe alignment before panel checks using a laser line; acceptance: deviation ≤ 2 mm over 2 m or per specs; evidence: laser readings and photos.
5. Verify fixing torque with a calibrated torque wrench; acceptance: within manufacturer/project specification; evidence: torque log with tool serial and date.

Tools Calibration & Setup

6. Confirm 2 m straightedge is true and labeled; acceptance: calibration in date; evidence: photo of certificate/sticker.
7. Check feeler gauges 0.5–3.0 mm are complete and legible; acceptance: clean blades within tolerance; evidence: photo and kit ID.
8. Verify digital level/laser accuracy ≤ ±0.2 mm/m; acceptance: current certificate; evidence: upload calibration record.
9. Prepare a panel grid map and numbering scheme on elevations; acceptance: unique ID per panel; evidence: marked-up drawings.

Panel Surface Flatness Measurements

10. Measure horizontal flatness at mid-height using 2 m straightedge and feeler gauges; acceptance: max gap ≤ 2.0 mm or per specs; evidence: close-up photo with gauge size visible.
11. Measure vertical flatness at mid-width with 2 m straightedge; acceptance: max gap ≤ 2.0 mm or per specs; evidence: reading recorded in log.
12. Measure diagonal flatness corner-to-corner (2 m span where possible); acceptance: max gap ≤ 3.0 mm or per specs; evidence: photos and values.
13. Check local planarity 100 mm offset from fixings; acceptance: local deviation ≤ 1.0 mm; evidence: location-marked photo.
14. Span across panel joint with straightedge to assess step; acceptance: level difference across joint ≤ 1.0 mm; evidence: gauge photo at joint.
15. Complete a 3×3 measurement grid per panel (H/V/Diag at nine points); acceptance: no reading exceeds criteria; evidence: filled log and grid sketch.
16. Sample rate: inspect ≥ 10% of installed panels per elevation, minimum 5; acceptance: sampling achieved; evidence: sampling plan and list of IDs.

Oil-Canning Visual Assessment

17. Assess from 5–10 m in raking light 15–30° to surface; acceptance: no persistent quilting visible at 10 m; evidence: context photos showing observer position.
18. Repeat observation in diffuse light to separate true waviness from reflections; acceptance: minimal distortion under diffuse light; evidence: comparative photos.
19. Inspect near corners and fixings for dish-shaped dimples; acceptance: no localized deformation beyond flatness limits; evidence: annotated close-ups.
20. Classify visual severity (A: not noticeable, B: slight, C: pronounced); acceptance: A or B per project specs; evidence: severity code in log with photos.
21. Compare suspect panels with a known-acceptable control panel under the same light; acceptance: equal or better appearance; evidence: side-by-side images.

Framing & Fixings Influences

22. Check subframe flatness behind nonconforming panels with 2 m straightedge; acceptance: ≤ 2.0 mm over 2 m; evidence: readings and location notes.
23. Verify fastener pattern and spacing against shop drawings; acceptance: within ±10 mm of specified spacing; evidence: tape-measure photos and markup.
24. Confirm expansion clearances at perimeters and joints (e.g., 10–15 mm or per specs); acceptance: unobstructed movement gap; evidence: scale-in-frame photo.
25. Check insulation/air-barrier for high spots telegraphing through; acceptance: compressions/irregularities ≤ 2.0 mm; evidence: marked photos and notes.

Documentation & Approvals

26. Record panel data: ID, location, size, thickness, coating, core type, batch/lot; acceptance: fields complete; evidence: photo of panel labels and entries.
27. Upload elevation markups showing all measured points and nonconformities; acceptance: clear references; evidence: updated drawings in report.
28. Note acceptance basis: measured values within limits per approved project specifications and authority requirements; evidence: signed QA review.
29. Export compiled report with photos, readings, calibration certs, and signatures; acceptance: PDF/Excel generated with QR link; evidence: file names and link.

Measuring Flatness: Methods, Tolerances, and Evidence

Flatness is a quantifiable attribute. Use a 2 m straightedge and feeler gauges to measure the maximum gap at horizontal, vertical, and diagonal orientations. Keep temperature stable and work in diffuse, non-glare light to avoid reflection artifacts. Map readings on a 3×3 grid per panel so you capture both global and local planarity. Where joints meet, span the straightedge across panels to detect steps and lipping. Record results in millimetres, tie them to panel IDs and elevations, and photograph each measurement with the gauge size visible. Acceptance thresholds should follow approved project specifications and authority requirements; common practice targets ≤ 2.0 mm over 2 m for general flatness and tighter limits near fixings. When a reading exceeds limits, investigate the subframe first—misaligned rails, shimming gaps, or debris frequently drive nonconformance. Only after confirming support compliance should you attribute issues to panel manufacturing or handling.

Measure in diffuse light with a 2 m straightedge.
Record maximum gap in millimetres with photo evidence.
Grid-based mapping captures global and local planarity.
Span joints to detect steps and lipping across panels.
Escalate to subframe checks before blaming the panel.

Oil-Canning: Visual Assessment Without Guesswork

Oil-canning is a visual phenomenon—rippling or quilting that changes with light and viewpoint. Evaluate from 5–10 m, first in raking light (15–30°) to reveal distortion, then in diffuse light to distinguish reflections from true waviness. Rate severity against project-accepted categories and capture wide and close photos, including the observer position for context. Avoid applying pressure or using contact probes that can dent thin skins. Focus attention at corners, edges, and around fixings where restraint is highest. Compare suspect areas with a known-acceptable control panel on the same elevation. If the effect disappears in diffuse light and flatness readings are within tolerance, the appearance may be acceptable. Persistent, patterned distortion typically indicates subframe irregularity, over-torqued fixings, insufficient expansion clearance, or panel handling damage, all of which should be documented with corrective recommendations.

Use raking and diffuse light to separate causes.
Assess from 5–10 m with context photos.
Rate severity with a consistent A/B/C scale.
Compare to a control panel under same lighting.
Avoid any contact that may dent the surface.

Root Causes and Practical Corrections

Most planarity and oil-canning issues trace to the support system or restraint. Start with rail alignment and shim strategy; small cumulative deviations telegraph through thin skins. Check fastener torque and spacing to avoid point restraint that locks thermal movement. Confirm expansion clearances at perimeters and joints; binding edges can create dish-shaped dimples and quilted fields. Inspect insulation and air barrier for high spots. When subframe and fixings are compliant yet distortion persists, review panel storage, handling, and batch variation. Corrective actions include re-shimming rails, relieving fasteners, adjusting clips, trimming obstructions at joints, or replacing panels that exceed acceptable appearance. Document all changes with before/after photos and verify improvements using the same measurement and viewing protocols. Final acceptance should reference measured values and agreed visual criteria per approved project specifications and authority requirements.

Prioritize subframe alignment and uniform shimming.
Control fastener torque to prevent point restraint.
Maintain joint clearances for thermal movement.
Eliminate high spots in insulation or air barrier.
Re-check using the same methods post-correction.

How to Use This Interactive Inspection Checklist

Preparation: Gather a 2 m straightedge, feeler gauges, laser/digital level, IR thermometer, torque wrench, PPE, and marked-up elevations. Confirm calibration certificates are current and accessible on your device.
Project setup: Create or open the elevation, assign panel IDs, and upload drawings. Enable interactive mode so each checklist item can be ticked and commented with photos and measurement values.
Run flatness measurements: Follow the items in order. Enter readings in millimetres, attach close-up photos with gauges visible, and flag any nonconformities with location notes and suspected cause.
Assess oil-canning: Record viewing distance, light angle, severity rating, and comparison to a control panel. Add wide shots showing observer position and any relevant environmental conditions.
Export and share: Generate a consolidated PDF/Excel including photos, calibration certs, and markups. Use the QR-secured link to verify authenticity in meetings and site walks.
Sign-off: Collect digital signatures from installer, QA, and consultant. Archive the report with panel IDs and elevations for future reference and maintenance handover.

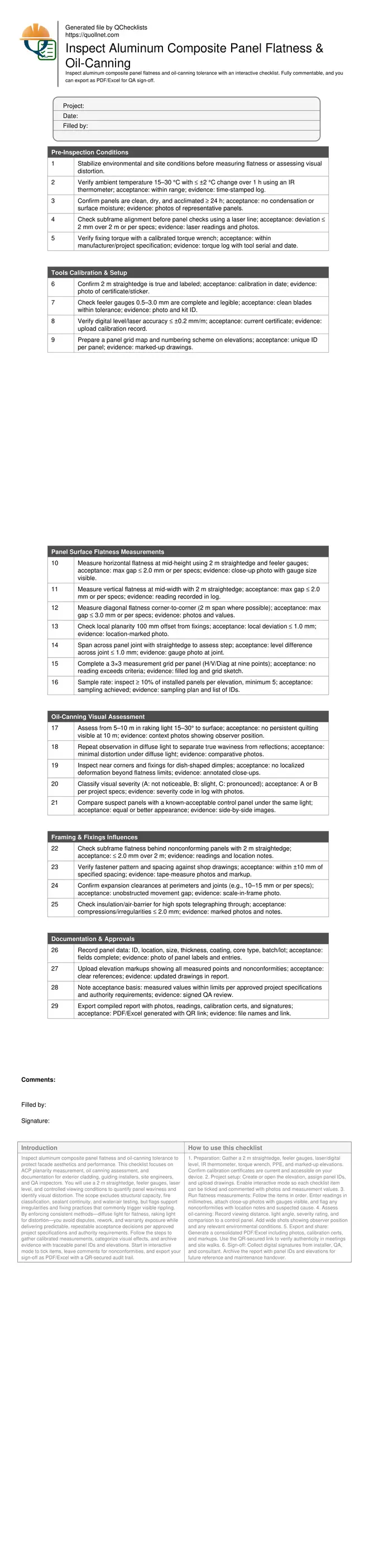

Inspect Aluminum Composite Panel Flatness & Oil-Canning

Start Interactive Checklist

ACP Flatness and Oil-Canning Inspection

Call to Action

Start Checklist Tick off tasks, leave comments on items or the whole form, and export your completed report to PDF or Excel—with a built-in QR code for authenticity.

License: CC-BY 4.0. Please credit: “ACP Flatness and Oil-Canning Inspection by Quollnet” with a link to this source page.

Download Excel - ACP Flatness and Oil-Canning Inspection
Download PDF - ACP Flatness and Oil-Canning Inspection
View Image - ACP Flatness and Oil-Canning Inspection

Freya Eriksson NordicHVACFreya

Aug 04, 2026

FAQ

Question: What is oil-canning and how is it different from flatness deviation?

Oil-canning is a visual waviness that changes with light and viewing angle; it is assessed by observation, not direct gap measurement. Flatness deviation is measured with a straightedge and feeler gauges. A panel can meet flatness limits yet still show oil-canning under raking light, so evaluate both.

Question: What tolerances should I use for ACP flatness and appearance acceptance?

Follow approved project specifications and authority requirements. Many projects target ≤ 2.0 mm over 2 m for general flatness, tighter near fixings, and acceptance of only slight or not noticeable oil-canning at 10 m. Always document the basis for acceptance and include photos, readings, and severity ratings.

Question: When should I inspect for oil-canning during the day?

Assess under two conditions: raking light (early/late day, 15–30° to surface) to reveal distortion, and diffuse light (overcast or shade) to separate reflections from true waviness. Record time, light condition, distance, and observer position so comparisons remain consistent across inspections.

Question: What are common causes of oil-canning and how can I correct them?

Frequent causes include subframe misalignment, over-torqued fasteners, insufficient joint clearances restricting thermal movement, and high spots in insulation. Correct by re-shimming rails, adjusting or redistributing fixings, restoring movement gaps, removing high spots, and replacing panels that remain outside agreed appearance criteria.
