Electronic Leak Detection/Spark Testing: Checklist and Steps

Electronic leak detection/spark testing validates the integrity of non-conductive waterproofing membranes by locating pinholes and holidays using a high-voltage holiday detector. Also known as spark testing or electronic membrane integrity testing, this process is focused on segmented testing, precise defect localization, documentation of repairs, and mandatory retesting—while explicitly excluding flood tests. By confirming ground continuity, calibrating voltage to membrane thickness, and sweeping the electrode with controlled overlaps, teams can identify even small discontinuities before overburden or handover. The checklist minimizes false calls, reduces rework, and provides traceable evidence through photos, readings, and signatures. It also clarifies boundaries: atmospheric conditions must be suitable, the substrate must be dry, and any repair must be proven with a successful retest. Use this checklist to standardize methods, capture results, and deliver a defensible record for quality assurance. Start in interactive mode—tick, comment, and export PDF/Excel with QR.

Electronic leak detection/spark testing checklist and steps

Electronic leak detection/spark testing is a field procedure for QA teams to locate membrane pinholes, document repairs, and verify retests on roofs or liners, excluding flood tests.

  • Tests membrane segments systematically to locate pinholes and holidays.
  • Sets correct voltage, brushes overlaps, and verifies ground continuity.
  • Documents defects, issues repair tickets, and confirms retest acceptance.
  • Interactive, commentable checklist with export and QR code verification.

The checklist

Pre-Test Controls

  1. Confirm scope excludes flood tests and specifies high-voltage spark testing; record area (m²), membrane type, and test boundaries; obtain supervisor approval.
  2. Verify membrane is non-conductive and thickness known (e.g., 1.5–3.0 mm); attach product datasheet and thickness verification as photo/evidence.
  3. Measure surface moisture; proceed only when membrane is dry (≤5% by pin-type meter); capture reading photo with timestamp.
  4. Establish reliable ground return path to substrate or perimeter conductor; verify resistance to ground ≤5 Ω; record multimeter reading and photo of connection.
  5. Confirm weather: no precipitation, ambient 5–35 °C, wind <10 m/s, RH ≤85%; log values from on-site meter.

Equipment Setup and Calibration

  1. Inspect holiday detector, electrode, cables, and ground lead; ensure current calibration certificate; upload tag photo and serial number.
  2. Select electrode type/size (wire brush/spring) suited to membrane profile to ensure full contact; attach setup photo.
  3. Set voltage per membrane thickness and manufacturer guidance (typ. 5–20 kV); record set-point and detector scale photo.
  4. Prove sensitivity on a sample with an artificial 0.5–1.0 mm pinhole; confirm audible/visual arc; save video evidence.

Segmented Testing Procedure

  1. Lay out 3 m × 3 m grid; label segments; upload plan photo and segment list for traceability.
  2. Sweep electrode at 0.3–0.6 m/s with 50 mm overlaps; maintain constant contact; capture short video showing technique.
  3. Keep ground clamp within 10 m of test zone to minimize signal loss; photo of placement per segment.
  4. Test edges and upturns at least 150 mm from terminations and penetrations; angle brush to avoid shadows; add close-up photos.
  5. Pause every 25 m² to confirm voltage drift within ±5% of set-point; log reading and battery status.
  6. Document start/finish time, operator initials, and segment ID; ensure 100% coverage acknowledged by second checker signature.

Defect Localization and Marking

  1. On arcing, stop and reduce voltage; use smaller brush to pinpoint within ±10 mm; upload photo with scale/ruler.
  2. Differentiate true pinhole from contact with embedded metal or wet debris; confirm repeatable signal only at defect; add video note.
  3. Mark defect with indelible marker and tag; record grid reference or GPS; capture wide and close photos.

Documentation, Repair Verification and Retest

  1. Create repair ticket detailing size (mm), location, and repair method per approved project specifications and authority requirements; log ticket ID.
  2. After repair, clean and dry area; verify moisture ≤5% and observe required cure time; attach moisture reading and timestamped photo.
  3. Retest repaired spot plus 300 mm perimeter at calibrated voltage; acceptance: no arcing; save video evidence.
  4. Update segment log with before/after media, materials batch numbers, and supervisor sign-off; export QR-authenticated report.

Preview the printable checklist

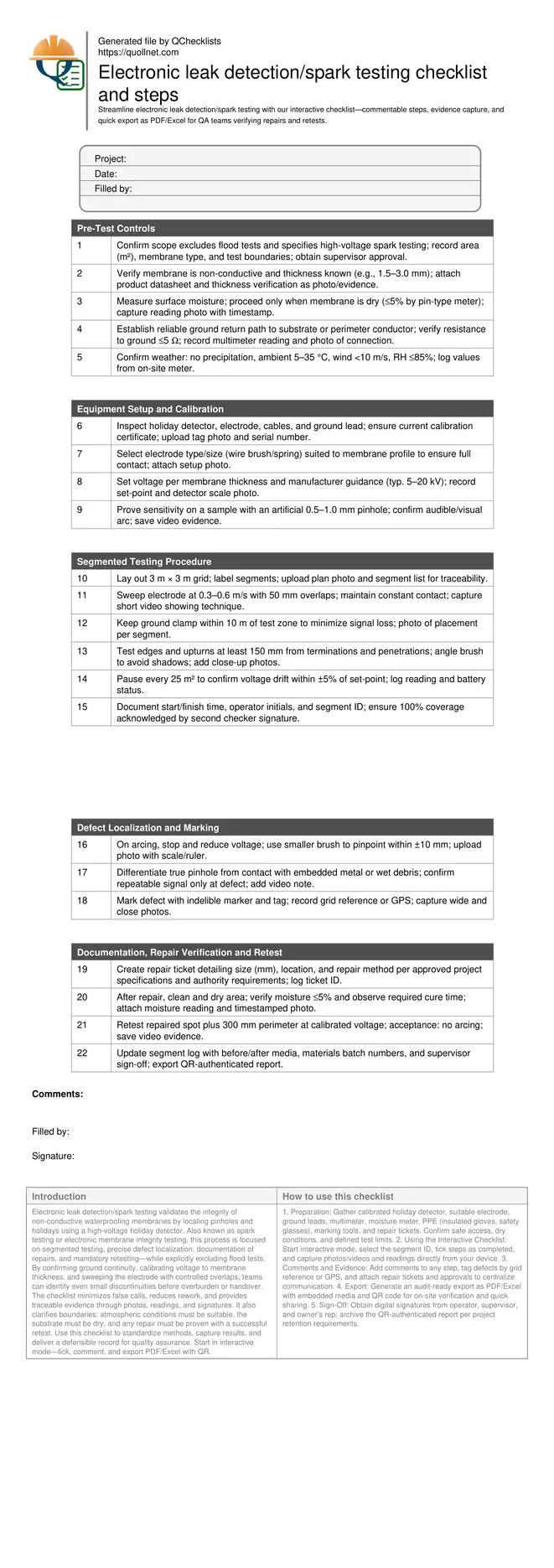

Preview page one below. Open the image or download the PDF for all pages.

First-page preview of the Electronic Leak Detection/Spark Testing printable checklist template.
Electronic Leak Detection/Spark Testing · Page 1 preview · Open image with all pages

At a glance

  • Apply calibrated high-voltage holiday detection to test defined membrane segments, maintain 50 mm overlaps, and verify ground continuity to avoid missed zones and nuisance arcs. Capture videos and photos with scales to support findings and reduce disputes during closeout.
  • Use structured logs to tie each detected pinhole to a repair ticket with size, location, materials used, installer, cure time, and retest result. Export traceable records so owners and inspectors can quickly confirm conformity and warranty readiness.
  • Interactive online checklist with tick, comment, and export features secured by QR code.
  • Control variables that drive accuracy: membrane thickness, electrode type, voltage set-point, relative humidity, surface moisture, and brush speed. Routine drift checks (±5%) and periodic proof tests against an artificial flaw ensure reliable detection without damaging compliant membranes.

How to Use This Electronic Leak Detection/Spark Testing Checklist

  1. Preparation: Gather calibrated holiday detector, suitable electrode, ground leads, multimeter, moisture meter, PPE (insulated gloves, safety glasses), marking tools, and repair tickets. Confirm safe access, dry conditions, and defined test limits.
  2. Using the Interactive Checklist: Start interactive mode, select the segment ID, tick steps as completed, and capture photos/videos and readings directly from your device.
  3. Comments and Evidence: Add comments to any step, tag defects by grid reference or GPS, and attach repair tickets and approvals to centralize communication.
  4. Export: Generate an audit-ready export as PDF/Excel with embedded media and QR code for on-site verification and quick sharing.
  5. Sign-Off: Obtain digital signatures from operator, supervisor, and owner’s rep; archive the QR-authenticated report per project retention requirements.

Voltage selection, grounding, and proving sensitivity

Accurate spark testing starts with the right voltage, dependable grounding, and a quick proof that the setup can see real defects without damaging sound membrane. Determine membrane thickness, then set the high-voltage holiday detector accordingly—typical ranges are 5–20 kV depending on thickness, texture, and manufacturer guidance. A stable return path is essential: clamp to a known ground or perimeter conductor and verify resistance ≤5 Ω. Environmental controls matter just as much; excessive humidity or surface moisture promotes nuisance arcs and missed flaws, so require a dry surface (≤5% moisture) and RH ≤85%. Before entering production, prove sensitivity on a sacrificial sample or edge offcut containing a small artificial flaw (0.5–1.0 mm). You should see a distinct audible/visual arc at the flaw and silence on sound membrane. Record the set-point, proof results, and photos of connections so anyone reviewing later can validate your setup and decisions.

  • Set voltage to suit thickness and texture.
  • Ground continuity verified at ≤5 Ω.
  • Surface moisture ≤5% and RH ≤85%.
  • Prove sensitivity on a known artificial flaw.
  • Record photos of setup and readings.

Segmented coverage with controlled sweep and overlaps

Breaking large areas into manageable segments reduces misses and speeds documentation. Mark a clear grid (for example, 3 m × 3 m) and assign IDs. Sweep the electrode at 0.3–0.6 m/s with 50 mm overlaps to guarantee coverage without overheating the surface. Keep the ground clamp within 10 m of the active segment and inspect cable routing to avoid trip hazards. Edges, inside/outside corners, and upturns are common leak paths; adjust electrode angle to maintain consistent contact at least 150 mm from terminations and around penetrations. Pause every 25 m² to verify voltage drift within ±5% and record battery status. Capture brief videos that show brush speed and overlaps—these clips are powerful evidence of compliance. Close out each segment by logging start/finish times and obtaining a second checker’s initials for accountability.

  • Grid segments and unique IDs aid traceability.
  • Sweep 0.3–0.6 m/s with 50 mm overlaps.
  • Clamp ground within 10 m of work area.
  • Test upturns and edges thoughtfully.
  • Drift checks within ±5% each 25 m².

Pinpointing defects, managing repairs, and confirming retests

When the detector arcs, slow down, drop voltage, and use a smaller brush to home in on the defect within ±10 mm. Confirm it is a true pinhole rather than contact with metal, wet debris, or an edge condition by reproducing the signal only at the suspect spot. Mark clearly with indelible ink and a physical tag, then create a repair ticket including grid reference, size, repair method, materials, and responsible installer. After repair, verify surface dryness (≤5% moisture) and observe cure time per approved project specifications and authority requirements. Retest the patch and a 300 mm perimeter at the calibrated voltage; acceptance is zero arcing. Finish by updating logs, attaching before/after media, noting lot numbers, and obtaining supervisor sign-off. Export the record so the client and inspector can authenticate results quickly.

  • Pinpoint within ±10 mm using reduced voltage.
  • Differentiate true pinhole from conductive contacts.
  • Log repair ticket with size and location.
  • Retest patch plus 300 mm perimeter.
  • Collect signatures and export report.

Lukas Jargensen's photo
Lukas Jargensen
8098
1099
20
42

Frequently asked questions

What membranes are suitable for electronic leak detection/spark testing?

Spark testing works on non-conductive membranes such as many bituminous, PVC, TPO, and liquid-applied coatings once cured. The substrate or a perimeter conductor must provide a return path. If the membrane is conductive or heavily contaminated with moisture, the method may be unreliable and an alternative approach may be needed.

How do I choose the correct test voltage without damaging the membrane?

Use the membrane thickness and manufacturer guidance to set voltage, typically between 5–20 kV. Prove the setting on a sample with a small artificial flaw; you should get a clean arc at the flaw and silence on intact areas. Recheck drift periodically and keep the brush moving to avoid heat build-up.

What weather limits apply to reliable spark testing?

Avoid testing during precipitation or when surfaces are wet. Keep ambient temperature between 5–35 °C, wind below 10 m/s, and relative humidity at or under 85%. Confirm surface moisture is ≤5% using a meter. These controls reduce nuisance arcing and false negatives, improving repeatability and safety.

How should repairs and retests be documented for closeout?

Create a repair ticket for each defect with size, location, materials, installer, and cure time. After the patch cures per approved project specifications and authority requirements, retest the repair plus a 300 mm perimeter. Save before/after photos or video, meter readings, and signatures, then export the QR-authenticated report.
