Comprehensive Curtain Wall Mock-Up Testing Inspection

Start Interactive

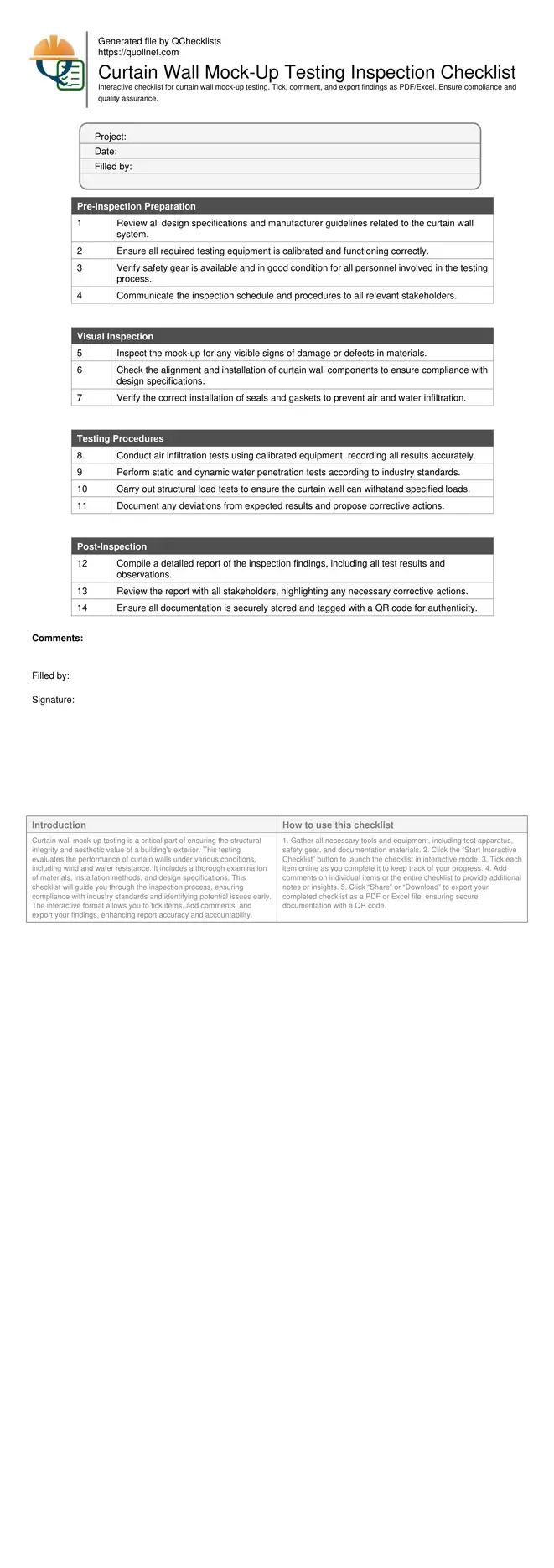

Checklist

Curtain wall mock-up testing is a critical part of ensuring the structural integrity and aesthetic value of a building's exterior. This testing evaluates the performance of curtain walls under various conditions, including wind and water resistance. It includes a thorough examination of materials, installation methods, and design specifications. This checklist will guide you through the inspection process, ensuring compliance with industry standards and identifying potential issues early. The interactive format allows you to tick items, add comments, and export your findings, enhancing report accuracy and accountability.

Ensure compliance with industry standards for structural integrity and aesthetic quality.
Identify potential issues with curtain wall performance early in the construction process.
Interactive online checklist with tick, comment, and export features secured by QR code.
Facilitate communication and accountability among project stakeholders with thorough documentation.

Pre-Inspection Preparation

1. Review all design specifications and manufacturer guidelines related to the curtain wall system.
2. Ensure all required testing equipment is calibrated and functioning correctly.
3. Verify safety gear is available and in good condition for all personnel involved in the testing process.
4. Communicate the inspection schedule and procedures to all relevant stakeholders.

Visual Inspection

5. Inspect the mock-up for any visible signs of damage or defects in materials.
6. Check the alignment and installation of curtain wall components to ensure compliance with design specifications.
7. Verify the correct installation of seals and gaskets to prevent air and water infiltration.

Testing Procedures

8. Conduct air infiltration tests using calibrated equipment, recording all results accurately.
9. Perform static and dynamic water penetration tests according to industry standards.
10. Carry out structural load tests to ensure the curtain wall can withstand specified loads.
11. Document any deviations from expected results and propose corrective actions.

Post-Inspection

12. Compile a detailed report of the inspection findings, including all test results and observations.
13. Review the report with all stakeholders, highlighting any necessary corrective actions.
14. Ensure all documentation is securely stored and tagged with a QR code for authenticity.

Understanding Curtain Wall Mock-Up Testing

Curtain wall mock-up testing simulates real-world conditions to verify the performance of curtain walls. This process is essential for detecting issues with water tightness, air infiltration, and structural stability before installation. Mock-ups are generally constructed on-site and tested under controlled conditions to ensure they meet design specifications and industry standards. The testing typically involves dynamic and static water penetration tests, air leakage tests, and structural load tests.

Simulate real-world conditions for accurate performance assessment.
Detect water tightness and air infiltration issues early.
Ensure compliance with structural stability standards.
Conduct tests on-site for precise results.

Key Steps in the Inspection Process

A successful curtain wall mock-up testing inspection requires detailed planning and execution. Key steps include reviewing design specifications, preparing test equipment, and conducting a series of tests. Each test should be documented meticulously to ensure accurate results. It is also essential to involve all relevant stakeholders in the inspection process, ensuring that any issues are addressed promptly and thoroughly.

Review design specifications before testing.
Prepare necessary test equipment in advance.
Document each test meticulously.
Involve stakeholders in the inspection process.

How to Effectively Use This Interactive Checklist

Gather all necessary tools and equipment, including test apparatus, safety gear, and documentation materials.
Click the “Start Interactive Checklist” button to launch the checklist in interactive mode.
Tick each item online as you complete it to keep track of your progress.
Add comments on individual items or the entire checklist to provide additional notes or insights.
Click “Share” or “Download” to export your completed checklist as a PDF or Excel file, ensuring secure documentation with a QR code.

Call to Action

Javier Rama SeismoJavi

Aug 22, 2025

411

109

FAQ

Question: What is the purpose of curtain wall mock-up testing?

Curtain wall mock-up testing evaluates the performance of curtain walls under simulated real-world conditions, ensuring they meet design specifications for water tightness, air infiltration, and structural stability.

Question: How often should curtain wall mock-up tests be conducted?

Mock-up tests should be conducted at the initial installation phase and any time significant design or material changes occur. Regular testing ensures ongoing compliance with industry standards.

Question: What are common issues detected during curtain wall mock-up testing?

Common issues include water leakage, air infiltration, and structural weaknesses. Early detection through mock-up testing allows for corrective measures before full-scale installation.
