Comprehensive As-Built Surveys and Dimensional Checks Inspection

Start Interactive
Checklist

As-built surveys and dimensional checks are critical processes in the construction industry, ensuring that the completed work aligns with the original design specifications. This inspection involves comparing the as-built conditions of a construction project with the planned drawings to identify any discrepancies. By conducting thorough dimensional checks, contractors can ensure quality control, compliance with standards, and avoid costly rework. This checklist is designed to facilitate a structured inspection process, allowing users to tick off items, leave comments, and export the completed report as a PDF or Excel file, secured with a QR code for authenticity.

Ensure alignment of construction work with design specifications to maintain structural integrity.
Identify discrepancies early to avoid costly rework and project delays.
Facilitate compliance with quality standards and regulatory requirements.
Interactive online checklist with tick, comment, and export features secured by QR code.

Pre-Inspection Preparation

1. Gather all relevant construction drawings and specifications for reference.
2. Ensure all necessary surveying equipment is calibrated and functional.
3. Review the project scope and identify critical areas for dimensional checks.

Initial Site Assessment

4. Conduct a visual inspection of the site to assess readiness for surveying.
5. Verify site conditions match the drawings, noting any discrepancies.
6. Identify and mark reference points for accurate measurement.

Dimensional Checks

7. Measure structural dimensions and compare them against drawings (tolerance: ±10 mm).
8. Check alignment of walls and partitions using a laser level.
9. Verify elevations using a total station and compare with specified heights.
10. Inspect door and window openings for correct placement and size.
11. Ensure all plumbing and electrical installations are positioned as per drawings.

Post-Inspection Review

12. Document all findings and discrepancies in the inspection report.
13. Discuss any major issues identified with the project manager.
14. Finalize the report and prepare it for review with stakeholders.
15. Ensure all digital records are organized and archived appropriately.

Importance of As-Built Surveys

As-built surveys play a pivotal role in the construction process. They ensure that the completed project aligns with the design plans, which is crucial for structural integrity and compliance with building codes. These surveys help identify deviations from the original design, allowing for timely corrections and minimizing potential risks associated with construction errors.

Ensure project aligns with design plans.
Identify and correct deviations promptly.
Maintain structural integrity and compliance.
Prevent potential construction errors.

Conducting Dimensional Checks

Dimensional checks are essential to verify that the physical dimensions of a construction project match the intended design. This process involves measuring various elements like walls, elevations, and installations to ensure they meet specified tolerances. Using accurate tools such as laser levels and total stations enhances the reliability of these checks.

Verify physical dimensions against design.
Measure walls, elevations, and installations.
Use laser levels and total stations.
Ensure compliance with specified tolerances.

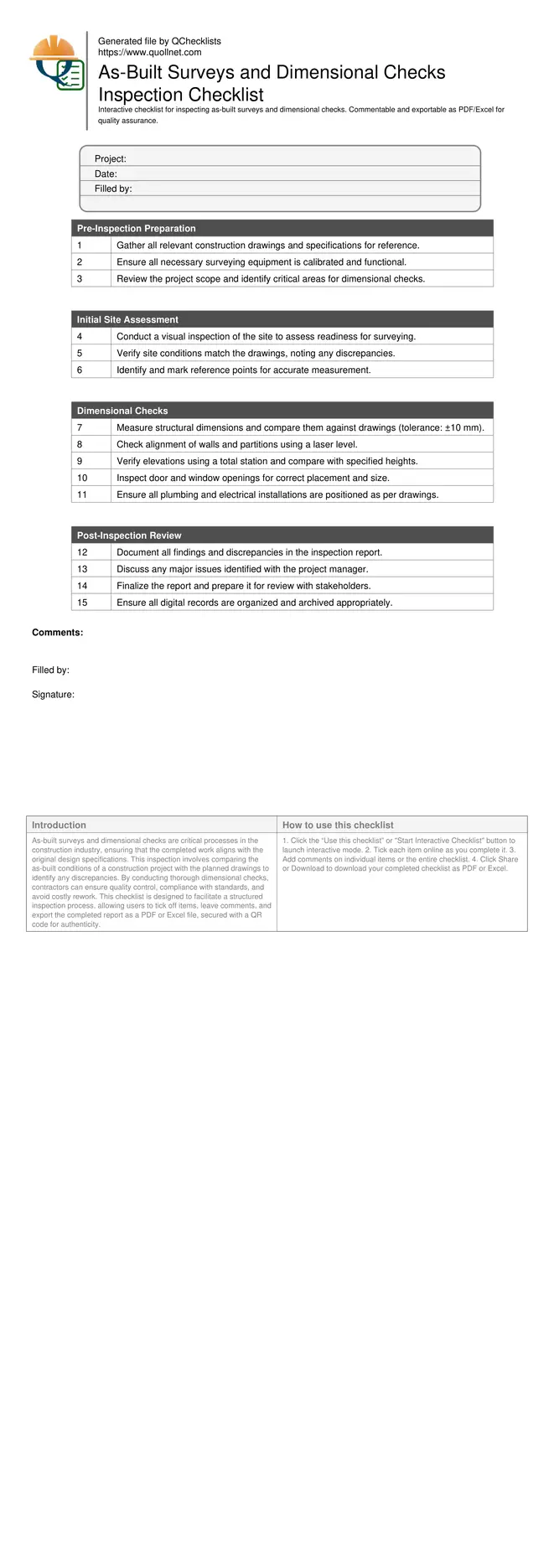

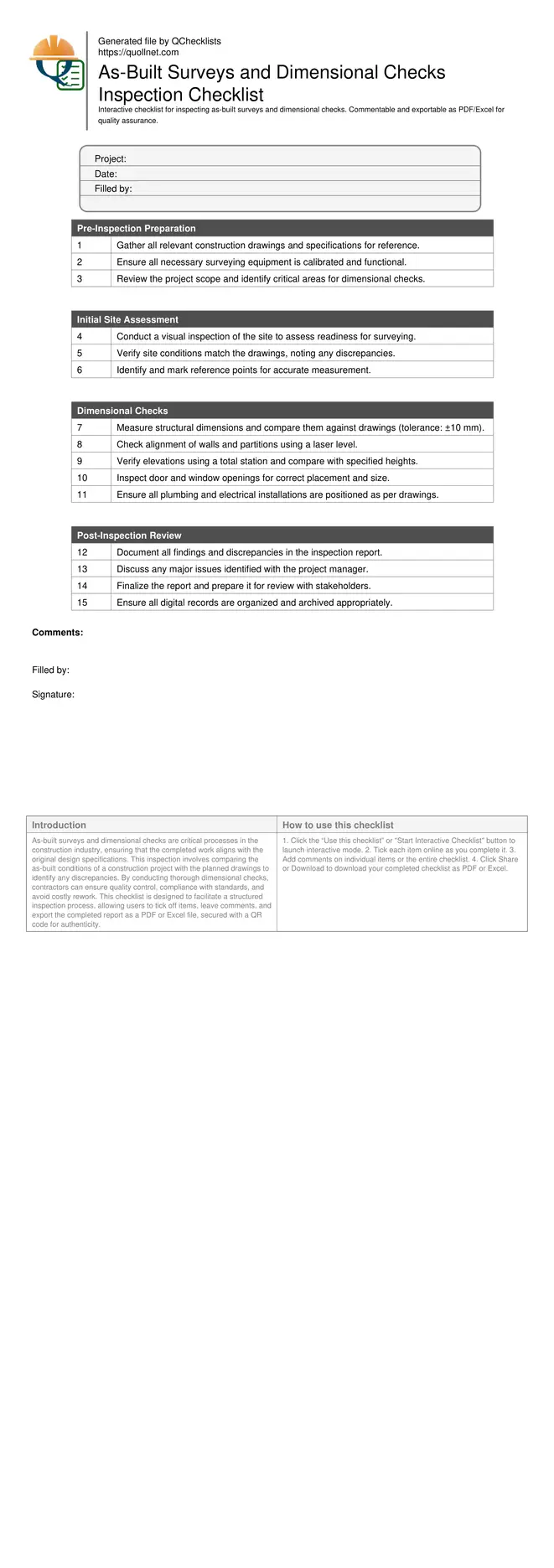

Using the As-Built Surveys and Dimensional Checks Interactive Checklist

Click the “Use this checklist” or "Start Interactive Checklist" button to launch interactive mode.
Tick each item online as you complete it.
Add comments on individual items or the entire checklist.
Click Share or Download to download your completed checklist as PDF or Excel.

Call to Action

Leila Haddad TransitLeila

Jul 24, 2025

324

FAQ

Question: What is an as-built survey?

An as-built survey captures the actual dimensions and positions of a completed construction, comparing them with the original design to identify any deviations.

Question: Why are dimensional checks important?

Dimensional checks ensure that the physical dimensions of a construction project match the intended design, maintaining structural integrity and compliance with standards.

Question: How do I document discrepancies during an inspection?

Note any discrepancies in the inspection report, detailing the location, nature, and potential impact, and discuss these with the project manager for corrective actions.

Question: What tools are essential for dimensional checks?

Essential tools include a laser level, total station, measuring tape, and calibrated surveying equipment for accurate measurement and verification.
