Post-installed Anchoring Systems Inspection and Testing

Post-installed anchoring systems are crucial components used in construction to secure structures and equipment. These systems, often made of steel, are embedded into concrete or masonry to provide resistance against loads. This checklist covers the inspection of these anchoring systems and the pull-out testing procedure, ensuring they are adequately installed and capable of withstanding specified forces. Effective inspection and testing help prevent structural failures, ensuring safety and compliance with industry standards. Users can interact with this checklist by ticking off items, adding comments, and exporting the report as PDF or Excel, complete with a QR code for authentication.

Post-installed Anchoring Systems Inspection Checklist

The checklist

Preparation and Initial Inspection

  1. Verify the anchoring system specifications against the project requirements.
  2. Ensure all necessary documentation is available and reviewed before inspection.
  3. Inspect the surrounding material for any signs of damage or unsuitability.
  4. Confirm the anchor type and size match the design specifications.
  5. Ensure the site is safe and clear of unnecessary personnel during inspection.

Physical Anchor Inspection

  1. Check for visible signs of corrosion or damage on the anchors.
  2. Measure the embedment depth to verify compliance with specifications.
  3. Examine anchor alignment and spacing for any deviations.
  4. Assess the condition of washers and nuts for integrity and tightness.
  5. Ensure the anchor is free of any applied loads before testing.

Pull-Out Testing Procedure

  1. Set up the pull-out test rig according to manufacturer instructions.
  2. Calibrate the testing equipment to ensure accurate results.
  3. Apply load gradually and monitor readings until the anchor fails.
  4. Record the maximum load sustained by the anchor before failure.
  5. Compare test results with the design load requirements.

Post-Test Evaluation

  1. Document all findings and discrepancies noted during the inspection and testing.
  2. Prepare a comprehensive report outlining the test results and any corrective actions needed.
  3. Review and discuss the findings with the project team and stakeholders.
  4. Implement any necessary corrective actions and re-test if required.

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

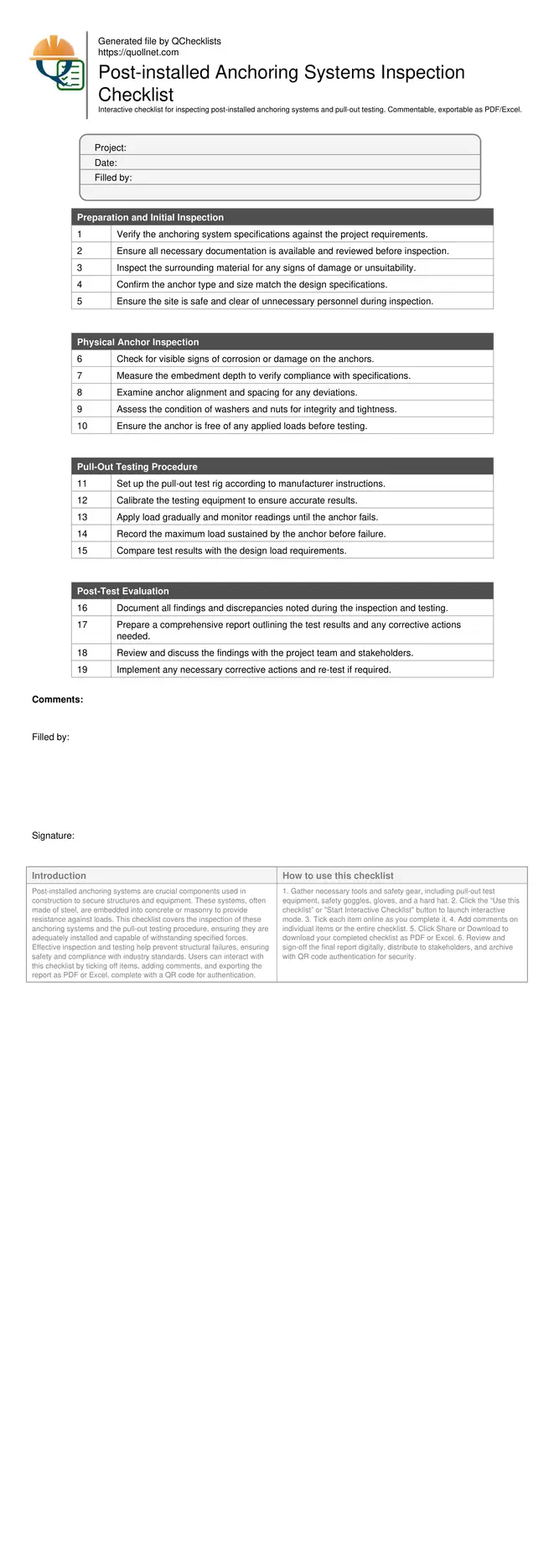

First-page preview of the Post-installed Anchoring Systems Inspection and Pull-out Testing printable checklist template.
Post-installed Anchoring Systems Inspection and Pull-out Testing · Page 1 preview · Open image with all pages

At a glance

  • Ensure the structural integrity of anchoring systems through thorough inspections and pull-out testing.
  • Identify potential installation issues early to prevent costly failures and enhance safety.
  • Interactive online checklist with tick, comment, and export features secured by QR code.
  • Improve compliance with industry standards for anchoring systems through systematic checks.

How to Use This Checklist

  1. Gather necessary tools and safety gear, including pull-out test equipment, safety goggles, gloves, and a hard hat.
  2. Click the “Use this checklist” or "Start Interactive Checklist" button to launch interactive mode.
  3. Tick each item online as you complete it.
  4. Add comments on individual items or the entire checklist.
  5. Click Share or Download to download your completed checklist as PDF or Excel.
  6. Review and sign-off the final report digitally, distribute to stakeholders, and archive with QR code authentication for security.

Understanding Anchoring Systems

Anchoring systems are designed to provide stability and support in construction projects. Proper installation is critical to their effectiveness. This involves ensuring that the anchors are installed to the correct depth and that the surrounding material is suitable for the intended load. Incorrect installation can lead to structural weaknesses.

  • Verify correct anchor depth.
  • Check suitability of surrounding materials.
  • Ensure anchors are free from corrosion.
  • Confirm anchor alignment and spacing.
  • Assess load requirements and specifications.

Conducting Pull-out Tests

Pull-out testing is a method used to assess the load-carrying capacity of anchors. This involves applying a controlled load to an anchor until it fails, which helps determine its maximum load capacity. It's essential to follow standardized procedures to ensure accurate results and maintain safety during testing.

  • Set up test equipment according to standards.
  • Apply load gradually to avoid sudden failure.
  • Record load at failure point.
  • Compare results with design specifications.
  • Ensure safety protocols are followed during testing.

Lukas Jargensen's photo
Lukas Jargensen
17784
2127
31
74

Frequently asked questions

How do I know if an anchoring system is installed correctly?

Check that the anchor is installed to the prescribed depth, aligned properly, and free from corrosion. Ensure that the surrounding material is suitable and meets design specifications.

What is the purpose of pull-out testing?

Pull-out testing assesses the load capacity of an anchor by applying a controlled force until failure. This helps verify that the anchor can withstand the specified loads and ensures safety.

Can I use this checklist for different types of anchors?

Yes, this checklist is designed to be adaptable for various post-installed anchoring systems, provided they meet industry standards and the specific requirements of your project.
