EV Charging Station Electrical Connections Inspection

Start Interactive
Checklist

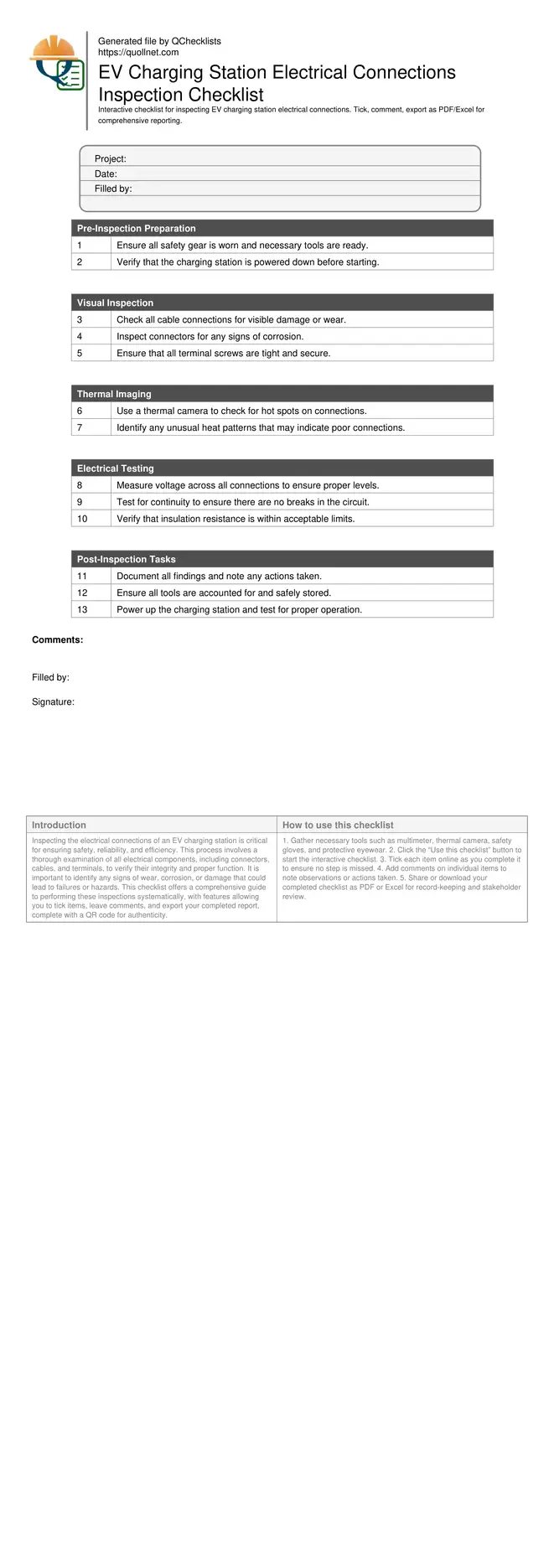

Inspecting the electrical connections of an EV charging station is critical for ensuring safety, reliability, and efficiency. This process involves a thorough examination of all electrical components, including connectors, cables, and terminals, to verify their integrity and proper function. It is important to identify any signs of wear, corrosion, or damage that could lead to failures or hazards. This checklist offers a comprehensive guide to performing these inspections systematically, with features allowing you to tick items, leave comments, and export your completed report, complete with a QR code for authenticity.

Ensure safety and efficiency by inspecting EV charging station electrical connections thoroughly.
Identify and address wear, corrosion, or damage early to prevent failures.
Comprehensive checklist ensures all components are checked systematically.
Interactive online checklist with tick, comment, and export features secured by QR code.

Pre-Inspection Preparation

1. Ensure all safety gear is worn and necessary tools are ready.
2. Verify that the charging station is powered down before starting.

Visual Inspection

3. Check all cable connections for visible damage or wear.
4. Inspect connectors for any signs of corrosion.
5. Ensure that all terminal screws are tight and secure.

Thermal Imaging

6. Use a thermal camera to check for hot spots on connections.
7. Identify any unusual heat patterns that may indicate poor connections.

Electrical Testing

8. Measure voltage across all connections to ensure proper levels.
9. Test for continuity to ensure there are no breaks in the circuit.
10. Verify that insulation resistance is within acceptable limits.

Post-Inspection Tasks

11. Document all findings and note any actions taken.
12. Ensure all tools are accounted for and safely stored.
13. Power up the charging station and test for proper operation.

Importance of Regular Inspections

Regular inspections of EV charging station electrical connections are essential to maintain operational efficiency and safety. Over time, electrical connections can degrade due to environmental factors or constant use, leading to potential malfunctions or safety hazards. Inspections help in identifying these issues before they escalate into serious problems.

Prevents unexpected downtimes.
Ensures user safety and compliance with standards.
Enhances the lifespan of the charging station.
Identifies potential electrical hazards early.
Maintains optimal charging performance.

Key Inspection Techniques

Effective inspection of electrical connections involves a variety of techniques to ensure comprehensive assessment. Visual inspections are fundamental, but advanced tools such as thermal imaging and multimeters provide deeper insights into the condition of electrical components. This approach helps in detecting invisible issues like overheating or electrical losses.

Use visual inspection to check for physical damage.
Deploy thermal imaging to detect overheating.
Utilize multimeters for accurate measurement of electrical performance.
Inspect connectors and terminals for corrosion.
Check cable insulation for wear or damage.

How to Use the EV Charging Station Inspection Checklist

Gather necessary tools such as multimeter, thermal camera, safety gloves, and protective eyewear.
Click the “Use this checklist” button to start the interactive checklist.
Tick each item online as you complete it to ensure no step is missed.
Add comments on individual items to note observations or actions taken.
Share or download your completed checklist as PDF or Excel for record-keeping and stakeholder review.

Call to Action

Amara Okafor Amara Okafor

Sep 03, 2025

146

FAQ

Question: What tools are needed for EV charging station inspections?

Essential tools include a multimeter, thermal imaging camera, safety gloves, and protective eyewear to ensure a thorough and safe inspection process.

Question: How often should EV charging station connections be inspected?

It's recommended to conduct inspections at least every six months or more frequently if the station is heavily used, to ensure safety and functionality.

Question: Can I perform inspections without professional help?

While basic inspections can be conducted, it's advisable to have a qualified electrician perform detailed checks to ensure all safety and technical standards are met.

Question: What are the signs of electrical connection issues?

Signs include visible wear, corrosion, overheating, strange noises, or electrical smell during operation. Address these immediately to prevent hazards.
