The checklist
Preparation and Setup
- Ensure all necessary tools and safety gear are available.
- Review the project specifications and inspection plans.
Visual Inspection
- Check for visible cracks in welds and bolts.
- Verify the alignment of steel components.
- Inspect for signs of corrosion or rust.
- Ensure all bolts are properly tightened.
NDT Methods
- Conduct ultrasonic testing on critical welds.
- Perform magnetic particle testing for surface and near-surface flaw detection.
- Use radiographic testing to inspect internal weld quality.
Documentation
- Record findings and note any defects or issues.
- Photograph any defects or areas of concern.
- Compile a detailed inspection report.
Review and Sign-off
- Review the completed checklist and inspection report.
- Have a qualified inspector sign off on the report.

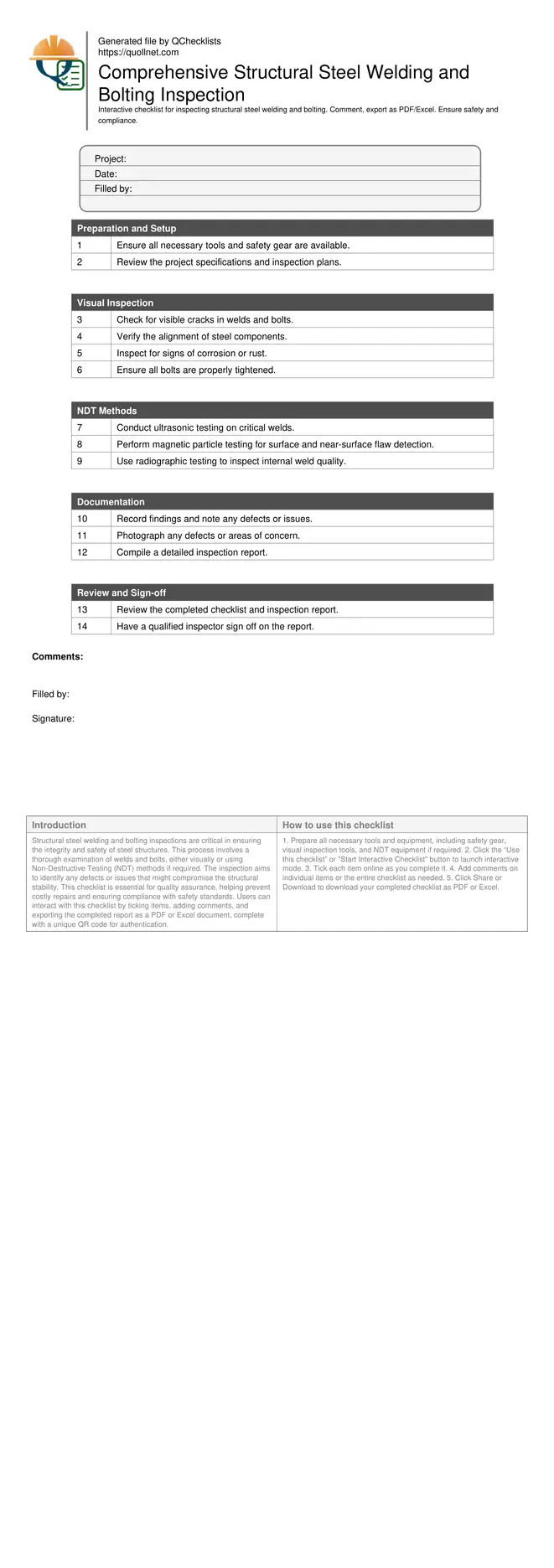

Preview the printable checklist
Preview page one below. Open the image or download the PDF for all pages.
At a glance
- Ensure structural integrity by conducting thorough welding and bolting inspections.
- Identify defects early with detailed visual checks and NDT when necessary.
- Maintain compliance with safety standards, avoiding costly repairs.
- Interactive online checklist with tick, comment, and export features secured by QR code.
How to Use the Structural Steel Welding and Bolting Inspection Checklist
- Prepare all necessary tools and equipment, including safety gear, visual inspection tools, and NDT equipment if required.
- Click the “Use this checklist” or "Start Interactive Checklist" button to launch interactive mode.
- Tick each item online as you complete it.
- Add comments on individual items or the entire checklist as needed.
- Click Share or Download to download your completed checklist as PDF or Excel.
Importance of Visual Inspections
Visual inspections are the first line of defense in identifying potential issues in structural steel welding and bolting. It involves checking for visible defects such as cracks, misalignments, and corrosion. By conducting regular visual checks, inspectors can catch problems early and avoid more extensive damage. Additionally, this method is quick and cost-effective, making it a preferred choice in many scenarios.
- Identify visible defects like cracks and misalignments.
- Catch issues early to prevent extensive damage.
- Cost-effective and quick method for regular checks.
- Essential for maintaining structural safety.
When to Use Non-Destructive Testing (NDT)
Non-Destructive Testing (NDT) is crucial when visual inspections are insufficient. NDT methods provide a deeper insight into the integrity of welds and bolts without causing damage. Techniques such as ultrasonic testing, radiography, and magnetic particle testing are used to detect internal flaws. These methods are essential for ensuring the safety and reliability of critical structures.
- Use when visual inspection is insufficient.
- Detects internal flaws without causing damage.
- Includes ultrasonic, radiography, and magnetic particle testing.
- Ensures the safety and reliability of structures.
