Comprehensive Site Survey and Layout Benchmark Inspection

The site survey and layout benchmark inspection is a crucial preparatory phase in construction projects. It involves verifying the accuracy of the site's initial survey and the placement of layout benchmarks before any physical work begins. This step ensures that the project aligns with design specifications and prevents costly errors and delays. This checklist provides a comprehensive guide to inspecting various aspects of site surveys and benchmarks, helping professionals ensure quality and compliance. Users can interact with this checklist online, ticking off items, adding comments, and exporting the report as a PDF or Excel file, complete with QR code authentication for traceability.

Site Survey and Layout Benchmark Inspection Checklist

The checklist

Pre-Inspection Preparation

  1. Gather all survey plans, maps, and layout drawings for the site.
  2. Ensure all necessary surveying equipment is calibrated and ready for use.
  3. Review the site access and safety protocols with the team.

Survey Data Verification

  1. Check that all survey data aligns with the project's design specifications.
  2. Verify the accuracy of topographical maps and elevations.
  3. Confirm the coordinates of key points using GPS or total stations.

Layout Benchmark Examination

  1. Inspect the physical markers and stakes for correct placement.
  2. Measure distances between benchmarks and compare them to the plans.
  3. Ensure benchmarks are stable and protected from potential disturbances.

Site Condition Assessment

  1. Evaluate the site's current condition for any changes since the survey.
  2. Check for any obstructions or environmental changes that could affect construction.
  3. Document any discrepancies or issues found during the inspection.

Final Review and Reporting

  1. Compile all inspection data and prepare a detailed report.
  2. Share the inspection report with relevant stakeholders for review.
  3. Archive the report and survey data for future reference and compliance.

Preview the printable checklist

Preview page one below. Open the image or download the PDF for all pages.

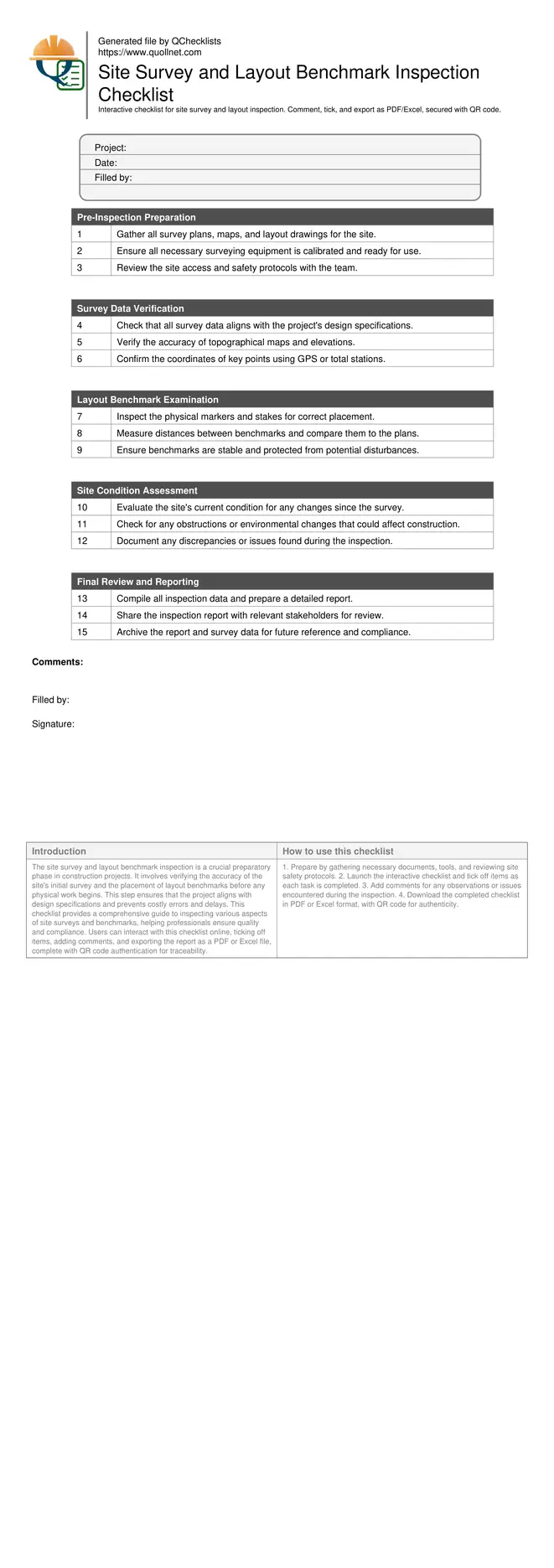

First-page preview of the Site Survey and Layout Benchmark Inspection printable checklist template.
Site Survey and Layout Benchmark Inspection · Page 1 preview · Open image with all pages

At a glance

  • Ensure accurate site setup with a detailed inspection of survey data and layout benchmarks.
  • Prevent costly construction errors by validating the accuracy of initial site measurements.
  • Interactive online checklist with tick, comment, and export features secured by QR code.
  • Guarantee compliance with design specifications through thorough benchmark verification.

Using the Site Survey and Layout Benchmark Checklist

  1. Prepare by gathering necessary documents, tools, and reviewing site safety protocols.
  2. Launch the interactive checklist and tick off items as each task is completed.
  3. Add comments for any observations or issues encountered during the inspection.
  4. Download the completed checklist in PDF or Excel format, with QR code for authenticity.

Understanding the Importance of Site Surveys

Site surveys form the foundation of any construction project. They provide critical data about the site's topography and layout, which are essential for planning and design. Ensuring the accuracy of these surveys is vital to avoid misalignments and project delays.

  • Accurate surveys prevent costly construction errors.
  • They ensure compliance with design specifications.
  • Surveys help in identifying potential site challenges early on.

Best Practices for Layout Benchmark Checking

Layout benchmarks are physical markers that guide the construction process. Checking these benchmarks involves verifying their placement and stability. This ensures that the construction follows the planned design accurately.

  • Use calibrated equipment for measuring benchmarks.
  • Regularly check benchmarks for disturbances.
  • Ensure all benchmarks align with the project design.

Tariq Malik's photo
MetroMasterTariq
65107
5175
67
145

Frequently asked questions

How do I verify the accuracy of the site survey?

Use calibrated equipment to check the site data against design specifications and topographical maps. Ensure coordinates are verified with GPS or total stations for precision.

What should I do if a benchmark is misplaced?

Immediately document the issue and realign the benchmark according to the plans. Update the inspection report and notify the project manager to prevent future errors.

Why is it important to check site conditions before starting work?

Checking site conditions ensures there are no changes that could impact construction, such as obstructions or environmental changes, maintaining alignment with the project plan.
