High-Strength Grout Placement Inspection

Start Interactive

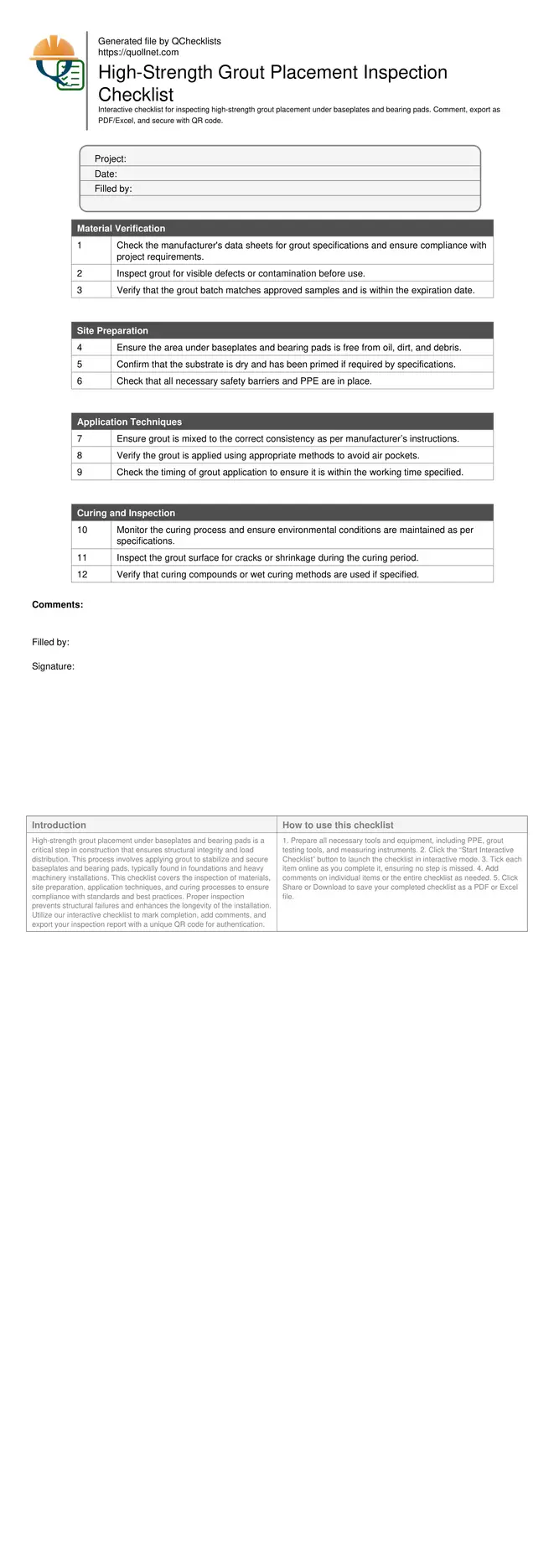

Checklist

High-strength grout placement under baseplates and bearing pads is a critical step in construction that ensures structural integrity and load distribution. This process involves applying grout to stabilize and secure baseplates and bearing pads, typically found in foundations and heavy machinery installations. This checklist covers the inspection of materials, site preparation, application techniques, and curing processes to ensure compliance with standards and best practices. Proper inspection prevents structural failures and enhances the longevity of the installation. Utilize our interactive checklist to mark completion, add comments, and export your inspection report with a unique QR code for authentication.

Ensure structural integrity by inspecting grout application under baseplates and bearing pads.
Avoid costly repairs by verifying compliance with industry standards and best practices.
Optimize inspection workflow with our interactive checklist, complete with comment and export features.
Secure each inspection report with QR code authentication for traceability and record-keeping.

Material Verification

1. Check the manufacturer's data sheets for grout specifications and ensure compliance with project requirements.
2. Inspect grout for visible defects or contamination before use.
3. Verify that the grout batch matches approved samples and is within the expiration date.

Site Preparation

4. Ensure the area under baseplates and bearing pads is free from oil, dirt, and debris.
5. Confirm that the substrate is dry and has been primed if required by specifications.
6. Check that all necessary safety barriers and PPE are in place.

Application Techniques

7. Ensure grout is mixed to the correct consistency as per manufacturer’s instructions.
8. Verify the grout is applied using appropriate methods to avoid air pockets.
9. Check the timing of grout application to ensure it is within the working time specified.

Curing and Inspection

10. Monitor the curing process and ensure environmental conditions are maintained as per specifications.
11. Inspect the grout surface for cracks or shrinkage during the curing period.
12. Verify that curing compounds or wet curing methods are used if specified.

Understanding Grout Properties

High-strength grout must meet specific performance criteria, including compressive strength, flowability, and shrinkage characteristics. It is essential to verify that the grout used matches the project specifications and is suitable for the environmental conditions of the site. Inspectors should be familiar with the manufacturer's data sheets and testing reports.

Check compressive strength requirements.
Verify flowability for proper placement.
Review shrinkage characteristics.
Confirm environmental suitability.
Examine manufacturer's data sheets.

Site Preparation and Safety

Proper site preparation is crucial for successful grout placement. The area under baseplates and bearing pads must be clean, dry, and free of debris. Safety protocols must be in place to protect workers and ensure a smooth inspection process. Inspectors should verify that all necessary personal protective equipment (PPE) is used and that safety barriers are installed.

Ensure area is clean and dry.
Verify all debris is removed.
Confirm PPE usage.
Install safety barriers.
Check clear access to work area.

Application Techniques

The correct application of grout is vital to ensure its effectiveness. Inspectors should verify that the grout is mixed according to the manufacturer's instructions and that the placement follows the specified procedures. It's important to monitor the timing and method of application to prevent issues such as air voids and uneven distribution.

Mix grout as per instructions.
Apply grout using correct methods.
Monitor timing of application.
Prevent air voids formation.
Ensure even grout distribution.

Using the High-Strength Grout Placement Inspection Checklist

Prepare all necessary tools and equipment, including PPE, grout testing tools, and measuring instruments.
Click the “Start Interactive Checklist” button to launch the checklist in interactive mode.
Tick each item online as you complete it, ensuring no step is missed.
Add comments on individual items or the entire checklist as needed.
Click Share or Download to save your completed checklist as a PDF or Excel file.

Call to Action

Lukas Jargensen

Jul 15, 2025

FAQ

Question: How do I ensure the grout meets the required specifications?

Review the manufacturer's data sheets and testing reports to confirm the grout's compressive strength, flowability, and shrinkage characteristics meet the project's requirements.

Question: What safety measures should be taken during inspection?

Ensure all workers wear appropriate PPE, and install safety barriers around the work area. Verify the site is clean, dry, and free of debris before starting the inspection.

Question: How can I prevent air voids during grout application?

Follow the manufacturer's mixing instructions carefully and apply grout using the specified techniques. Monitor the timing and method of application to ensure even distribution and coverage.
