Benchmark and Control Point Accuracy Verification

Start Interactive
Checklist

Benchmark and control point verification is a critical preparatory step in site works, ensuring that all subsequent construction activities are based on accurate reference points. This process involves checking the precision of established benchmarks and control points, which serve as foundational reference levels for all measurements on a construction site. Accurate verification of these points is vital to prevent costly errors and rework, ensuring the structural integrity and alignment of the project. This interactive checklist allows users to tick off tasks, add comments, and export a validated report in PDF or Excel format, complete with a QR code for authenticity.

Ensure precise measurements with accurate benchmark and control point verification, preventing costly construction errors.
Establish foundational reference points for site works, ensuring all construction activities align properly.
Interactive online checklist with tick, comment, and export features secured by QR code.
Streamline project workflow by verifying control points, enhancing structural integrity and alignment.

Preparation and Setup

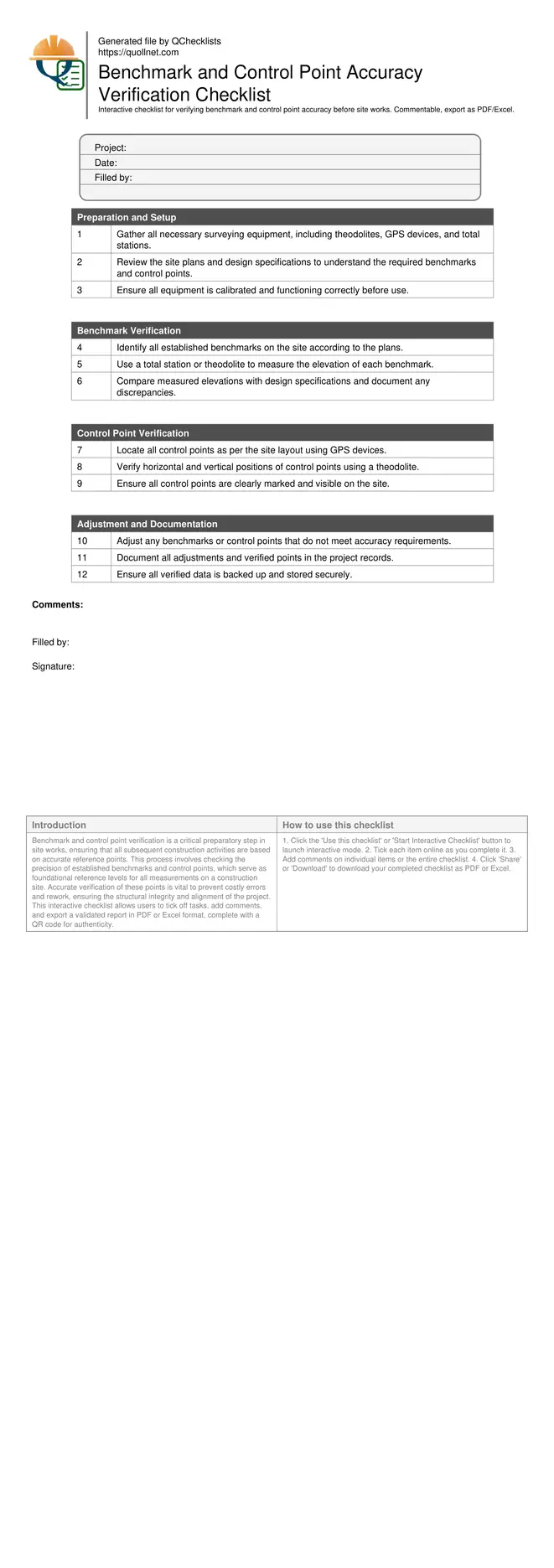

1. Gather all necessary surveying equipment, including theodolites, GPS devices, and total stations.
2. Review the site plans and design specifications to understand the required benchmarks and control points.
3. Ensure all equipment is calibrated and functioning correctly before use.

Benchmark Verification

4. Identify all established benchmarks on the site according to the plans.
5. Use a total station or theodolite to measure the elevation of each benchmark.
6. Compare measured elevations with design specifications and document any discrepancies.

Control Point Verification

7. Locate all control points as per the site layout using GPS devices.
8. Verify horizontal and vertical positions of control points using a theodolite.
9. Ensure all control points are clearly marked and visible on the site.

Adjustment and Documentation

10. Adjust any benchmarks or control points that do not meet accuracy requirements.
11. Document all adjustments and verified points in the project records.
12. Ensure all verified data is backed up and stored securely.

Understanding Benchmark and Control Points

Benchmarks and control points are essential in construction, serving as standard reference levels for all site measurements. Properly established benchmarks ensure that all site works are aligned and constructed to the correct specifications. These points are typically marked by physical features or established using GPS technology. It's crucial to verify these points to maintain accuracy throughout the construction process.

Benchmarks are fixed reference points for elevation.
Control points guide horizontal and vertical positioning.
Verification prevents misalignment and construction errors.

The Importance of Accurate Verification

Verifying the accuracy of benchmarks and control points is essential to avoid discrepancies that can lead to significant structural issues. This verification process involves checking the precision of these points against design specifications and correcting any deviations before construction begins. Ensuring accuracy at this stage saves time and resources by preventing rework and ensuring that the project adheres to regulatory standards.

Accurate verification saves time and resources.
Prevents structural issues due to misalignment.
Ensures compliance with design specifications.

How to Use This Checklist

Click the 'Use this checklist' or 'Start Interactive Checklist' button to launch interactive mode.
Tick each item online as you complete it.
Add comments on individual items or the entire checklist.
Click 'Share' or 'Download' to download your completed checklist as PDF or Excel.

Start Interactive Checklist

Benchmark and Control Point Accuracy Verification

Call to Action

Esme Dubois Esme Dubois

Jul 26, 2025

246

FAQ

Question: How do I verify benchmark accuracy?

To verify benchmark accuracy, use precise surveying equipment to measure the benchmark against known reference points. Ensure the readings match the design specifications, and adjust as necessary to correct any deviations.

Question: What tools are needed for control point verification?

Essential tools for control point verification include a theodolite, total station, GPS equipment, and measuring tape. These tools help you accurately locate and verify control points on the site.

Question: Why is control point verification necessary before site works?

Control point verification ensures that all construction activities are based on accurate reference points, which is crucial for maintaining structural integrity, preventing costly errors, and ensuring compliance with design specifications.
